0-4RODIUS 2006.09
0000-00
GENERAL INFORMATION3) CIRCUIT IDENTIFICATION SYMBOL
Identification Symbol Meaning
C Connector
D Diode
Ef Fuse in engine room fuse & relay box
F Fuse in passenger room fuse box
G Ground
S Splice pack (Junction connector)
5) WIRING HARNESS COLOR IDENTIFICATION
Abbreviation Color Abbreviation Color
Br Brown Sb Sky Blue
G Green R Red
V Violet L Blue
P Pink Y Yellow
W White Gr Gray
Or Orange B Black
Lg Light Green M Maroon
6) HOW TO CHECK TERMINAL NUMBER OF CONNECTOR
Terminal number is given based on Female Terminal Male Connector ▶
ex) Terminal Number 4 of C901 connection -
Power supply No. Power supply condition
15<00690088009b009b008c009900a00047007d00960093009b0088008e008c0047004f0069005200500047009a009c00970097009300a000470090009500470070008e00950090009b0090009600950047007a009e0090009b008a008f004702c80076007502
c9004700880095008b004702c8007a007b02c90047004f0070>GN
1)
15A<00690088009b009b008c009900a00047007d00960093009b0088008e008c0047004f0069005200500047009a009c00970097009300a000470090009500470070008e00950090009b0090009600950047007a009e0090009b008a008f004702c80076007502
c90047004f0070006e0075004700590050>
15C<00690088009b009b008c009900a00047007d00960093009b0088008e008c0047004f0069005200500047009a009c00970097009300a000470090009500470070008e00950090009b0090009600950047007a009e0090009b008a008f004702c80076007502
c9004700880095008b004702c80068006a006a02c9>
30 Battery Voltage (B+) supply directly regardless of Ignition Switch
31 Ground connected to battery (-)
58Battery Voltage (B+) supply in Head Lamp Switch 1st and 2nd step
(Illumination circuit)4) FUNCTION OF POWER SUPPLY LINE (NUMBER)

0-5
GENERAL INFORMATION
RODIUS 2006.09
0000-00
7) PART LOCATION ACCORDING TO PART NUMBER
Ex.) C 1 0 2 ▶
C : Symbol character for connector -
Symbol Character Description
C Connector (Connecting part that connects two wiring harness)
D Diode
G Ground
S Splice pack (Joint connector that connects various wiring harness)
1 : Part location number -
Part number according to locating section -
Part Numbe Location
□ 1□□Engine compartment
□ 2□□Instrument panel
□ 3□□Passenger compartment
□ 4□□Tailgate
□ 9□□Underbody
In the locating section, the assignment for part numbe
r
startsfrom left bottom and proceeds clockwise.
In the fuse and relay box or the instrument panel, the
partnumber is assigned from left top to light bottom. -
-
8) ELECTRIC SYMBOLS

POWER DISTRIBUTION8410-02/8410-05/8410-04
POWER DISTRIBUTION
FUSE/RELAY8410-02 ENGINE ROOM FUSE ＆
RELAY BOX.................................
8410-05 I.P FUSE ＆ ICM BOX
(IP RELAY BOX)...........................ELECTRICITY DIVIDE8210-02 ENG ROOM FUSE BOX...............
8410-04 I.P FUSE BOX..............................3
4
6
10

0-3
POWER DISTRIBUTION
RODIUS 2006.09
8410-02
FUSE ＆ RELAY8410-02
ENGINE ROOM FUSE ＆ RELAY BOX
1) FRONT
2) REAR

0-4RODIUS 2006.09
8410-05
POWER DISTRIBUTION8410-05
I.P FUSE ＆ ICM BOX (IP RELAY BOX)
1) FUSE BOX2) POWER SUPPLY
3) ICM BOX
4) ICM BOX (POWER SUPPLY)(1) C203

0-6RODIUS 2006.09
8410-02

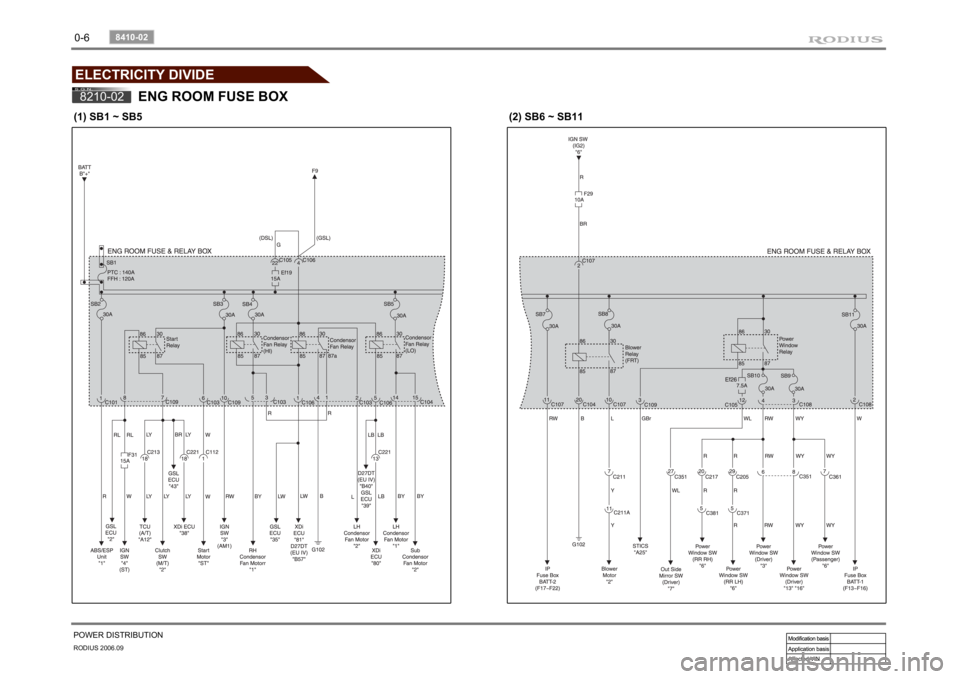

POWER DISTRIBUTIONELECTRICITY DIVIDE8210-02
ENG ROOM FUSE BOX
(1) SB1 ~ SB5
(2) SB6 ~ SB11

0-10RODIUS 2006.09
8410-04
POWER DISTRIBUTION8410-04
I.P FUSE BOX
(1) F1 ~ F5
(2) F6 ~ F12

0-26
RODIUS 2006.09
0000-00
ENGINE GENERAL
▶Engine Compartment Layout
Engine assembly
Engine oil dipstick
Vacuum pump
Oil filter and cooler
Fuel filter and priming pump
Brake booster
Brake oil tank
AQGS unit
Washer fluid filler cap
Engine compartment fuse box
PTC relay box
Battery
Vacuum modulator (for VGT turbo charger) 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.FFH Assembly (Only for vehicle with FFH)
Power steering oil tank
Engine oil filler cap
Fan shroud
E-EGR Valve
High-capacity PCV oil separator
HFM sensor (6.0)
VGT turbo charger
Air cleaner housing
2Coolant surge tank
ABS/ESP HECU (Including TPMS function:
optional)
Exhaust gas FRT Temp. sensor (T3) 14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
