2007 SSANGYONG RODIUS Service Manual

0-33
ENGINE GENERAL
RODIUS 2006.09
0000-00
4) Lubrication System

0-34
RODIUS 2006.09
0000-00
ENGINE GENERAL
5) Cooling System

0-35
ENGINE GENERAL
RODIUS 2006.09
0000-00
6) Intake System

0-36
RODIUS 2006.09
0000-00
ENGINE GENERAL
7) Exhaust System

0-3
ENGINE FUEL SYSTEM
RODIUS 2006.09
0000-00
1881-09ENGINE FUEL SYSTEM
MAJOR CHANGES IN FUEL SYSTEM OF D27DTP
(POWER UP) ENGINE 1.
There are some changes in the parts related to the fuel system due to the newly adopted
D27DTP (POWER UP) engine. The major changes are as follows. Refer to the next pages fo
r
further details.
1) Injector
Two nozzle holes are added (currently 7)
to the tip of the injector to increase the
amount of fuel injection and to improve
injection efficiency according to the
increased engine power.
The existing C2I coding (16 digits) is
changed to C3I coding (20 digits) to
monitor fuel injection and follow the
target value.
For the D27DT engine, the injector MDP
(minumum current for the solenoid in the
injector to lift the nozzle) is leaned only
when the engine is running. However, fo
r
the D27DTP engine, it is learned when
the vehicle is in motion and the engine is
at idle speed. ·
·
· D27DTP & D27DT (EU IV)
D27DT

0-4
RODIUS 2006.09
0000-00
ENGINE FUEL SYSTEM

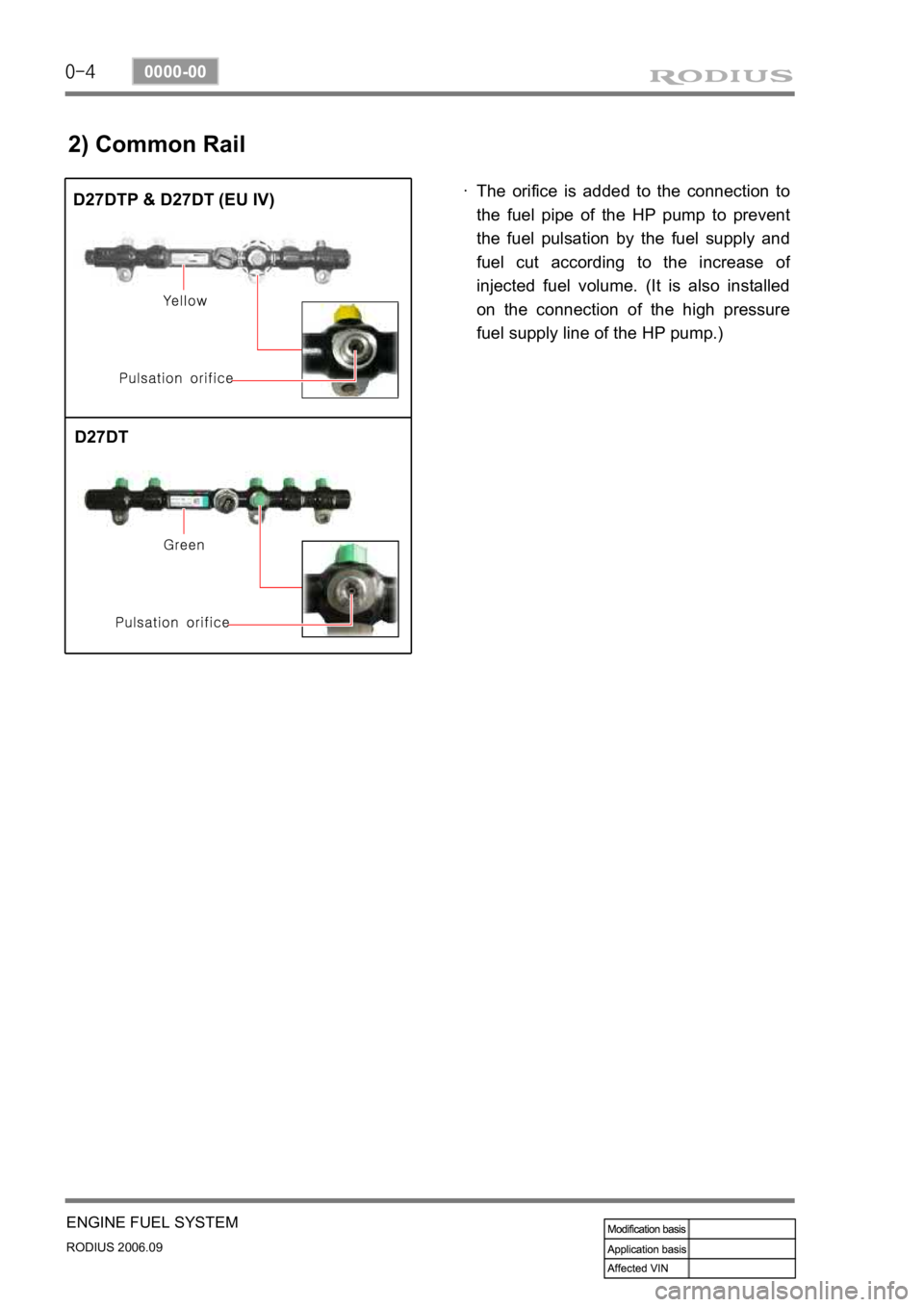

2) Common Rail
The orifice is added to the connection to
the fuel pipe of the HP pump to prevent
the fuel pulsation by the fuel supply and
fuel cut according to the increase o
f
injected fuel volume. (It is also installed
on the connection of the high pressure
fuel supply line of the HP pump.)
·
D27DTP & D27DT (EU IV)
D27DT

0-5
ENGINE FUEL SYSTEM
RODIUS 2006.09
0000-00
3) Fuel Rail - Chrome Color
D27DTP & D27DT (EU IV) * Fuel pipe (Common rail → Injector)
* Fuel high pressure pipe (HP pump →
　
Common rail)
D27DT * Fuel pipe (Common rail → Injector)
* Fuel high pressure pipe (HP pump →
Common rail) The I.D and O.D of the fuel rail between
HP pump and common rail are increased
according to the increased amount of fuel
injection.
Also, the engine ECU, HFM sensor and
EGR system are changed to control the
fuel injection volume and engine more
precisely.
·

0-6
RODIUS 2006.09
0000-00
ENGINE FUEL SYSTEM
2. COMPONENTS OF FUEL SYSTEM
