2007 SATURN VUE HYBRID Owners Manual

The passenger sensing system is designed to turn
off the right front passenger’s frontal airbag if:
The right front passenger seat is unoccupied.
The system determines that an infant is
present in a rear-facing infant seat.
The system determines that a small child is
present in a forward-facing child restraint.
The system determines that a small child is
present in a booster seat.
A right front passenger takes his/her weight off
of the seat for a period of time.
The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints.
Or, there is a critical problem with the airbag
system or the passenger sensing system.When the passenger sensing system has turned
off the right front passenger’s frontal airbag, the off
indicator on the instrument panel will light and
stay lit to remind you that the airbag is off.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child
restraint following the child restraint manufacturer’s
directions and refer toSecuring a Child Restraint in
the Right Front Seat Position on page 69.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the
child restraint into the seat cushion. If this happens,
slightly recline the vehicle’s seatback and adjust the
seat cushion if possible. Also make sure the child
restraint is not trapped under the vehicle head
restraint. If this happens, adjust the head restraint.
89
ProCarManuals.com

If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the vehicle if
one is available and check with your retailer.
The passenger sensing system is designed to
enable (may inate) the right front passenger’s
frontal airbag anytime the system senses
that a person of adult size is sitting properly in the
right front passenger’s seat. When the passenger
sensing system has allowed the airbag to be
enabled, the on indicator will light and stay lit to
remind you that the airbag is active.
For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the right
front passenger’s frontal airbag, depending upon
the person’s seating posture and body build.
Everyone in your vehicle who has outgrown
child restraints should wear a safety belt
properly — whether or not there is an airbag for
that person.
If a person of adult-size is sitting in the right front
passenger’s seat, but the off indicator is lit,
it could be because that person is not sittingproperly in the seat. If this happens, turn the
vehicle off and ask the person to place the
seatback in the fully upright position, then sit
upright in the seat, centered on the seat cushion,
with the person’s legs comfortably extended.
Restart the vehicle and have the person remain in
this position for about two minutes. This will
allow the system to detect that person and then
enable the passenger’s airbag.
90
ProCarManuals.com

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
be wrong with the airbag system. If this
ever happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger’s seat
may not have the protection of the frontal
airbag. SeeAirbag Readiness Light on
page 165for more on this, including
important safety information.
A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers, seat heaters, and seat massagers,
can affect how well the passenger sensing system
operates. Remove any additional material from
the seat cushion before reinstalling or securing the
child restraint and before a small occupant,
including a small adult, sits in the passenger
position.You may want to consider not using seat covers
or other aftermarket equipment if your vehicle
has the passenger sensing system. SeeAdding
Equipment to Your Airbag-Equipped Vehicle
on page 93.
The passenger sensing system may suppress the
airbag deployment when liquid is soaked into
the seat. If this happens, the off indicator in the
passenger airbag status indicator and the airbag
readiness light on the instrument panel will be
lit. The system should resume normal operation
after the seat is allowed to dry. If the system
operates incorrectly after the seat has dried,
have your retailer check the system.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
91
ProCarManuals.com

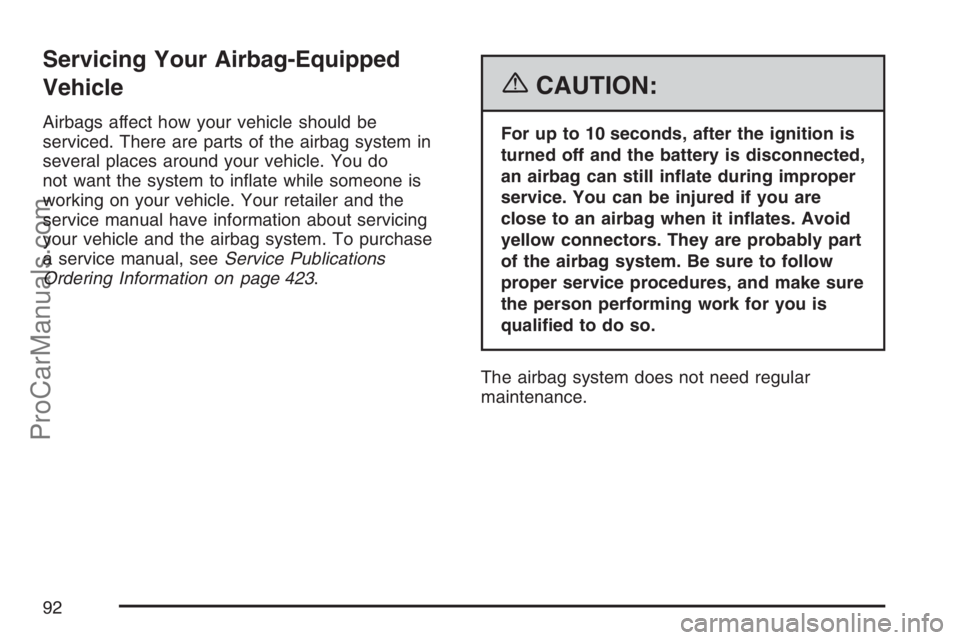

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your retailer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase
a service manual, seeService Publications
Ordering Information on page 423.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
qualied to do so.
The airbag system does not need regular
maintenance.
92
ProCarManuals.com

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors.
If you have any questions about this,
you should contact Customer Assistance
before you modify your vehicle. The phone
numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual.
SeeCustomer Satisfaction Procedure on
page 408.
Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, ceiling headliner, ceiling and
pillar garnish trim, roof-mounted airbag
modules, or airbag wiring can affect the
operation of the airbag system. If you have
questions, call Customer Assistance.
The phone numbers and addresses for
Customer Assistance are in Step Two of the
Customer Satisfaction Procedure in this
manual. SeeCustomer Satisfaction Procedure
on page 408.
93
ProCarManuals.com

Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors and anchorages are working properly.
Look for any other loose or damaged safety
belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it repaired. SeeCare of Safety Belts on page 373
for more information.
Torn or frayed safety belts may not protect you in
a crash. They can rip apart under impact forces.
If a belt is torn or frayed, get a new one right away.Also look for any opened or broken airbag
covers, and have them repaired or replaced.
The airbag system does not need regular
maintenance.
Notice:If you damage the covering for the
driver’s or the right front passenger’s airbag, or
the side impact airbag covering (if equipped) on
the ceiling near the side windows, the airbag
may not work properly. You may have to replace
the airbag module in the steering wheel, both
the airbag module and the instrument panel for
the right front passenger’s airbag, or side
impact airbag module and ceiling covering for
roof-mounted side impact airbags (if equipped.)
Do not open or break the airbag coverings.
94
ProCarManuals.com

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the person
using it, resulting in serious injury or even
death in a crash. To help make sure your
restraint systems are working properly after
a crash, have them inspected and any
necessary replacements made as soon
as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash, then
you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have
LATCH system, safety belt or seat parts repaired or
replaced. New parts and repairs may be necessary
even if the belt or LATCH system was not being
used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If the frontal airbags inate you will also need to
replace the driver and front passenger’s safety belt
retractor assembly. Be sure to do so. Then the new
retractor assembly will be there to help protect you
in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision, or if
your airbag readiness light stays on after you start
your vehicle or while you are driving. SeeAirbag
Readiness Light on page 165.
95
ProCarManuals.com

✍NOTES
96
ProCarManuals.com
