2007 SATURN VUE HYBRID Owners Manual

Programmable Automatic Unlocking
All the doors and liftgate will automatically unlock
when the shift lever is moved into PARK (P).
The unlocking feature can be programmed on or off
by turning the ignition to RUN, engine not running,
and pressing the unlock part of the power door lock
switch for eight seconds. The horn will chirp once
when this feature is on and twice when it is off.
Rear Door Security Locks
Your vehicle has rear door security locks that
prevent passengers from opening the rear doors
from the inside.
The rear door security
locks are located on the
inside edge of each
rear door.To set the rear door security locks, do the following:
1. Insert the key into the lock and turn it
counterclockwise (left) for the driver’s side and
clockwise (right) for the passenger’s side.
2. Close the door.
When you want to open a rear door when the
security lock is on, do the following:
1. Unlock the door using the remote keyless
entry transmitter, the power door lock
switch, or by lifting the rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the
following:
1. Unlock the door and open it from the outside.
2. Insert the key into the lock and turn it
clockwise (right) for the driver’s side
and counterclockwise (left) for the
passenger’s side.
105
ProCarManuals.com

Lockout Protection
If you press the power door lock switch when the
key is in the ignition and any door is open, all
the doors will lock and then the driver’s door will
unlock. Be sure to remove the key from the ignition
when locking your vehicle.
If the remote keyless entry transmitter is used to
lock the doors while the key is in the ignition,
a chime will sound three times. All doors will
then lock.
Liftgate
{CAUTION:
It can be dangerous to drive with the
liftgate open because carbon monoxide
(CO) gas can come into your vehicle.
You cannot see or smell CO. It can cause
CAUTION: (Continued)
CAUTION: (Continued)
unconsciousness and even death. If you
must drive with the liftgate open or if
electrical wiring or other cable
connections must pass through the seal
between the body and the liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle. See
Climate Control System on page 156.
If you have air outlets on or under the
instrument panel, open them all the
way. SeeEngine Exhaust on page 125.
Use your remote keyless entry transmitter or
power door lock switches to unlock the liftgate.
To open the liftgate, lift the handle located in the
center of the liftgate.
106
ProCarManuals.com

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by the
extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
107
ProCarManuals.com

Power Windows
The window switches
are located on each
side of the shift lever on
the center console.
To lower a window, press the switch down.
To raise a window, pull the switch up.
The power windows operate when the ignition is in
RUN or ACC.
A window switch is also located on each rear
door. Press the bottom of the switch to lower the
window. Press the top of the switch to raise
the window.
Express-Down Window
The driver’s window switch has an express-down
feature that is labeled AUTO. This allows the
driver’s window to open fully without having to
continuously press the switch. Press the switch to
the second position and the driver’s window will go
all the way down. To stop the window from
lowering, lift the switch all the way up and release it.
Window Lockout
The driver’s window switches also include a lockout
switch. Press the left side of the switch to prevent
rear passengers from using their window switches.
The driver can still control all the windows with the
lockout on. Press the right side of the window
lockout switch to return to normal window
operation.
Sun Visors
To block out glare swing the visors down or to the
side. The driver’s sun visor can be detached
from the center mount and slid along the rod to
block different areas of the front window.
Visor Vanity Mirrors
Your vehicle has covered visor vanity mirrors.
108
ProCarManuals.com

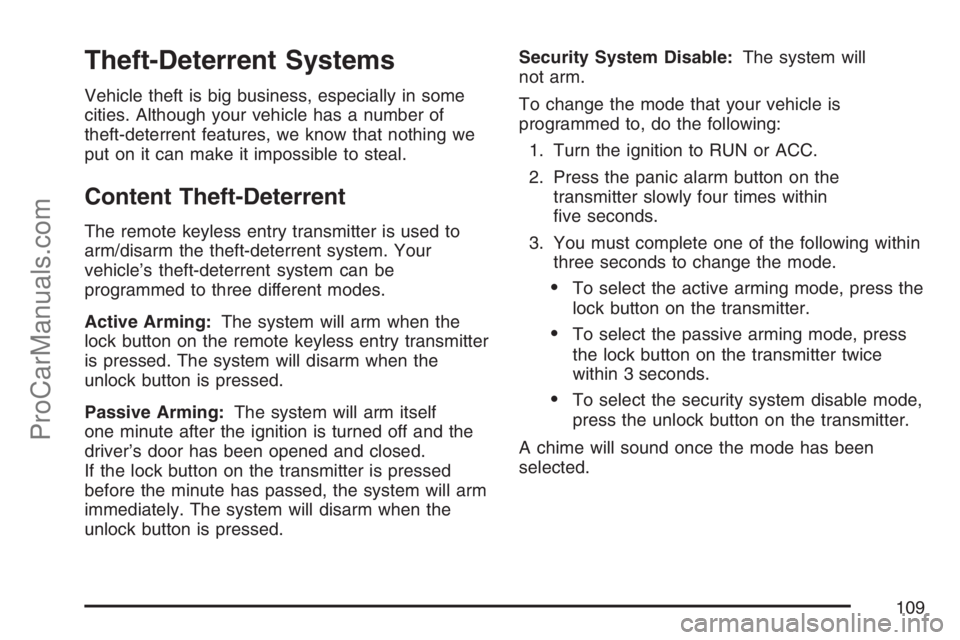

Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
The remote keyless entry transmitter is used to
arm/disarm the theft-deterrent system. Your
vehicle’s theft-deterrent system can be
programmed to three different modes.
Active Arming:The system will arm when the
lock button on the remote keyless entry transmitter
is pressed. The system will disarm when the
unlock button is pressed.
Passive Arming:The system will arm itself
one minute after the ignition is turned off and the
driver’s door has been opened and closed.
If the lock button on the transmitter is pressed
before the minute has passed, the system will arm
immediately. The system will disarm when the
unlock button is pressed.Security System Disable:The system will
not arm.
To change the mode that your vehicle is
programmed to, do the following:
1. Turn the ignition to RUN or ACC.
2. Press the panic alarm button on the
transmitter slowly four times within
ve seconds.
3. You must complete one of the following within
three seconds to change the mode.
To select the active arming mode, press the
lock button on the transmitter.
To select the passive arming mode, press
the lock button on the transmitter twice
within 3 seconds.
To select the security system disable mode,
press the unlock button on the transmitter.
A chime will sound once the mode has been
selected.
109
ProCarManuals.com

If you accidentally set off the alarm when
entering/exiting the vehicle, you can shut it off by
pressing any button on the remote keyless
entry transmitter other than the panic alarm button.
If you hear three horn chirps when you press
the unlock button on the transmitter, that means
the vehicle’s alarm was triggered while you
were away.
Passlock®
Your vehicle is equipped with the
Passlock®theft-deterrent system.
This light will come on
for the theft-deterent
system.Passlock
®is a passive theft-deterrent system.
Passlock®enables fuel if the ignition lock cylinder
is turned with a valid key. If a correct key is
not used or the ignition lock cylinder is tampered
with, fuel is disabled.
During normal operation, the security light will go
off approximately ve seconds after the key is
turned to RUN following an engine start.
If the engine stalls and the security light ashes,
wait until the light stops ashing before trying
to restart the engine. Remember to release the key
from START as soon as the engine starts.
If the engine is running and the security light
comes on, you will be able to restart the engine
if you turn the engine off. However, your
Passlock
®system is not working properly and
must be serviced by your retailer. Your vehicle is
not protected by Passlock
®at this time. You may
also want to check the fuses, seeFuses and
Circuit Breakers on page 380. See your retailer for
service. Also, seeRoadside Assistance Program
on page 413for more information.
110
ProCarManuals.com

Starting and Operating
Your Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better in
the long run if you follow these guidelines:
Do not drive at any one constant speed,
fast or slow, for the rst 500 miles
(805 km). Do not make full-throttle starts.
Avoid downshifting to brake, or slow,
the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
your new brake linings are not yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every time
you get new brake linings.
Do not tow a trailer during break-in. See
Towing a Trailer on page 274for the trailer
towing capabilities of your vehicle and more
information.
Following break-in, engine speed and load can
be gradually increased.
Ignition Positions
With the key in the
ignition switch, you can
turn it to four different
positions. A warning
tone will sound if
you open the driver’s
door when the key
has not been removed
from the ignition.
9(LOCK):This position locks your steering
column. It is a theft-deterrent feature. You will only
be able to remove your key when the ignition is
turned to LOCK.
The ignition switch cannot be turned to LOCK
unless the shift lever is in PARK (P).
Notice:Using a tool to force the key from the
ignition switch could cause damage or break
the key. Use the correct key and turn the key
only with your hand. Make sure the key is all the
way in. If it is, turn the steering wheel left and
right while you turn the key hard. If none of this
works, then your vehicle needs service.
111
ProCarManuals.com

ACC (Accessory):This position operates some
of your electrical accessories. It unlocks the
steering wheel and ignition.
R(RUN):This is the position the switch returns
to after you start your engine and release the
switch. The switch stays in RUN when the engine
is running. But even when the ignition is not
running, you can use RUN to operate your
electrical accessories and to display some warning
and indicator lights.
The battery could be drained if you leave the key
in the ACC or RUN position with the engine
off. You may not be able to start your vehicle if
the battery is allowed to drain for an extended
period of time.
/(START):This position starts the engine.
When the engine starts, release the key.
The ignition switch will return to RUN for
normal driving.
Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime will sound, when you open the driver’s
door. Always remember to remove your key from
the ignition and take it with you. This will lock
your ignition and transaxle. Also, always remember
to lock the doors.
The battery could be drained if you leave the key
in the ignition while your vehicle is parked.
You may not be able to start your vehicle after it
has been parked for an extended period of time.
112
