2007 SATURN VUE HYBRID Owners Manual

4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
73
ProCarManuals.com

ls
6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.8. If the airbag is off, the off indicator on the
instrument panel will be lit and stay lit
when the key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the
child restraint from the vehicle and reinstall
the child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the vehicle if
one is available and check with your retailer.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it go
back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.
74
ProCarManuals.com

Airbag System
Your vehicle has a frontal airbag for the driver and
a frontal airbag for the right front passenger.
Your vehicle may also have roof-mounted side
impact airbags designed for either side impact or
rollover deployment. Roof-mounted side impact
airbags are available for the driver and the
passenger seated directly behind the driver and
for the right front passenger and the passenger
seated directly behind that passenger.
If your vehicle has roof-mounted side impact
airbags, the words AIR BAG will appear on the
airbag covering on the ceiling near the driver’s and
right front passenger’s window.
Even if you have no right front passenger seat in
your vehicle there is still an active frontal airbag
in the right side of the instrument panel. Do not
place cargo in front of this airbag.{CAUTION:
Be sure that cargo is not near an airbag.
In a crash, an inating airbag might force
that object toward a person. This could
cause severe injury or even death.
Secure objects away from the area in
which an airbag would inate. For more
information, seeWhere Are the Airbags?
on page 78andLoading Your Vehicle on
page 264.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inating bag, all
airbags must inate very quickly to do their job.
75
ProCarManuals.com

Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts but do not
replace them.
Frontal airbags for the driver and right
front passenger are designed to deploy in
moderate to severe frontal and near frontal
crashes. They are not designed to inate in
rollover, rear crashes, or in many side
crashes. And, for some unrestrained
CAUTION: (Continued)
CAUTION: (Continued)
occupants, frontal airbags may provide
less protection in frontal crashes than
more forceful airbags have provided in
the past.
Roof-mounted rollover airbags are
designed to inate in moderate to severe
crashes where something hits the side of
your vehicle or during a vehicle rollover.
They may inate in some frontal crashes.
They are not designed to inate in rear
crashes. If your vehicle has roof-mounted
airbags, they are designed to provide
both side impact protection and
rollover protection. Everyone in your
vehicle should wear a safety belt
properly — whether or not there is an
airbag for that person.
76
ProCarManuals.com

{CAUTION:
Both frontal and roof-mounted side impact
airbags inate with great force, faster than
the blink of an eye. If you are too close to
an inating airbag, as you would be if you
were leaning forward, it could seriously
injure you. Safety belts help keep you in
position for airbag ination before and
during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while
still maintaining control of the vehicle.
Occupants should not lean on or sleep
against the door.
{CAUTION:
Anyone who is up against, or very close
to, any airbag when it inates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and
infants need the protection that a child
restraint system can provide. Always
secure children properly in your vehicle.
To read how, seeOlder Children on
page 44orInfants and Young Children
on page 47.
77
ProCarManuals.com

There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 165for more information.Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
78
ProCarManuals.com

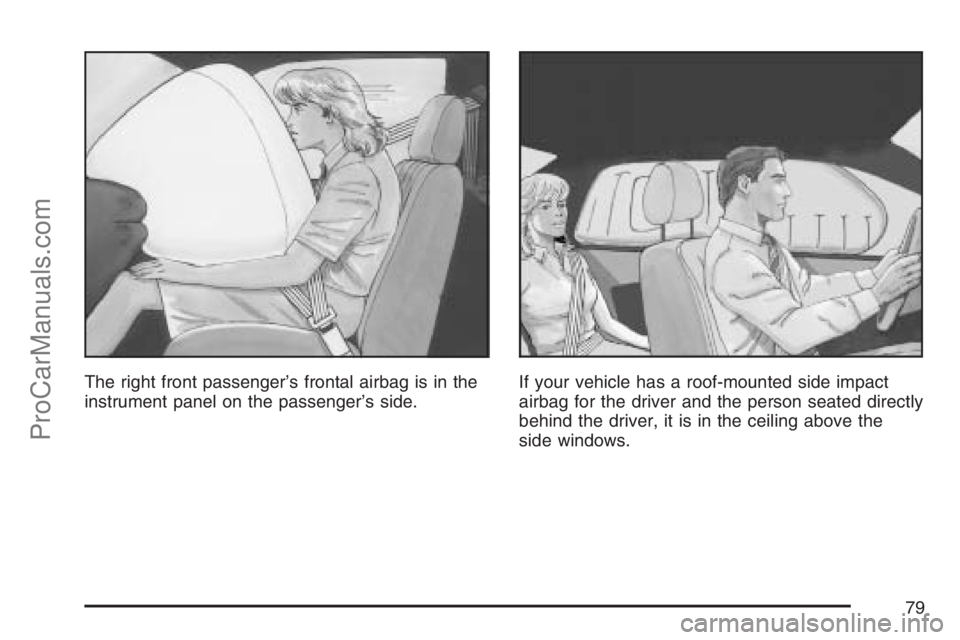

The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.If your vehicle has a roof-mounted side impact
airbag for the driver and the person seated directly
behind the driver, it is in the ceiling above the
side windows.
79
ProCarManuals.com

If your vehicle has a roof-mounted side impact
airbag for the right front passenger and the person
seated directly behind that passenger, it is in
the ceiling above the side windows.
{CAUTION:
If something is between an occupant and
an airbag, the bag might not inate
properly or it might force the object into
that person causing severe injury or even
death. The path of an inating airbag must
be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. And, if your vehicle
has roof-mounted side impact airbags,
never secure anything to the roof of your
vehicle by routing the rope or tie down
through any door or window opening.
If you do, the path of an inating side
impact airbag will be blocked. The path of
an inating airbag must be kept clear.
80
