2007 RENAULT SCENIC Automatic Transmission Siemens TA2005 Workshop Manual

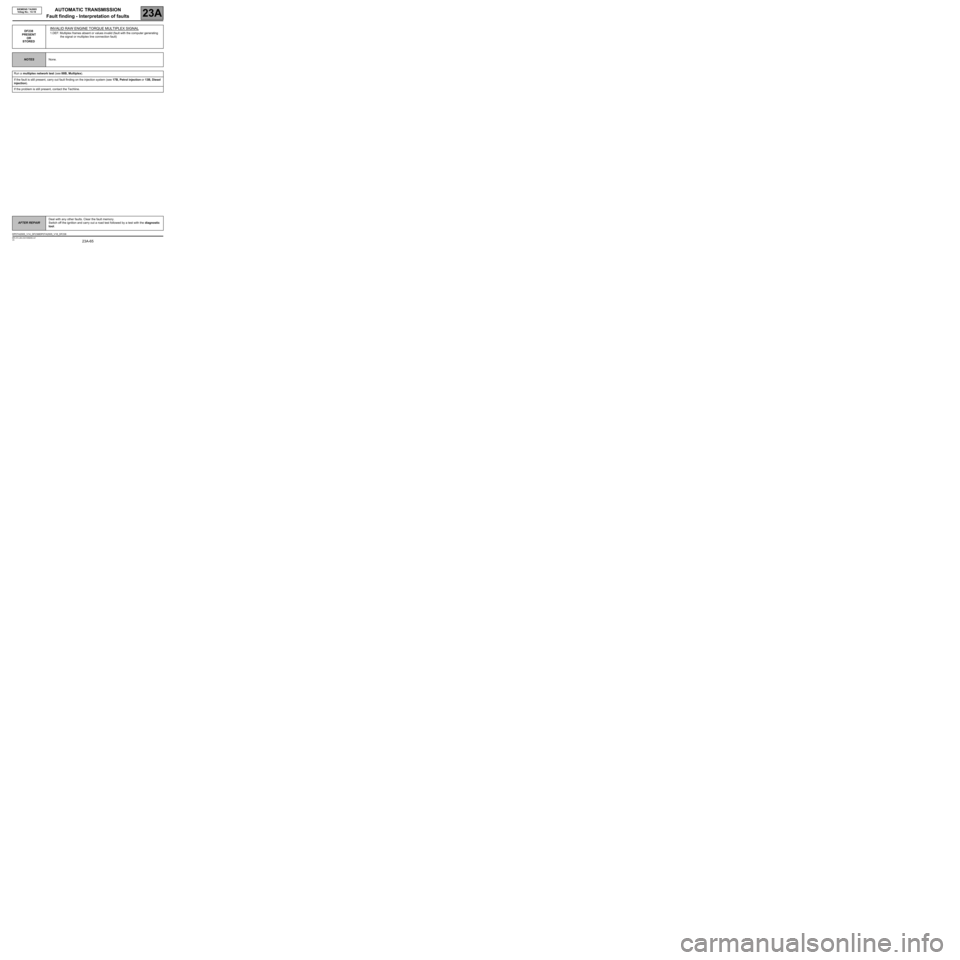

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A-65V5 MR-372-J84-23A100$406.mif
SIEMENS TA2005
Vdiag No.: 14-18
DF238
PRESENT
OR
STOREDINVALID RAW ENGINE TORQUE MULTIPLEX SIGNAL
1.DEF: Multiplex frames absent or values invalid (fault with the computer generating
the signal or multiplex line connection fault)
NOTESNone.
Run a multiplex network test (see 88B, Multiplex).
If the fault is still present, carry out fault finding on the injection system (see 17B, Petrol injection or 13B, Diesel
injection).
If the problem is still present, contact the Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
DP0TA2005_V14_DF238/DP0TA2005_V18_DF238

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A-66V5 MR-372-J84-23A100$406.mif
SIEMENS TA2005
Vdiag No.: 14-18
DF239
PRESENT
OR
STOREDINVALID ACTUAL ENGINE TORQUE MULTIPLEX SIGNAL
1.DEF: Multiplex frames absent or values invalid (fault with the computer generating
the signal or multiplex line connection fault)
NOTESNone.
Run a multiplex network test (see 88B, Multiplex).
If the fault is still present, carry out fault finding on the injection system (see 17B, Petrol injection or 13B, Diesel
injection).
If the problem is still present, contact the Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
DP0TA2005_V14_DF239/DP0TA2005_V18_DF239

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A-67V5 MR-372-J84-23A100$406.mif
SIEMENS TA2005
Vdiag No.: 14-18
DF240
PRESENT
OR
STOREDINVALID FRONT RIGHT-HAND WHEEL SPEED MULTIPLEX
SIGNAL
1.DEF: Multiplex frames absent or values invalid (fault with the computer generating
the signal or multiplex line connection fault)
NOTESFront right-hand front wheel speed signal for the automatic transmission computer.
Run a multiplex network test (see 88B, Multiplex).
If the fault is still present, carry out fault finding on the system (see 38C, ABS).
If the problem is still present, contact the Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
DP0TA2005_V14_DF240/DP0TA2005_V18_DF240

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A-68V5 MR-372-J84-23A100$406.mif
SIEMENS TA2005
Vdiag No.: 14-18
DF241
PRESENT
OR
STOREDINVALID FRONT LEFT-HAND WHEEL SPEED MULTIPLEX SIGNAL
1.DEF: Multiplex signals absent or values invalid (fault with the computer generating
the signal or multiplex line connection fault)
NOTESFront left-hand wheel speed signal for the automatic transmission computer.
Run a multiplex network test (see 88B, Multiplex).
If the fault is still present, carry out fault finding on the system (see 38C, ABS).
If the problem is still present, contact the Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
DP0TA2005_V14_DF241/DP0TA2005_V18_DF241

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A-69V5 MR-372-J84-23A100$406.mif
SIEMENS TA2005
Vdiag No.: 14-18
DF242
PRESENT
INVALID REAR RIGHT-HAND WHEEL SPEED MULTIPLEX SIGNAL
1.DEF: Multiplex frames absent or values invalid (fault with the computer generating
the signal or multiplex line connection fault)
NOTESRear right-hand wheel speed signal for the automatic transmission computer.
Run a multiplex network test (see 88B, Multiplex).
If the fault is still present, carry out fault finding on the system (see 38C, ABS).
If the problem is still present, contact the Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
DP0TA2005_V14_DF242/DP0TA2005_V18_DF242

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A-70V5 MR-372-J84-23A100$406.mif
SIEMENS TA2005
Vdiag No.: 14-18
DF243
PRESENT
INVALID REAR LEFT-HAND WHEEL SPEED MULTIPLEX SIGNAL
1.DEF: Multiplex frames absent or values invalid (fault with the computer generating
the signal or multiplex line connection fault)
NOTESRear left-hand wheel speed signal for the automatic transmission computer.
Run a multiplex network test (see 88B, Multiplex).
If the fault is still present, carry out fault finding on the system (see 38C, ABS).
If the problem is still present, contact the Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
DP0TA2005_V14_DF243/DP0TA2005_V18_DF243

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A-71V5 MR-372-J84-23A100$406.mif
SIEMENS TA2005
Vdiag No.: 14-18
DF244
PRESENT
OR
STOREDTURBINE SPEED SENSOR SIGNAL
1.DEF: Communication disrupted
2.DEF: No signal
NOTESConditions for applying the fault finding procedure to stored faults:
The fault appears when the engine is running and the gear lever is at P.
Special notes:
Use bornier Elé. 1681 for all operations on the computer connectors.
Disconnect the battery.
Disconnect the modular connector and check the cleanliness and condition of the connections.
Disconnect the computer. Check the cleanliness and condition of the connections.
Repair if necessary.
Check the insulation, continuity and the absence of interference resistance to earth, to + 12 V of the following
connections:
●connection code 5DA, between components 119 and 1017,
●connection code 5DB, between components 119 and 1017.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
Reconnect the modular connector.
Measure the resistance of component 1017 between the following connections:
●connection code 5DA,
●connection code 5DB.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
Replace the sensor or the wiring harness if the resistance is not: 300 Ω ± 40.
If the problem is still present, contact the Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
DP0TA2005_V14_DF244/DP0TA2005_V18_DF244

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A-72V5 MR-372-J84-23A100$406.mif
SIEMENS TA2005
Vdiag No.: 14-18
DF263
PRESENT
OR
STOREDINSTANTANEOUS MAXIMUM TORQUE MULTIPLEX SIGNAL
1.DEF: Multiplex frames absent or values invalid (fault with the computer generating
the signal or multiplex line connection fault)
NOTESInstant maximum torque signal for the automatic transmission computer.
Carry out a test on the multiplex network (see 88B Multiplex).
If the fault is still present, run fault finding on the injection system (see 17B, Petrol injection or 13B, Diesel
injection).
If the problem is still present, contact the Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
DP0TA2005_V14_DF263/DP0TA2005_V18_DF263
