Page 97 of 139
AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
23A
23A-97V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18
ET021
SEQUENCE SOLENOID VALVE 1 CONTROL
NOTESThere must be no present or stored faults.
This status displays "ACTIVE" when the gear engaged is "3" or "4" and "INACTIVE" when other gears are
engaged.
Disconnect the computer. Check the cleanliness and condition of the connectors.
Check the continuity between track 10 of the computer connector and track B8 of the modular connector.
Check the continuity of the following connections:
●connection code 5AV, between components 119 and 754.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the resistance of component 754 between the following connections:
●connection code 5AV,
●connection code 5AU.
The value should be 40 Ω ± 2 at approximately 23 ˚C.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the resistance is greater than 50 Ω, check the wiring harness, computer connector and modular connector.
If the status does not function as specified, use the interpretation of fault DF085 "EVS1 Sequence solenoid valve
circuit".
AFTER REPAIRRepeat the conformity check from the start.
DP0TA2005_V14_ET021/DP0TA2005_V18_ET021
Page 98 of 139
AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
23A
23A-98V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18
ET022
SEQUENCE SOLENOID VALVE 2 CONTROL
NOTESThere must be no present or stored faults.
This status displays "ACTIVE" when the gear engaged is "N" or "2" or "3" or "4" and "INACTIVE" when other
gears are engaged.
Disconnect the computer. Check the cleanliness and condition of the connectors.
Check the continuity of the following connections:
●connection code 5AW, between components 119 and 754.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the resistance of component 754 between the following connections:
●connection code 5AW,
●connection code 5AU.
The value should be 40 Ω ± 2 at approximately 23 ˚C.
If any of the connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring
repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the resistance is greater than 50 Ω, check the wiring harness, computer connector and modular connector.
If the status does not function as specified, use the interpretation of fault DF086 "EVS2 Sequence solenoid valve
circuit".
AFTER REPAIRRepeat the conformity check from the start.
DP0TA2005_V14_ET022/DP0TA2005_V18_ET022
Page 99 of 139
AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
23A
23A-99V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18
ET023
SEQUENCE SOLENOID VALVE 3 CONTROL
NOTESThere must be no present or stored faults.
This status displays "ACTIVE" when the gear engaged is "P" or "N" or "1" and "INACTIVE" when other gears
are engaged.
Disconnect the computer. Check the cleanliness and condition of the connectors.
Check the continuity of the following connections:
●connection code 5AX, between components 119 and 754.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the resistance of component 754 between the following connections:
●connection code 5AX,
●connection code 5AU.
The value should be 40 Ω ± 2 at approximately 23 ˚C.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the resistance is greater than 50 Ω, check the wiring harness, the computer connector and the modular
connector.
If the status does not function as specified, use the interpretation of fault DF087 "EVS3 Sequence solenoid valve
circuit".
AFTER REPAIRRepeat the conformity check from the start.
Make sure that shifting up and down through each gear works properly.
DP0TA2005_V14_ET023/DP0TA2005_V18_ET023
Page 100 of 139
AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
23A
23A -100V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18
ET024
SEQUENCE SOLENOID VALVE 4 CONTROL
NOTESThere must be no present or stored faults.
This status displays "ACTIVE" when the gear engaged is "1" or "2" and "INACTIVE" when other gears are
engaged.
Disconnect the computer. Check the cleanliness and condition of the connectors.
Check the continuity of the following connections:
●connection code 5AY, between components 119 and 754.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the resistance of component 754 between the following connections:
●connection code 5AU,
●connection code 5AY.
The value should be 40 Ω ± 2 at approximately 23 ˚C.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the resistance is greater than 50 Ω, check the wiring harness, computer connector and modular connector.
If the status does not function as specified, use the interpretation of fault DF089 "EVS4 Sequence solenoid valve
circuit".
AFTER REPAIRRepeat the conformity check from the start.
Make sure that shifting up and down through each gear works properly.
DP0TA2005_V14_ET024/DP0TA2005_V18_ET024
Page 101 of 139
AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
23A
23A -101V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18
ET025
SEQUENCE SOLENOID VALVE 5 CONTROL
NOTESThere must be no present or stored faults.
This status displays "ACTIVE" when the gear engaged is "1" and "INACTIVE" when other gears are engaged.
Disconnect the computer. Check the cleanliness and condition of the connectors.
Check the continuity of the following connections:
●connection code 5DL, between components 119 and 754.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the resistance of component 754 between the following connections:
●connection code 5AU,
●connection code 5DL.
The value should be 40 Ω ± 2 at approximately 23 ˚C.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the resistance is greater than 50 Ω, check the wiring harness, computer connector and modular connector.
If the status is still not correct, use the interpretation of fault DF088 "EVS5 Sequence solenoid valve circuit".
AFTER REPAIRRepeat the conformity check from the start.
Make sure that shifting up and down through each gear works properly.
DP0TA2005_V14_ET025/DP0TA2005_V18_ET025
Page 102 of 139
AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
23A
23A -102V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18
ET026
SEQUENCE SOLENOID VALVE 6 CONTROL
NOTESThere must be no present or stored faults.
This status displays "INACTIVE" with any gear engaged.
Disconnect the computer. Check the cleanliness and condition of the connectors.
Check the continuity of the following connections:
●connection code 5DM, between components 119 and 754.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the resistance of component 754 between the following connections:
The value should be 40 Ω ± 2 at approximately 23 ˚C.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the resistance is greater than 50 Ω, check the wiring harness, computer connector and modular connector.
If the status is still not correct, use the interpretation of fault DF112 "EVS6 Sequence solenoid valve circuit".
AFTER REPAIRRepeat the conformity check from the start.
Make sure that shifting up and down through each gear works properly.
DP0TA2005_V14_ET026/DP0TA2005_V18_ET026

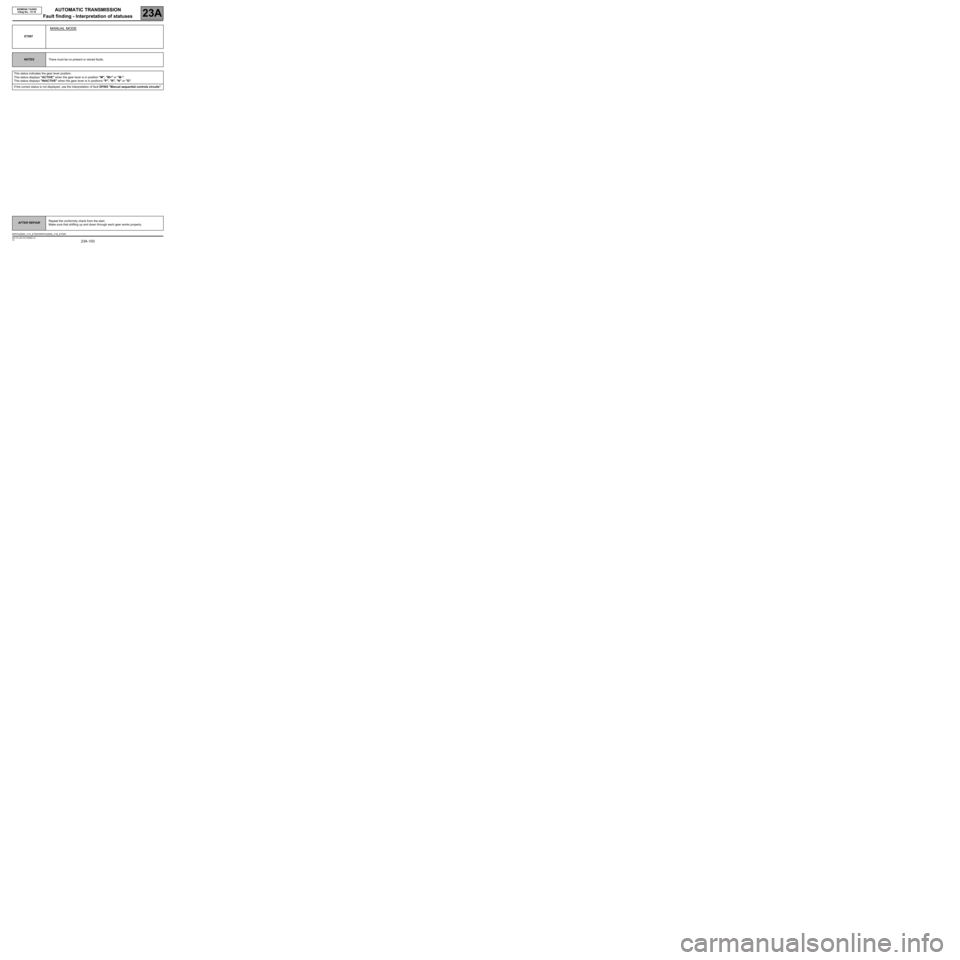

Page 103 of 139
AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
23A
23A -103V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18
ET097
MANUAL MODE
NOTESThere must be no present or stored faults.
This status indicates the gear lever position.
This status displays "ACTIVE" when the gear lever is in position "M", "M+" or "M-".
This status displays "INACTIVE" when the gear lever is in positions "P", "R", "N" or "D".
If the correct status is not displayed, use the interpretation of fault DF093 "Manual sequential controls circuits".
AFTER REPAIRRepeat the conformity check from the start.
Make sure that shifting up and down through each gear works properly.
DP0TA2005_V14_ET097/DP0TA2005_V18_ET097
Page 104 of 139
AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
23A
23A -104V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18
ET123
ET124
ET125
MULTIFUNCTION SWITCH S2
MULTIFUNCTION SWITCH S3
MULTIFUNCTION SWITCH S4
NOTESThere must be no present or stored faults.
Multifunction switch contact S1 is not connected on this vehicle.
These statuses show the position of the multifunction switch for each gear lever position.
The switch status can be "OPEN" or "CLOSED" (see table below).
S2 S3 S4
POPEN CLOSED CLOSED
ROPEN OPEN OPEN
NCLOSED OPEN CLOSED
DCLOSED CLOSED OPEN
MCLOSED CLOSED OPEN
M+ CLOSED CLOSED OPEN
M- CLOSED CLOSED OPEN
If a status fails to function as specified, use the interpretation of fault DF009 "Multifunction switch in prohibited
position".
AFTER REPAIRRepeat the conformity check from the start.
Make sure that shifting up and down through each gear works properly.
DP0TA2005_V14_ET123/DP0TA2005_V18_ET123/
DP0TA2005_V14_ET124/DP0TA2005_V18_ET124/
DP0TA2005_V14_ET125/DP0TA2005_V18_ET125
