2007 RENAULT SCENIC Automatic Transmission Siemens TA2005 Workshop Manual

Fault finding - Conformity check23A
23A - 73V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18AUTOMATIC TRANSMISSION
Fault finding - Conformity check
MAIN SCREEN
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Engine speedPR006:Engine speed0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
2Turbine speedPR007:Turbine speed0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
3Power supplyPR008:Computer feed
voltage10 V < X < 13 VIn the event of a
fault, consult the
interpretation of this
parameter.
4Gearbox oil
temperaturePR004:Gearbox oil
temperature- 40 ˚C < X < 140 ˚CIn the event of a
fault, consult the
interpretation of this
parameter.
5Coolant
temperaturePR001:Coolant
temperature- 40 ˚C < X < 120 ˚CIn the event of a
fault, consult the
interpretation of this
parameter.
6Oil pressurePR003:Oil pressureX < 0.2 barIn the event of a
fault, consult the
interpretation of this
parameter.
DP0TA2005_V14_CCONF/DP0TA2005_V18_CCONF
MR-372-J84-23A100$464.mif

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 74V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
MAIN SCREEN (CONTINUED)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
7Gear lever
positionET012:Gear lever
positionP if selector is in
position P.
N if selector is in
position N.
R if selector is in
position R.
D if selector is in
position D.
M if selector is in
position M.
M+ if selector is in
position M+.
M- if selector is in
position M-.In the event of a
fault, refer to the
interpretation of this
status.
8Manual modeET097:Manual modeINACTIVE
ACTIVE, if lever is in
position M In the event of a
fault, refer to the
interpretation of this
status.
9Old oilET083:Old oilYES
NONo fault finding
procedure for this
status.
10Raw pedal
positionPR136:Raw pedal
position%In the event of a
fault, consult the
interpretation of this
parameter.

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 75V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: CHANGING GEAR
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Gear lever
positionET012:Gear lever
positionP if selector is in
position P.
N if selector is in
position N.
R if selector is in
position R.
D if selector is in
position D.
M if selector is in
position M.
M+ if selector is in
position M+.
M- if selector is in
position M-.In the event of a
fault, refer to the
interpretation of this
status.
2Sequential lever
switchET128:Upper
sequential lever
switchINACTIVE
ACTIVE, if selector lever
at M+In the event of a
fault, refer to the
interpretation of this
status.
ET127:Lower
sequential lever
switchINACTIVE
ACTIVE, if selector lever
at MIn the event of a
fault, refer to the
interpretation of this
status.
3Selection modeET097:Manual modeINACTIVE
ACTIVE, if lever is in
position MIn the event of a
fault, refer to the
interpretation of this
status.

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 76V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: GEAR CHANGE (CONTINUED 1)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
4Gear engagedET013:Gear engagedR for reverse.
1P for 1
st locked.
2P for 2nd locked.
3P for 3rd locked.
4P for 4th locked.
1G for 1st slipping.
2G for 2nd slipping.
3G for 3rd slipping.
4G for 4th slipping.
1 for 1st unlocked.
2 for 2nd unlocked.
3 for 3rd unlocked.
4 for 4th unlocked.In the event of a
fault, refer to the
interpretation of this
status.
5Oil pressurePR003:Oil pressureX < 0.2 barIn the event of a
fault, consult the
interpretation of this
parameter.
6Engine speedPR006:Engine speed0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
7Standard pedal
positionPR135:Standard pedal
position%In the event of a
fault, consult the
interpretation of this
parameter.
8Raw pedal
positionPR136:Raw pedal
position%In the event of a
fault, consult the
interpretation of this
parameter.

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 77V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: GEAR CHANGE (CONTINUED 2)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
9Accel. pedal
position for
downshiftingPR124:Accel. pedal
position for
downshifting%In the event of a
fault, consult the
interpretation of this
parameter.
10Solenoid valve
controlET021:Sequence
solenoid valve 1
controlACTIVE
INACTIVEIn the event of a
fault, refer to the
interpretation of this
status.
ET022:Sequence
solenoid valve 2
controlACTIVE
INACTIVEIn the event of a
fault, refer to the
interpretation of this
status.
ET023:Sequence
solenoid valve 3
controlACTIVE
INACTIVEIn the event of a
fault, refer to the
interpretation of this
status.
ET024:Sequence
solenoid valve 4
controlACTIVE
INACTIVEIn the event of a
fault, refer to the
interpretation of this
status.
ET025:Sequence
solenoid valve 5
controlACTIVE
INACTIVEIn the event of a
fault, refer to the
interpretation of this
status.
ET026:Sequence
solenoid valve 6
controlACTIVE
INACTIVEIn the event of a
fault, refer to the
interpretation of this
status.

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 78V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: GEAR CHANGE (CONTINUED 3)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
11Multifunction
switchET123:Multifunction
switch S2
Lever in position P
OPENIn the event of a
fault, refer to the
interpretation of this
status.
ET124:Multifunction
switch S3In the event of a
fault, refer to the
interpretation of this
status.
ET125:Multifunction
switch S4In the event of a
fault, refer to the
interpretation of this
status.
ET126:Multifunction
switch P/NIn the event of a
fault, refer to the
interpretation of this
status.
12Sequential
actuator controlAC024:Sequential
actuator controlMeans of controlling all
the solenoid valvesIn the event of a
fault, refer to the
interpretation of this
command.

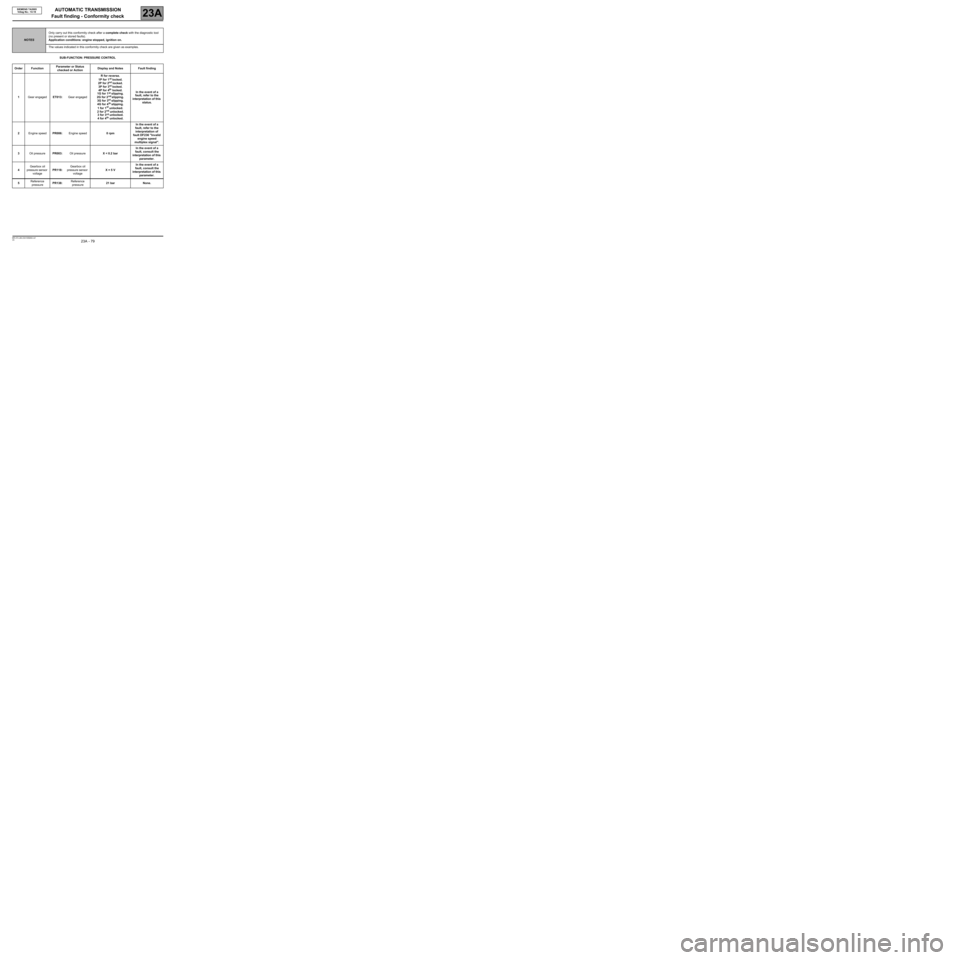

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 79V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: PRESSURE CONTROL
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Gear engagedET013:Gear engagedR for reverse.
1P for 1
st locked.
2P for 2nd locked.
3P for 3rd locked.
4P for 4th locked.
1G for 1st slipping.
2G for 2nd slipping.
3G for 3rd slipping.
4G for 4th slipping.
1 for 1st unlocked.
2 for 2nd unlocked.
3 for 3rd unlocked.
4 for 4th unlocked.In the event of a
fault, refer to the
interpretation of this
status.
2Engine speedPR006:Engine speed0 rpmIn the event of a
fault, refer to the
interpretation of
fault DF236 "Invalid
engine speed
multiplex signal".
3Oil pressurePR003:Oil pressureX < 0.2 barIn the event of a
fault, consult the
interpretation of this
parameter.
4Gearbox oil
pressure sensor
voltagePR118:Gearbox oil
pressure sensor
voltageX = 5 VIn the event of a
fault, consult the
interpretation of this
parameter.
5Reference
pressurePR138:Reference
pressure21 bar None.

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 80V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: PRESSURE REGULATION (CONTINUED)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
6Difference
between
reference
pressure and oil
pressurePR146:Difference
between
reference and oil
pressureX = PR138 - PR003 None.
7Gearbox oil
temperaturePR004:Gearbox oil
temperature- 40 ˚C < X < 140 ˚CIf there is a fault,
refer to the
interpretation of this
parameter.
8Sequential
actuator controlAC024:Sequential
actuator controlCommand used to actuate
all the solenoid valves.In the event of a
fault, refer to the
interpretation of this
command.
