2007 PONTIAC TORRENT Owners Manual

{CAUTION:
Incorrect wheel nuts or improperly
tightened wheel nuts can cause the wheel
to come loose and even come off. This
could lead to an accident. Be sure to use
the correct wheel nuts. If you have to
replace them, be sure to get new GM
original equipment wheel nuts. Stop
somewhere as soon as you can and have
the nuts tightened with a torque wrench to
the proper torque specication. See
Capacities and Specifications on page 436
for wheel nut torque specication.
Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage.
To avoid expensive brake repairs, evenly
tighten the wheel nuts in the proper sequence
and to the proper torque specication. See
Capacities and Specifications on page 436for
the wheel nut torque specication.15. Tighten the wheel
nuts rmly in a
crisscross sequence,
as shown.
16. Lower the jack all the way and remove the
jack from under the vehicle.
17. Tighten the wheel nuts rmly with the wheel
wrench.
When reinstalling the wheel cover or center cap
on the full-size tire, tighten all ve plastic caps
hand snug with the aid of the wheel wrench and
tighten them with the wheel wrench an additional
one-quarter of a turn.
417

Notice:Wheelcovers will not t on your
compact spare. If you try to put a wheel cover
on the compact spare, you could damage
the cover or the spare.
Do not try to put a wheel cover on your compact
spare tire. It will not t. Store the wheel cover in the
cargo area until you have the at tire repaired or
replaced.
Storing a Flat or Spare Tire and
Tools
{CAUTION:
Storing a jack, a tire, or other equipment
in the passenger compartment of the
vehicle could cause injury. In a sudden
stop or collision, loose equipment could
strike someone. Store all these in the
proper place.To store the at tire or the spare tire and tools, do
the following:
1. Place the wheel wrench into the bag.
2. Use the hook and loop fastener straps to
secure the bag to the jack.
3. Install the jack in the
left side panel of
cargo area and
secure it with the
wing bolt.
4. Remove the wheel stow rod from the left side
of the oor compartment.
418

5. Screw the threaded wheel stow rod onto the
spare tire bracket. The nal position of the
wheel stow rod must be turned to the farthest
forward position.6. If your vehicle has a cap, remove the cap
from the center of the load oor. Position
the rod through the hole.
7. Place the at, or damaged tire, face down,
on the load oor with the threaded wheel
stow rod sticking up through the center hole
of the wheel.
8. Install the nut onto the wheel stow rod and
tighten.
9. If your vehicle has a rear compartment
storage panel/cover, reinstall the panel/cover
in either the center or upper position. See
Rear Compartment Storage Panel/Cover on
page 140for more information.
The compact spare is for temporary use only.
Replace the compact spare tire with a full-size tire
as soon as possible.
419

Compact Spare Tire
Although the compact spare tire was fully inated
when the vehicle was new, it can lose air after
a time. Check the ination pressure regularly. It
should be 60 psi (420 kPa).
After installing the compact spare on the vehicle,
stop as soon as possible and make sure the
spare tire is correctly inated. The compact spare
is made to perform well at speeds up to 65 mph
(105 km/h) for distances up to 3,000 miles
(5 000 km), so you can nish your trip and have
the full-size tire repaired or replaced at your
convenience. Of course, it is best to replace the
spare with a full-size tire as soon as possible. The
spare tire will last longer and be in good shape
in case it is needed again.
Notice:When the compact spare is installed,
do not take your vehicle through an automatic
car wash with guide rails. The compact
spare can get caught on the rails. That can
damage the tire and wheel, and maybe
other parts of your vehicle.
Do not use the compact spare on other vehicles.And do not mix the compact spare tire or wheel
with other wheels or tires. They will not t.
Keep the spare tire and its wheel together.
Notice:Tire chains will not t your compact
spare. Using them can damage your vehicle
and can damage the chains too. Do not use tire
chains on your compact spare.
Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its
best if it is cleaned often. Although not always
visible, dust and dirt can accumulate on your
upholstery. Dirt can damage carpet, fabric, leather,
and plastic surfaces. Regular vacuuming is
recommended to remove particles from your
upholstery. It is important to keep your upholstery
from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible.
Your vehicle’s interior may experience extremes of
heat that could cause stains to set rapidly.
420

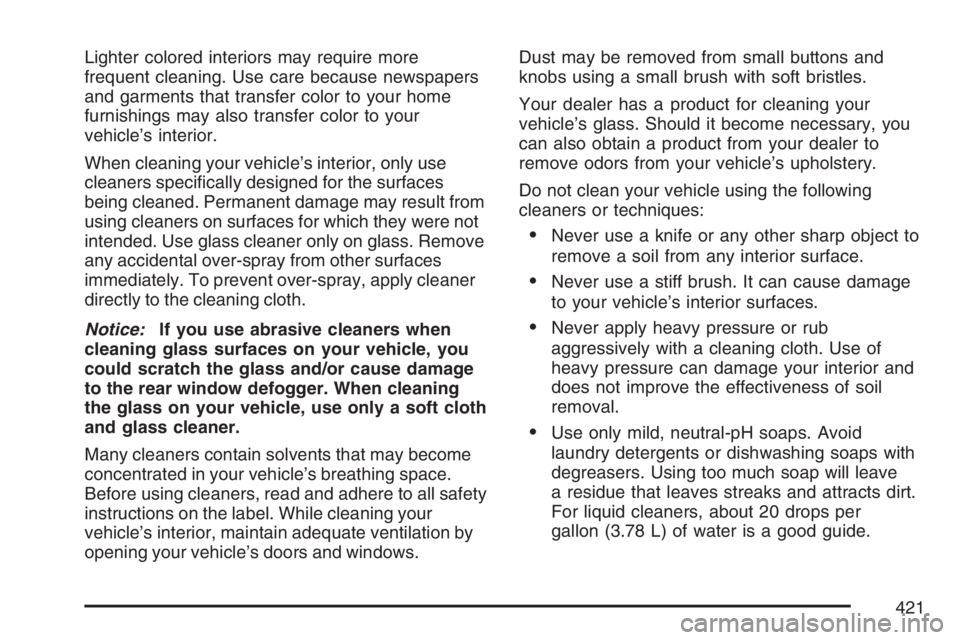

Lighter colored interiors may require more
frequent cleaning. Use care because newspapers
and garments that transfer color to your home
furnishings may also transfer color to your
vehicle’s interior.
When cleaning your vehicle’s interior, only use
cleaners specically designed for the surfaces
being cleaned. Permanent damage may result from
using cleaners on surfaces for which they were not
intended. Use glass cleaner only on glass. Remove
any accidental over-spray from other surfaces
immediately. To prevent over-spray, apply cleaner
directly to the cleaning cloth.
Notice:If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you
could scratch the glass and/or cause damage
to the rear window defogger. When cleaning
the glass on your vehicle, use only a soft cloth
and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to all safety
instructions on the label. While cleaning your
vehicle’s interior, maintain adequate ventilation by
opening your vehicle’s doors and windows.Dust may be removed from small buttons and
knobs using a small brush with soft bristles.
Your dealer has a product for cleaning your
vehicle’s glass. Should it become necessary, you
can also obtain a product from your dealer to
remove odors from your vehicle’s upholstery.
Do not clean your vehicle using the following
cleaners or techniques:
Never use a knife or any other sharp object to
remove a soil from any interior surface.
Never use a stiff brush. It can cause damage
to your vehicle’s interior surfaces.
Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use of
heavy pressure can damage your interior and
does not improve the effectiveness of soil
removal.
Use only mild, neutral-pH soaps. Avoid
laundry detergents or dishwashing soaps with
degreasers. Using too much soap will leave
a residue that leaves streaks and attracts dirt.
For liquid cleaners, about 20 drops per
gallon (3.78 L) of water is a good guide.
421

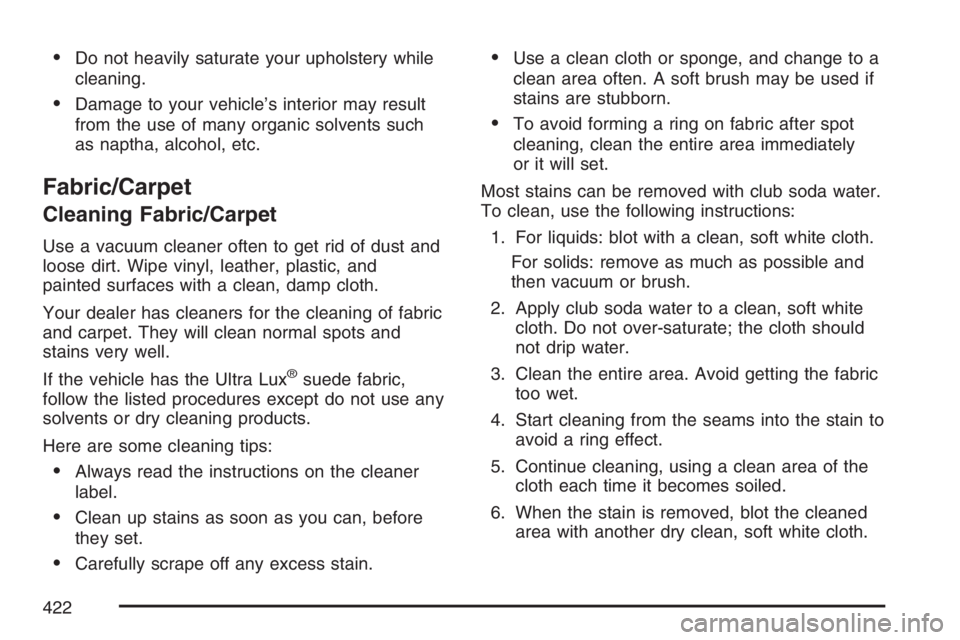

Do not heavily saturate your upholstery while
cleaning.
Damage to your vehicle’s interior may result
from the use of many organic solvents such
as naptha, alcohol, etc.
Fabric/Carpet
Cleaning Fabric/Carpet
Use a vacuum cleaner often to get rid of dust and
loose dirt. Wipe vinyl, leather, plastic, and
painted surfaces with a clean, damp cloth.
Your dealer has cleaners for the cleaning of fabric
and carpet. They will clean normal spots and
stains very well.
If the vehicle has the Ultra Lux
®suede fabric,
follow the listed procedures except do not use any
solvents or dry cleaning products.
Here are some cleaning tips:
Always read the instructions on the cleaner
label.
Clean up stains as soon as you can, before
they set.
Carefully scrape off any excess stain.
Use a clean cloth or sponge, and change to a
clean area often. A soft brush may be used if
stains are stubborn.
To avoid forming a ring on fabric after spot
cleaning, clean the entire area immediately
or it will set.
Most stains can be removed with club soda water.
To clean, use the following instructions:
1. For liquids: blot with a clean, soft white cloth.
For solids: remove as much as possible and
then vacuum or brush.
2. Apply club soda water to a clean, soft white
cloth. Do not over-saturate; the cloth should
not drip water.
3. Clean the entire area. Avoid getting the fabric
too wet.
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the
cloth each time it becomes soiled.
6. When the stain is removed, blot the cleaned
area with another dry clean, soft white cloth.
422

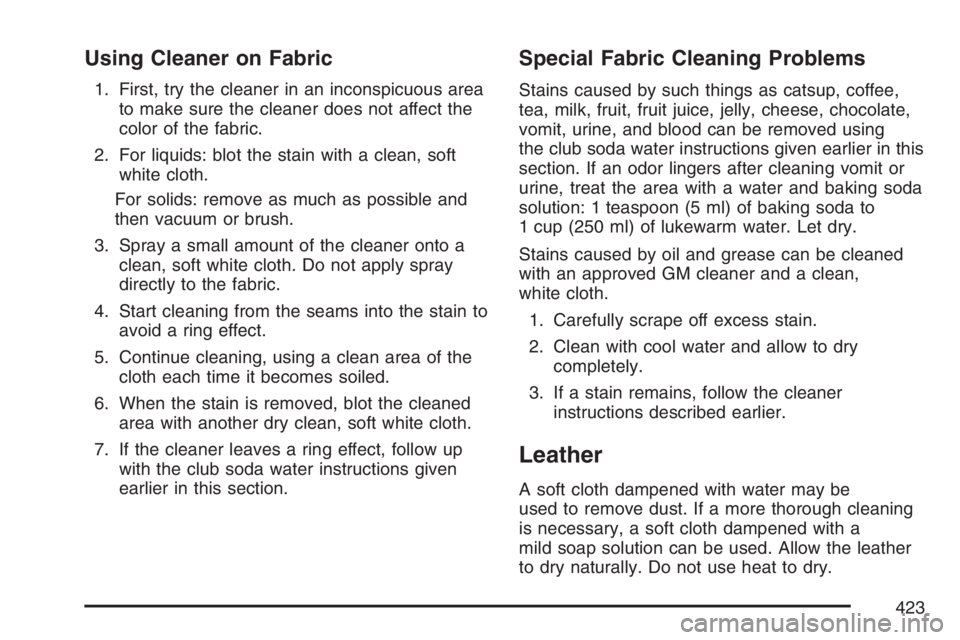

Using Cleaner on Fabric
1. First, try the cleaner in an inconspicuous area
to make sure the cleaner does not affect the
color of the fabric.
2. For liquids: blot the stain with a clean, soft
white cloth.
For solids: remove as much as possible and
then vacuum or brush.
3. Spray a small amount of the cleaner onto a
clean, soft white cloth. Do not apply spray
directly to the fabric.
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the
cloth each time it becomes soiled.
6. When the stain is removed, blot the cleaned
area with another dry clean, soft white cloth.
7. If the cleaner leaves a ring effect, follow up
with the club soda water instructions given
earlier in this section.
Special Fabric Cleaning Problems
Stains caused by such things as catsup, coffee,
tea, milk, fruit, fruit juice, jelly, cheese, chocolate,
vomit, urine, and blood can be removed using
the club soda water instructions given earlier in this
section. If an odor lingers after cleaning vomit or
urine, treat the area with a water and baking soda
solution: 1 teaspoon (5 ml) of baking soda to
1 cup (250 ml) of lukewarm water. Let dry.
Stains caused by oil and grease can be cleaned
with an approved GM cleaner and a clean,
white cloth.
1. Carefully scrape off excess stain.
2. Clean with cool water and allow to dry
completely.
3. If a stain remains, follow the cleaner
instructions described earlier.
Leather
A soft cloth dampened with water may be
used to remove dust. If a more thorough cleaning
is necessary, a soft cloth dampened with a
mild soap solution can be used. Allow the leather
to dry naturally. Do not use heat to dry.
423

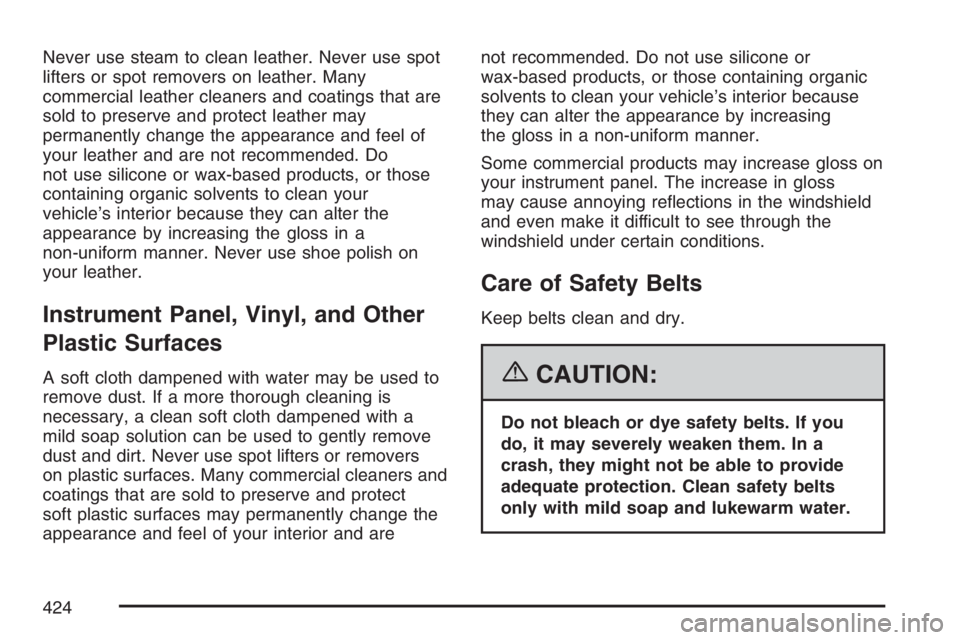

Never use steam to clean leather. Never use spot
lifters or spot removers on leather. Many
commercial leather cleaners and coatings that are
sold to preserve and protect leather may
permanently change the appearance and feel of
your leather and are not recommended. Do
not use silicone or wax-based products, or those
containing organic solvents to clean your
vehicle’s interior because they can alter the
appearance by increasing the gloss in a
non-uniform manner. Never use shoe polish on
your leather.
Instrument Panel, Vinyl, and Other
Plastic Surfaces
A soft cloth dampened with water may be used to
remove dust. If a more thorough cleaning is
necessary, a clean soft cloth dampened with a
mild soap solution can be used to gently remove
dust and dirt. Never use spot lifters or removers
on plastic surfaces. Many commercial cleaners and
coatings that are sold to preserve and protect
soft plastic surfaces may permanently change the
appearance and feel of your interior and arenot recommended. Do not use silicone or
wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing
the gloss in a non-uniform manner.
Some commercial products may increase gloss on
your instrument panel. The increase in gloss
may cause annoying reections in the windshield
and even make it difficult to see through the
windshield under certain conditions.
Care of Safety Belts
Keep belts clean and dry.
{CAUTION:
Do not bleach or dye safety belts. If you
do, it may severely weaken them. In a
crash, they might not be able to provide
adequate protection. Clean safety belts
only with mild soap and lukewarm water.
424
