2007 PONTIAC TORRENT Owners Manual

9. Connect the other end of the negative (−) cable
at least 18 inches (45 cm) away from the dead
battery, but not near engine parts that move.
The electrical connection is just as good there,
and the chance of sparks getting back to the
battery is much less.
Your vehicle has a remote negative (−)
terminal for this purpose.
10. Now start the vehicle with the good battery
and run the engine for a while.
11. Press the unlock button on the remote
keyless entry transmitter to disarm your
content theft-deterrent system.
12. Try to start the vehicle that had the dead
battery. If it will not start after a few tries, it
probably needs service.Notice:If the jumper cables are connected or
removed in the wrong order, electrical shorting
may occur and damage the vehicle. The repairs
would not be covered by your warranty. Always
connect and remove the jumper cables in the
correct order, making sure that the cables do
not touch each other or other metal.
A. Heavy, Unpainted Metal Engine Part or
Remote Negative (−) Terminal
B. Good Battery or Remote Positive (+) and
Remote Negative (−) Terminals
C. Dead Battery or Remote Positive (+) Terminal
Jumper Cable Removal
377

To disconnect the jumper cables from both
vehicles, do the following:
1. Disconnect the black negative (−) cable from
the vehicle that had the dead battery.
2. Disconnect the black negative (−) cable from
the vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the
other vehicle.
5. Return the fuse block cover to its original
position.All-Wheel Drive
If you have an all-wheel-drive vehicle, be sure to
perform the lubricant checks described in this
section. However, there are two additional systems
that need lubrication.
Transfer Case (Power Transfer Unit)
When to Check Lubricant
Refer to the Maintenance Schedule to determine
how often to check the lubricant. SeeScheduled
Maintenance on page 440.
378

How to Check Lubricant
To get an accurate reading, the vehicle should be
on a level surface.
If the level is below the bottom of the ller plug
hole, you’ll need to add some lubricant. Add
enough lubricant to raise the level to the bottom of
the ller plug hole, located on the transfer case.
What to Use
Refer to the Maintenance Schedule to determine
what kind of lubricant to use. SeeRecommended
Fluids and Lubricants on page 449.
Carrier Assembly-Differential
(Rear Drive Module)
When to Check and Change Lubricant
Refer to the Maintenance Schedule to determine
how often to check the lubricant and when to
change it. SeeScheduled Maintenance on
page 440.
How to Check Lubricant
A. Fill Plug
B. Drain Plug
AWD Differential Case
379

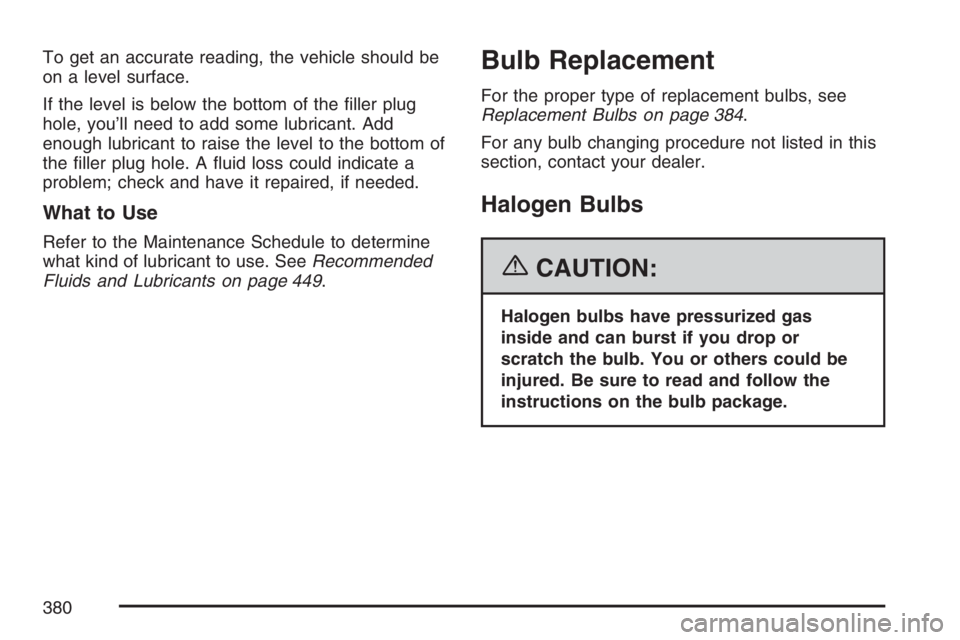

To get an accurate reading, the vehicle should be
on a level surface.
If the level is below the bottom of the ller plug
hole, you’ll need to add some lubricant. Add
enough lubricant to raise the level to the bottom of
the ller plug hole. A uid loss could indicate a
problem; check and have it repaired, if needed.
What to Use
Refer to the Maintenance Schedule to determine
what kind of lubricant to use. SeeRecommended
Fluids and Lubricants on page 449.
Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 384.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb package.
380

Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps
To replace one of these bulbs, do the following:
1. Open the hood. SeeHood Release on
page 347for more information.
2. Remove the three headlamp assembly
attachment screws.
3. Pull the headlamp assembly toward you to
release it from the hidden, lower headlamp
mount. The headlamp assembly will need to
be carefully disengaged from the vehicle.A. Sidemarker Lamp
B. Parking/Turn Signal Lamp
C. Low/High-Beam/DRL Headlamp
4. Pull the locking tab back on the bulb socket
and push the release tab in to release the
wiring harness. Turn the bulb socket
counterclockwise to remove it from the
headlamp assembly.
5. Pull the bulb straight out from the socket.
6. Push the new bulb into the socket and reinstall
the socket into the headlamp assembly by
turning it clockwise.
381

7. Connect the electrical connector.
8. Reverse Steps 1 through 4 to reinstall the
headlamp assembly. When reinstalling the
three headlamp screws, do not overtighten.
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
A. Stoplamp/Taillamp/Sidemarker Lamp
B. Turn Signal Lamp/Taillamp
C. Backup LampTo replace one of these bulbs, do the following:
1. Open the liftgate. SeeLiftgate on page 107for
more information.
2. Remove the taillamp screw covers.
3. Remove the taillamp screws.
4. Pull the taillamp assembly towards you.
382

5. Turn the bulb socket counterclockwise to
disconnect it from the taillamp assembly.
6. Pull the bulb out of the bulb socket.
7. Push the new bulb into the bulb socket.
8. Insert the bulb socket into the taillamp
assembly and turn it clockwise to secure.
9. Reverse Steps 1 through 3 to reinstall the
taillamp assembly. When reinstalling the
screws, do not overtighten.
License Plate Lamp
To replace one of these bulbs, do the following:
1. Remove the two screws holding each of
the license plate lamps to the liftgate
handle.2. Turn and pull the license plate lamp down
through the liftgate opening.
3. Turn the bulb socket counterclockwise and
pull the bulb straight out of the socket.
4. Install the new bulb.
5. Reverse Steps 1 through 3 to reinstall the
license plate lamp.
383

Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up, Rear Turn Signal,
Stoplamp and Taillamp3157
Front and Rear Sidemarker Lamp 194
Front Turn Signal Lamp 5702A
License Plate Lamp 9421330
Low/High-Beam Headlamp/DRL H13
For replacement bulbs not listed here, contact
your dealer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear or cracking. SeeScheduled Maintenance
on page 440for more information.
Replacement blades come in different types and
are removed in different ways. For proper type and
length, seeNormal Maintenance Replacement
Parts on page 450.
Here’s how to replace the windshield wiper
blades:
1. Make sure the front wipers are turned off.
2. Pull the windshield wiper arm away from the
windshield.
384
