2007 PONTIAC TORRENT Owners Manual

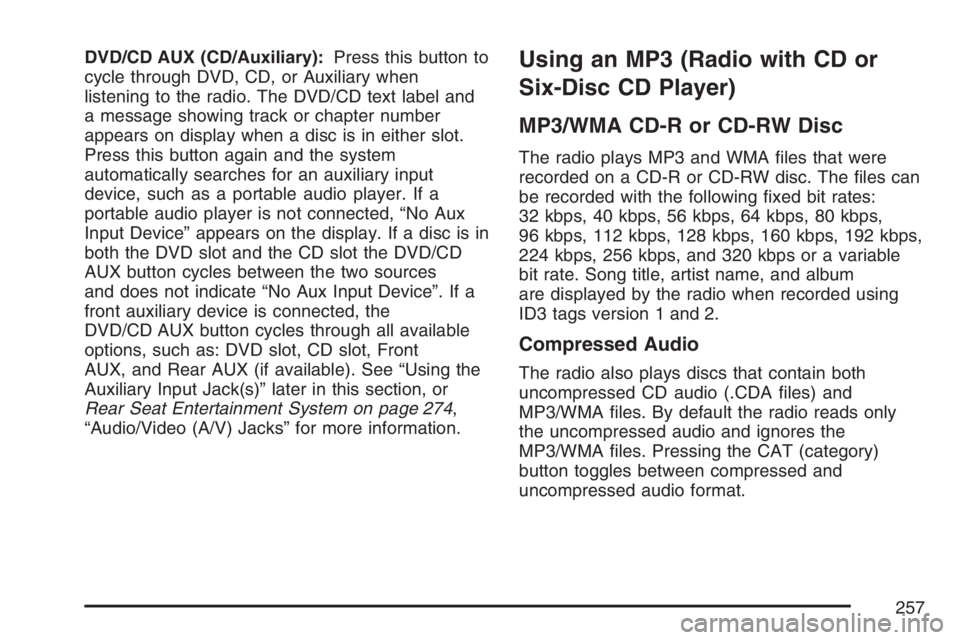

DVD/CD AUX (CD/Auxiliary):Press this button to
cycle through DVD, CD, or Auxiliary when
listening to the radio. The DVD/CD text label and
a message showing track or chapter number
appears on display when a disc is in either slot.
Press this button again and the system
automatically searches for an auxiliary input
device, such as a portable audio player. If a
portable audio player is not connected, “No Aux
Input Device” appears on the display. If a disc is in
both the DVD slot and the CD slot the DVD/CD
AUX button cycles between the two sources
and does not indicate “No Aux Input Device”. If a
front auxiliary device is connected, the
DVD/CD AUX button cycles through all available
options, such as: DVD slot, CD slot, Front
AUX, and Rear AUX (if available). See “Using the
Auxiliary Input Jack(s)” later in this section, or
Rear Seat Entertainment System on page 274,
“Audio/Video (A/V) Jacks” for more information.Using an MP3 (Radio with CD or
Six-Disc CD Player)
MP3/WMA CD-R or CD-RW Disc
The radio plays MP3 and WMA les that were
recorded on a CD-R or CD-RW disc. The les can
be recorded with the following xed bit rates:
32 kbps, 40 kbps, 56 kbps, 64 kbps, 80 kbps,
96 kbps, 112 kbps, 128 kbps, 160 kbps, 192 kbps,
224 kbps, 256 kbps, and 320 kbps or a variable
bit rate. Song title, artist name, and album
are displayed by the radio when recorded using
ID3 tags version 1 and 2.
Compressed Audio
The radio also plays discs that contain both
uncompressed CD audio (.CDA les) and
MP3/WMA les. By default the radio reads only
the uncompressed audio and ignores the
MP3/WMA les. Pressing the CAT (category)
button toggles between compressed and
uncompressed audio format.
257

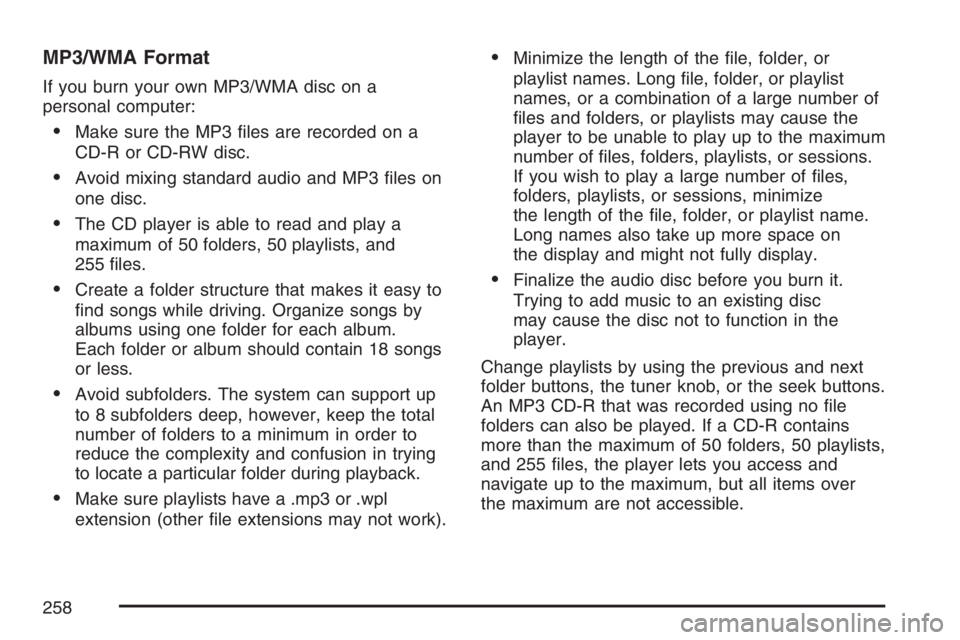

MP3/WMA Format
If you burn your own MP3/WMA disc on a
personal computer:
Make sure the MP3 les are recorded on a
CD-R or CD-RW disc.
Avoid mixing standard audio and MP3 les on
one disc.
The CD player is able to read and play a
maximum of 50 folders, 50 playlists, and
255 les.
Create a folder structure that makes it easy to
nd songs while driving. Organize songs by
albums using one folder for each album.
Each folder or album should contain 18 songs
or less.
Avoid subfolders. The system can support up
to 8 subfolders deep, however, keep the total
number of folders to a minimum in order to
reduce the complexity and confusion in trying
to locate a particular folder during playback.
Make sure playlists have a .mp3 or .wpl
extension (other le extensions may not work).
Minimize the length of the le, folder, or
playlist names. Long le, folder, or playlist
names, or a combination of a large number of
les and folders, or playlists may cause the
player to be unable to play up to the maximum
number of les, folders, playlists, or sessions.
If you wish to play a large number of les,
folders, playlists, or sessions, minimize
the length of the le, folder, or playlist name.
Long names also take up more space on
the display and might not fully display.
Finalize the audio disc before you burn it.
Trying to add music to an existing disc
may cause the disc not to function in the
player.
Change playlists by using the previous and next
folder buttons, the tuner knob, or the seek buttons.
An MP3 CD-R that was recorded using no le
folders can also be played. If a CD-R contains
more than the maximum of 50 folders, 50 playlists,
and 255 les, the player lets you access and
navigate up to the maximum, but all items over
the maximum are not accessible.
258

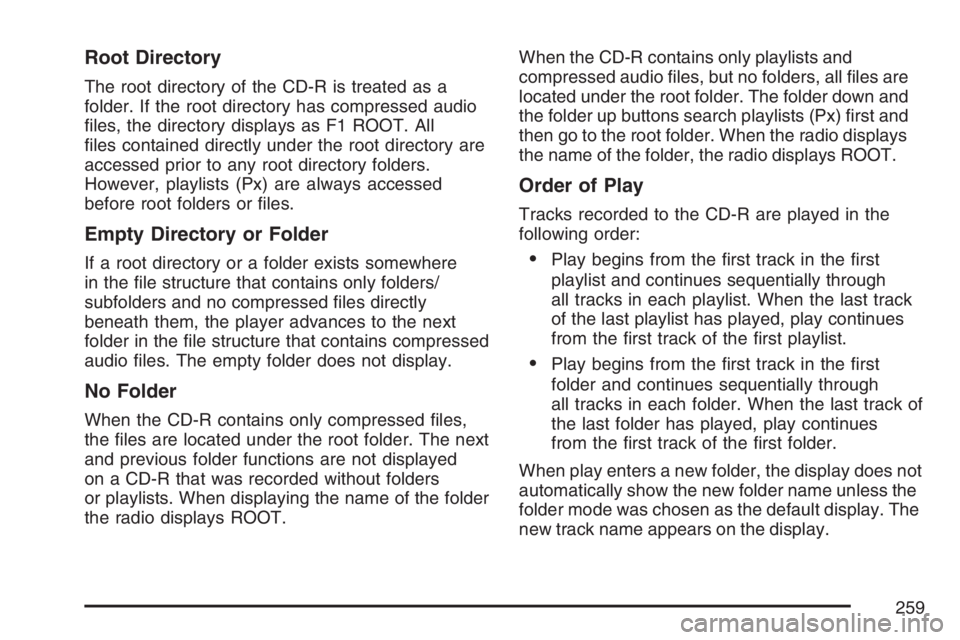

Root Directory
The root directory of the CD-R is treated as a
folder. If the root directory has compressed audio
les, the directory displays as F1 ROOT. All
les contained directly under the root directory are
accessed prior to any root directory folders.
However, playlists (Px) are always accessed
before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere
in the le structure that contains only folders/
subfolders and no compressed les directly
beneath them, the player advances to the next
folder in the le structure that contains compressed
audio les. The empty folder does not display.
No Folder
When the CD-R contains only compressed les,
the les are located under the root folder. The next
and previous folder functions are not displayed
on a CD-R that was recorded without folders
or playlists. When displaying the name of the folder
the radio displays ROOT.When the CD-R contains only playlists and
compressed audio les, but no folders, all les are
located under the root folder. The folder down and
the folder up buttons search playlists (Px) rst and
then go to the root folder. When the radio displays
the name of the folder, the radio displays ROOT.
Order of Play
Tracks recorded to the CD-R are played in the
following order:
Play begins from the rst track in the rst
playlist and continues sequentially through
all tracks in each playlist. When the last track
of the last playlist has played, play continues
from the rst track of the rst playlist.
Play begins from the rst track in the rst
folder and continues sequentially through
all tracks in each folder. When the last track of
the last folder has played, play continues
from the rst track of the rst folder.
When play enters a new folder, the display does not
automatically show the new folder name unless the
folder mode was chosen as the default display. The
new track name appears on the display.
259

File System and Naming
The song name that displays is the song name that
is contained in the ID3 tag. If the song name is not
present in the ID3 tag, then the radio displays the
le name without the extension (such as .mp3) as
the track name.
Track names longer than 32 characters or
four pages are shortened. Parts of words on the
last page of text and the extension of the lename
displays.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™
software can be accessed, however, they cannot
be edited using the radio. These playlists are
treated as special folders containing compressed
audio song les.
Playing an MP3
Insert a CD-R partway into the slot (Single CD
Player), or press the load button and wait for the
message to insert disc (Six-Disc CD Player),
label side up. The player pulls it in, and the CD-R
should begin playing.If the ignition or radio is turned off with a CD-R in
the player, it stays in the player. When the
ignition or radio is turned on, the CD-R starts to
play where it stopped, if it was the last selected
audio source.
As each new track starts to play, the track number
and song title appears on the display.
The CD player can play the smaller 3 inch (8 cm)
single CD-Rs with an adapter ring. Full-size
CD-Rs and the smaller CD-Rs are loaded in the
same manner.
If playing a CD-R, the sound quality may be
reduced due to CD-R quality, the method of
recording, the quality of the music that has been
recorded, and the way the CD-R has been
handled. There may be an increase in skipping,
difficulty in nding tracks, and/or difficulty in loading
and ejecting. If these problems occur, check the
bottom surface of the CD. If the surface of the CD
is damaged, such as cracked, broken, or
scratched, the CD will not play properly. If the
surface of the CD is soiled, seeCare of Your CDs
and DVDs on page 288for more information.
If there is no apparent damage, try a known
good CD.
260

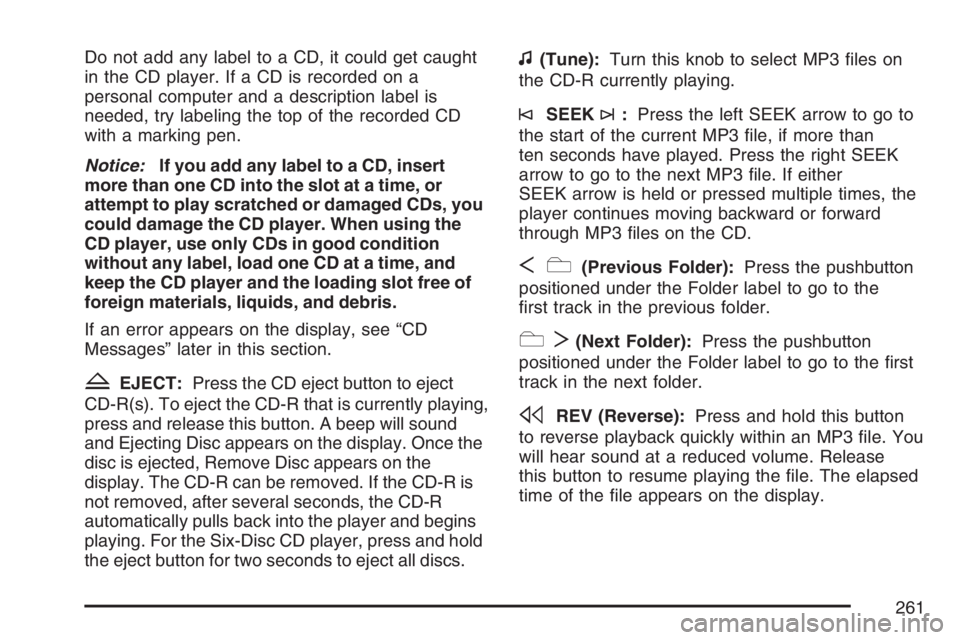

Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen.
Notice:If you add any label to a CD, insert
more than one CD into the slot at a time, or
attempt to play scratched or damaged CDs, you
could damage the CD player. When using the
CD player, use only CDs in good condition
without any label, load one CD at a time, and
keep the CD player and the loading slot free of
foreign materials, liquids, and debris.
If an error appears on the display, see “CD
Messages” later in this section.
ZEJECT:Press the CD eject button to eject
CD-R(s). To eject the CD-R that is currently playing,
press and release this button. A beep will sound
and Ejecting Disc appears on the display. Once the
disc is ejected, Remove Disc appears on the
display. The CD-R can be removed. If the CD-R is
not removed, after several seconds, the CD-R
automatically pulls back into the player and begins
playing. For the Six-Disc CD player, press and hold
the eject button for two seconds to eject all discs.
f(Tune):Turn this knob to select MP3 les on
the CD-R currently playing.
©SEEK¨:Press the left SEEK arrow to go to
the start of the current MP3 le, if more than
ten seconds have played. Press the right SEEK
arrow to go to the next MP3 le. If either
SEEK arrow is held or pressed multiple times, the
player continues moving backward or forward
through MP3 les on the CD.
Sc(Previous Folder):Press the pushbutton
positioned under the Folder label to go to the
rst track in the previous folder.
cT(Next Folder):Press the pushbutton
positioned under the Folder label to go to the rst
track in the next folder.
sREV (Reverse):Press and hold this button
to reverse playback quickly within an MP3 le. You
will hear sound at a reduced volume. Release
this button to resume playing the le. The elapsed
time of the le appears on the display.
261

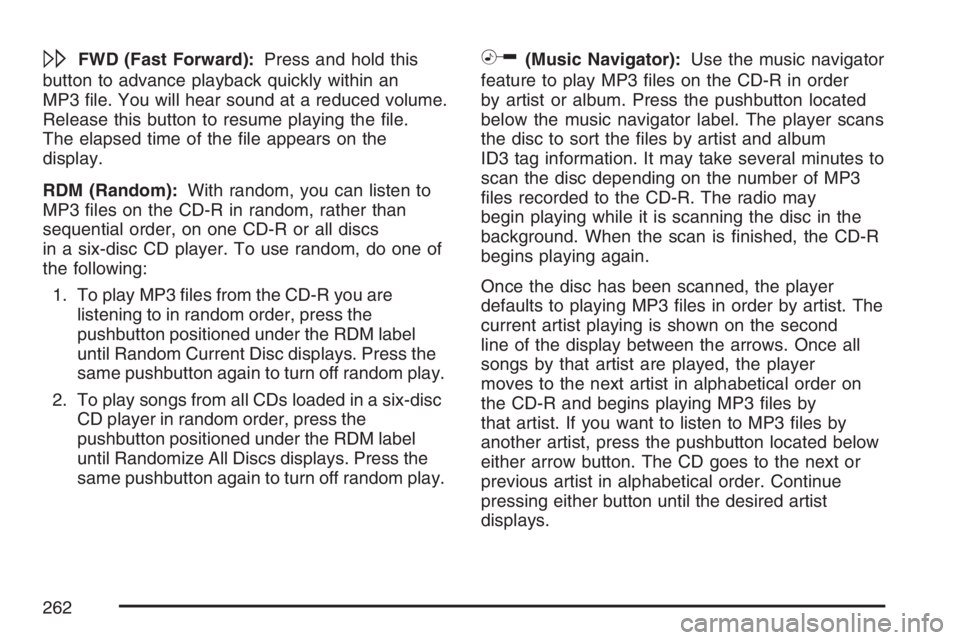

\FWD (Fast Forward):Press and hold this
button to advance playback quickly within an
MP3 le. You will hear sound at a reduced volume.
Release this button to resume playing the le.
The elapsed time of the le appears on the
display.
RDM (Random):With random, you can listen to
MP3 les on the CD-R in random, rather than
sequential order, on one CD-R or all discs
in a six-disc CD player. To use random, do one of
the following:
1. To play MP3 les from the CD-R you are
listening to in random order, press the
pushbutton positioned under the RDM label
until Random Current Disc displays. Press the
same pushbutton again to turn off random play.
2. To play songs from all CDs loaded in a six-disc
CD player in random order, press the
pushbutton positioned under the RDM label
until Randomize All Discs displays. Press the
same pushbutton again to turn off random play.h(Music Navigator):Use the music navigator
feature to play MP3 les on the CD-R in order
by artist or album. Press the pushbutton located
below the music navigator label. The player scans
the disc to sort the les by artist and album
ID3 tag information. It may take several minutes to
scan the disc depending on the number of MP3
les recorded to the CD-R. The radio may
begin playing while it is scanning the disc in the
background. When the scan is nished, the CD-R
begins playing again.
Once the disc has been scanned, the player
defaults to playing MP3 les in order by artist. The
current artist playing is shown on the second
line of the display between the arrows. Once all
songs by that artist are played, the player
moves to the next artist in alphabetical order on
the CD-R and begins playing MP3 les by
that artist. If you want to listen to MP3 les by
another artist, press the pushbutton located below
either arrow button. The CD goes to the next or
previous artist in alphabetical order. Continue
pressing either button until the desired artist
displays.
262

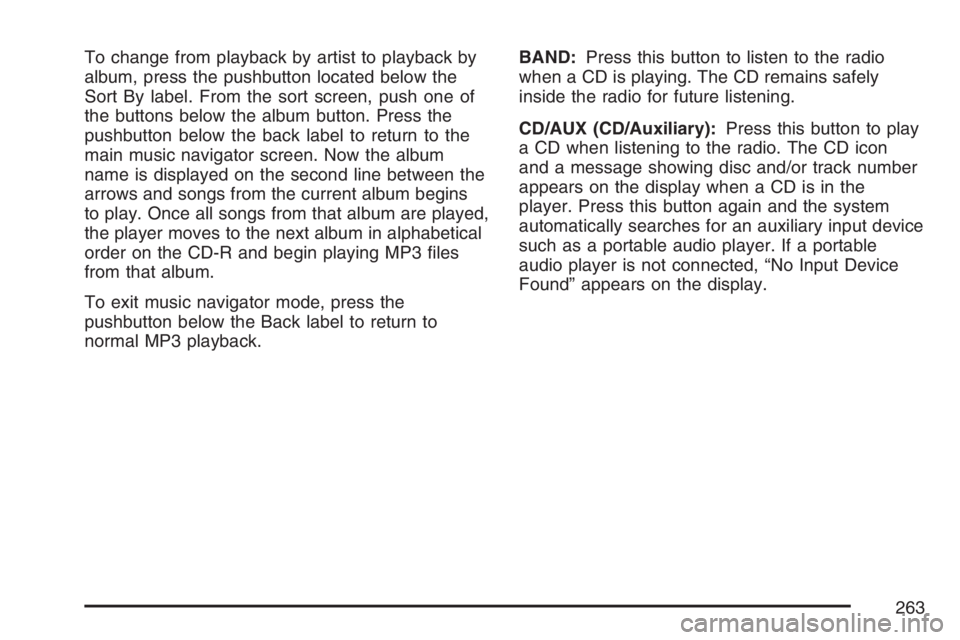

To change from playback by artist to playback by
album, press the pushbutton located below the
Sort By label. From the sort screen, push one of
the buttons below the album button. Press the
pushbutton below the back label to return to the
main music navigator screen. Now the album
name is displayed on the second line between the
arrows and songs from the current album begins
to play. Once all songs from that album are played,
the player moves to the next album in alphabetical
order on the CD-R and begin playing MP3 les
from that album.
To exit music navigator mode, press the
pushbutton below the Back label to return to
normal MP3 playback.BAND:Press this button to listen to the radio
when a CD is playing. The CD remains safely
inside the radio for future listening.
CD/AUX (CD/Auxiliary):Press this button to play
a CD when listening to the radio. The CD icon
and a message showing disc and/or track number
appears on the display when a CD is in the
player. Press this button again and the system
automatically searches for an auxiliary input device
such as a portable audio player. If a portable
audio player is not connected, “No Input Device
Found” appears on the display.
263

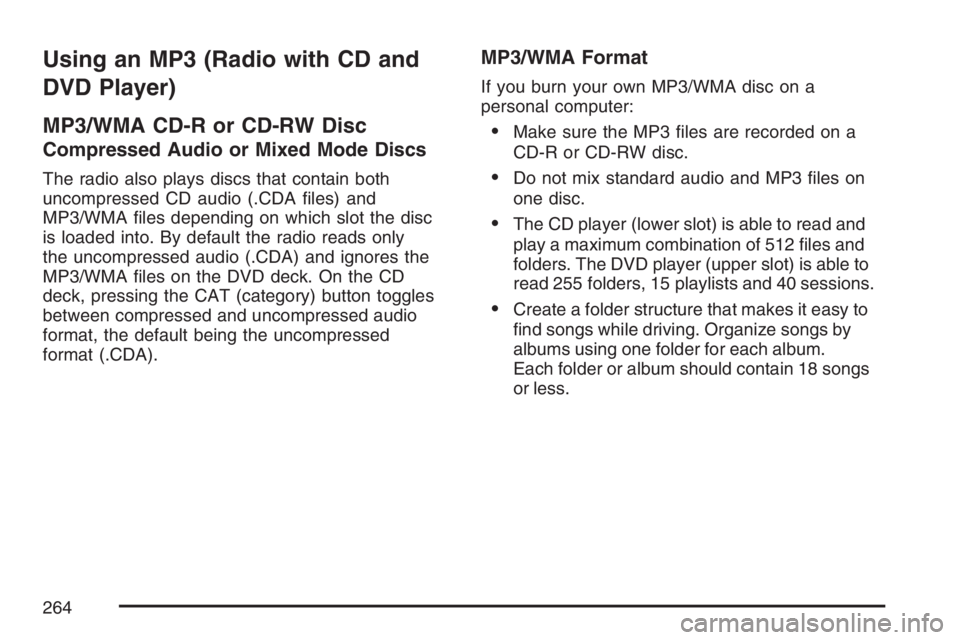

Using an MP3 (Radio with CD and
DVD Player)
MP3/WMA CD-R or CD-RW Disc
Compressed Audio or Mixed Mode Discs
The radio also plays discs that contain both
uncompressed CD audio (.CDA les) and
MP3/WMA les depending on which slot the disc
is loaded into. By default the radio reads only
the uncompressed audio (.CDA) and ignores the
MP3/WMA les on the DVD deck. On the CD
deck, pressing the CAT (category) button toggles
between compressed and uncompressed audio
format, the default being the uncompressed
format (.CDA).
MP3/WMA Format
If you burn your own MP3/WMA disc on a
personal computer:
Make sure the MP3 les are recorded on a
CD-R or CD-RW disc.
Do not mix standard audio and MP3 les on
one disc.
The CD player (lower slot) is able to read and
play a maximum combination of 512 les and
folders. The DVD player (upper slot) is able to
read 255 folders, 15 playlists and 40 sessions.
Create a folder structure that makes it easy to
nd songs while driving. Organize songs by
albums using one folder for each album.
Each folder or album should contain 18 songs
or less.
264
