2007 PEUGEOT 807 Owners Manual

A
Practical information
FRONT SEAT LAYOUT
Storage drawers
There is a storage drawer under each front
seat.
To open it, lift and pull.
To take it out, open it to its full extent, lift
the two tabs on either side of the drawer,
then remove it completely.
Each front seat also has a storage
pocket on the seat back.
12 V socket
You have a 12 V accessory socket at the
foot of the driver ’s seat, which is accessible
to passengers in the 2nd row.
Front and rear armrests
To place the armrest in its rest position:
Lift the armrest until it is aligned with the
seat back.
To place the armrest in the position in
which it is used:
Push it towards the rear,
Fold it down completely,
Raise it slowly to the required position,
If you lift it past the required position,
restart the above operations.
Elastic retaining straps
There is an elastic retaining strap on each
front seat, on the centre side.
In the side position (elastic strap on
its own seat), this can be used as a
magazine holder.
In the transverse position (elastic straps A
hooked between the two seats), they can
hold a bag.
"Aircraft" type table
You have an "aircraft" type table with a rim,
equipped with a cup holder, fitted to the rear
of each front seat.
Do not forget to fold this before pivoting the
seat.
PRACTICAL INFORMATION
Under the front seat on the passenger
side, if the vehicle has an amplifier, the
storage drawer will be locked.
65
ERGONOMICS and COMFORT
2

12
4
31
2
1011
12
7
8
96
5
Practical information
66

Practical information
The light comes on when the cover is
opened.
It contains three sockets for the connection
of video equipment*.
It includes special compartments for
storing maps, a packet of cigarettes, an A4
document etc.
6. Lighter or 12 V socket for accessories
This permits the connection of a mobile
telephone charger, a baby’s bottle warmer,
etc.
7. Cooled compartment
It can hold up to three cans.
Slide the closer, located on the right, to
open (upwards) or close (downwards) the
air inlet.
8. Can holder and ashtray
This retractable and lit support contains up
to two can holders, a removable ashtray
and a location for the lighter when it is used
as a 12 V socket.
1. Driver ’s upper glove box
To open, press the button.
To close, press the cover.
It includes special compartments for storing
a pen, a mobile telephone, coins or tokens
and credit cards.
2. Audio equipment concealing flap
Lower the flap fully to lock it in place.
Press the flap to raise it.
3. Central storage compartment
4. Passenger ’s upper glove box
To open, press the button.
To close, press the cover.
It includes special compartments for storing
a pair of spectacles, keys, five CDs and four
audio cassettes or nine audio CDs.
5. Passenger ’s lower glove box
This is fitted with a lock.
To open the glove box, lift the handle.

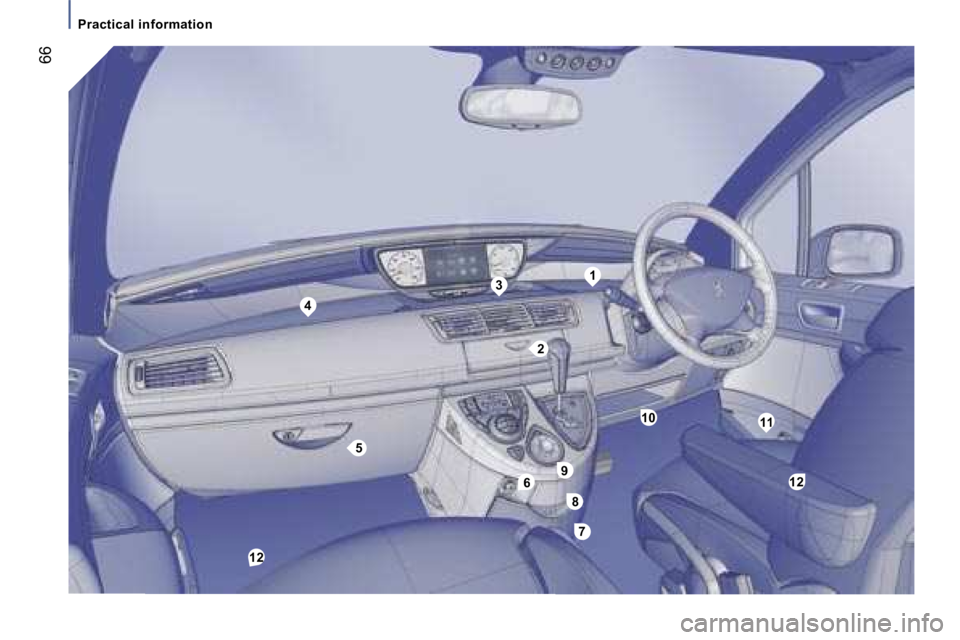

FRONT INTERIOR LAYOUT
9. Storage compartment or additional
telematics control*
The storage compartment must not be used
as an ashtray.
10. Storage compartment
11. Door tray with space for a bottle of
water
67
ERGONOMICS and COMFORT
2
* According to equipment.
12. Mat fitting/removal
When removing the front mat, push the
seats as far back as possible and remove
the fixings.
When refitting, position the mat correctly on
the pins and clip the fixings.
Check that the mat is secured correctly.
To prevent the mat from becoming caught
under the pedals:
- only use mats suited to the fixings already
present in the vehicle.
It is imperative that these fixings are used.
- never fit one mat on top of another.

242
1
3
4
5
67
8
9
11
12
10
13
Practical information
68

Practical information

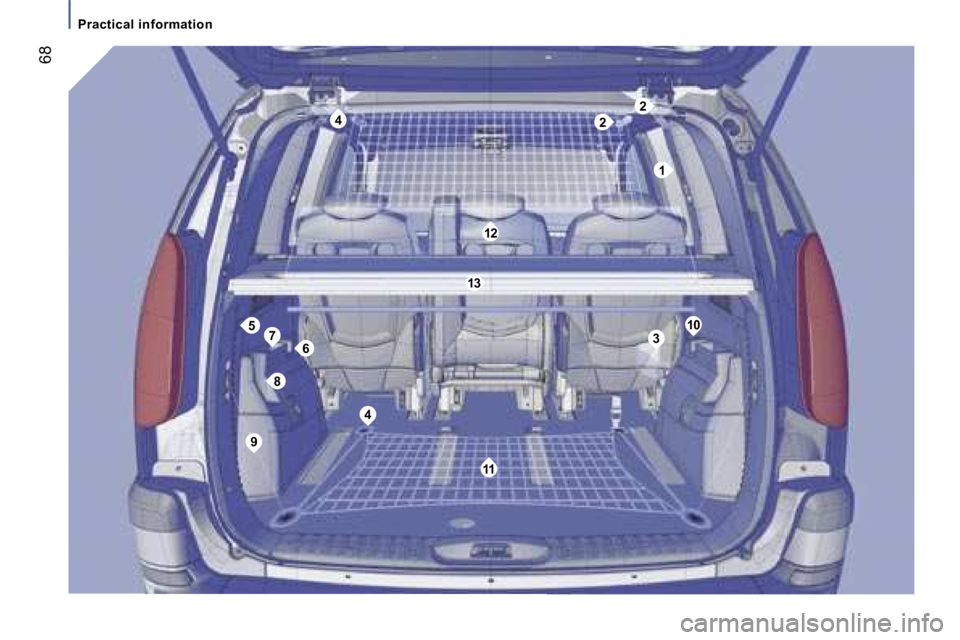

REAR INTERIOR LAYOUT
6. Can holder
7. Storage compartment
8. Bottle holder or portable bin with
ashtray
9. Luggage retaining net "hammock"
position* fastenings
Fold the net in two.
Secure the two centre hooks in the stowing
rings on the floor.
Secure the net’s remaining four hooks on
the tailgate pillars.
10. 12 V socket for accessories
This permits the connection of a mobile
telephone charger, a baby’s bottle warmer, ...
11. Luggage retaining net "octopus"
position*
Secure the net’s four hooks in their stowing
rings on the floor.
1. Access handle
2. Grab handle and coat hook
3. Door tray with storage for a can and a
bottle of water or for the portable bin
with ashtray
4. High load retaining net fastenings
Open the covers of the upper fastenings at
the 3rd row.
Install the ends of the metal bar in these
fastenings.
Secure the two tray strap hooks in the
stowing rings on the floor.
Pull the two straps taut.
Secure the two hooks on the elastic parts of
the tray in these rings.
The rings are located directly below the
corresponding upper fastenings.
5. Storage compartment
12. Load space cover (5 seat version)
To install it:
- position one end of the roller in the 2nd
row,
- compress the opposite end of the roller and
position it,
- release it to allow it to engage,
- unroll the cover as far as the pillars,
- secure the two hooks on the pillars,
To remove it:
- pull the cover towards you to detach it from
its fastenings,
- return the cover into its roller,
- compress it and remove it from its support
at the 2nd row.
13. Rear shelf with umbrella holder
(6-7-8 seat version)
To remove the shelf:
- pull it rearward
- lift it slightly, then remove it
To install it:
- tilt it forwards slightly,
- push to engage it in its fastenings.
* Modification during the year.
69
ERGONOMICS and COMFORT
2

Practical information
70
Front courtesy light
Automatic switching on/off
The front courtesy light comes on when the
key is removed from the ignition, when the
vehicle is unlocked, when one of the front
doors is opened or for location of the vehicle
using the remote control.
It switches off gradually after the ignition is
switched on and when the vehicle is locked.
Permanently on, ignition on.
Front: comes on when one of the
front or rear doors is opened.
Permanently off.
Individual reading light
Rear courtesy light 2nd row
Rear courtesy light 3rd row
These are switched on and off by means of
a manual switch.
COURTESY LIGHTS2nd row and 3rd row: comes on
when one of the rear doors is
opened.
Rear courtesy light

Practical information
AREAS FOR TOLL CARDS/CAR
PARK TICKETS
The athermic windscreen has two
non-reflective zones located either side
of the base of the interior mirror.
They are intended for affixing toll cards
and/or car park tickets.
SUN VISOR WITH ILLUMINATED
COURTESY MIRROR
With the ignition on, the mirror is illuminated
automatically when the concealing flap is
raised.
SIDE BLINDS
Side blinds are available in the rear
2nd and/or 3rd rows.
Pull the side blind by the tab(s).
Position the blind’s attachment(s) on the
corresponding hook(s).
MANUAL ADJUSTMENT OF THE
HEADLAMPS
Depending on the load in your vehicle,
adjusting the beam of your headlamps is
recommended.
0 - 1 or 2 people in the front seats.
1 - 5 people.
2 - 6 to 8 people.
3 - Driver + maximum authorised loads.
Initial setting is position 0.
AUTOMATIC ADJUSTMENT OF
THE XENON HEADLAMPS
On vehicles which are fitted with xenon
headlamps, this system automatically
corrects the height of the light beam,
regardless of the load in the vehicle. The
driver is then guaranteed optimum lighting
without dazzling other road users.
Ensure that the tabs are hooked
correctly to prevent any damage to the
blind when the corresponding sliding side
door is opened.
71
ERGONOMICS and COMFORT
2

12B
A
Mirrors and windows
Manual interior mirror
The interior mirror has two positions:
day (normal),
night (anti-dazzle).
To change from one to the other, push or
pull the lever on the lower edge of the mirror.
Automatic day/night interior mirror
This automatically and gradually changes
between the day and night positions. To
prevent dazzling, the glass of the mirror
darkens automatically depending on the
intensity of the light from behind. It clears as
the light (headlamps of following vehicles,
sunlight) decreases, ensuring maximum
visibility.
Operation
Switch on the ignition and press switch 1:
Indicator light 2 lit (switch pressed):
automatic operation.
MIRRORS
Electric exterior mirrors
Move switch A to the right or to the left
to select the corresponding mirror.
Move knob B in all four directions to
adjust.
Return switch A to the centre position.
When parked, the mirrors can be folded
back manually, or electrically by pulling
switch A rearwards.
Electric unfolding of the mirrors is possible
with the key on unlocking the vehicle.
Indicator light 2 off: automatic system off.
The mirror remains at its most clear.
72
MIRRORS AND WINDOWS
Special feature
To ensure maximum visibility during
manoeuvres, the mirror clears automatically
when reverse gear is engaged.
