2007 PEUGEOT 807 Owners Manual

Pressing the closed padlock for
more than 2 seconds, in addition
to locking or deadlocking, permits
automatic closing of the windows
and places the sunroofs in the partially open
position, if they were open. To close them
completely, you must press their switch
before leaving the vehicle.
Opening/Closing the electric
sliding side doors
Pressing one of the buttons opens
or closes the corresponding rear
door (right or left).
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press the closed padlock, the courtesy
lights come on and the direction indicators
flash for a few seconds.
Key in ignition
A buzzer sounds on opening the driver ’s
door, if the key has been left in the ignition.
Changing the battery of the remote
control
Battery ref.: CR1620/3 volts.
The information "battery flat" is given by an
audible signal, accompanied by a message
on the multifunction display.
To replace the battery, unclip the casing
using a coin at the ring.
If the remote control does not work after the
battery has been changed, re-programme
the remote control.
Accesses
Folding/opening out the key
To tuck away the key blade, press
the button, thenfold it down into
the remote control module.
To open out the key, press the button.
Programming the remote control
Following changing of the remote control battery or disconnection of the vehicle battery, the remote control must be reprogrammed.
ERGONOMICS and COMFORT
Wait at least one minute before
using the remote control.
Switch on the ignition.
Press one of the two padlocks
for at least five seconds within
the next ten seconds.
Switch off the ignition.
Wait at least one minute before
using the remote control.
The remote control is now working again.
13
2
Unlocking
Press the open padlockto unlock
the vehicle.
This is confirmed by rapid
flashing of the direction indicators.
If the vehicle is locked and unlocking is
activated inadvertently, unless the doors are
opened within 30 seconds, the vehicle will
lock automatically.
This press unlocks the vehicle before
opening the corresponding door.
Do not discard the remote control batteries,
they contain metals which are harmful to the
environment.
Take them to a PEUGEOT dealership, or to
any other approved collection point.

ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system as
soon as the ignition has been switched off
and therefore prevents starting of the vehicle
by anyone who does not have the key.
The ignition key has an electronic chip which
has a special code. When the ignition is
switched on, the code must be recognised
for starting to be possible.
If the system does not function correctly,
the central locking button indicator light,
situated on the courtesy light console,
flashes rapidly when the ignition is switched
on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as
possible.

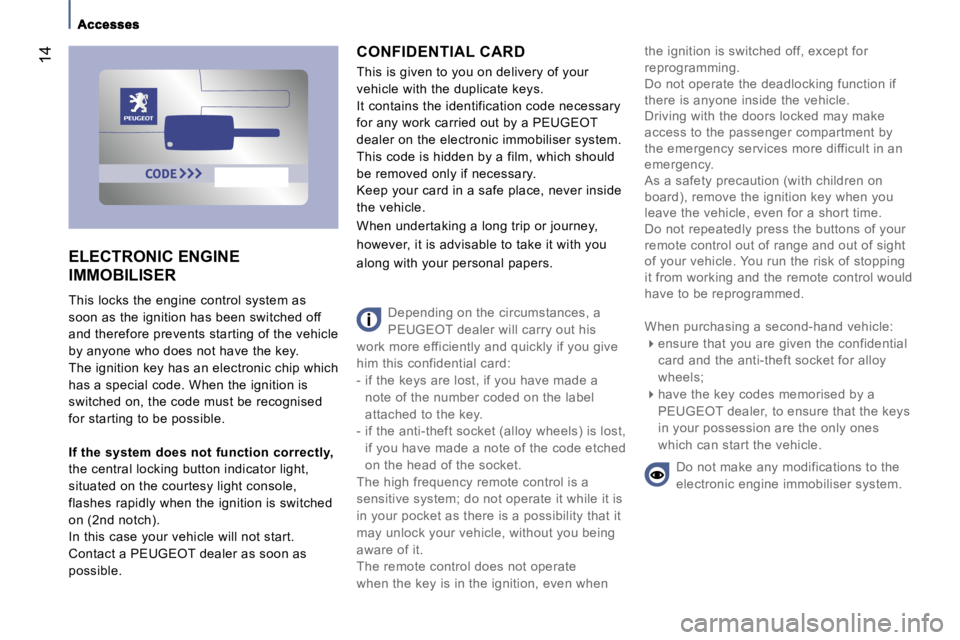

CONFIDENTIAL CARD
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a PEUGEOT
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
Depending on the circumstances, a
PEUGEOT dealer will carry out his
work more efficiently and quickly if you give
him this confidential card:
- if the keys are lost, if you have made a note of the number coded on the label
attached to the key.
- if the anti-theft socket (alloy wheels) is lost,
if you have made a note of the code etched
on the head of the socket.
The high frequency remote control is a
sensitive system; do not operate it while it is
in your pocket as there is a possibility that it
may unlock your vehicle, without you being
aware of it.
The remote control does not operate
when the key is in the ignition, even when the ignition is switched off, except for
reprogramming.
Do not operate the deadlocking function if
there is anyone inside the vehicle.
Driving with the doors locked may make
access to the passenger compartment by
the emergency services more difficult in an
emergency.
As a safety precaution (with children on
board), remove the ignition key when you
leave the vehicle, even for a short time.
Do not repeatedly press the buttons of your
remote control out of range and out of sight
of your vehicle. You run the risk of stopping
it from working and the remote control would
have to be reprogrammed.
When purchasing a second-hand vehicle: 
ensure that you are given the confidential
card and the anti-theft socket for alloy
wheels;
 have the key codes memorised by a
PEUGEOT dealer, to ensure that the keys
in your possession are the only ones
which can start the vehicle.
Do not make any modifications to the
electronic engine immobiliser system.
14

A
Accesses
15
ERGONOMICS and COMFORT
2
ALARM*
This provides two types of protection:
- exterior protection: it sounds if a door, the
tailgate or the bonnet is opened.
- interior protection: it sounds if the volume
inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).
A red indicator light, located in the centre of
the fascia, indicates the information detailed
below.
Setting the alarm
Switch off the ignition and get out of the
vehicle.
Set the alarm within five minutes of
getting out of the vehicle, by locking or
deadlocking using the remote control
(the red indicator light flashes once per
second).
To lock your vehicle without setting the
alarm, insert the key in the lock then
lock the vehicle (eg. for washing).
When the alarm is triggered, the siren
sounds and the direction indicator lights
flash for thirty seconds.
Warning - alarm triggered: the red indicator
light flashes rapidly, insert the key and
switch on the ignition to switch it off.
When the alarm has been triggered ten
times in succession (on the eleventh time)
the alarm is deactivated. Repeat the rules
for setting the alarm.
Disarming
Unlock the vehicle with the remote control
(the red indicator light goes out).
To set the alarm with exterior
protection only
If, while you are away from the vehicle, you
wish to leave a window partially open or a
pet inside the vehicle, you should choose
exterior protection only.
Close the sunroofs,
Switch off the ignition,
In the next ten seconds, press button
A, located on the left-hand side of the
fascia, until the red indicator light is on
continuously,
Get out of the vehicle,
Within the next five minutes, set the
alarm by locking or deadlocking using
the remote control (the red indicator light
flashes once a second).
When the alarm is set but the remote
control does not operate:
 Unlock the doors with the key and open
the door. The alarm is triggered.
 Switch on the ignition in the next ten
seconds. The alarm is disarmed.
Incorrect operation
When the ignition is switched on, if the red
indicator light remains on for ten seconds,
there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the
system checked.
Automatic setting of the alarm*
The alarm is set automatically 2 minutes
after the last door or the tailgate is closed.
To prevent triggering of the alarm when
a door or the tailgate is opened, it is
imperative to press the remote control
unlocking button again.
Do not make any modifications to
the alarm system as this could cause
faults.
* According to country.

16
Accesses
DOORS
Automatic central locking
The doors can lock automatically when you
are driving (at a speed of more than 6 mph
(10 km/h)).
You can activate or deactivate this function.
To deactivate
With the ignition on, press and
hold the padlock.
Deactivation of the function is
accompanied by an audible signal.
"Door open" alert
If a door or the boot is not closed properly:
- when the engine is running, you are
warned by a diagram and a message on
the display for a few seconds,
- when the vehicle is moving (speed above
6 mph (10 km/h)), the service warning light
comes on. It is accompanied by an audible
signal, a message and a diagram on the
display for a few seconds.
Opening the doors from outsideOpening the doors from inside
If the vehicle is locked or deadlocked
from the outside, the red warning light
flashes and the padlock does not function. In
this case, use the key or the remote control
to unlock from the outside.
The door opening switches do not function
when the vehicle is deadlocked.
Locking/Unlocking from
the inside
Press the padlock,the red
warning light comes on when the
vehicle is locked and switches off when it is
unlocked.
This locks/unlocks the doors and the
tailgate.
To activate
With the ignition on, press and
hold the padlock.
Activation of the function is
accompanied by an audible signal and the
message "Automatic locking of the doors
activated" on the display.

>Visuel à venir
object is preventing the required operation,
either inside or outside the vehicle.
Do not lean through an open window, do not
leave any object protruding through the door
during opening or closing.
Do not leave children or pets near the
opening and closing controls without
supervision.
Obstacle detection
The detection system is triggered when
an obstacle which has a certain physical
resistance hinders the movement of the
door.
If an obstacle is detected during:
- closing of the door, the door opens fully,
- opening of the door, the door stops.
When the obstacle has been removed,
complete or restart the action using the
remote control or the interior controls.
Failure to observe these recommendations
may result in injury or damage if part of
the body or an object becomes jammed or
caught.
Opening/Closing using the
remote control:
Press one of the buttons to open
or close the corresponding rear
door (right or left).
Opening/Closing from the
front:
 press the corresponding
control.
An audible signal accompanies the opening
and closing of the door.
ELECTRIC SLIDING SIDE DOORS
Accesses
Remember to close the sliding doors when
your vehicle is parked for long periods,
the electric open door monitoring system
consumes power.
General recommendations
It is imperative that the doors are only
operated when the vehicle is stationary.
Always ensure that the door is operated
safely. Check that no person, animal or
ERGONOMICS and COMFORT
17
2
Opening/Closing from the
2nd row:
 press the corresponding
control.

>Visuel à venirC
D
A18
Accesses
Simultaneous locking or unlocking
of the tailgate and the doors
The tailgate is locked or unlocked by the
remote control or the driver ’s door or
passenger door lock.
To open, operate the handle C and lift the
tailgate.
Tailgate release
This enables the tailgate to be unlocked in
the event of a central locking fault.
Fold back a 2nd row rear seat,
Fold back a 3rd row rear seat or the bench
seat to gain access to the lockfrom inside
the boot,
Insert a small screwdriver into hole D in
the lock and push it towards the left to
unlock the tailgate.
The tailgate locks automatically when
the vehicle is being driven at more than
6 mph (10 km/h) and unlocks when one of
the front doors is opened.
"Tailgate open" warning
When the engine is running or the vehicle is
being driven, you are warned if the tailgate
is not closed correctly by a diagram on the
display, accompanied by an audible signal.
TAILGATEELECTRIC CHILD SAFETY
This disarms all the electrical controls in the
rear:
electric windows,
sliding side doors,
sunroofs in the 2nd and 3rd row.
With the ignition on, press button A.
The message "Child safety activated"
appears on the display, accompanied by an
audible signal.
Always remove the ignition key when leaving the vehicle, even for a short
time.

B
A
Accesses
ERGONOMICS and COMFORT
19
SUNROOFS
You have three sunroofs each with an
independent control.
However, the front passenger ’s control
can also operate the two rear sunroofs
simultaneously.
to partially open the roof: press and
hold part A of the control.
to open the roof completely: press
part A of the control briefly.
to close it completely: press part B of
the control briefly to slide it, then press
the control again continuously to close it
completely.
Safety auto-reverse
When the sunroof is sliding closed and
meets an obstacle, it stops then partially
opens again.
Malfunction
In the event of a malfunction, unwanted
opening of the roof on closing (for
example, in the presence of ice), following
reconnection of the battery or if the sunroof
does not close:
press A until the roof is fully open,
press B within one second to close the
roof,
if the roof does not close, press B several
times until the roof is fully closed.
release then continue to press the
control B for approximately five seconds
after closing of the roof.
The safety auto-reverse function is not
active during these operations.
Disarming of the 2nd and 3rd row
controls
press the rear electrical functions
disarming switch.
The sunroof shutter is manual.
To open it, lift the handle and slide it
rearwards.
To close it, slide it forwards until the handle
locks.
Do not open the sunroofs immediately
after a shower or immediately after
washing the car.
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
Always ensure that the sunroofs are closed
correctly before leaving the vehicle.
In the event of contact during operation of
the roof, you must reverse the movement
of the roof. To do this, press the switch
concerned.
When the driver operates the roof switch,
he must ensure that no one is preventing
correct closing of the roof. Be aware of
children when operating the roof.
The driver must ensure that the passengers
use the sunroof correctly.
2

Instruments and controls
20

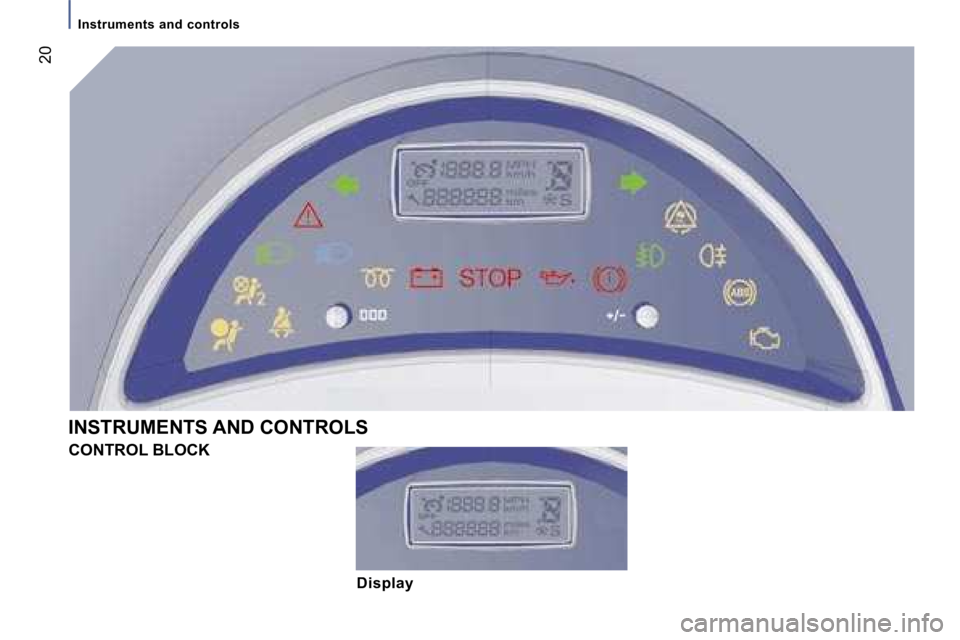

INSTRUMENTS AND CONTROLS
CONTROL BLOCK
Display
