2007 PEUGEOT 807 Owners Manual

A

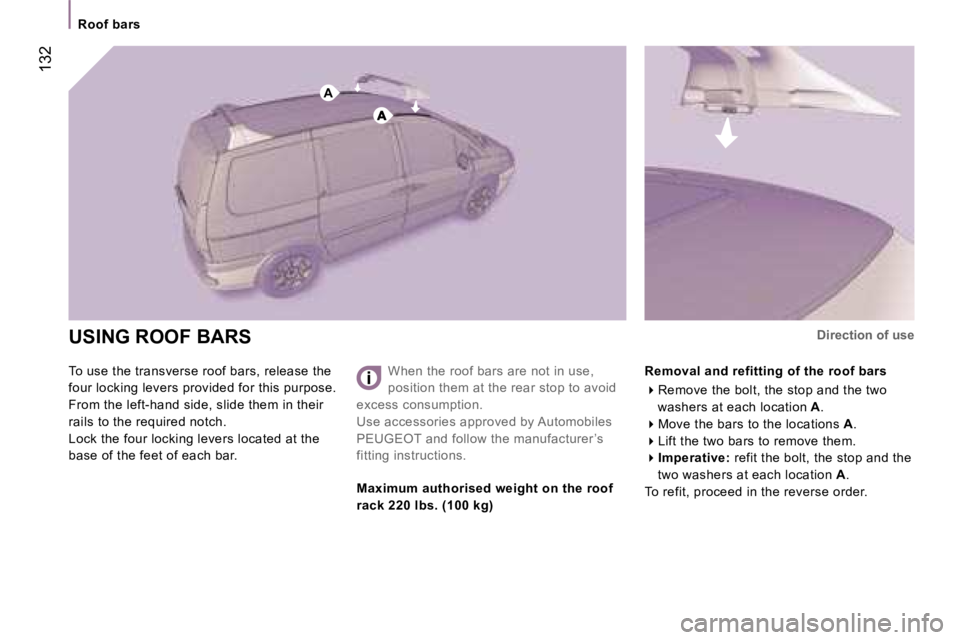

Roof bars
USING ROOF BARS
To use the transverse roof bars, release the
four locking levers provided for this purpose.
From the left-hand side, slide them in their
rails to the required notch.
Lock the four locking levers located at the
base of the feet of each bar.
When the roof bars are not in use,
position them at the rear stop to avoid
excess consumption.
Use accessories approved by Automobiles
PEUGEOT and follow the manufacturer ’s
fitting instructions.
Maximum authorised weight on the roof
rack220 lbs. (100 kg)
Removal and refitting of the roof bars
Remove the bolt, the stop and the two
washers at each location A.
Move the bars to the locations A.
Lift the two bars to remove them.
Imperative: refit the bolt, the stop and the
two washers at each location A.
To refit, proceed in the reverse order.
Direction of use
132

A
B
B
ACCESSORIES
Snow screen
133
5

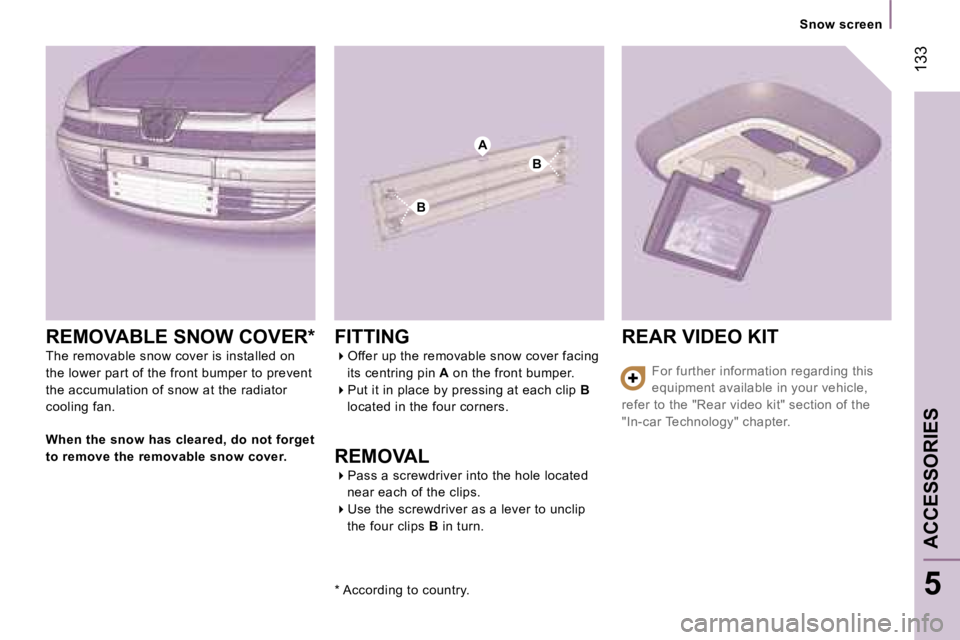

REMOVABLE SNOW COVER*
The removable snow cover is installed on
the lower part of the front bumper to prevent
the accumulation of snow at the radiator
cooling fan.
When the snow has cleared, do not forget
to remove the removable snow cover.
FITTING
Offer up the removable snow cover facing
its centring pin A on the front bumper.
Put it in place by pressing at each clip B
located in the four corners.
REAR VIDEO KIT
For further information regarding this
equipment available in your vehicle,
refer to the "Rear video kit" section of the
"In-car Technology" chapter.
REMOVAL
Pass a screwdriver into the hole located
near each of the clips.
Use the screwdriver as a lever to unclip
the four clips B in turn.
* According to country.

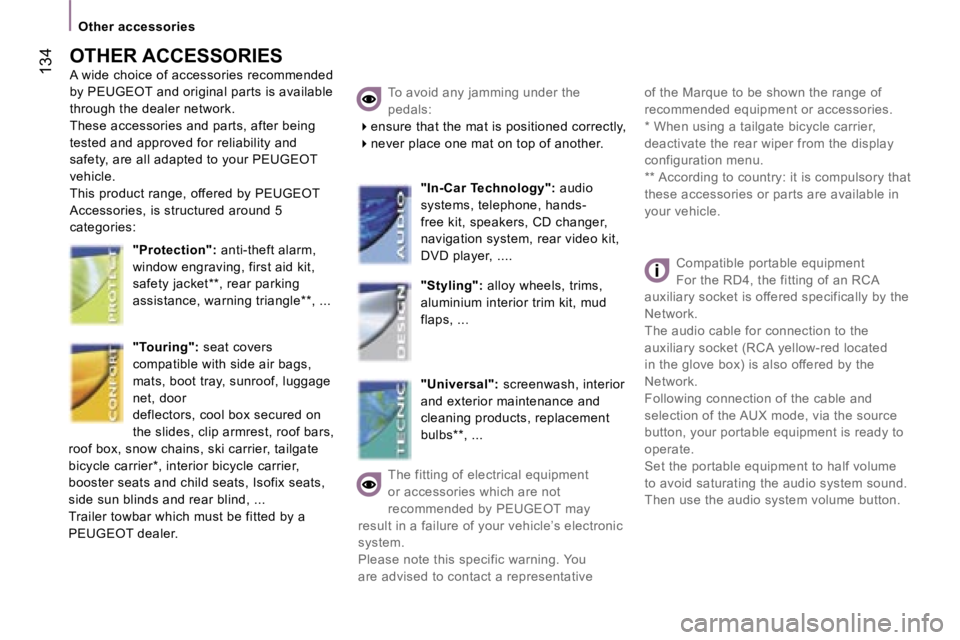

Other accessories
OTHER ACCESSORIES
A wide choice of accessories recommended
by PEUGEOT and original parts is available
through the dealer network.
These accessories and parts, after being
tested and approved for reliability and
safety, are all adapted to your PEUGEOT
vehicle.
This product range, offered by PEUGEOT
Accessories, is structured around 5
categories:
To avoid any jamming under the
pedals:
ensure that the mat is positioned correctly,
never place one mat on top of another.
134
The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may
result in a failure of your vehicle’s electronic
system.
Please note this specific warning. You
are advised to contact a representative
"Protection": anti-theft alarm,
window engraving, first aid kit,
safety jacket**, rear parking
assistance, warning triangle**, ...
"In-Car Technology": audio
systems, telephone, hands-
free kit, speakers, CD changer,
navigation system, rear video kit,
DVD player, ....
"Styling": alloy wheels, trims,
aluminium interior trim kit, mud
flaps, ...
"Universal": screenwash, interior
and exterior maintenance and
cleaning products, replacement
bulbs**, ...
of the Marque to be shown the range of
recommended equipment or accessories.
* When using a tailgate bicycle carrier,
deactivate the rear wiper from the display
configuration menu.
** According to country: it is compulsory that
these accessories or parts are available in
your vehicle.
"Touring": seat covers
compatible with side air bags,
mats, boot tray, sunroof, luggage
net, door
deflectors, cool box secured on
the slides, clip armrest, roof bars,
roof box, snow chains, ski carrier, tailgate
bicycle carrier*, interior bicycle carrier,
booster seats and child seats, Isofix seats,
side sun blinds and rear blind, ...
Trailer towbar which must be fitted by a
PEUGEOT dealer.
Compatible portable equipment
For the RD4, the fitting of an RCA
auxiliary socket is offered specifically by the
Network.
The audio cable for connection to the
auxiliary socket (RCA yellow-red located
in the glove box) is also offered by the
Network.
Following connection of the cable and
selection of the AUX mode, via the source
button, your portable equipment is ready to
operate.
Set the portable equipment to half volume
to avoid saturating the audio system sound.
Then use the audio system volume button.

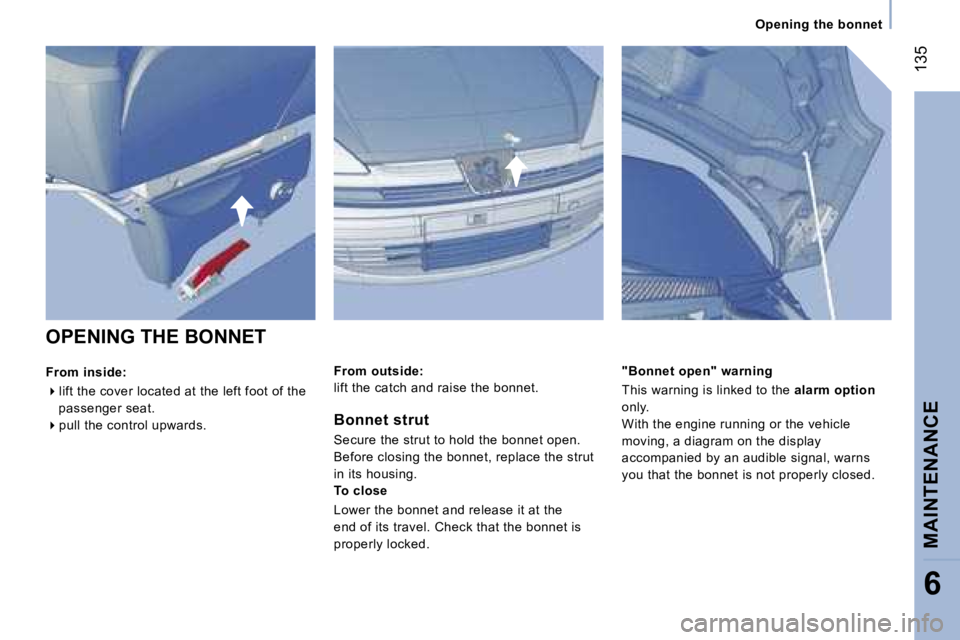

Opening the bonnet
OPENING THE BONNET
From inside:
lift the cover located at the left foot of the
passenger seat.
pull the control upwards.
"Bonnet open" warning
This warning is linked to the alarm option
only.
With the engine running or the vehicle
moving, a diagram on the display
accompanied by an audible signal, warns
you that the bonnet is not properly closed.
From outside:
lift the catch and raise the bonnet.
Bonnet strut
Secure the strut to hold the bonnet open.
Before closing the bonnet, replace the strut
in its housing.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet is
properly locked.
135
MAINTENANCE
6

1
2
3
4
5
6
7
8
109
11

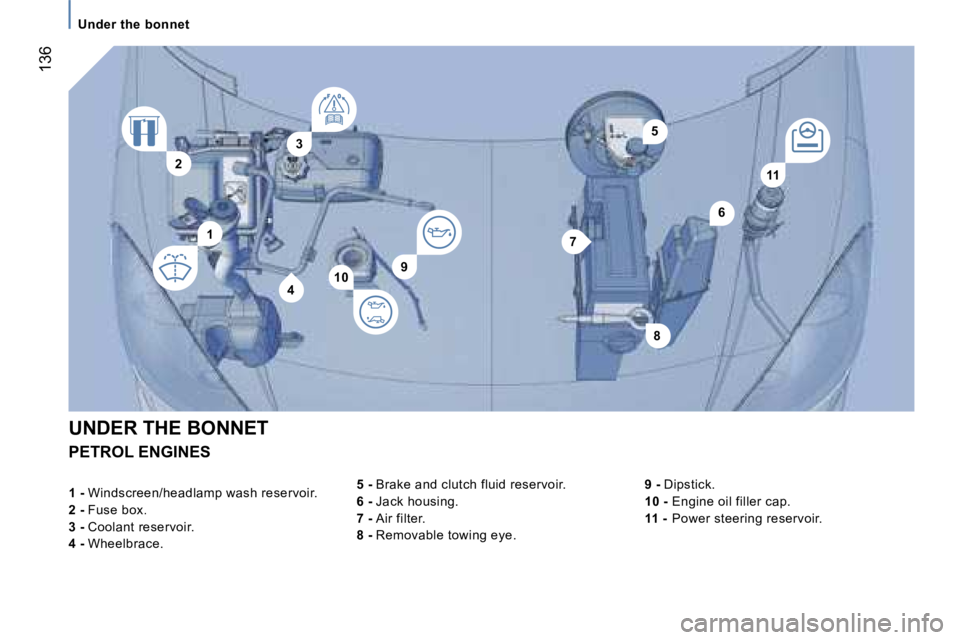

Under the bonnet
136
PETROL ENGINES
1- Windscreen/headlamp wash reservoir.
2 - Fuse box.
3 - Coolant reservoir.
4 - Wheelbrace.
5 - Brake and clutch fluid reservoir.
6 - Jack housing.
7 - Air filter.
8 - Removable towing eye.
9 - Dipstick.
10 - Engine oil filler cap.
11 - Power steering reservoir.
UNDER THE BONNET

2
5
6
7
8
10
9
11
3
4
a
b

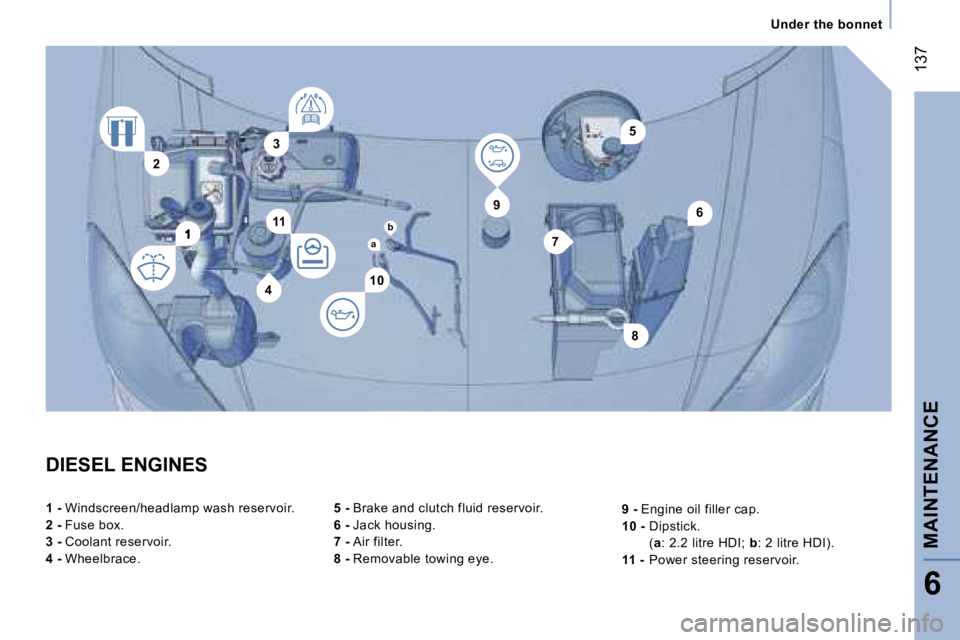

Under the bonnet
DIESEL ENGINES
5 - Brake and clutch fluid reservoir.
6 - Jack housing.
7 - Air filter.
8 - Removable towing eye.
9 - Engine oil filler cap.
10 - Dipstick.
(a: 2.2 litre HDI; b: 2 litre HDI).
11 - Power steering reservoir.MAINTENANCE
6
137
1 - Windscreen/headlamp wash reservoir.
2 - Fuse box.
3 - Coolant reservoir.
4 - Wheelbrace.

A
B
Checking the levels
138
These regular maintenance operations
will keep your vehicle in good running
order. Consult the instructions at PEUGEOT
dealerships, on the Infotec site or in the
servicing booklet enclosed in the wallet
containing the handbook pack.To maintain the reliability of engines and
emission control systems, the use of
additives in engine oil is prohibited.
Oil change
It is imperative that this is carried out at the
intervals specified and the viscosity grade of
the oil selected must fulfil the requirements
in accordance with the manufacturer’s
servicing schedule. Consult the instructions at
PEUGEOT dealerships or on the Infotec site.
Viscosity selection
In all cases, the oil selected must meet the
manufacturer ’s requirements.
Changing the brake fluid
The brake fluid must be changed at
the intervals stated, according to the
manufacturer ’s servicing schedule.
Use fluids recommended by the
manufacturer, which fulfil DOT4 standards.
Cooling system
Only use the fluid recommended by the
manufacturer.
Otherwise, you risk seriously damaging your
engine.
When the engine is warm, the temperature
of the coolant is controlled by the engine
fan. As this fan can operate with the ignition
key removed and because the cooling
system is pressurised, wait for at least one
hour after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to release
the pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
Windscreen wash and headlamp
wash* level
For best quality cleaning and for your safety,
we would advise that you use products of
the PEUGEOT Universal range.
Used oil
Avoid prolonged contact of used oil with the
skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid or
coolant into drains or into the ground but
into the containers dedicated to this use at
PEUGEOT dealerships.
CHECKING THE LEVELS
If you have to remove/refit the engine
style cover, handle it with care to avoid
damaging the fixing clips.
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 l per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.

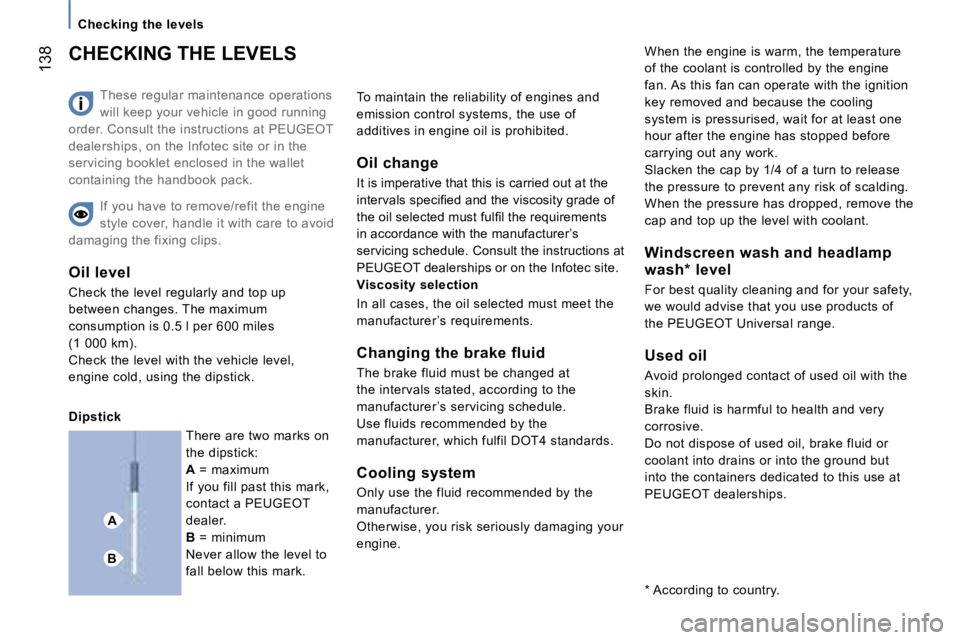

Dipstick
There are two marks on
the dipstick:
A = maximum
If you fill past this mark,
contact a PEUGEOT
dealer.
B = minimum
Never allow the level to
fall below this mark.
* According to country.

CHECKS
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer.
Air filter and passenger
compartment filter
Have the filter elements replaced regularly.
If you drive in dusty conditions, change
them twice as often.
Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances.
It may be necessary to check the thickness
of the pads, even between services.
Handbrake
Where the handbrake travel is too great
or there is a reduction in the performance
of the system, the handbrake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer.
Oil filter
Change the filter regularly, in accordance
with the servicing schedule.
Manual gearbox
Have the level checked in accordance with
the manufacturer ’s servicing schedule.

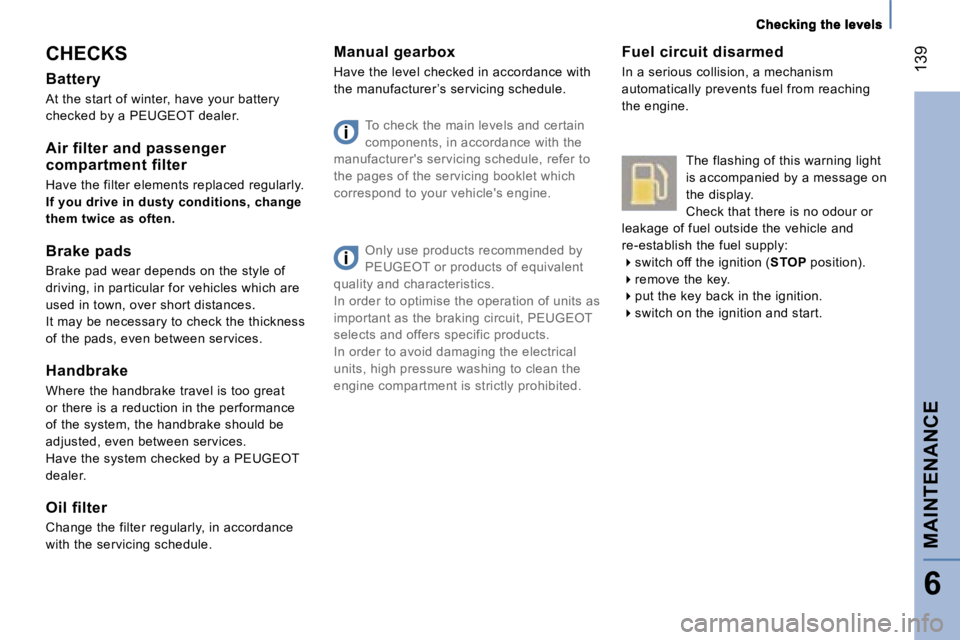

Fuel circuit disarmed
In a serious collision, a mechanism
automatically prevents fuel from reaching
the engine.
To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer to
the pages of the servicing booklet which
correspond to your vehicle's engine.
Only use products recommended by
PEUGEOT or products of equivalent
quality and characteristics.
In order to optimise the operation of units as
important as the braking circuit, PEUGEOT
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
MAINTENANCE
6
139
The flashing of this warning light
is accompanied by a message on
the display.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
switch off the ignition (STOP position).
remove the key.
put the key back in the ignition.
switch on the ignition and start.
