2007 PEUGEOT 807 Owners Manual

TECHNICAL DATA

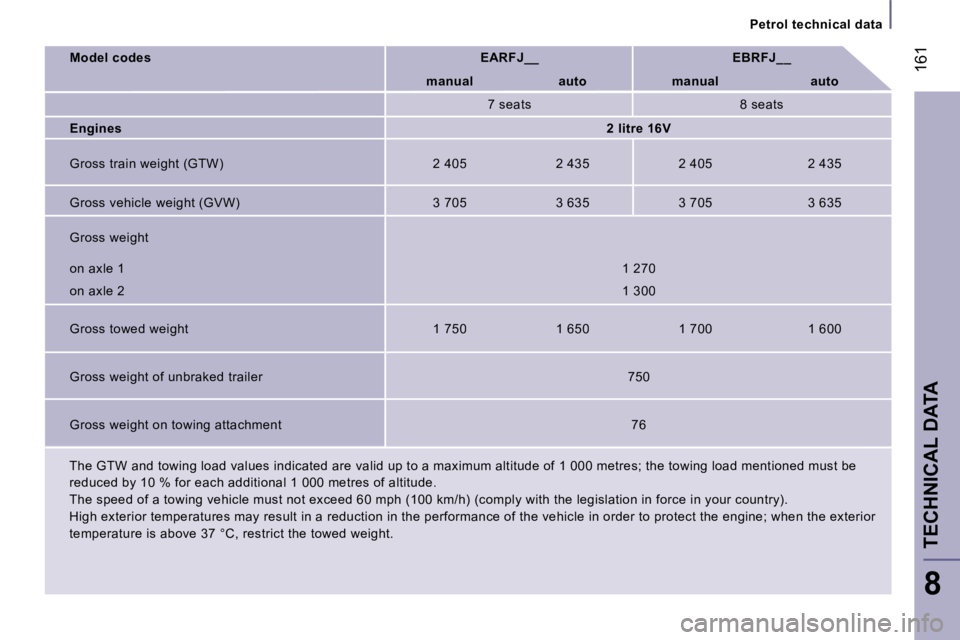

Petrol technical data
161
8
Model codesEARFJ__EBRFJ__
manualautomanualauto
7 seats8 seats
Engines2 litre 16V
Gross train weight (GTW)2 4052 4352 4052 435
Gross vehicle weight (GVW)3 7053 6353 7053 635
Gross weight
on axle 11 270
on axle 21 300
Gross towed weight1 7501 6501 7001 600
Gross weight of unbraked trailer750
Gross weight on towing attachment76
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned must be
reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the exterior
temperature is above 37 °C, restrict the towed weig ht.

Diesel technical data

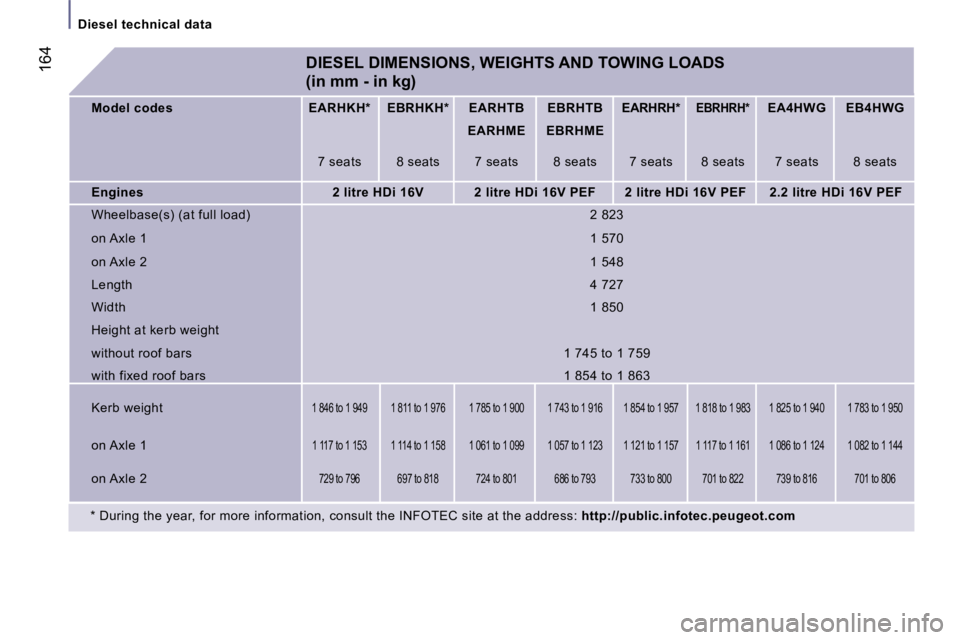

164DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS
(in mm - in kg)
Model codesEARHKH*EBRHKH*EARHTBEBRHTBEARHRH*EBRHRH*EA4HWGEB4HWG
EARHMEEBRHME
7 seats8 seats7 seats8 seats7 seats8 seats7 seats8 seats
Engines2 litre HDi 16V2 litre HDi 16V PEF2 litre HDi 16V PEF2.2 litre HDi 16V PEF
Wheelbase(s) (at full load)2 823
on Axle 11 570
on Axle 21 548
Length4 727
Width1 850
Height at kerb weight
without roof bars1 745 to 1 759
with fixed roof bars1 854 to 1 863
Kerb weight1 846 to 1 9491 811 to 1 9761 785 to 1 9001 743 to 1 9161 854 to 1 9571 818 to 1 9831 825 to 1 9401 783 to 1 950
on Axle 11 117 to 1 1531 114 to 1 1581 061 to 1 0991 057 to 1 1231 121 to 1 1571 117 to 1 1611 086 to 1 1241 082 to 1 144
on Axle 2729 to 796697 to 818724 to 801686 to 793 733 to 800701 to 822739 to 816701 to 806
* During the year, for more information, consult the INFOTEC site at the address: http://public.infotec.peugeot.com

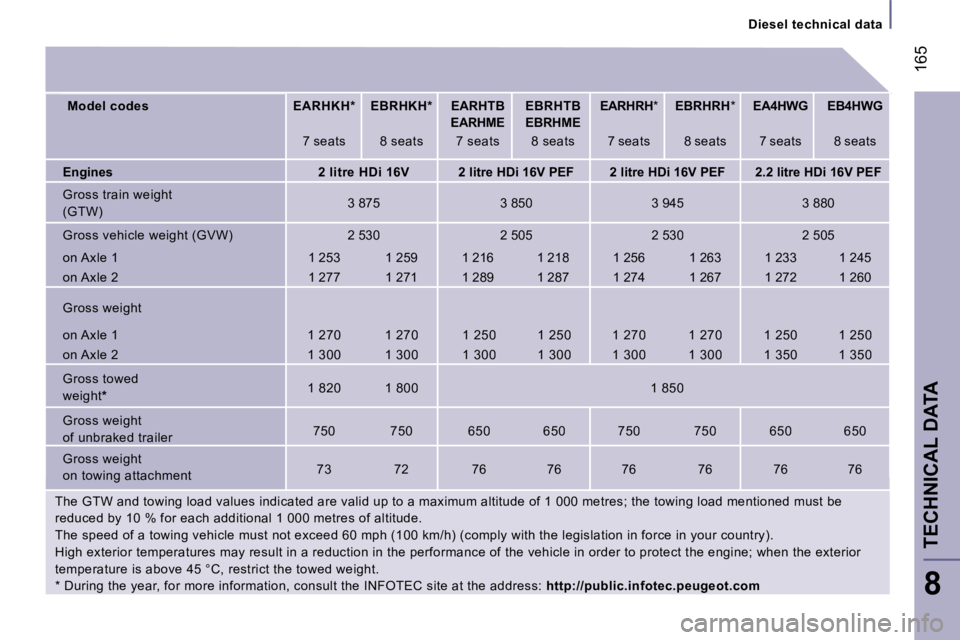

Diesel technical data
TECHNICAL DATA
8
165
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned must be
reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the exterior
temperature is above 45 °C, restrict the towed weig ht.
* During the year, for more information, consult the INFOTEC site at the address: http://public.infotec.peugeot.com
Model codesEARHKH*EBRHKH*EARHTB
EARHME
EBRHTB
EBRHME
EARHRH*EBRHRH*EA4HWGEB4HWG
7 seats8 seats7 seats8 seats7 seats8 seats7 seats8 seats
Engines2 litre HDi 16V2 litre HDi 16V PEF2 litre HDi 16V PEF2.2 litre HDi 16V PEF
Gross train weight
(GTW)3 8753 8503 9453 880
Gross vehicle weight (GVW)2 5302 5052 5302 505
on Axle 11 2531 2591 2161 2181 2561 2631 2331 245
on Axle 21 2771 2711 2891 2871 2741 2671 2721 260
Gross weight
on Axle 11 2701 2701 2501 2501 2701 2701 2501 250
on Axle 21 3001 3001 3001 3001 3001 3001 3501 350
Gross towed
weight*1 8201 8001 850
Gross weight
of unbraked trailer750750650650750750650650
Gross weight
on towing attachment7372767676767676

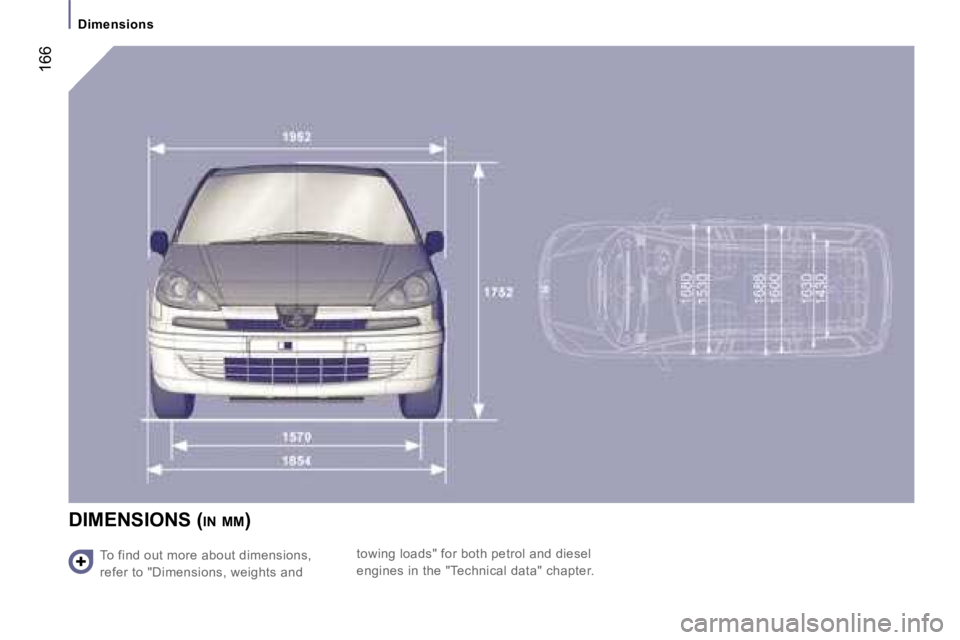

Dimensions
166
DIMENSIONS (IN MM)
To find out more about dimensions,
refer to "Dimensions, weights and towing loads" for both petrol and diesel
engines in the "Technical data" chapter.

TECHNICAL DATA
8
167

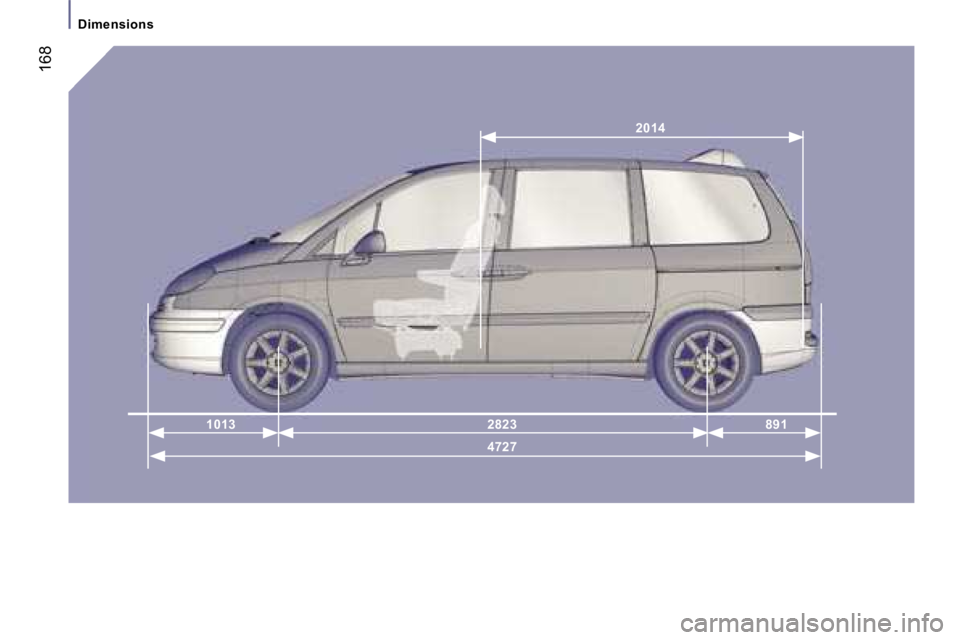

Dimensions

4727
2823
1013 891
2014
Dimensions
168

A
C
B

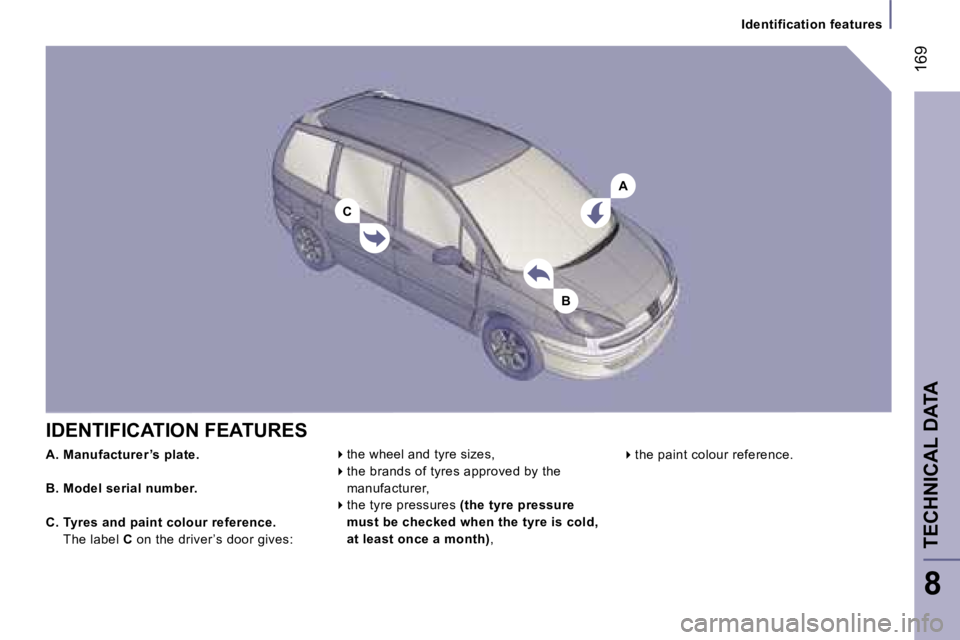

IDENTIFICATION FEATURES
the wheel and tyre sizes,
the brands of tyres approved by the
manufacturer,
the tyre pressures (the tyre pressure
must be checked when the tyre is cold,
at least once a month),
the paint colour reference.A. Manufacturer ’s plate.
B. Model serial number.
C. Tyres and paint colour reference.
The label C on the driver ’s door gives:
Identification features
169
TECHNICAL DATA
8
