2007 PEUGEOT 807 Owners Manual

123
1234
Seats
2ND ROW CENTRE SEAT
This can be placed in the 3rd row, on the left.
"Low table" position
1 - Place the head restraint in the low
position.
2 - At the top (at the back of the seat), lift the
handle identified by the symbol and guide
the tilting of the seat back towards its
seat cushion.
3 - You have a "low table". To return to the
seat position, lift the handle and guide
the raising of the seat back.
Removing the centre seat
1 - Place the seat in the "low table" position.
2 - Using the control which you pull, tilt the
seat back forwards so releasing the rear
anchorages from the slides.
3 - Grab the red strap which appears and
pull it upwards, the front anchorages
unlock.
4 - The strap, like the handle, enables you to
remove the seat.
58

123
Seats
Rear head restraints
The rear head restraints can be removed
and have two positions:
high, position for use,
low, storage position.
To raise or lower a head restraint, pull it
forwards sliding it at the same time.
To remove it, place it in the high position,
push the lug and pull it forwards and
upwards.
To refit it, engage the head restraint rods
in the holes taking care to remain in the
centreline of the seat back.
Never drive with the head restraints
removed, they must be in place and
correctly adjusted.

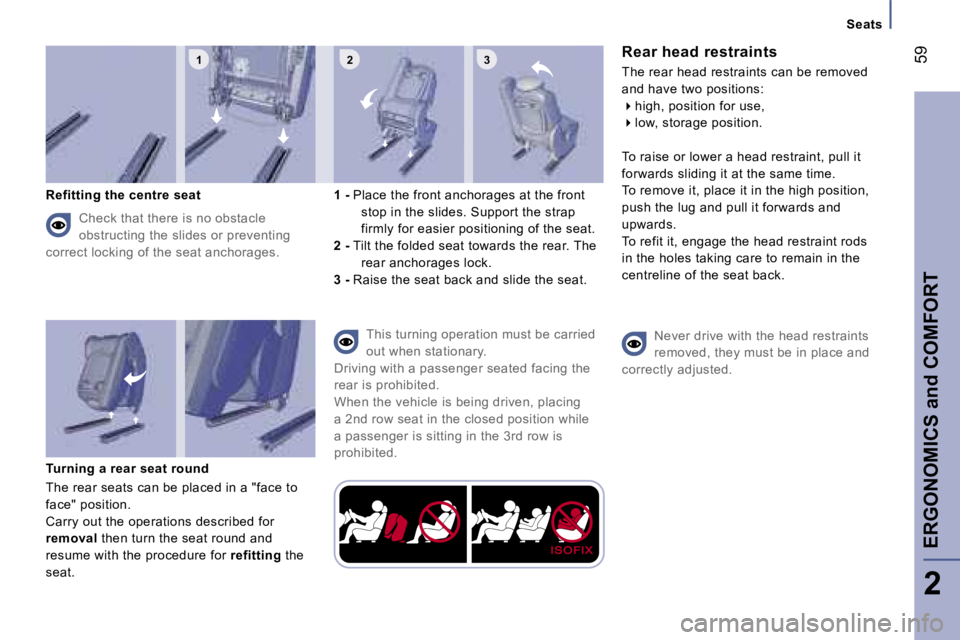

Refitting the centre seat
Check that there is no obstacle
obstructing the slides or preventing
correct locking of the seat anchorages.
1 - Place the front anchorages at the front
stop in the slides. Support the strap
firmly for easier positioning of the seat.
2 - Tilt the folded seat towards the rear. The
rear anchorages lock.
3 - Raise the seat back and slide the seat.
Turning a rear seat round
The rear seats can be placed in a "face to
face" position.
Carry out the operations described for
removal then turn the seat round and
resume with the procedure for refitting the
seat.
This turning operation must be carried
out when stationary.
Driving with a passenger seated facing the
rear is prohibited.
When the vehicle is being driven, placing
a 2nd row seat in the closed position while
a passenger is sitting in the 3rd row is
prohibited.
ERGONOMICS and COMFORT
2
59

123
Seats
Rear head restraints
The rear head restraints can be removed
and have two positions:
high, position for use,
low, storage position.
To raise or lower a head restraint, pull it
forwards sliding it at the same time.
To remove it, place it in the high position,
push the lug and pull it forwards and
upwards.
To refit it, engage the head restraint rods
in the holes taking care to remain in the
centreline of the seat back.
Never drive with the head restraints
removed, they must be in place and
correctly adjusted.
Refitting the centre seat
Check that there is no obstacle
obstructing the slides or preventing
correct locking of the seat anchorages.
1 - Place the front anchorages at the front
stop in the slides. Support the strap
firmly for easier positioning of the seat.
2 - Tilt the folded seat towards the rear. The
rear anchorages lock.
3 - Raise the seat back and slide the seat.
Turning a rear seat round
The rear seats can be placed in a "face to
face" position.
Carry out the operations described for
removal then turn the seat round and
resume with the procedure for refitting the
seat.
This turning operation must be carried
out when stationary.
Driving with a passenger seated facing the
rear is prohibited.
When the vehicle is being driven, placing
a 2nd row seat in the closed position while
a passenger is sitting in the 3rd row is
prohibited.
ERGONOMICS and COMFORT
2
59

23
1234
A
C
B
D
5
c
c
Seats

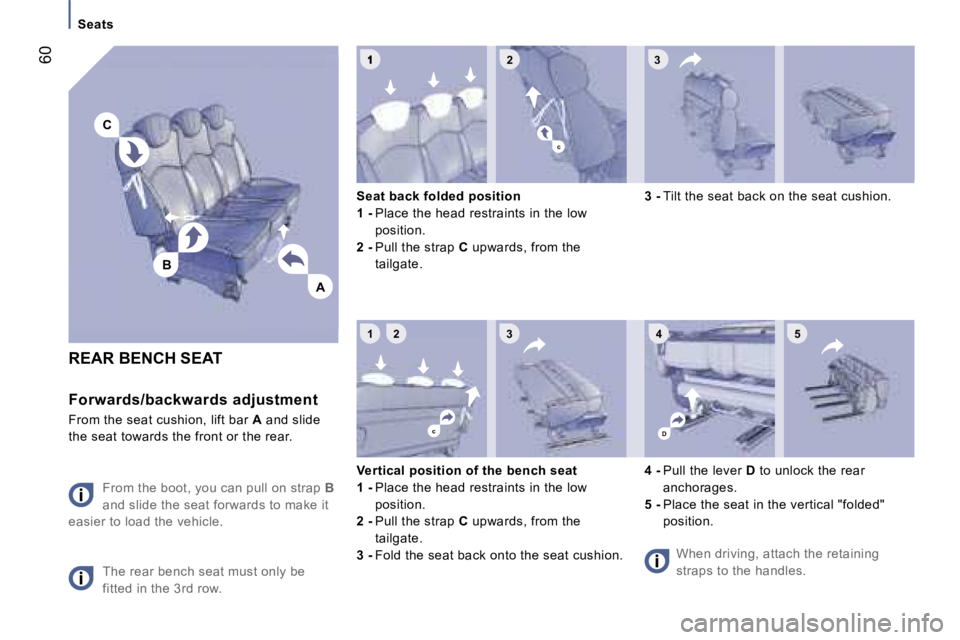

REAR BENCH SEAT
Forwards/backwards adjustment
From the seat cushion, lift bar A and slide
the seat towards the front or the rear.
From the boot, you can pull on strap B
and slide the seat forwards to make it
easier to load the vehicle.
The rear bench seat must only be
fitted in the 3rd
row.
Seat back folded position
1 - Place the head restraints in the low
position.
2 - Pull the strap C upwards, from the
tailgate.
3 - Tilt the seat back on the seat cushion.
Vertical position of the bench seat
1 - Place the head restraints in the low
position.
2 - Pull the strap C upwards, from the
tailgate.
3 - Fold the seat back onto the seat cushion.
4 - Pull the lever D to unlock the rear
anchorages.
5 - Place the seat in the vertical "folded"
position.
When driving, attach the retaining
straps to the handles.
60

12
1234
E
3
C
Seats
Removing the bench seat
1 - Fold the seat to the vertical position.
2 - Grasp the two bars E underneath the
seat.
3 - The front
anchorages unlock.
Refitting the bench seat
For removal and refitting, pass the rear
seat, in the "folded" position, through
the sliding side doors.
Check that there is nothing blocking
the runners which could prevent correct
locking of the bench seat anchorages.
1 - Position the front anchorages at the front
stop of the runners.
2 - Tilt the folded seat rearwards.
3 - The rear anchorages then lock.
4 - Unlock the seat back and lift it using the
strap C.ERGONOMICS and COMFORT
2
61

Seats
The centre seat may be installed in the
central position in the 2nd row and in
the left side position in the 3rd row.

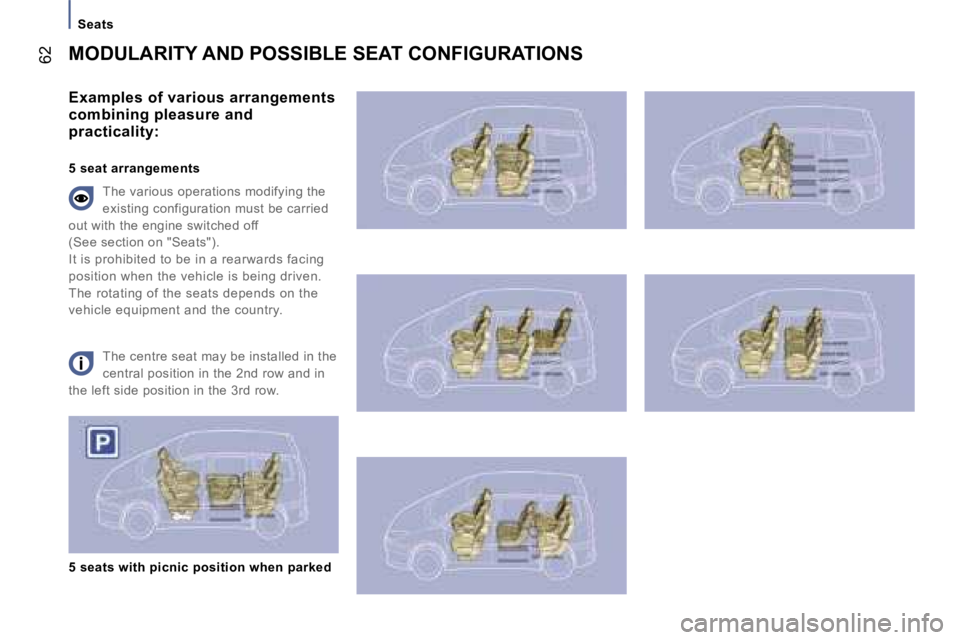

MODULARITY AND POSSIBLE SEAT CONFIGURATIONS
Examples of various arrangements
combining pleasure and
practicality:
5 seat arrangements
The various operations modifying the
existing configuration must be carried
out with the engine switched off
(See section on "Seats").
It is prohibited to be in a rearwards facing
position when the vehicle is being driven.
The rotating of the seats depends on the
vehicle equipment and the country.
5 seats with picnic position when parked
62

Seats
7 seats with access to 3rd row8 seats with bench seat
ERGONOMICS and COMFORT
2
63

"Cargo" configuration
Transportation of long objects configuration
Seats
646 seats "Pullman"
