2007 Peugeot 407 Owner's Manual

4
66

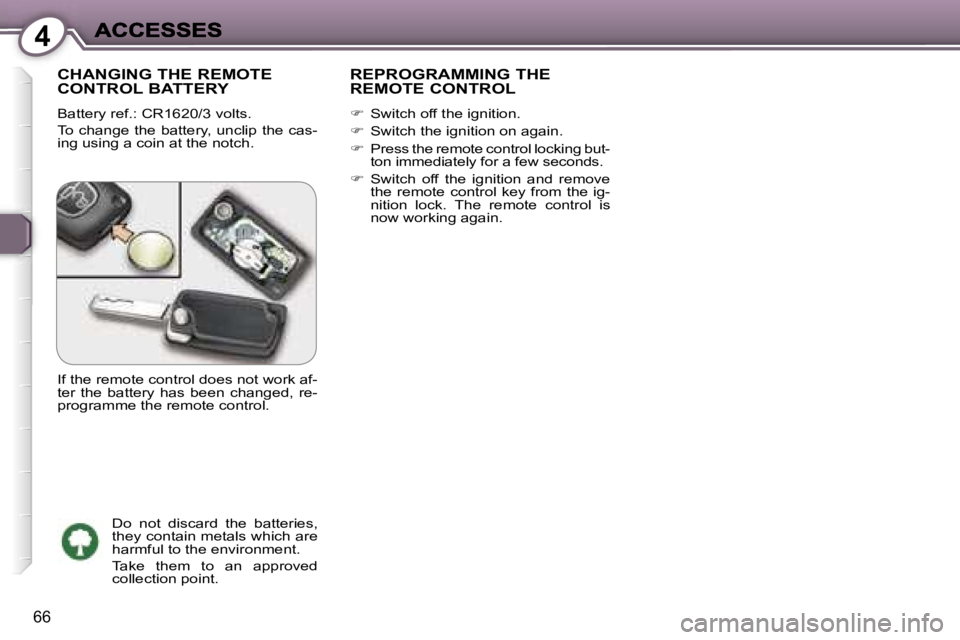

CHANGING THE REMOTE
CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the cas-ing using a coin at the notch.
REPROGRAMMING THE
REMOTE CONTROL
Switch off the ignition.
 Switch the ignition on again.
 Press the remote control locking but-ton immediately for a few seconds.
 Switch off the ignition and remove the remote control key from the ig-nition lock. The remote control is now working again.
If the remote control does not work af-ter the battery has been changed, re-programme the remote control.
Do not discard the batteries, they contain metals which are harmful to the environment.
Take them to an approved collection point.

4
67

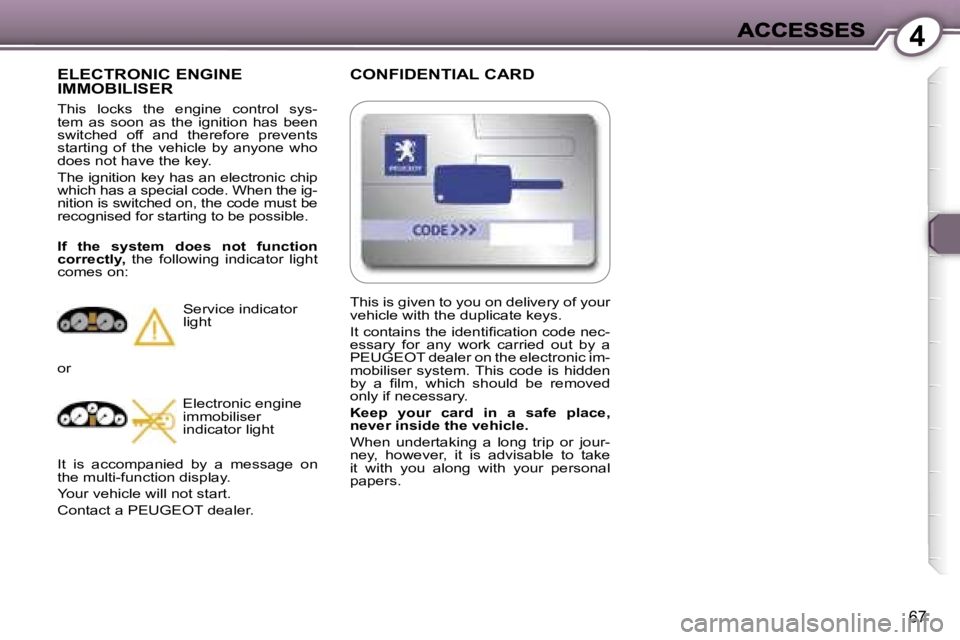

CONFIDENTIAL CARD
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-tem as soon as the ignition has been switched off and therefore prevents starting of the vehicle by anyone who does not have the key.
The ignition key has an electronic chip which has a special code. When the ig-nition is switched on, the code must be recognised for starting to be possible.
If the system does not function correctly, the following indicator light comes on:
Service indicator light
Electronic engine immobiliserindicator light
or
It is accompanied by a message on the multi-function display.
Your vehicle will not start.
Contact a PEUGEOT dealer.
This is given to you on delivery of your vehicle with the duplicate keys.
It contains the identification code nec-essary for any work carried out by a PEUGEOT dealer on the electronic im-mobiliser system. This code is hidden by a film, which should be removed only if necessary.
Keep your card in a safe place, never inside the vehicle.
When undertaking a long trip or jour-ney, however, it is advisable to take it with you along with your personal papers.

4
68

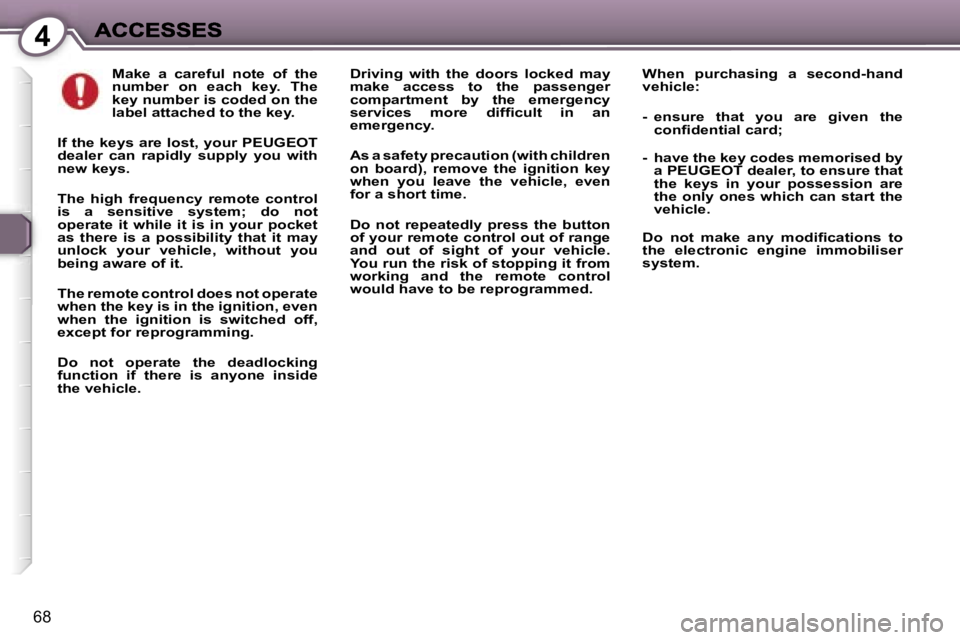

Make a careful note of the number on each key. The key number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except for reprogramming.
Do not operate the deadlocking function if there is anyone inside the vehicle.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the button of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reprogrammed.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.

4
65

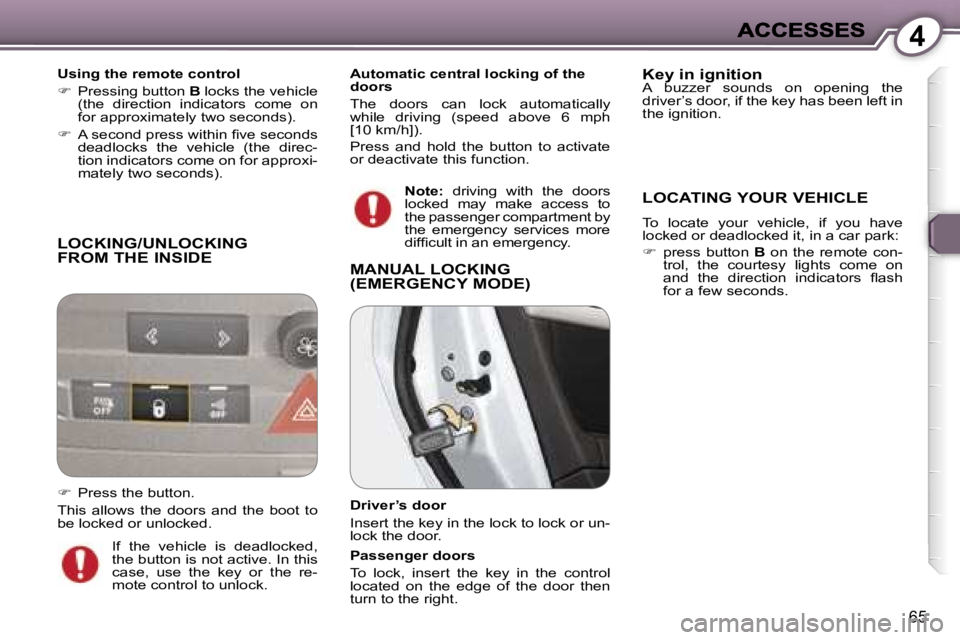

LOCKING/UNLOCKING
FROM THE INSIDE
Using the remote control
 Pressing button B locks the vehicle (the direction indicators come on for approximately two seconds).
 A second press within five seconds deadlocks the vehicle (the direc-tion indicators come on for approxi-mately two seconds).
MANUAL LOCKING
(EMERGENCY MODE)
Automatic central locking of the doors
The doors can lock automatically while driving (speed above 6 mph [10 km/h]).
Press and hold the button to activate or deactivate this function.
Key in ignitionA buzzer sounds on opening the driver’s door, if the key has been left in the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have locked or deadlocked it, in a car park:
 press button B on the remote con-trol, the courtesy lights come on and the direction indicators flash for a few seconds.
Note: driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
If the vehicle is deadlocked, the button is not active. In this case, use the key or the re-mote control to unlock.
 Press the button.
This allows the doors and the boot to be locked or unlocked.
Driver’s door
Insert the key in the lock to lock or un-lock the door.
Passenger doors
To lock, insert the key in the control located on the edge of the door then turn to the right.

4
66
CHANGING THE REMOTE
CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the cas-ing using a coin at the notch.
REPROGRAMMING THE
REMOTE CONTROL
Switch off the ignition.
 Switch the ignition on again.
 Press the remote control locking but-ton immediately for a few seconds.
 Switch off the ignition and remove the remote control key from the ig-nition lock. The remote control is now working again.
If the remote control does not work af-ter the battery has been changed, re-programme the remote control.
Do not discard the batteries, they contain metals which are harmful to the environment.
Take them to an approved collection point.

4
67
CONFIDENTIAL CARD
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-tem as soon as the ignition has been switched off and therefore prevents starting of the vehicle by anyone who does not have the key.
The ignition key has an electronic chip which has a special code. When the ig-nition is switched on, the code must be recognised for starting to be possible.
If the system does not function correctly, the following indicator light comes on:
Service indicator light
Electronic engine immobiliserindicator light
or
It is accompanied by a message on the multi-function display.
Your vehicle will not start.
Contact a PEUGEOT dealer.
This is given to you on delivery of your vehicle with the duplicate keys.
It contains the identification code nec-essary for any work carried out by a PEUGEOT dealer on the electronic im-mobiliser system. This code is hidden by a film, which should be removed only if necessary.
Keep your card in a safe place, never inside the vehicle.
When undertaking a long trip or jour-ney, however, it is advisable to take it with you along with your personal papers.

4
68
Make a careful note of the number on each key. The key number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except for reprogramming.
Do not operate the deadlocking function if there is anyone inside the vehicle.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the button of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reprogrammed.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.

4
69

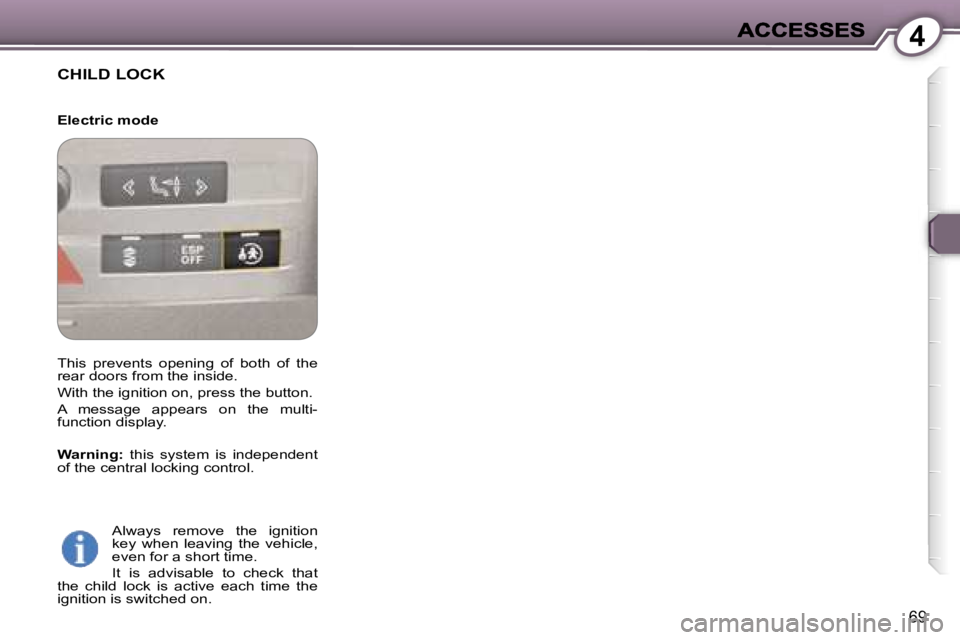

CHILD LOCK
Always remove the ignition key when leaving the vehicle, even for a short time.
It is advisable to check that the child lock is active each time the ignition is switched on.
This prevents opening of both of the rear doors from the inside.
With the ignition on, press the button.
A message appears on the multi-function display.
Warning: this system is independent of the central locking control.
Electric mode
