2007 Peugeot 407 Owner's Manual

3
58
"Forwards-facing"

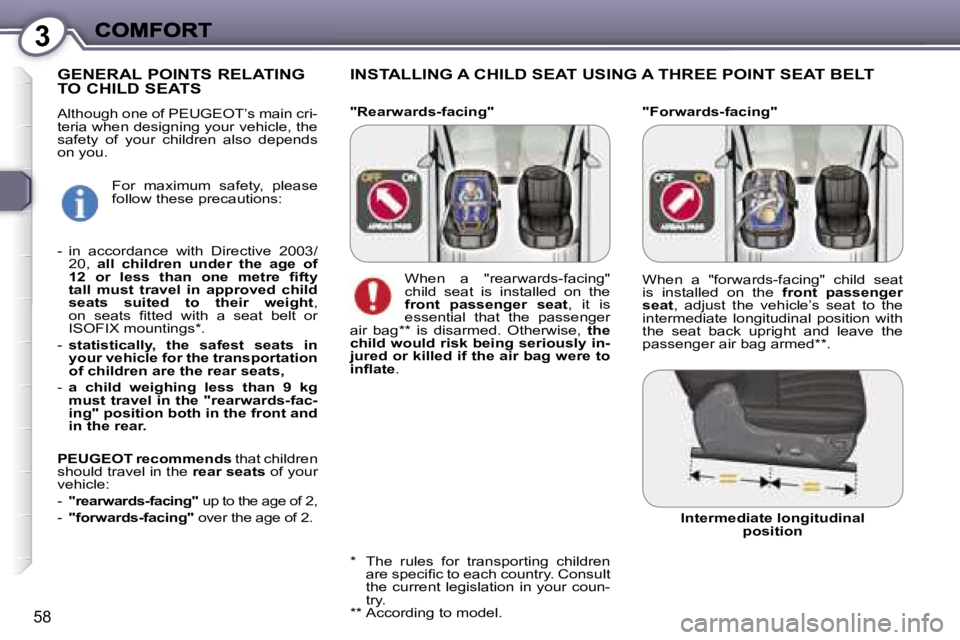

INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
GENERAL POINTS RELATING
TO CHILD SEATS
Although one of PEUGEOT’s main cri-teria when designing your vehicle, the safety of your children also depends on you.
* The rules for transporting children are specific to each country. Consult the current legislation in your coun-try.** According to model.
Intermediate longitudinal position
When a "rearwards-facing" child seat is installed on the front passenger seat, it is essential that the passenger air bag** is disarmed. Otherwise, the child would risk being seriously in-jured or killed if the air bag were to inflate.
When a "forwards-facing" child seat is installed on the front passenger seat, adjust the vehicle’s seat to the intermediate longitudinal position with the seat back upright and leave the passenger air bag armed**.
For maximum safety, please follow these precautions:
- in accordance with Directive 2003/20, all children under the age of 12 or less than one metre fifty tall must travel in approved child seats suited to their weight, on seats fitted with a seat belt or ISOFIX mountings*.
- statistically, the safest seats in your vehicle for the transportation of children are the rear seats,
- a child weighing less than 9 kg must travel in the "rearwards-fac-ing" position both in the front and in the rear.
PEUGEOT recommends that children should travel in the rear seats of your vehicle:
- "rearwards-facing" up to the age of 2,
- "forwards-facing" over the age of 2.
"Rearwards-facing"

3
59
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1"ROMER Baby-Safe Plus" Installed in the rear-facing position
Groups 1, 2 and 3: from 9 to 36 kg
L2"KIDDY Life"For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3"RECARO Start"
L4 "KLIPPAN Optima"From the age of 6 years (approximately 22 kg), the booster is used on its own.

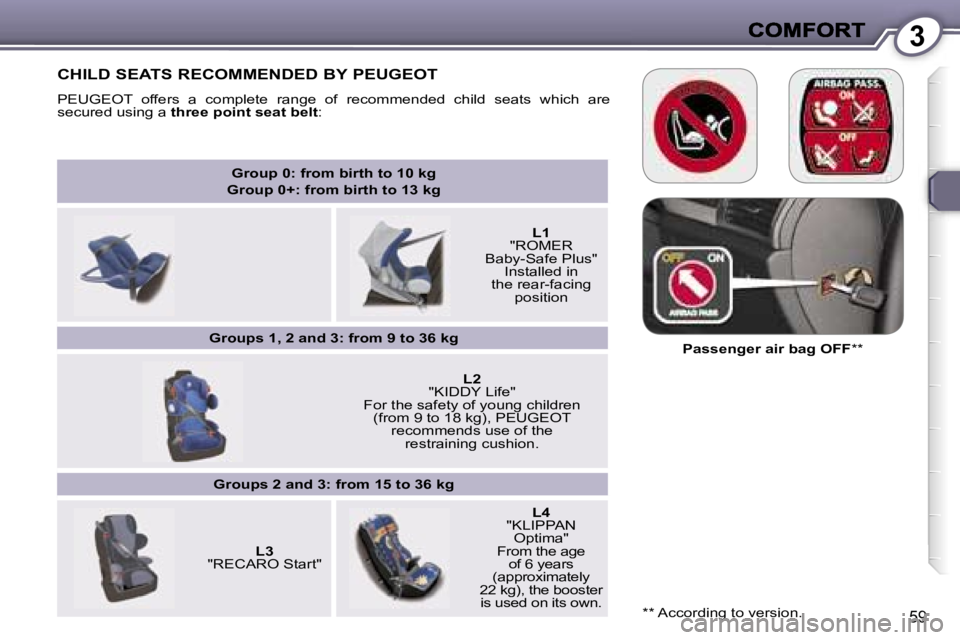

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt:
** According to version.
Passenger air bag OFF**

3
60

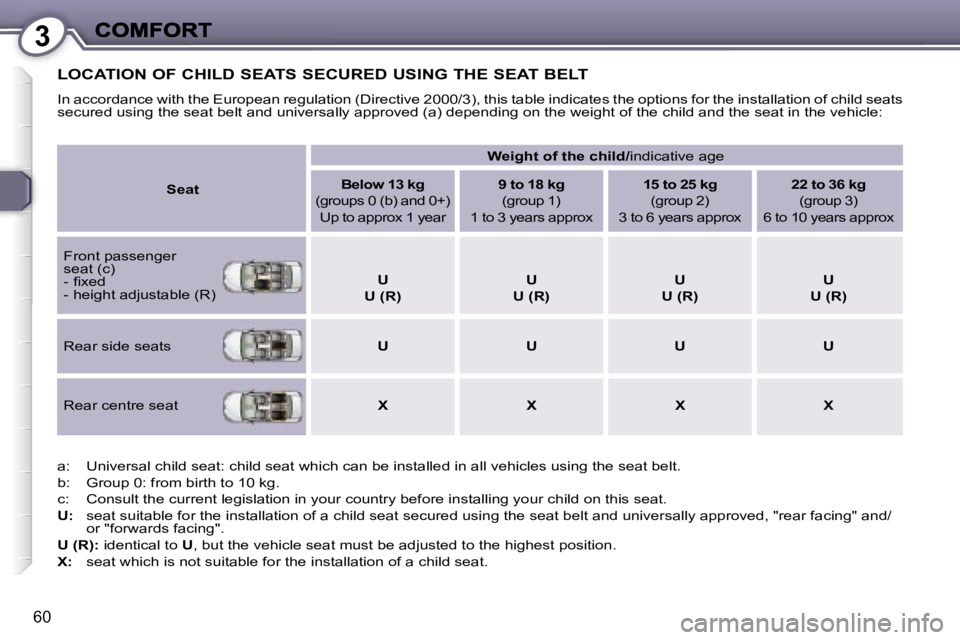

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats secured using the seat belt and universally approved (a) dependi ng on the weight of the child and the seat in the vehicle:
Seat
Weight of the child/indicative age
Below 13 kgBelowBelow
(groups 0 (b) and 0+)
Up to approx 1 year
9 to 18 kg
(group 1)
1 to 3 years approx
15 to 25 kg
(group 2)
3 to 6 years approx
22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger seat (c)- fixed- height adjustable (R)U
U (R)
U
U (R)
U
U (R)
U
U (R)
Rear side seatsUUUU
Rear centre seatXXXX
a: Universal child seat: child seat which can be installed in all vehicles using the seat belt.
b: Group 0: from birth to 10 kg.
c: Consult the current legislation in your country before instal ling your child on this seat.
U: seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and/or "forwards facing".
U (R): identical to U, but the vehicle seat must be adjusted to the highest posi tion.
X: seat which is not suitable for the installation of a child seat.

3
63

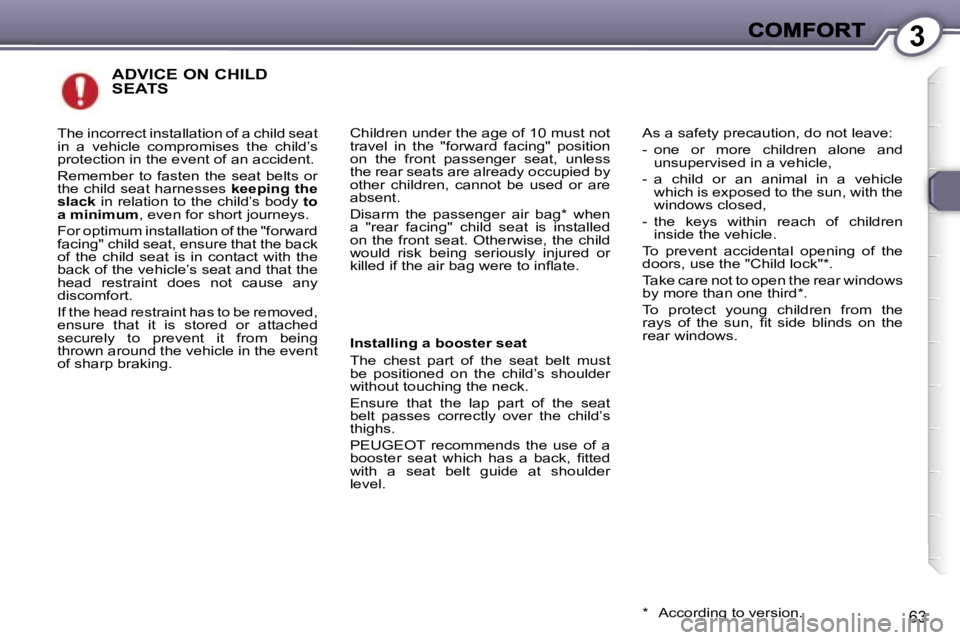

ADVICE ON CHILD
SEATS
Children under the age of 10 must not travel in the "forward facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Disarm the passenger air bag* when a "rear facing" child seat is installed on the front seat. Otherwise, the child would risk being seriously injured or killed if the air bag were to inflate.
* According to version.
Installing a booster seat
The chest part of the seat belt must be positioned on the child’s shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child’s thighs.
PEUGEOT recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors, use the "Child lock"*.
Take care not to open the rear windows by more than one third*.
To protect young children from the rays of the sun, fit side blinds on the rear windows.
The incorrect installation of a child seat in a vehicle compromises the child’s protection in the event of an accident.
Remember to fasten the seat belts or the child seat harnesses keeping the slack in relation to the child’s body to a minimum, even for short journeys.
For optimum installation of the "forward facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle’s seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.

3
61
These are two rings located between the seat back and the seat cushion.

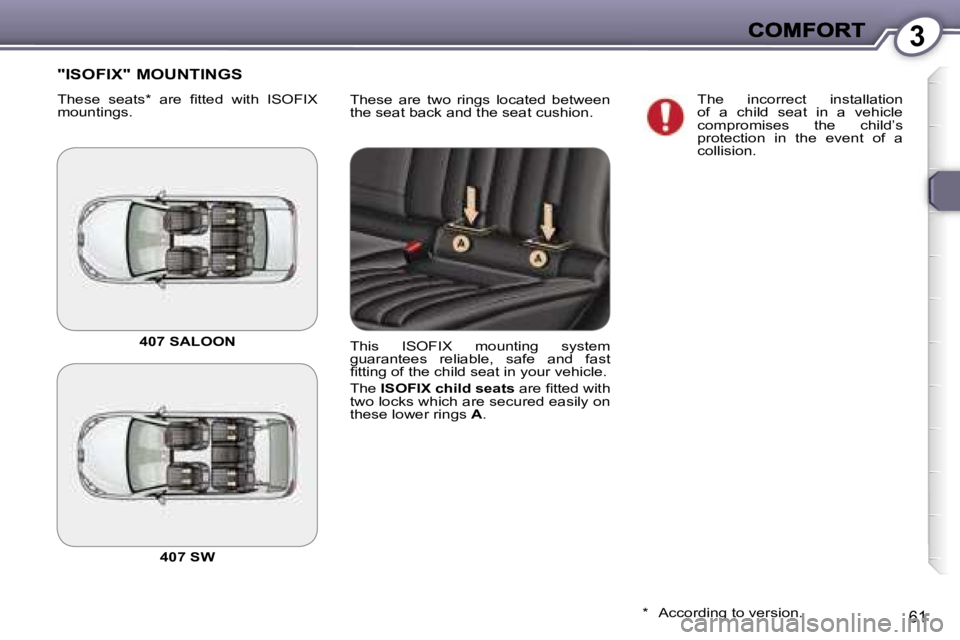

"ISOFIX" MOUNTINGS
These seats* are fitted with ISOFIX mountings.The incorrect installation of a child seat in a vehicle compromises the child’s protection in the event of a collision.
* According to version.
407 SALOON
407 SW
This ISOFIX mounting system guarantees reliable, safe and fast fitting of the child seat in your vehicle.
The ISOFIX child seats are fitted with two locks which are secured easily on these lower rings A.

3
62

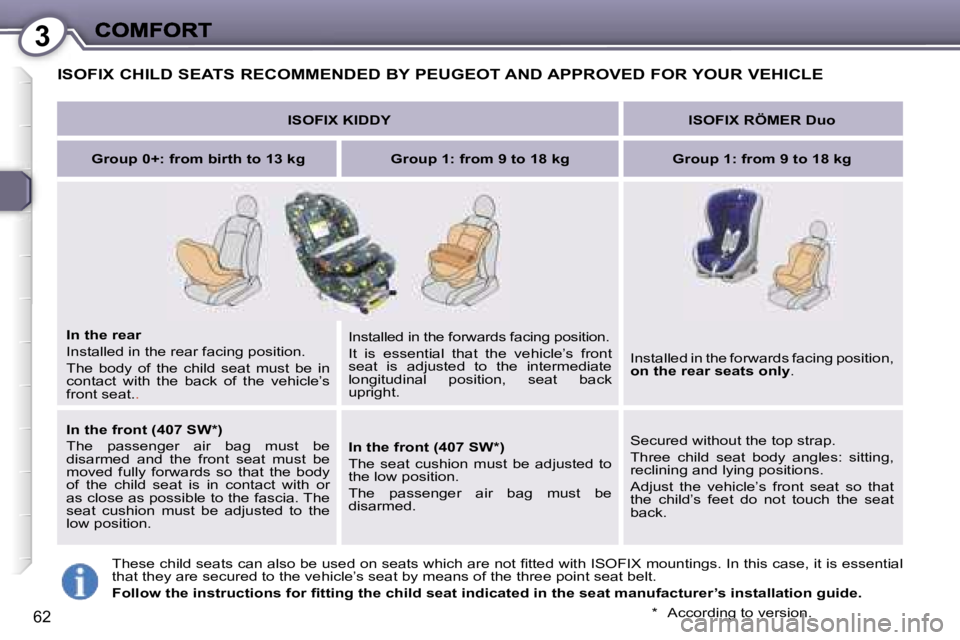

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
ISOFIX KIDDYISOFIX RÖMER Duo
Group 0+: from birth to 13 kgGroup 1: from 9 to 18 kgGroup 1: from 9 to 18 kg
In the rear
Installed in the rear facing position.
The body of the child seat must be in contact with the back of the vehicle’s front seat..
Installed in the forwards facing position.
It is essential that the vehicle’s front seat is adjusted to the intermediate longitudinal position, seat back upright.
Installed in the forwards facing position, on the rear seats only.
In the front (407 SW*)
The passenger air bag must be disarmed and the front seat must be moved fully forwards so that the body of the child seat is in contact with or as close as possible to the fascia. The seat cushion must be adjusted to the low position.
In the front (407 SW*)
The seat cushion must be adjusted to the low position.
The passenger air bag must be disarmed.
Secured without the top strap.
Three child seat body angles: sitting, reclining and lying positions.
Adjust the vehicle’s front seat so that the child’s feet do not touch the seat back.
These child seats can also be used on seats which are not fitted with ISOFIX mountings. In this case, it is essential that they are secured to the vehicle’s seat by means of the three point seat belt.
Follow the instructions for fitting the child seat indicated in the seat manufacturer’s installation guide.
* According to version.

4
64
Deadlocking
This renders the external and internal door controls inoperative.
Do not operate the deadlocking function if there is anyone inside the vehicle.

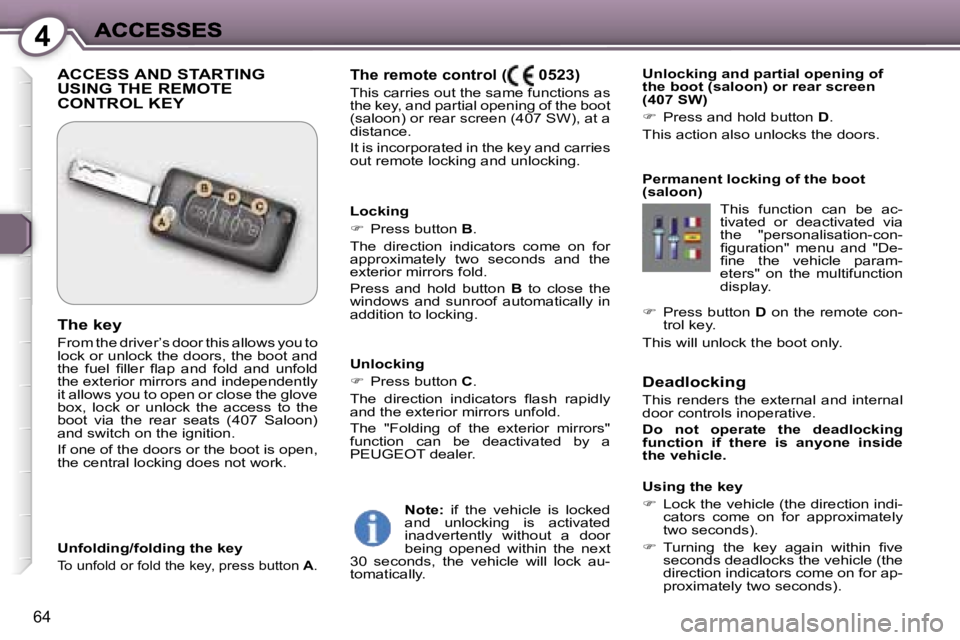

ACCESS AND STARTING
USING THE REMOTE
CONTROL KEY
The key
From the driver’s door this allows you to lock or unlock the doors, the boot and the fuel filler flap and fold and unfold the exterior mirrors and independently it allows you to open or close the glove box, lock or unlock the access to the boot via the rear seats (407 Saloon) and switch on the ignition.
If one of the doors or the boot is open, the central locking does not work.
Unlocking
 Press button C.
The direction indicators flash rapidly and the exterior mirrors unfold.
The "Folding of the exterior mirrors" function can be deactivated by a PEUGEOT dealer.
Unfolding/folding the key
To unfold or fold the key, press button A.
The remote control ( 0523)
This carries out the same functions as the key, and partial opening of the boot (saloon) or rear screen (407 SW), at a distance.
It is incorporated in the key and carries out remote locking and unlocking.
Locking
 Press button B.
The direction indicators come on for approximately two seconds and the exterior mirrors fold.
Press and hold button B to close the windows and sunroof automatically in addition to locking.
Unlocking and partial opening of the boot (saloon) or rear screen (407 SW)
 Press and hold button D.
This action also unlocks the doors.
Permanent locking of the boot (saloon)
This function can be ac-tivated or deactivated via the "personalisation-con-figuration" menu and "De-fine the vehicle param-eters" on the multifunction display.
 Press button D on the remote con-trol key.
This will unlock the boot only.
Using the key
 Lock the vehicle (the direction indi-cators come on for approximately two seconds).
 Turning the key again within five seconds deadlocks the vehicle (the direction indicators come on for ap-proximately two seconds).
Note: if the vehicle is locked and unlocking is activated inadvertently without a door being opened within the next 30 seconds, the vehicle will lock au-tomatically.

4
65

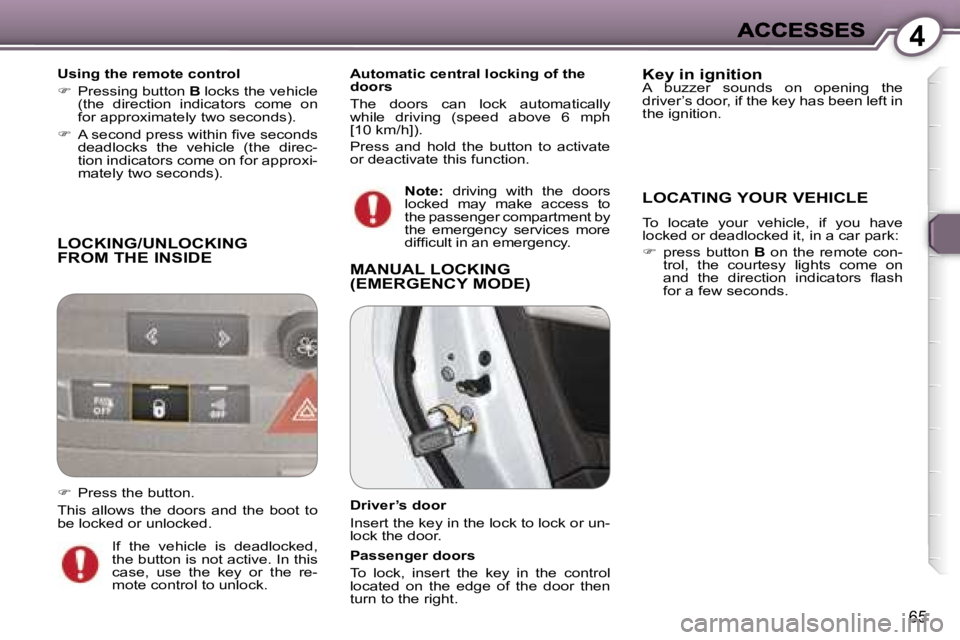

LOCKING/UNLOCKING
FROM THE INSIDE
Using the remote control
 Pressing button B locks the vehicle (the direction indicators come on for approximately two seconds).
 A second press within five seconds deadlocks the vehicle (the direc-tion indicators come on for approxi-mately two seconds).
MANUAL LOCKING
(EMERGENCY MODE)
Automatic central locking of the doors
The doors can lock automatically while driving (speed above 6 mph [10 km/h]).
Press and hold the button to activate or deactivate this function.
Key in ignitionA buzzer sounds on opening the driver’s door, if the key has been left in the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have locked or deadlocked it, in a car park:
 press button B on the remote con-trol, the courtesy lights come on and the direction indicators flash for a few seconds.
Note: driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
If the vehicle is deadlocked, the button is not active. In this case, use the key or the re-mote control to unlock.
 Press the button.
This allows the doors and the boot to be locked or unlocked.
Driver’s door
Insert the key in the lock to lock or un-lock the door.
Passenger doors
To lock, insert the key in the control located on the edge of the door then turn to the right.
