2007 Peugeot 407 Owner's Manual

3
50
MANUAL STEERING WHEEL
HEIGHT AND DEPTH
ADJUSTMENTELECTRIC ADJUSTMENT OF
THE HEIGHT AND DEPTH OF
THE STEERING WHEELWELCOME FUNCTION
You can activate or deac-tivate this function via the "personalisation-configu-ration" menu on the multi-function display.
When the vehicle is stationary, unlock the steering wheel by pushing the con-trol forwards.
Adjust the height and depth of the steering wheel then lock by pulling the control fully.
When stationary, adjust the height or depth of the steering wheel by moving the control:
 forwards or backwards to adjust the depth.
 up or down to adjust the height.
When the driver’s door is opened with the ignition off, the steering wheel ris-es to make access to or exit from the vehicle easier.
Reinitialisation
Following reconnection of the battery, the welcome function must be reinitial-ised:
- move the control in the direction of the required adjustment,
- release the control,
- move the control again until it reach-es its stop.
This procedure must be carried out for all four directions.

3
51

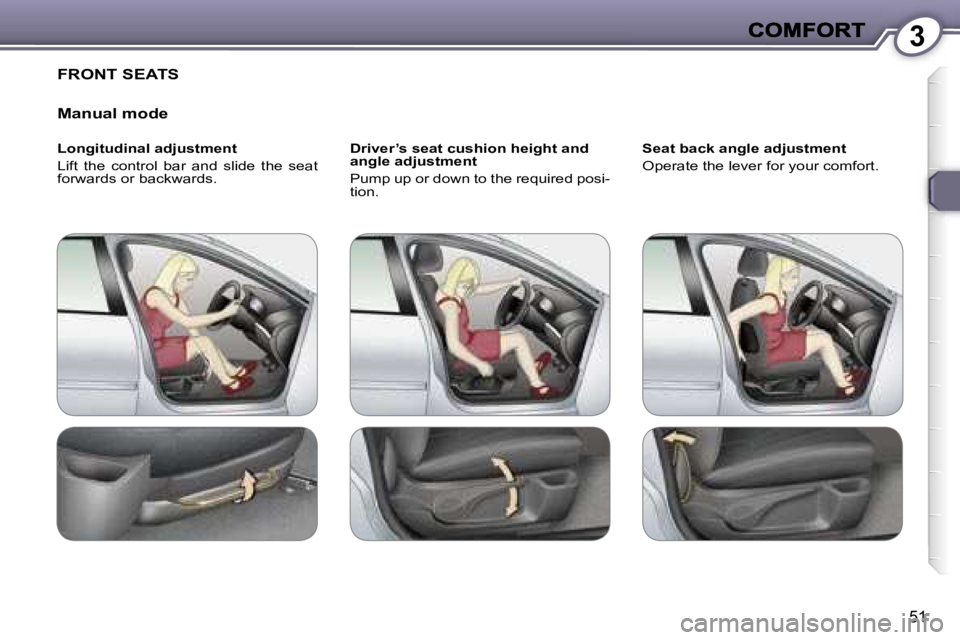

FRONT SEATS
Manual mode
Longitudinal adjustment
Lift the control bar and slide the seat forwards or backwards.
Driver’s seat cushion height and angle adjustment
Pump up or down to the required posi-tion.
Seat back angle adjustment
Operate the lever for your comfort.

3
52

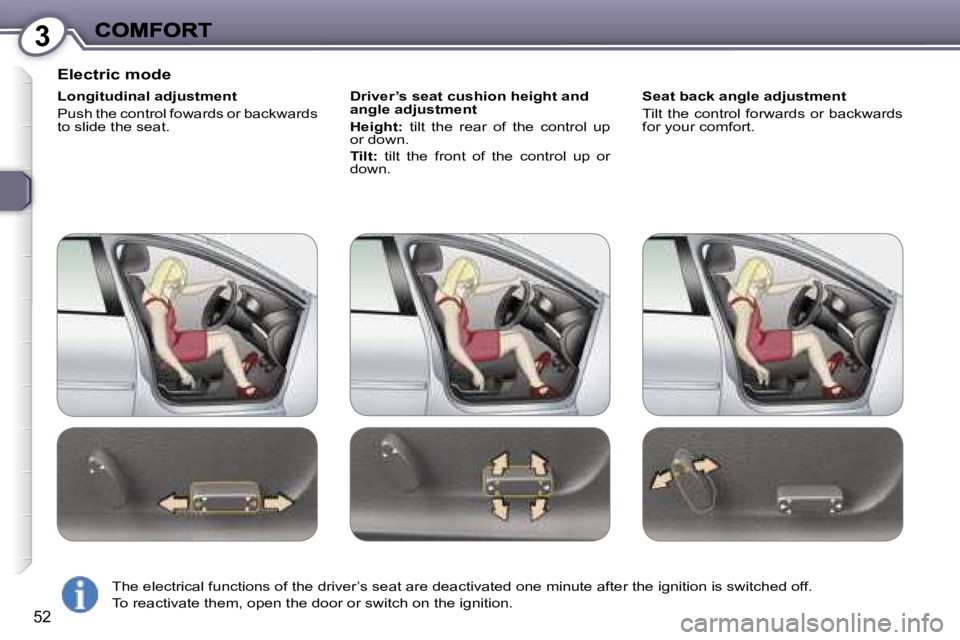

Electric mode
Longitudinal adjustment
Push the control fowards or backwards to slide the seat.
Driver’s seat cushion height and angle adjustment
Height: tilt the rear of the control up or down.
Tilt: tilt the front of the control up or down.
Seat back angle adjustment
Tilt the control forwards or backwards for your comfort.
The electrical functions of the driver’s seat are deactivated one minute after the ignition is switched off.
To reactivate them, open the door or switch on the ignition.

3
53

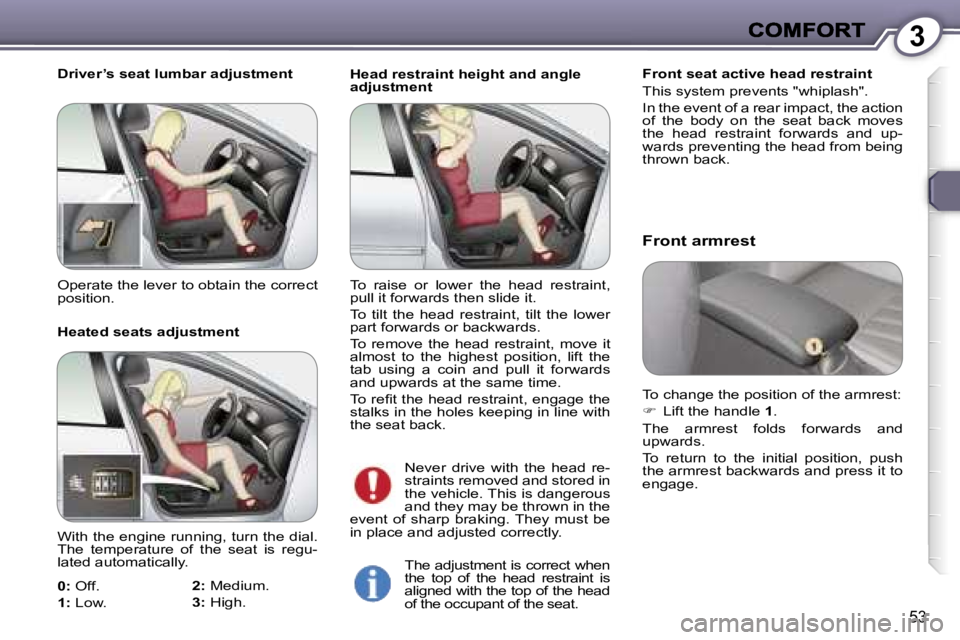

Head restraint height and angle adjustmentFront seat active head restraint
This system prevents "whiplash".
In the event of a rear impact, the action of the body on the seat back moves the head restraint forwards and up-wards preventing the head from being thrown back.
Front armrest
Driver’s seat lumbar adjustment
Heated seats adjustment
0: Off.
1: Low.
2: Medium.
3: High.
The adjustment is correct when the top of the head restraint is aligned with the top of the head of the occupant of the seat.
Never drive with the head re-straints removed and stored in the vehicle. This is dangerous and they may be thrown in the event of sharp braking. They must be in place and adjusted correctly.
To change the position of the armrest:
 Lift the handle 1.
The armrest folds forwards and upwards.
To return to the initial position, push the armrest backwards and press it to engage.
Operate the lever to obtain the correct position.To raise or lower the head restraint, pull it forwards then slide it.
To tilt the head restraint, tilt the lower part forwards or backwards.
To remove the head restraint, move it almost to the highest position, lift the tab using a coin and pull it forwards and upwards at the same time.
To refit the head restraint, engage the stalks in the holes keeping in line with the seat back.
With the engine running, turn the dial. The temperature of the seat is regu-lated automatically.

3
54

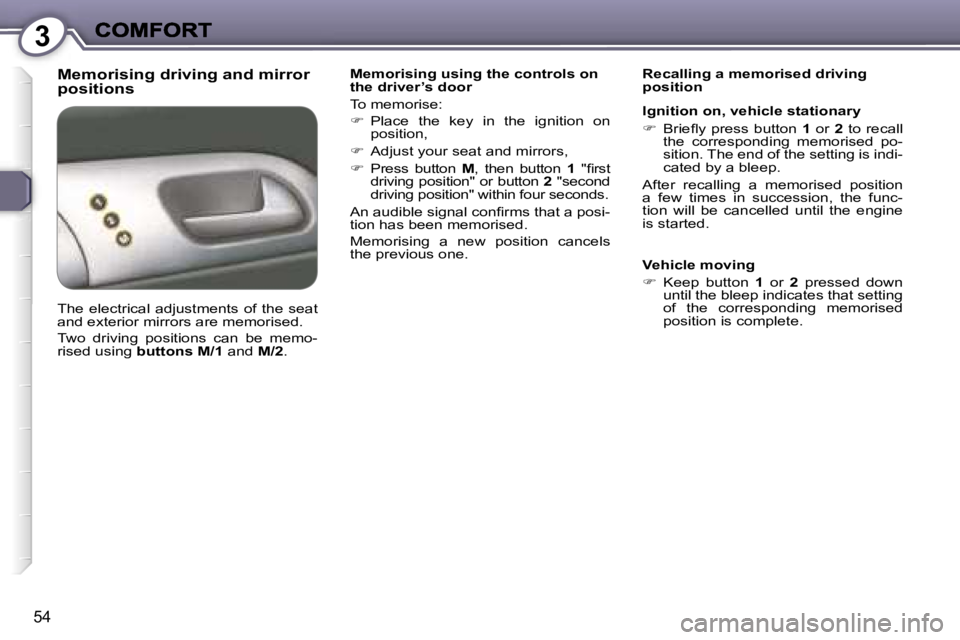

Memorising driving and mirror positionsMemorising using the controls on the driver’s door
To memorise:
 Place the key in the ignition on position,
 Adjust your seat and mirrors,
 Press button M, then button 1 "first driving position" or button 2 "second driving position"within four seconds.
An audible signal confirms that a posi-tion has been memorised.
Memorising a new position cancels the previous one.
Recalling a memorised driving position
Ignition on, vehicle stationary
 Briefly press button 1 or 2oror to recall the corresponding memorised po-sition. The end of the setting is indi-cated by a bleep.
After recalling a memorised position a few times in succession, the func-tion will be cancelled until the engine is started.
Vehicle moving
 Keep button 1 or 2oror pressed down until the bleep indicates that setting of the corresponding memorised position is complete.The electrical adjustments of the seat and exterior mirrors are memorised.
Two driving positions can be memo-rised using buttons M/1 and M/2.

3
55

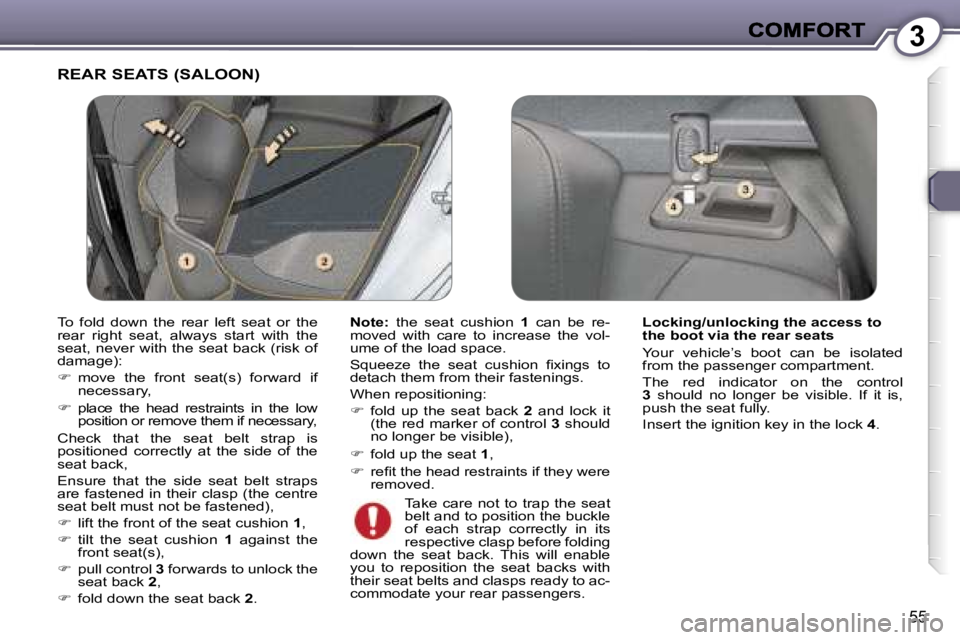

REAR SEATS (SALOON)
Note: the seat cushion 1 can be re-moved with care to increase the vol-ume of the load space.
Squeeze the seat cushion fixings to detach them from their fastenings.
When repositioning:
 fold up the seat back 2 and lock it (the red marker of control 3 should no longer be visible),
 fold up the seat 1,
 refit the head restraints if they were removed.
Locking/unlocking the access to the boot via the rear seats
Your vehicle’s boot can be isolated from the passenger compartment.
The red indicator on the control 3 should no longer be visible. If it is, push the seat fully.
Insert the ignition key in the lock 4.
Take care not to trap the seat belt and to position the buckle of each strap correctly in its respective clasp before folding down the seat back. This will enable you to reposition the seat backs with their seat belts and clasps ready to ac-commodate your rear passengers.
To fold down the rear left seat or the rear right seat, always start with the seat, never with the seat back (risk of damage):
 move the front seat(s) forward if necessary,
 place the head restraints in the low position or remove them if necessary,
Check that the seat belt strap is positioned correctly at the side of the seat back,
Ensure that the side seat belt straps are fastened in their clasp (the centre seat belt must not be fastened),
 lift the front of the seat cushion 1,
 tilt the seat cushion 1 against the front seat(s),
 pull control 3 forwards to unlock the seat back 2,
 fold down the seat back 2.

3
56

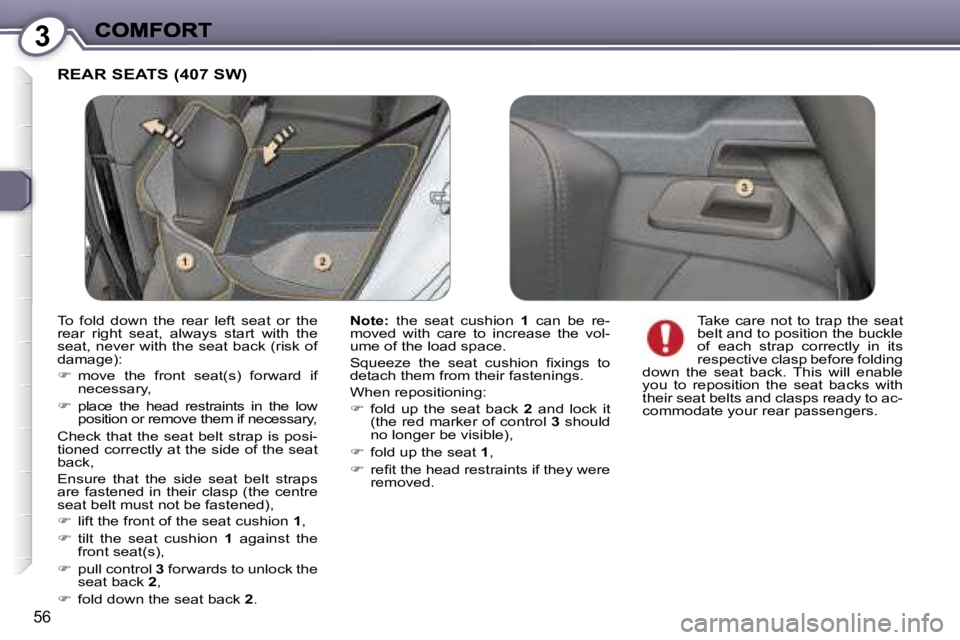

REAR SEATS (407 SW)
Note: the seat cushion 1 can be re-moved with care to increase the vol-ume of the load space.
Squeeze the seat cushion fixings to detach them from their fastenings.
When repositioning:
 fold up the seat back 2 and lock it (the red marker of control 3 should no longer be visible),
 fold up the seat 1,
 refit the head restraints if they were removed.
Take care not to trap the seat belt and to position the buckle of each strap correctly in its respective clasp before folding down the seat back. This will enable you to reposition the seat backs with their seat belts and clasps ready to ac-commodate your rear passengers.
To fold down the rear left seat or the rear right seat, always start with the seat, never with the seat back (risk of damage):
 move the front seat(s) forward if necessary,
 place the head restraints in the low position or remove them if necessary,
Check that the seat belt strap is posi-tioned correctly at the side of the seat back,
Ensure that the side seat belt straps are fastened in their clasp (the centre seat belt must not be fastened),
 lift the front of the seat cushion 1,
 tilt the seat cushion 1 against the front seat(s),
 pull control 3 forwards to unlock the seat back 2,
 fold down the seat back 2.

3
57

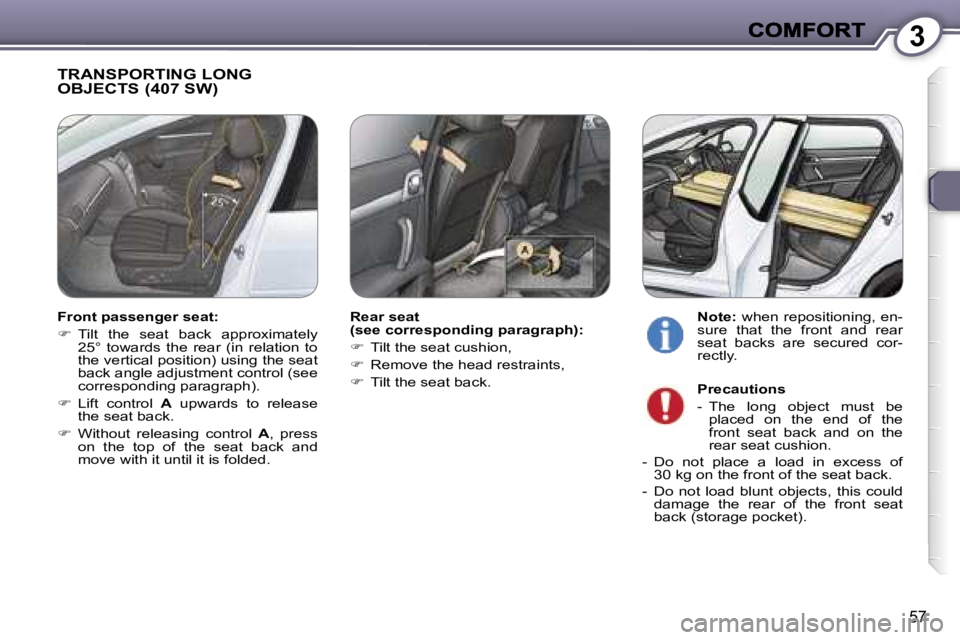

TRANSPORTING LONG
OBJECTS (407 SW)
Rear seat (see corresponding paragraph):
 Tilt the seat cushion,
 Remove the head restraints,
 Tilt the seat back.
Note: when repositioning, en-sure that the front and rear seat backs are secured cor-rectly.
Precautions
- The long object must be placed on the end of the front seat back and on the rear seat cushion.
- Do not place a load in excess of 30 kg on the front of the seat back.
- Do not load blunt objects, this could damage the rear of the front seat back (storage pocket).
Front passenger seat:
 Tilt the seat back approximately 25° towards the rear (in relation to the vertical position) using the seat back angle adjustment control (see corresponding paragraph).
 Lift control A upwards to release the seat back.
 Without releasing control A, press on the top of the seat back and move with it until it is folded.
