Bolt covers
Alloy wheel bolts are covered by chrome trims.
Use the yellow toolto remove the trims before slackening the bolts.
Fitting the spare wheel
If your vehicle is fitted with a steel spare wheel, when fitting it, it is normalwhen tightening the bolts to notice that the washers do not come into contact with the rim. The spare wheel is secured by the cone shape of each bolt.
VERY COLD CLIMATE
SCREEN*
The very cold climate screen is a par-tial removable cover which is clipped onto the air intake grille to prevent the accumulation of snow due to direct splashes.
Once it has been fitted on your vehi-cle, it is imperative that it is removed when the ambient temperature condi-tions rise above 10 °C again.
Contact a PEUGEOT dealer.
Tyres of size 215/55 R17 cannot be fitted with stand-ard snow chains, contact a PEUGEOT dealer.
* According to country.
Special features of alloy wheels
Anti-theft bolts
Your wheels are fitted with anti-theft bolts (one per wheel), placed under chrome trims which must be removed using the yellow tool, before the bolts are unscrewed using the anti-theft socket and the wheel brace 1.
Fitting snow tyres
If you fit snow tyres mounted on steel wheels onto your vehicle, it is essen-tial to use special bolts available from your PEUGEOT dealer.
Note: this anti-theft socket was given to you on delivery of your vehicle with the dupli-cate keys and the confidential card. Make a careful note of the code number engraved on the head of the anti-theft socket. This will enable you to obtain a duplicate anti-theft socket from a Peugeot dealer. You are ad-vised to do the same for the duplicate keys and not to leave the confidential card in the vehicle.

1010
117
Bolt covers
Alloy wheel bolts are covered by chrome trims.
Use the yellow toolto remove the trims before slackening the bolts.
Fitting the spare wheel
If your vehicle is fitted with a steel spare wheel, when fitting it, it is normalwhen tightening the bolts to notice that the washers do not come into contact with the rim. The spare wheel is secured by the cone shape of each bolt.
VERY COLD CLIMATE
SCREEN*
The very cold climate screen is a par-tial removable cover which is clipped onto the air intake grille to prevent the accumulation of snow due to direct splashes.
Once it has been fitted on your vehi-cle, it is imperative that it is removed when the ambient temperature condi-tions rise above 10 °C again.
Contact a PEUGEOT dealer.
Tyres of size 215/55 R17 cannot be fitted with stand-ard snow chains, contact a PEUGEOT dealer.
* According to country.
Special features of alloy wheels
Anti-theft bolts
Your wheels are fitted with anti-theft bolts (one per wheel), placed under chrome trims which must be removed using the yellow tool, before the bolts are unscrewed using the anti-theft socket and the wheel brace 1.
Fitting snow tyres
If you fit snow tyres mounted on steel wheels onto your vehicle, it is essen-tial to use special bolts available from your PEUGEOT dealer.
Note: this anti-theft socket was given to you on delivery of your vehicle with the dupli-cate keys and the confidential card. Make a careful note of the code number engraved on the head of the anti-theft socket. This will enable you to obtain a duplicate anti-theft socket from a Peugeot dealer. You are ad-vised to do the same for the duplicate keys and not to leave the confidential card in the vehicle.

1010
118
CHANGING A FRONT BULB
Handle the bulbs with a dry cloth.
2 - Main beam headlamps: H7-55 W.
 Remove the protective cover corre-sponding to the faulty bulb.
 Disconnect the connector.
 Press the end of the securing clips to free the bulb. Change the bulb.
 When fitting the new bulb, ensure that the direction notches are po-sitioned correctly and the securing clips are fixed properly.
 Reconnect the connector.
 Refit the protective cover.
3 - Side lights: W 5 W.
 Remove the protective cover, dis-connect the connector and then re-move the bulb and change it.
 Put the connector back in place.
 Reconnect the connector.
 Refit the protective cover.
4 - Direction indicators: PY 21 W (amber).
 Turn the bulb holder a quarter turn and remove it.
 Change the bulb.
WARNING: RISK OF ELECTROCUTION
Front lights
In the engine compartment, remove the cover secured by one or two but-terfly screws, a plastic retainer clip and two quarter turn screws.
1 - Dipped beam headlamps: H1-55 W or D2S-35 W xenon bulb.
Xenon bulbs must be replaced by a PEUGEOT dealer.
Amber coloured bulbs (direc-tion indicators and side re-peaters) must be replaced with bulbs of identical specifi-cation and colour.
5 - Front fog lamps: H11-55 W.
Turn the wheels to full lock.
Access to the bulb is via the flap in the front mud flap.
Contact a PEUGEOT dealer.
The headlamps are fitted with polycar-bonate glass with a protective coating. Do not clean them with a dry or abrasive cloth, nor with a detergent or solvent product.
Ensure that the liquid used to fill the wash-wipe and headlamp wash reser-voir is of good quality.
In certain climatic conditions (low temperature, humidity), condensation on the inside surface of the headlamp glass is normal; it disappears a few minutes after the lights are switched on.

1010
119

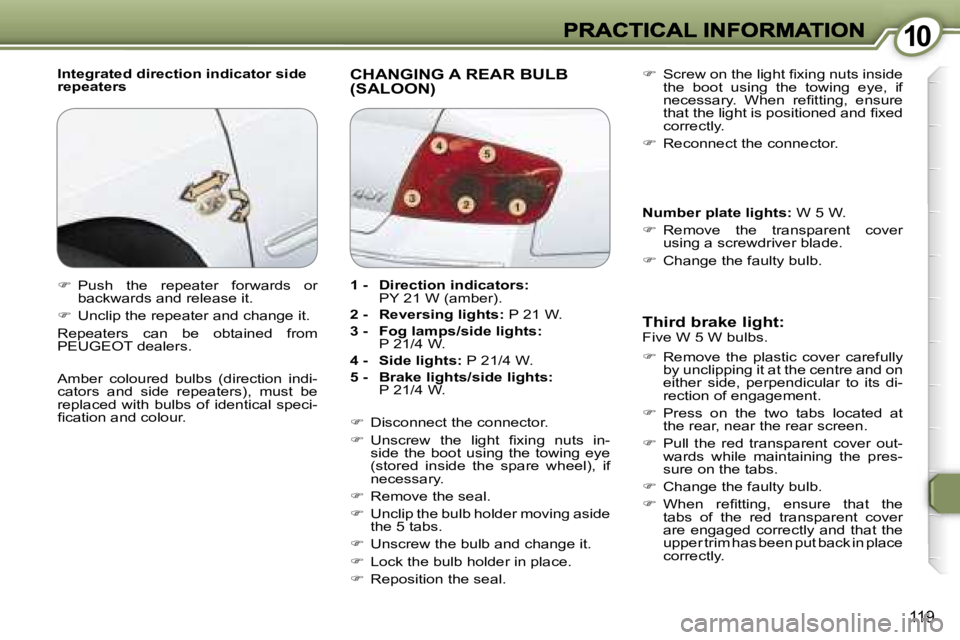

Integrated direction indicator side repeatersCHANGING A REAR BULB (SALOON)
Third brake light: Five W 5 W bulbs.
Remove the plastic cover carefully by unclipping it at the centre and on either side, perpendicular to its di-rection of engagement.
Press on the two tabs located at the rear, near the rear screen.
 Pull the red transparent cover out-wards while maintaining the pres-sure on the tabs.
 Change the faulty bulb.
 When refitting, ensure that the tabs of the red transparent cover are engaged correctly and that the upper trim has been put back in place correctly.
 Screw on the light fixing nuts inside the boot using the towing eye, if necessary. When refitting, ensure that the light is positioned and fixed correctly.
 Reconnect the connector.
Number plate lights: W 5 W.
 Remove the transparent cover using a screwdriver blade.
 Change the faulty bulb.
 Push the repeater forwards or backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from PEUGEOT dealers.
Amber coloured bulbs (direction indi-cators and side repeaters), must be replaced with bulbs of identical speci-fication and colour.
1 - Direction indicators: PY 21 W (amber).
2 - Reversing lights: P 21 W.
3 - Fog lamps/side lights: P 21/4 W.
4 - Side lights: P 21/4 W.
5 - Brake lights/side lights:P 21/4 W.
 Disconnect the connector.
 Unscrew the light fixing nuts in-side the boot using the towing eye (stored inside the spare wheel), if necessary.
 Remove the seal.
 Unclip the bulb holder moving aside the 5 tabs.
 Unscrew the bulb and change it.
 Lock the bulb holder in place.
 Reposition the seal.

1010
119
Integrated direction indicator side repeatersCHANGING A REAR BULB (SALOON)
Third brake light: Five W 5 W bulbs.
Remove the plastic cover carefully by unclipping it at the centre and on either side, perpendicular to its di-rection of engagement.
Press on the two tabs located at the rear, near the rear screen.
 Pull the red transparent cover out-wards while maintaining the pres-sure on the tabs.
 Change the faulty bulb.
 When refitting, ensure that the tabs of the red transparent cover are engaged correctly and that the upper trim has been put back in place correctly.
 Screw on the light fixing nuts inside the boot using the towing eye, if necessary. When refitting, ensure that the light is positioned and fixed correctly.
 Reconnect the connector.
Number plate lights: W 5 W.
 Remove the transparent cover using a screwdriver blade.
 Change the faulty bulb.
 Push the repeater forwards or backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from PEUGEOT dealers.
Amber coloured bulbs (direction indi-cators and side repeaters), must be replaced with bulbs of identical speci-fication and colour.
1 - Direction indicators: PY 21 W (amber).
2 - Reversing lights: P 21 W.
3 - Fog lamps/side lights: P 21/4 W.
4 - Side lights: P 21/4 W.
5 - Brake lights/side lights:P 21/4 W.
 Disconnect the connector.
 Unscrew the light fixing nuts in-side the boot using the towing eye (stored inside the spare wheel), if necessary.
 Remove the seal.
 Unclip the bulb holder moving aside the 5 tabs.
 Unscrew the bulb and change it.
 Lock the bulb holder in place.
 Reposition the seal.

1010
120
CHANGING A REAR BULB (407 SW) Left and right fog lamps:P 21 W.
 Carefully unclip the tailgate interior trim.
 Detach the sealing sheet located behind the light concerned.
 Remove the bulb holder turning it a quarter of a turn.
 Change the faulty bulb.
When refitting, ensure that the bulb is positioned correctly in the bulb holder.
 Unclip the light (2 clips).
 Disconnect the connector and remove the light.
 Unclip the bulb holder moving aside the 4 tabs.
 Unscrew the bulb and change it.
 Reconnect the connector.
 Lock the bulb holder in place. When refitting it, ensure that the lamp is correctly positioned and secured, reclipping the rear part then the front part.
Number plate lights: W 5 W.
 Insert a thin screwdriver in one of the exterior holes of the transparent cover.
 Push it towards the outside to un-clip it.
 Remove the transparent cover.
 Change the faulty bulb.
Third brake light (diodes)
All work on the diode lights must be carried out by a PEUGEOT dealer.
Wing lights
1 - Brake lights/side lights:P 21/5 W.
2 - Reversing lights: P 21 W.
3 - Direction indicators: P 21 W.
These three bulbs are changed by re-moving the light.
 Remove the corresponding boot side flap to gain access to the light.
 Remove the light fixing nut inside the boot.
Note: if necessary, use the wheel-brace to remove the nuts.

1010
121

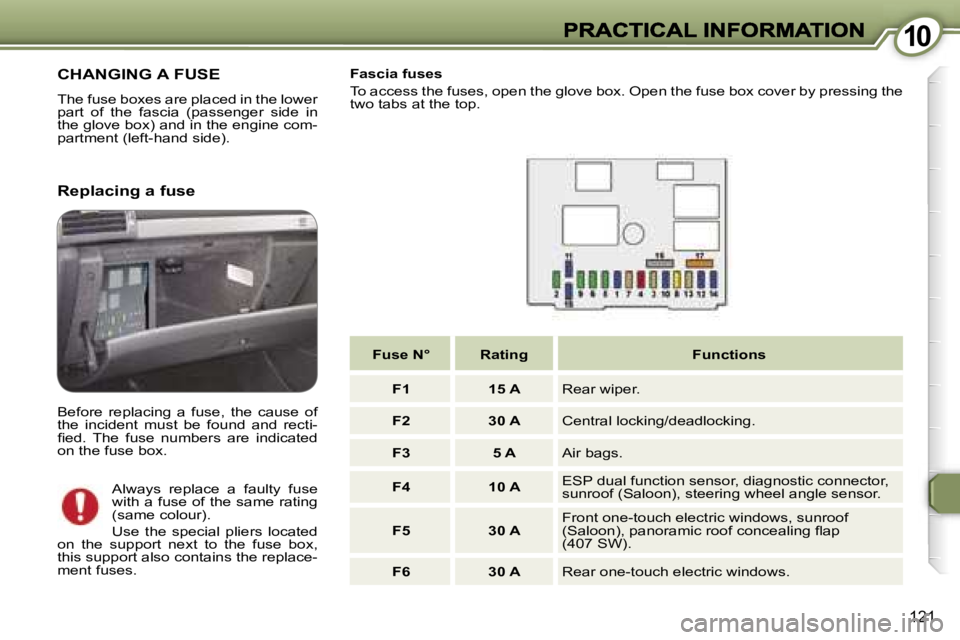

CHANGING A FUSE
