2007 Peugeot 407 Owner's Manual

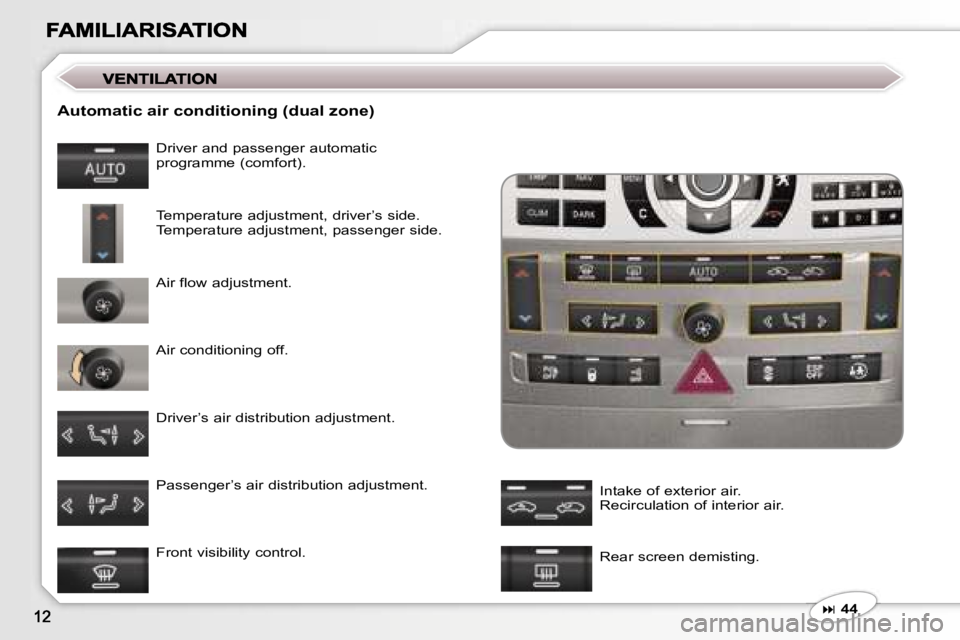

Automatic air conditioning (dual zone)
Driver and passenger automatic programme (comfort).
Temperature adjustment, driver’s side.Temperature adjustment, passenger side.
Air flow adjustment.
Air conditioning off.
Driver’s air distribution adjustment.
Passenger’s air distribution adjustment.
Front visibility control.
Intake of exterior air.Recirculation of interior air.
Rear screen demisting.
44

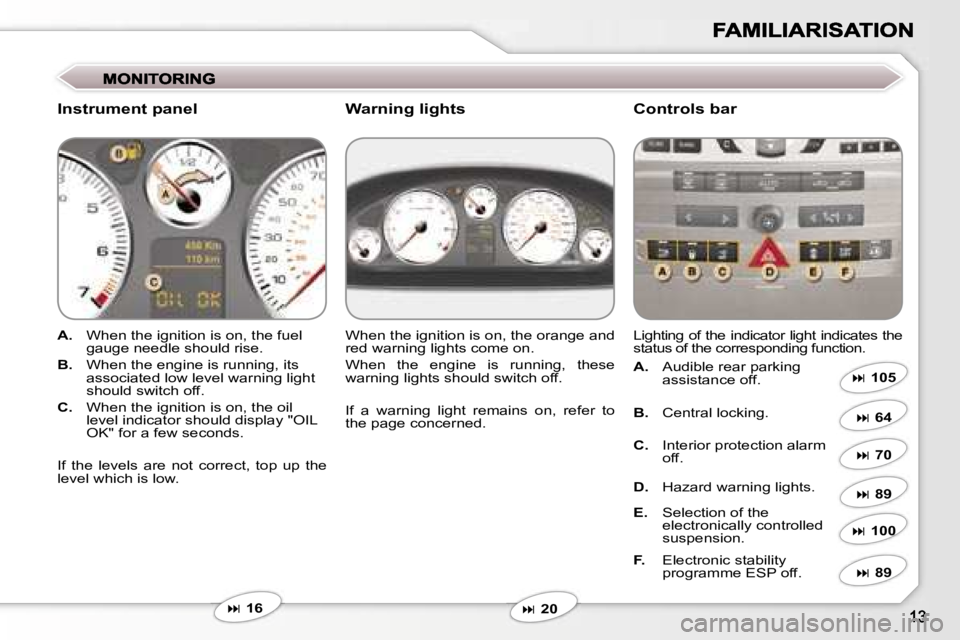

Instrument panelControls bar
A. When the ignition is on, the fuel gauge needle should rise.
B. When the engine is running, its associated low level warning light should switch off.
C. When the ignition is on, the oil level indicator should display "OIL OK" for a few seconds.
If the levels are not correct, top up the level which is low.
Lighting of the indicator light indicates the status of the corresponding function.When the ignition is on, the orange and red warning lights come on.
When the engine is running, these warning lights should switch off.
If a warning light remains on, refer to the page concerned.
Warning lights
1620
 105A. Audible rear parking assistance off.
B. Central locking.
C. Interior protection alarm off.
D. Hazard warning lights.
E. Selection of the electronically controlled suspension.
F. Electronic stability programme ESP off.
 64
 70
 89
 100 100
 89

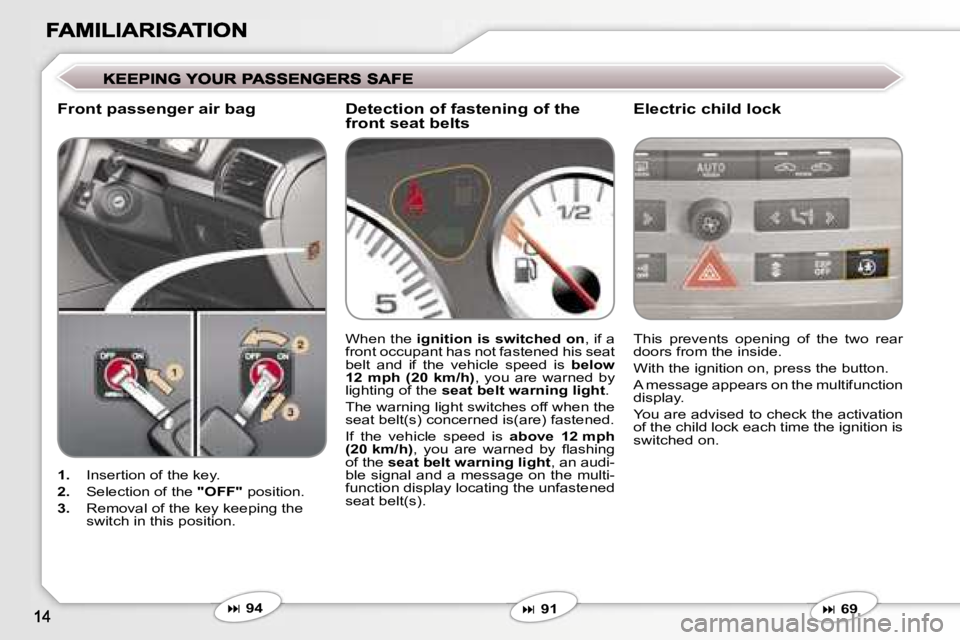

Front passenger air bagElectric child lock
1. Insertion of the key.
2. Selection of the "OFF" position.
3. Removal of the key keeping the switch in this position.
This prevents opening of the two rear doors from the inside.
With the ignition on, press the button.
A message appears on the multifunction display.
You are advised to check the activation of the child lock each time the ignition is switched on.
When the ignition is switched on, if a front occupant has not fastened his seat belt and if the vehicle speed is below 12 mph (20 km/h), you are warned by lighting of the seat belt warning light.
The warning light switches off when the seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph (20 km/h), you are warned by flashing of the seat belt warning light, an audi-ble signal and a message on the multi-function display locating the unfastened seat belt(s).
Detection of fastening of the front seat belts
949169

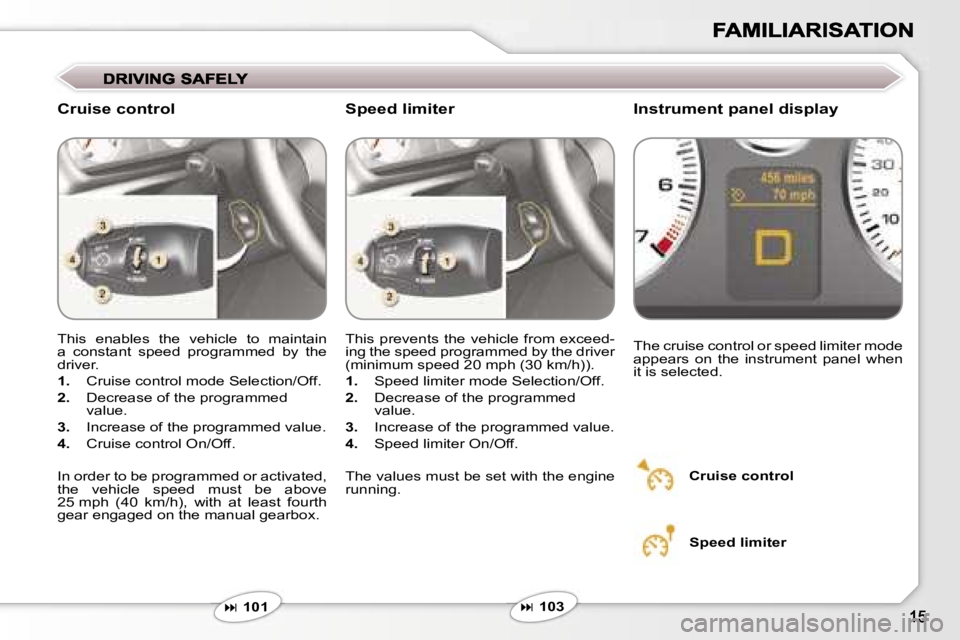

Cruise controlInstrument panel display
This enables the vehicle to maintain a constant speed programmed by the driver.
1. Cruise control mode Selection/Off.
2. Decrease of the programmed value.
3. Increase of the programmed value.
4. Cruise control On/Off.
In order to be programmed or activated, the vehicle speed must be above 25 mph (40 km/h), with at least fourth gear engaged on the manual gearbox.
The cruise control or speed limiter mode appears on the instrument panel when it is selected.
This prevents the vehicle from exceed-ing the speed programmed by the driver (minimum speed 20 mph (30 km/h)).
1. Speed limiter mode Selection/Off.
2. Decrease of the programmed value.
3. Increase of the programmed value.
4. Speed limiter On/Off.
The values must be set with the engine running.
Speed limiter
Cruise control
Speed limiter
101103

1
16

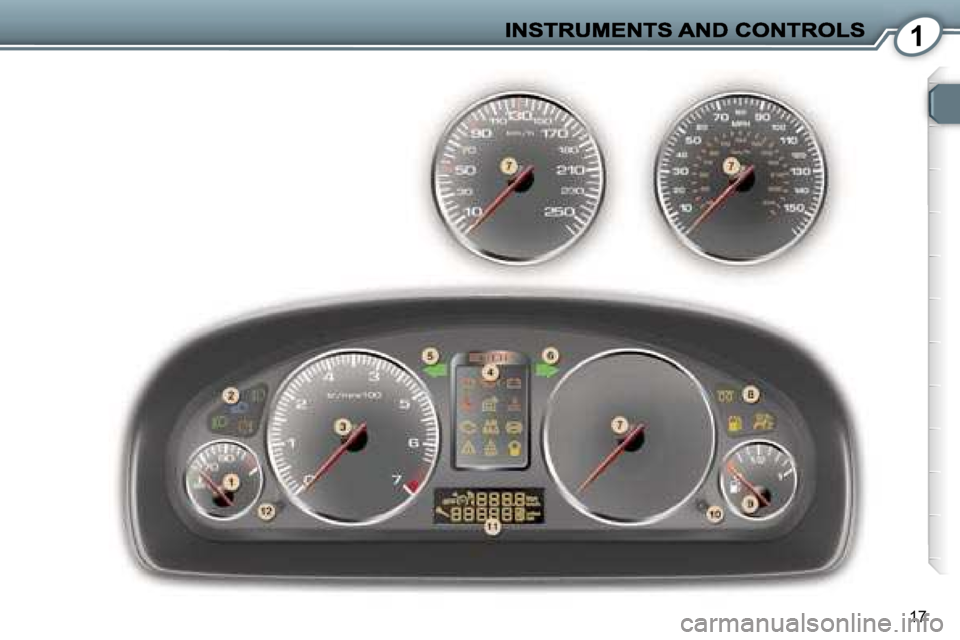

1 - Coolant temperature indicator dial.
2 - Lights on indicator lights:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3 - Rev counter dial.
4 - Warning lights:
STOP warning.
handbrake applied or brake fluid level or electronic brake force distribution fault.
engine oil pressure.
battery charge.
seat belts not fastened in the front.
punctured tyre.
high coolant temperature.

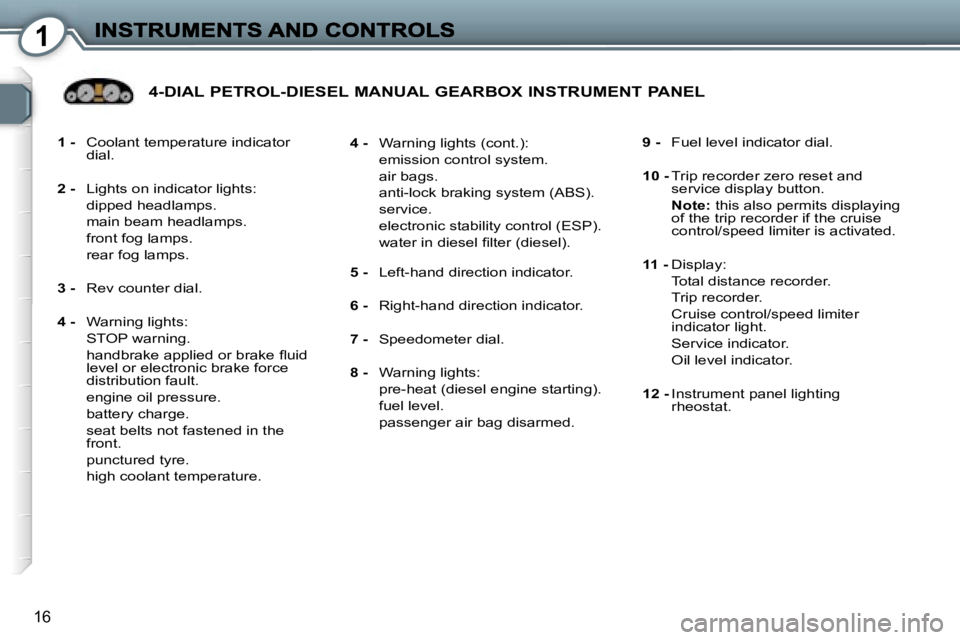

4-DIAL PETROL-DIESEL MANUAL GEARBOX INSTRUMENT PANEL
9- Fuel level indicator dial.
10 - Trip recorder zero reset and service display button.
Note: this also permits displaying of the trip recorder if the cruise control/speed limiter is activated.
11 - Display:
Total distance recorder.
Trip recorder.
Cruise control/speed limiter indicator light.
Service indicator.
Oil level indicator.
12- Instrument panel lighting rheostat.
4 - Warning lights (cont.):
emission control system.
air bags.
anti-lock braking system (ABS).
service.
electronic stability control (ESP).
water in diesel filter (diesel).
5 - Left-hand direction indicator.
6 - Right-hand direction indicator.
7- Speedometer dial.
8- Warning lights:
pre-heat (diesel engine starting).
fuel level.
passenger air bag disarmed.

1
17

1
18

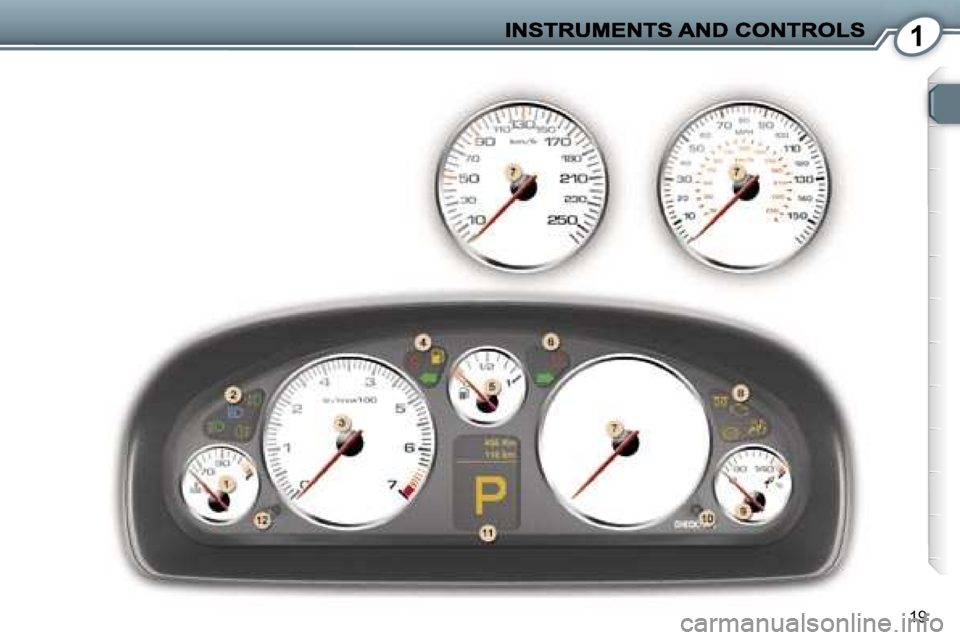

1 - Coolant temperature indicator dial.
2 - Lights on indicators:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3 - Rev counter dial.
4 - Warning lights:
seat belts not fastened in the front.
fuel level.
left direction indicator.
5 - Fuel level indicator dial.

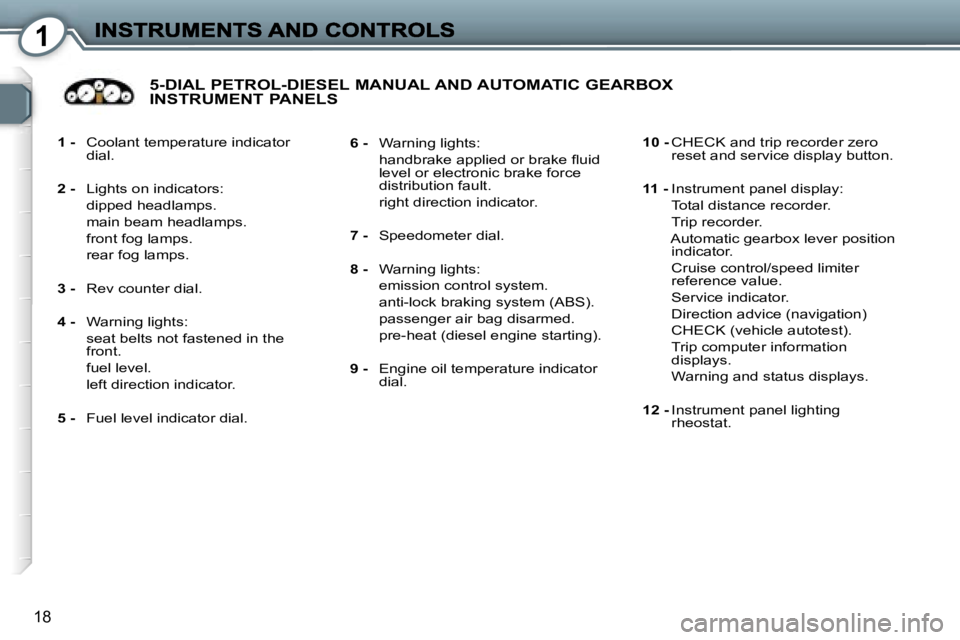

5-DIAL PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS
10 - CHECK and trip recorder zero reset and service display button.
11 - Instrument panel display:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position indicator.
Cruise control/speed limiter reference value.
Service indicator.
Direction advice (navigation)
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.
12 - Instrument panel lighting rheostat.
6 - Warning lights:
handbrake applied or brake fluid level or electronic brake force distribution fault.
right direction indicator.
7 - Speedometer dial.
8 - Warning lights:
emission control system.
anti-lock braking system (ABS).
passenger air bag disarmed.
pre-heat (diesel engine starting).
9 - Engine oil temperature indicator dial.

1
19
