TROUBLE DIAGNOSIS
SRS-33
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
Trouble Diagnosis without CONSULT-IlINHS0000Q
DIAGNOSTIC PROCEDURE
Inspecting SRS Malfunctioning Parts by Using “AIR BAG” Warning Lamp — Diagnosis Mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is detected in User mode.
1. Turn ignition switch ON.
2. After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.
3. Wait more than 3 seconds.
4. Repeat the steps 1 to 3 two times.
5. Turn ignition switch ON.
SRS is now in Diagnosis mode.
“AIR BAG” warning lamp operates in Diagnosis mode as follows:

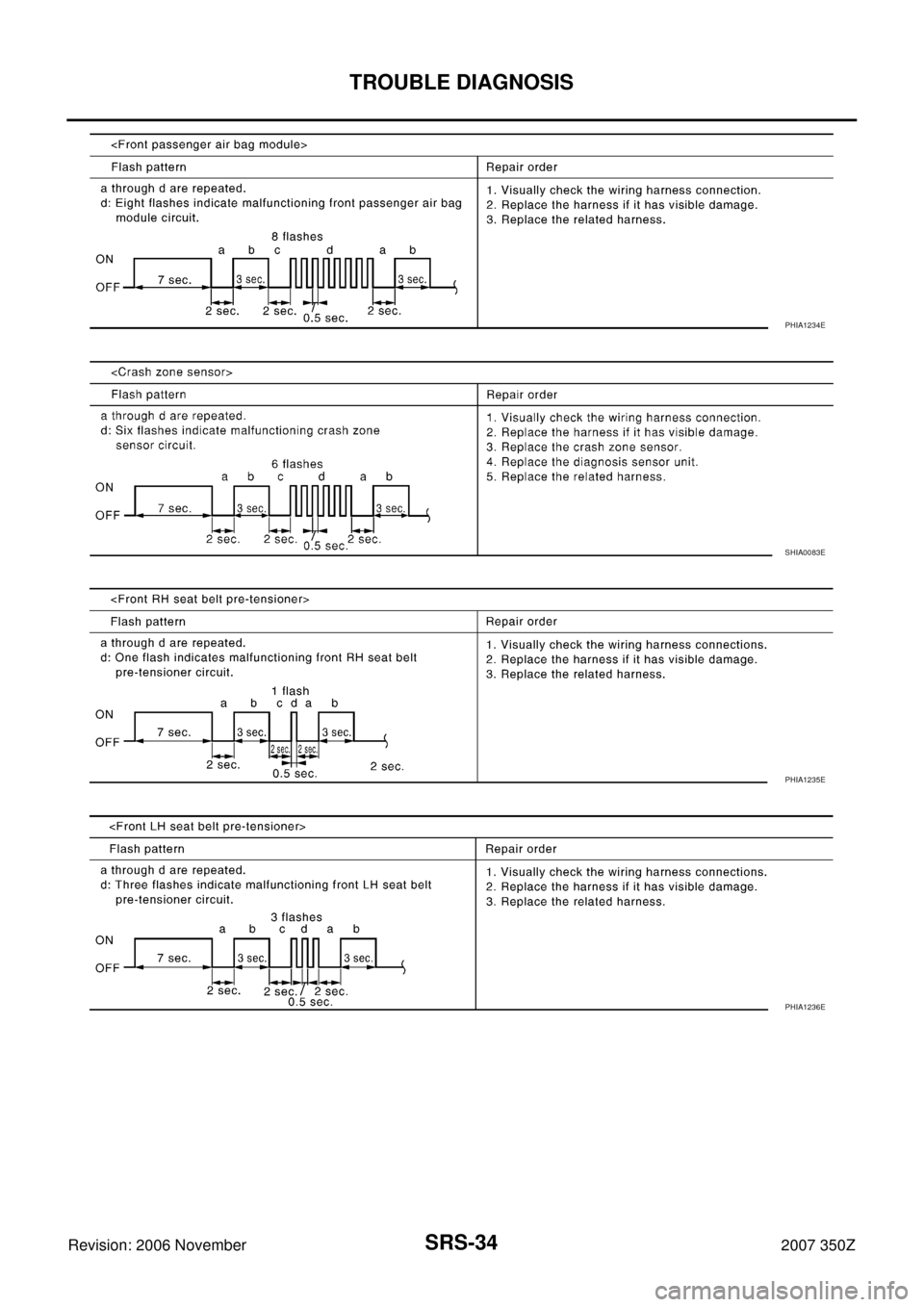

WARNING LAMP FLASH CODE CHART
PHIA0532E
PHIA1233E
SHIA0028E
Page 34 of 56
SRS-34
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
PHIA1234E
SHIA0083E
PHIA1235E
PHIA1236E
Page 35 of 56
TROUBLE DIAGNOSIS
SRS-35
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z

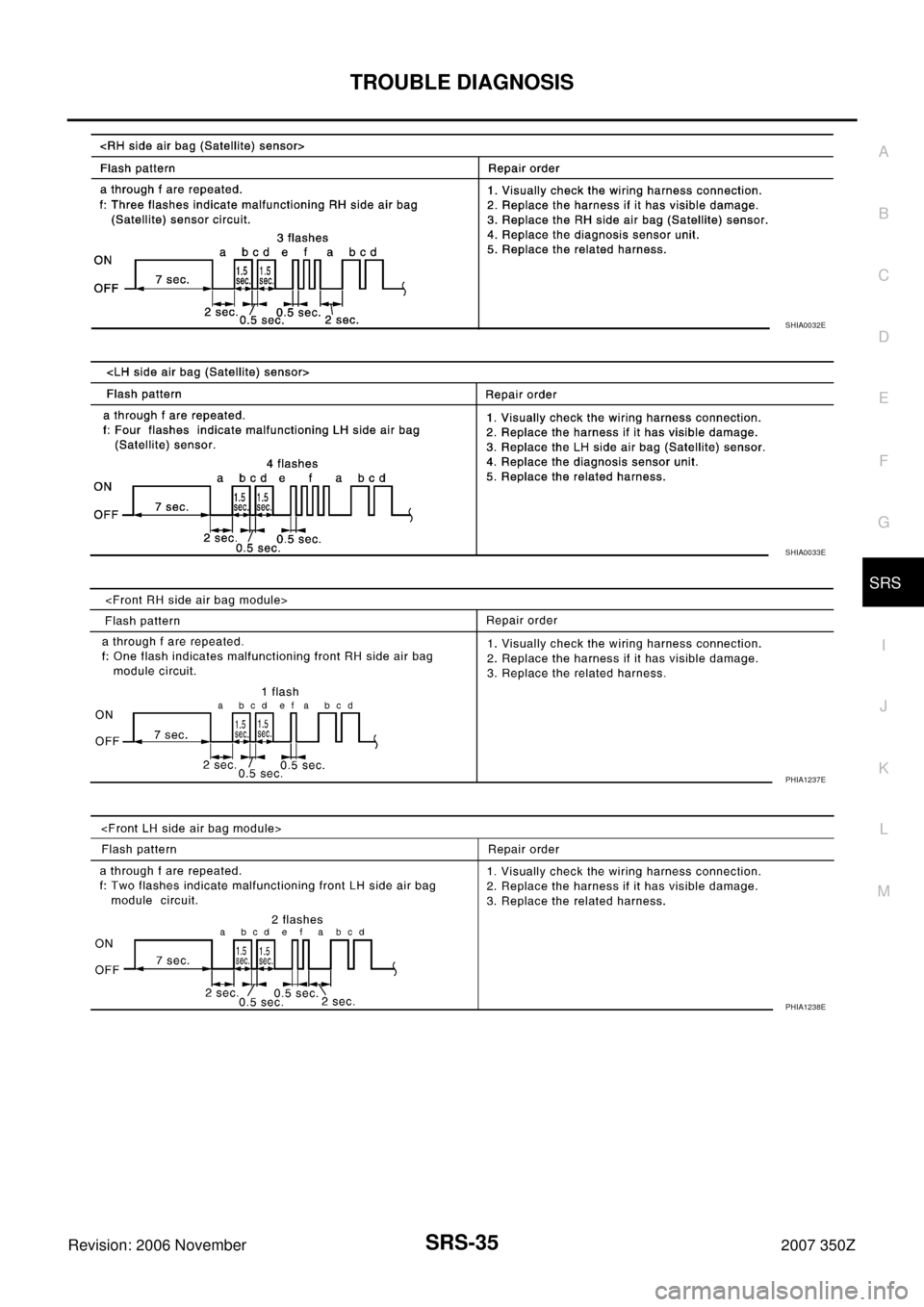

SHIA0032E
SHIA0033E
PHIA1237E
PHIA1238E
Page 36 of 56
SRS-36
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

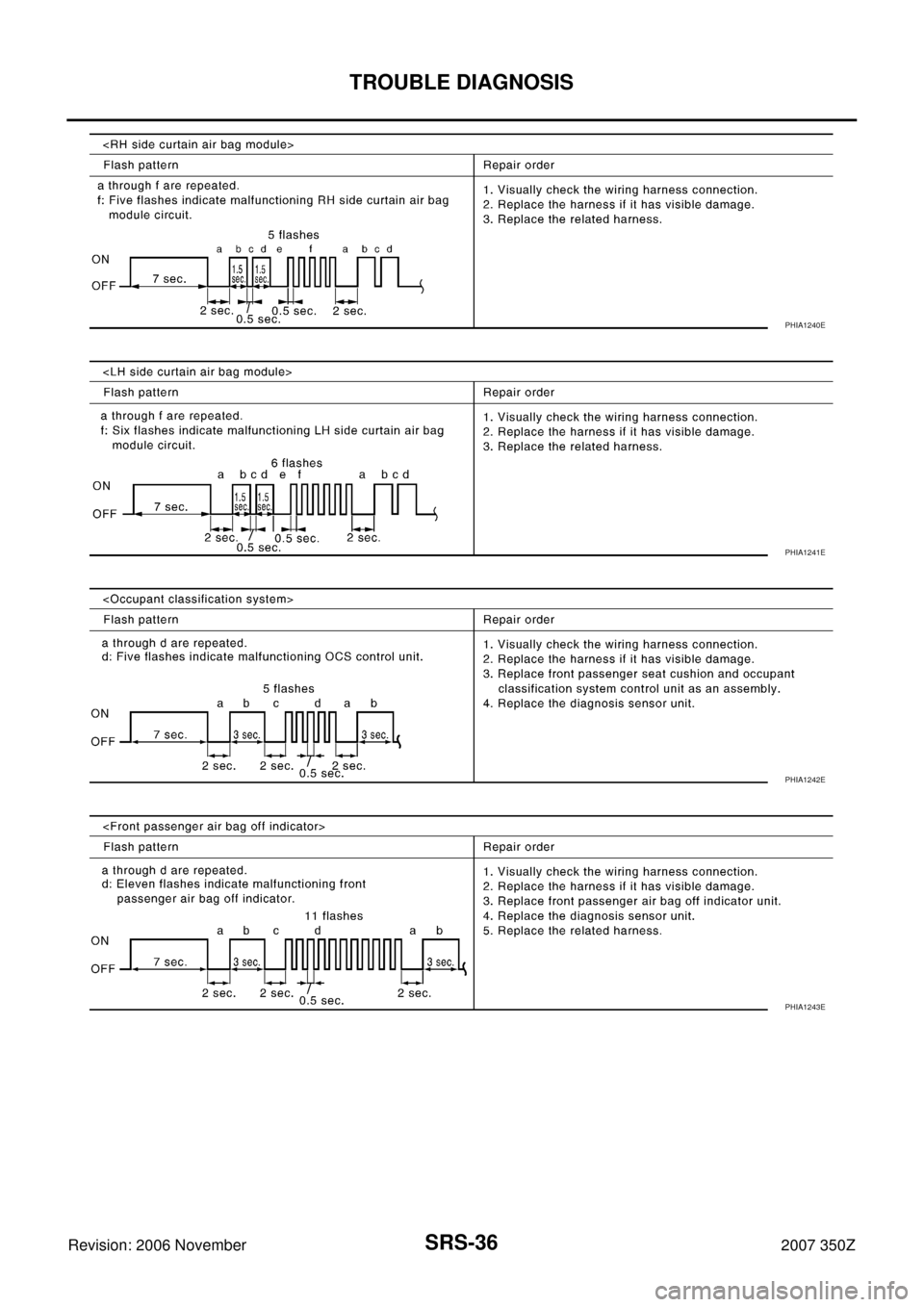

PHIA1240E
PHIA1241E
PHIA1242E
PHIA1243E
Page 37 of 56
TROUBLE DIAGNOSIS
SRS-37
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn OFFNHS0000R
DIAGNOSTIC PROCEDURE
1. CHECK THE DEPLOYMENT OF AIR BAG MODULE
Is air bag module deployed?
YES or NO
YES >> Refer to SRS-53, "COLLISION DIAGNOSIS" .
NO >> GO TO 2.
2. CHECK THE AIR BAG FUSE
Check 10A fuse [No.13, located in fuse block (J/B)].
Refer to PG-15, "
Fuse" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK AIR BAG FUSE AGAIN
Replace “AIR BAG” fuse and turn ignition switch ON.
Does the
“AIR BAG” fuse blow again?
YES >> Repair or replace main harness.
NO >>INSPECTION END
4. CHECK DIAGNOSIS SENSOR UNIT
With CONSULT-IlI
Is “AIR BAG” displayed on CONSULT-IlI?
YES or NO
YES >> GO TO 5.
NO >> Visually check the wiring harness connection of diagnosis sensor unit. If the harness connection
check result is OK, replace diagnosis sensor unit.
5. CHECK HARNESS CONNECTION
Is harness connection between warning lamp and diagnosis sensor unit OK?
OK or NG
OK >> Replace diagnosis sensor unit.
NG >> Connect “AIR BAG” warning lamp and diagnosis sensor unit connector properly. If “AIR BAG”
warning lamp still does not go off, replace harness.
Page 38 of 56
SRS-38
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn ONNHS0000S
DIAGNOSTIC PROCEDURE
1. CHECK “METER” FUSE
Check 10A fuse [No.14, located in fuse block (J/B)].
Refer to PG-15, "
Fuse" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. CHECK “METER” FUSE AGAIN
Replace 10A fuse [No.14, located in fuse block (J/B)] and turn ignition switch ON.
Does the meter fuse blow again?
YES >> Repair or replace the related harness.
NO >>INSPECTION END
3. CHECK HARNESS CONNECTION BETWEEN DIAGNOSIS SENSOR UNIT AND COMBINATION
METER
Disconnect diagnosis sensor unit connector and turn ignition switch ON.
Does “AIR BAG” warning lamp turn ON?
YES or NO
YES >> Replace diagnosis sensor unit.
NO >> Replace combination meter assembly.
Page 39 of 56
TROUBLE DIAGNOSIS
SRS-39
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
Trouble Diagnosis: Passenger Seat belt Warning SystemNHS000A5
1. HECK THE SYSTEM 1
Check seat belt warning lamp function.
Seat belt warning lamp turns ON in the following conditions.
Driver seat belt is fastened.
Occupant is on passenger seat.
Passenger seat belt is not fasten.
OK or NG
OK >> GO TO 2.
NG >> Check the followings.
Harness between air bag diagnosis sensor unit and combination meter.
Seat belt buckle switch (passenger side) circuit.
Seat belt buckle switch (passenger side).
If these are OK, replace air bag diagnosis sensor unit.
2. CHECK THE SYSTEM 2
Check seat belt warning lamp function.
Seat belt warning lamp turns OFF in the following conditions.
Driver seat belt is fastened.
Occupant is on passenger seat.
Passenger seat belt is fastened.
OK or NG
OK >> System is OK.
NG >> Check the followings.
Sea tbelt buckle switch (passenger side) circuit.
Seat belt buckle switch (passenger side).
If these are OK, replace air bag diagnosis sensor unit.
Page 40 of 56
SRS-40
DRIVER AIR BAG MODULE
Revision: 2006 November2007 350Z
DRIVER AIR BAG MODULEPFP:K8510
Removal and InstallationNHS0000T
REMOVAL
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
Always work from the side of driver air bag module.
Do not use air tools or electric tools for servicing.
1. Remove the side lids (RH/LH).
2. Using Tamper resistant TORX bit (T30), remove the TORX bolts
(T30) at right and left.
3. Disconnect the steering wheel switch sub-harness connector.
4. Disconnect the air bag harness connector, and remove the
driver air bag module.
CAUTION:
For installing / removing driver air bag module connector,
insert thin screwdriver wrapped in tape into notch, lift
lock and remove connector.
Install connector with lock raised, and push lock into
connector.
After installing the connector, make sure that the lock is
pushed securely into it.
PHIA0715E
1. Driver air bag module 2. Side lid (RH/LH) 3. Steering wheel
4. TORX bolt (T30)
PHIA0714E
PHIA0308E
