2007 NISSAN 350Z display

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SRS-7
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
Occupant Classification System (OCS) NHS000A1
The occupant classification system identifies different size occupants, out of position occupants, and detects if
child seat is present in the front passenger seat. The occupant classification system receives inputs from the
occupant classification sensor (located inside the passenger seat cushion assembly) and belt tension sensor
(part of the passenger front seat belt assembly and located at the belt anchor location). Depending on classifi-
cation of passenger, the occupant classification system sends a signal to the diagnosis sensor unit. The diag-
nosis sensor unit uses this signal to determine full, partial, or non deployment of passenger front air bag in the
event of a collision. Depending on the signal received, the diagnosis sensor unit can disable the passenger
front air bag completely.
NOTE:
In case of customer concern, CONSULT-ll can be used to confirm the passenger air bag status (readiness).
Passenger Air Bag Status Condition NHS000A2
NOTE:
Passenger does not meet Ocuupant classification System specifications for passenger air bag activation.

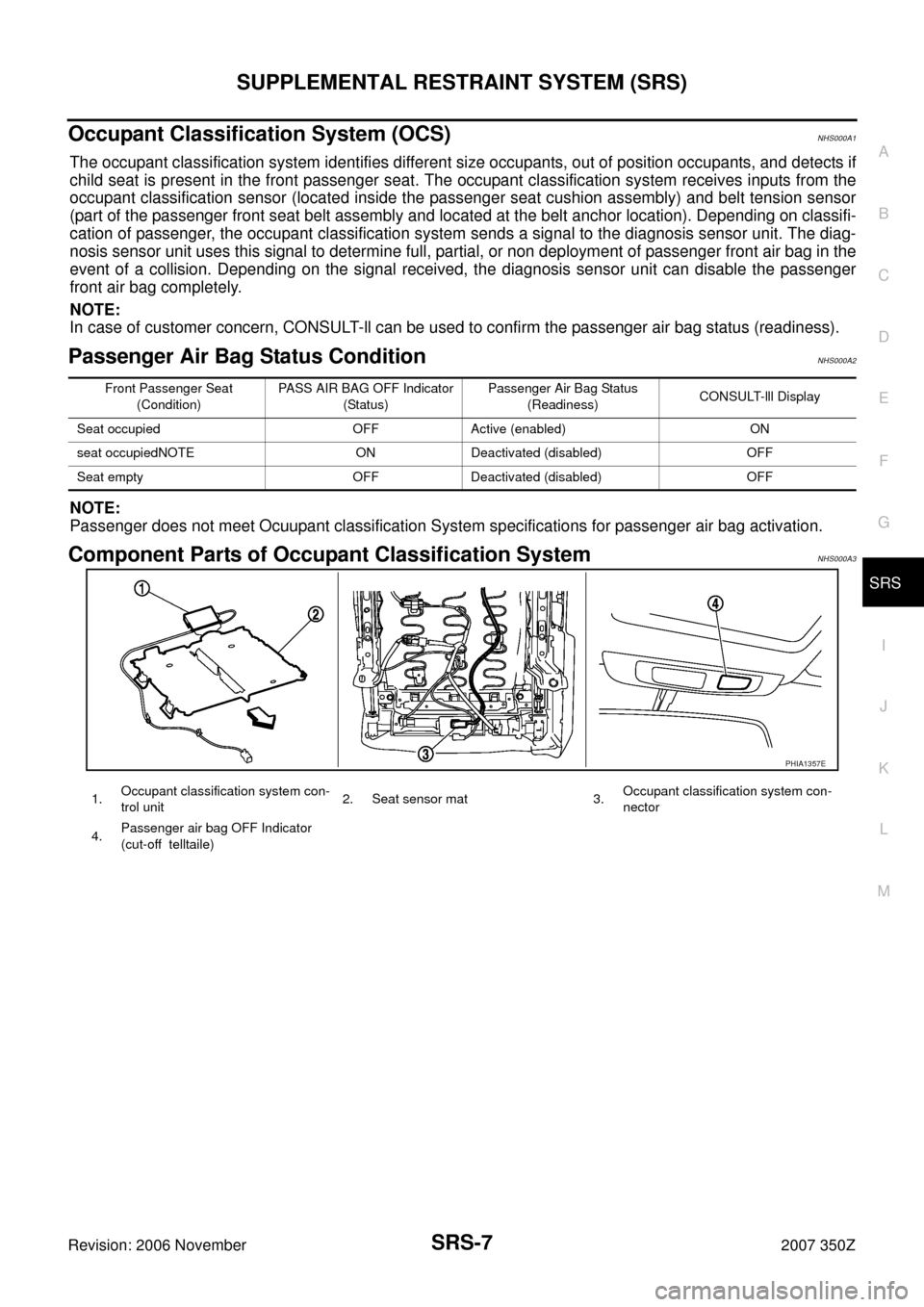

Component Parts of Occupant Classification System NHS000A3
Front Passenger Seat
(Condition)PASS AIR BAG OFF Indicator
(Status)Passenger Air Bag Status
(Readiness)CONSULT-lll Display
Seat occupied OFF Active (enabled) ON
seat occupiedNOTE ON Deactivated (disabled) OFF
Seat empty OFF Deactivated (disabled) OFF
PHIA1357E
1.Occupant classification system con-
trol unit2. Seat sensor mat 3.Occupant classification system con-
nector
4.Passenger air bag OFF Indicator
(cut-off telltaile)

TROUBLE DIAGNOSIS
SRS-9
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionNHS0000H
CAUTION:

Do not use electrical test equipment on any circuit related to the SRS unless instructed in this Ser-
vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Do not repair, splice or modify the SRS wiring harness. If the harness is damaged, replace it with a
new one.

Keep ground portion clean.
DIAGNOSIS FUNCTION
The SRS self-diagnostic results can be read by using “AIR BAG” warning lamp and/or CONSULT-lll.
The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system mal-
function through the operation of the “AIR BAG” warning lamp.
The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.
The mode applications for the “AIR BAG” warning lamp and CONSULT-IlI are as follows:
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.
Information from Customer
WHAT..... Vehicle model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms
Preliminary Check
Make sure that the following parts are in good order.

Battery (Refer to SC-4, "How to Handle Battery" .)

Fuse (Refer to SRS-13, "Wiring Diagram — SRS —/For Coupe" or SRS-19, "Wiring Diagram — SRS —/
For Roadster" .)

System component-to-harness connections
User mode Diagnosis mode Display type
“AIR BAG” warning lamp X X ON-OFF operation
CONSULT-lII — X Monitoring

TROUBLE DIAGNOSIS
SRS-25
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
CONSULT-lll FunctionNHS0000M
DIAGNOSIS MODE FOR CONSULT-LLL

“SELF-DIAG [CURRENT]”
A current self-diagnostic results (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-lll screen in real time. This refers to a malfunctioning part requiring
repairs.

“SELF-DIAG [PAST]”
Self-diagnostic results previously stored in the memory are displayed on the CONSULT-lll screen. The
stored results are not erased until memory erasing is performed.

“TROUBLE DIAG RECORD”
With TROUBLE DIAG RECORD, diagnostic results previously erased by a reset operation can be dis-
played on the CONSULT-lll screen.

“ECU DISCRIMINATED NO.”
The diagnosis sensor unit for each vehicle model is assigned with its own, individual classification num-
ber. This number will be displayed on the CONSULT-lll screen, as shown. When replacing the diagnosis
sensor unit, refer to the part number for the compatibility. After installation, replacement with a correct unit
can be checked by confirming this classification number on the CONSULT-lll screen.
After repair, make sure the discriminated number of diagnosis sensor unit installed to vehicle are same.
Refer to SRS-51, "
ECU DISCRIMINATED NO." .
HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-LII
From User Mode to Diagnosis Mode
After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.
From Diagnosis Mode to User Mode
To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-lll until “SELECT SYSTEM”
appears, then diagnosis mode automatically changes to User mode.

SRS-26
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
HOW TO ERASE SELF-DIAGNOSTIC RESULTS

“SELF-DIAG [CURRENT]”
A current self-diagnostic result is displayed on the CONSULT-lll screen in real time.
After the malfunction is repaired completely, no malfunction is detected on “SELF-DIAG [CURRENT]”.

“SELF-DIAG [PAST]”
Return to the “SELF-DIAG [CURRENT]” CONSULT-lll screen by touching “BACK” key of CONSULT-lll and
select “SELF-DIAG [CURRENT]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-DIAG [CURRENT]”
mode.
NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is not erased, the User mode shows the system
malfunction by the operation of the warning lamp even if the malfunction is repaired completely.

“TROUBLE DIAG RECORD”
The memory of “TROUBLE DIAG RECORD” cannot be erased.
Self-Diagnosis Function (Without CONSULT-lll)NHS0000N

The reading of these results is accomplished “User mode” and “Diagnosis mode”.

After a malfunction is repaired, turn ignition switch ON. Diagnosis mode returns to the User mode. At that
time, the self-diagnostic result is cleared.

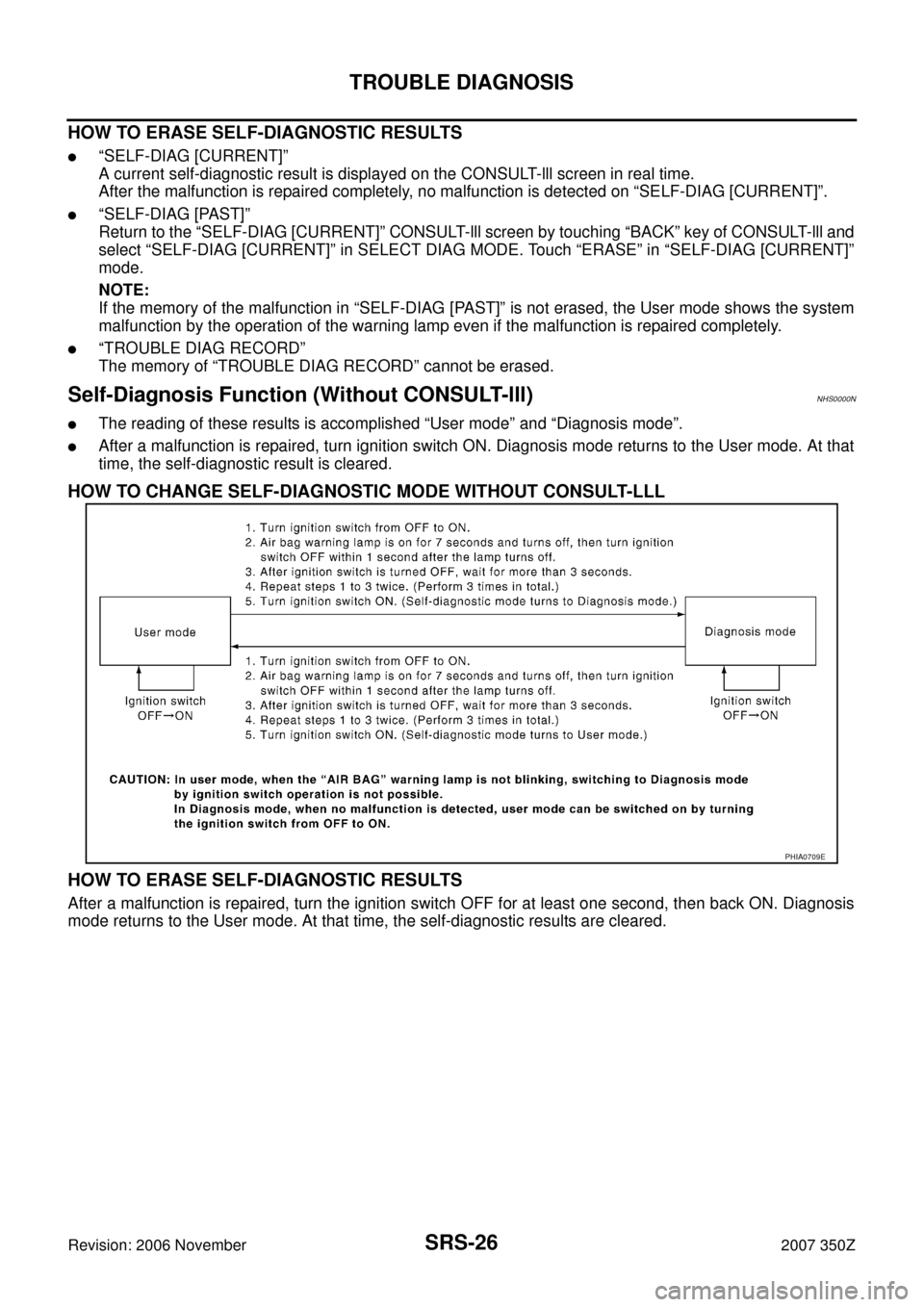

HOW TO CHANGE SELF-DIAGNOSTIC MODE WITHOUT CONSULT-LLL
HOW TO ERASE SELF-DIAGNOSTIC RESULTS
After a malfunction is repaired, turn the ignition switch OFF for at least one second, then back ON. Diagnosis
mode returns to the User mode. At that time, the self-diagnostic results are cleared.
PHIA0709E

TROUBLE DIAGNOSIS
SRS-29
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
Trouble Diagnosis with CONSULT-IlINHS0000P
DIAGNOSTIC PROCEDURE
DTC No. Index (“SELF-DIAG [CURRENT]” “SELF-DIAG [PAST]” or TROUBLE DIAG RECORD )
Diagnositic mode Description
SELF-DIAG RESULTThe self-diagnosis result is displayed. (SELF-DIAG [CURRENT], [PAST], [RECORRD]).
Refer to SRS-29, "
DTC No. Index (“SELF-DIAG [CURRENT]” “SELF-DIAG [PAST]” or
TROUBLE DIAG RECORD )" .
ECU DISCRIMINATED No. The parts number of diagnosis sensor unit is displayed.
Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”
NO DTC IS DETECTED. When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.

Low battery voltage (Less than 9V) —

Self-diagnostic results “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased after
repair.

Intermittent malfunction has been
detected in the past.

Go to SRS-25, "DIAGNOSIS MODE
FOR CONSULT-lll" .

No malfunction is detected. —
DRIVER AIRBAG MOD-
ULE
[OPEN]
[B1054]

Driver air bag module circuit is open (including the spiral
cable).1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace driver air bag module.
4. Replace the spiral cable.
5. Replace the diagnosis sensor unit. DRIVER AIRBAG MOD-
ULE
[VB-SHORT]
[B1055]

Driver air bag module circuit is shorted to a power supply cir-
cuit (including the spiral cable).
DRIVER AIRBAG MOD-
ULE
[GND-SHORT]
[B1056]

Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIRBAG MOD-
ULE
[SHORT]
[B1057]

Driver air bag module circuit is shorted between lines.
ASSIST A/B MODULE
[VB-SHORT]
[B1070]

Front passenger air bag module circuit is shorted to a power
supply circuit.1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front passenger air bag
module.
4. Replace the diagnosis sensor unit. ASSIST A/B MODULE
[OPEN]
[B1071]

Front passenger air bag module circuit is open.
ASSIST A/B MODULE
[GND-SHORT]
[B1072]

Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
[B1073]

Front passenger air bag module circuit is shorted between
lines.
CRASH ZONE SEN
[UNIT FAIL]
[B1033]
[B1034]
CRASH ZONE SEN
[COMM FAIL]
[B1035]
CRASH ZONE SEN
[UNMATCH]
[B1036]

Crash zone sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the crash zone sensor.
4. Replace the diagnosis sensor unit.

TROUBLE DIAGNOSIS
SRS-37
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn OFFNHS0000R
DIAGNOSTIC PROCEDURE
1. CHECK THE DEPLOYMENT OF AIR BAG MODULE
Is air bag module deployed?
YES or NO
YES >> Refer to SRS-53, "COLLISION DIAGNOSIS" .
NO >> GO TO 2.
2. CHECK THE AIR BAG FUSE
Check 10A fuse [No.13, located in fuse block (J/B)].
Refer to PG-15, "
Fuse" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK AIR BAG FUSE AGAIN
Replace “AIR BAG” fuse and turn ignition switch ON.
Does the
“AIR BAG” fuse blow again?
YES >> Repair or replace main harness.
NO >>INSPECTION END
4. CHECK DIAGNOSIS SENSOR UNIT
With CONSULT-IlI
Is “AIR BAG” displayed on CONSULT-IlI?
YES or NO
YES >> GO TO 5.
NO >> Visually check the wiring harness connection of diagnosis sensor unit. If the harness connection
check result is OK, replace diagnosis sensor unit.
5. CHECK HARNESS CONNECTION
Is harness connection between warning lamp and diagnosis sensor unit OK?
OK or NG
OK >> Replace diagnosis sensor unit.
NG >> Connect “AIR BAG” warning lamp and diagnosis sensor unit connector properly. If “AIR BAG”
warning lamp still does not go off, replace harness.
