Page 9 of 50
SQUEAK AND RATTLE TROUBLE DIAGNOSES
EI-9
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z

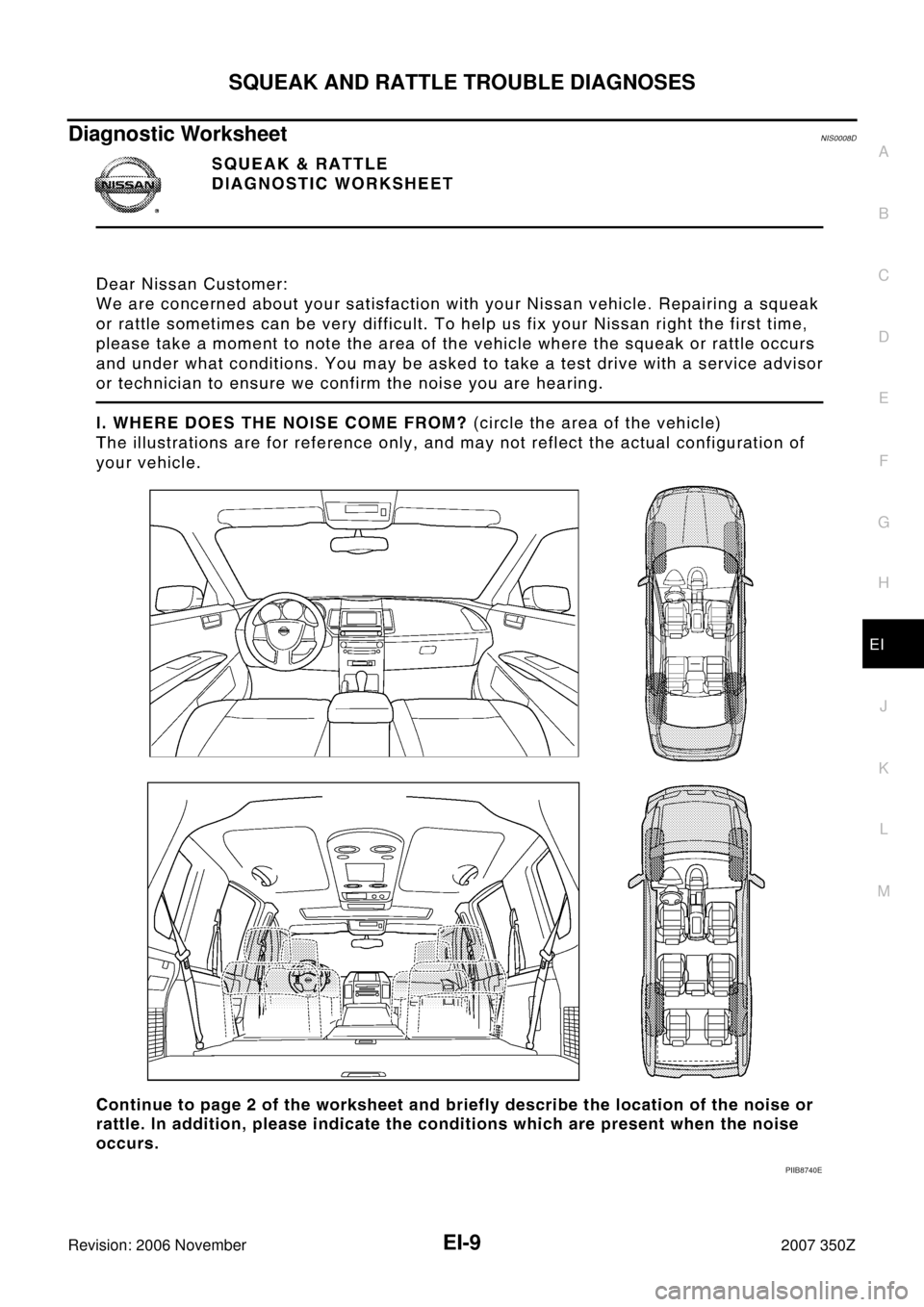

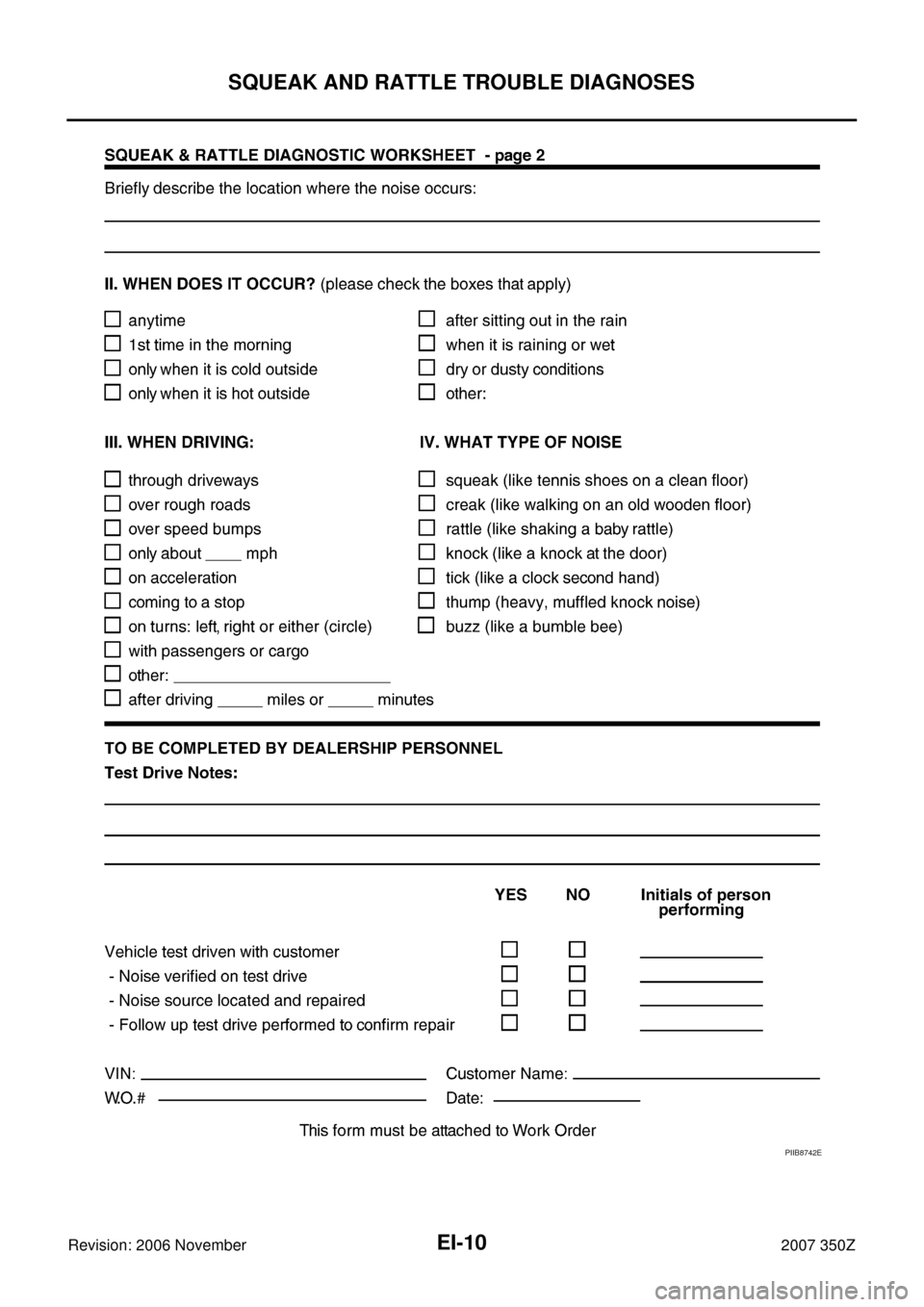

Diagnostic WorksheetNIS0008D
PIIB8740E
Page 10 of 50
EI-10
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 November2007 350Z
PIIB8742E
Page 11 of 50
CLIP AND FASTENER
EI-11
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
CLIP AND FASTENERPFP:76906

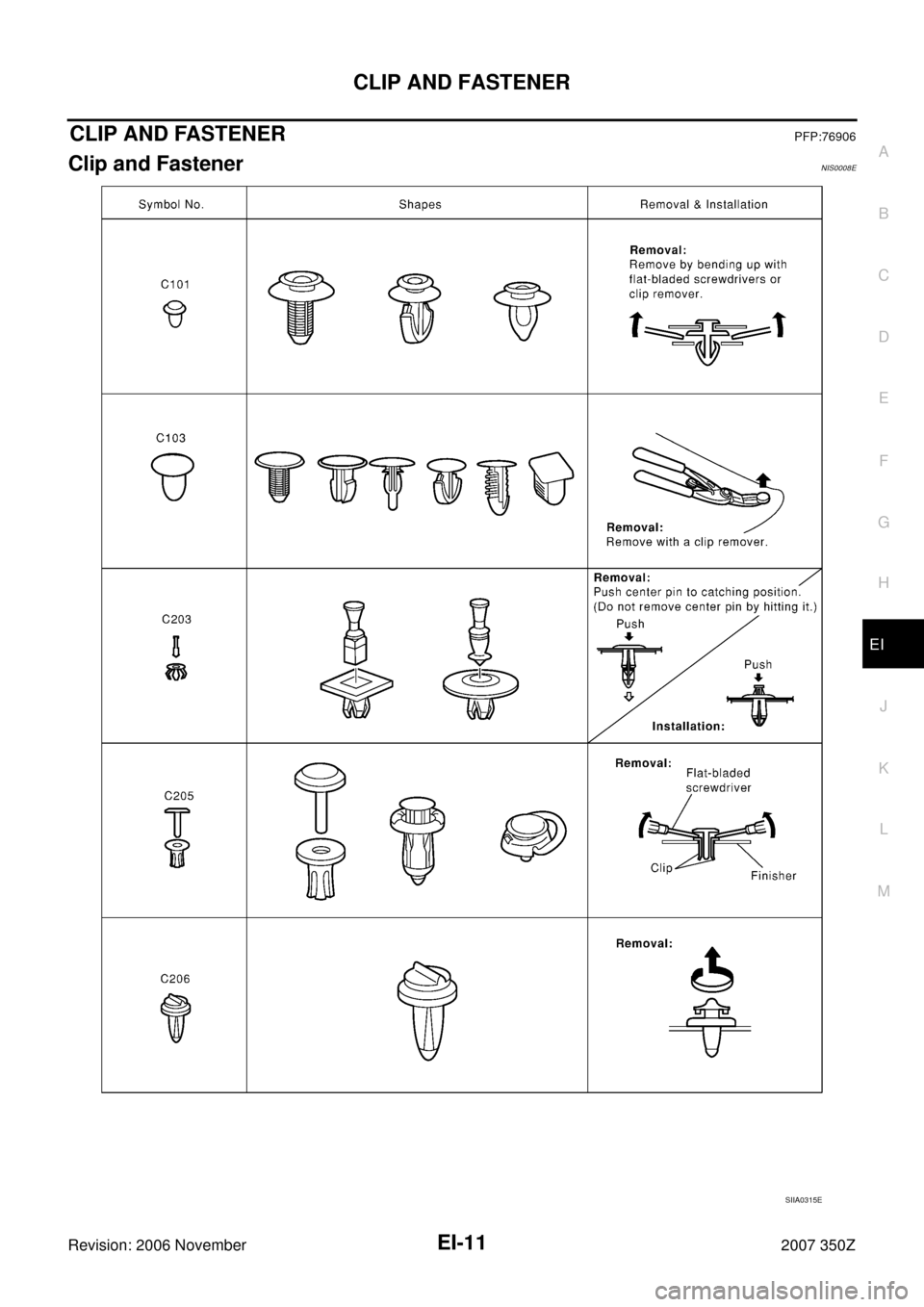

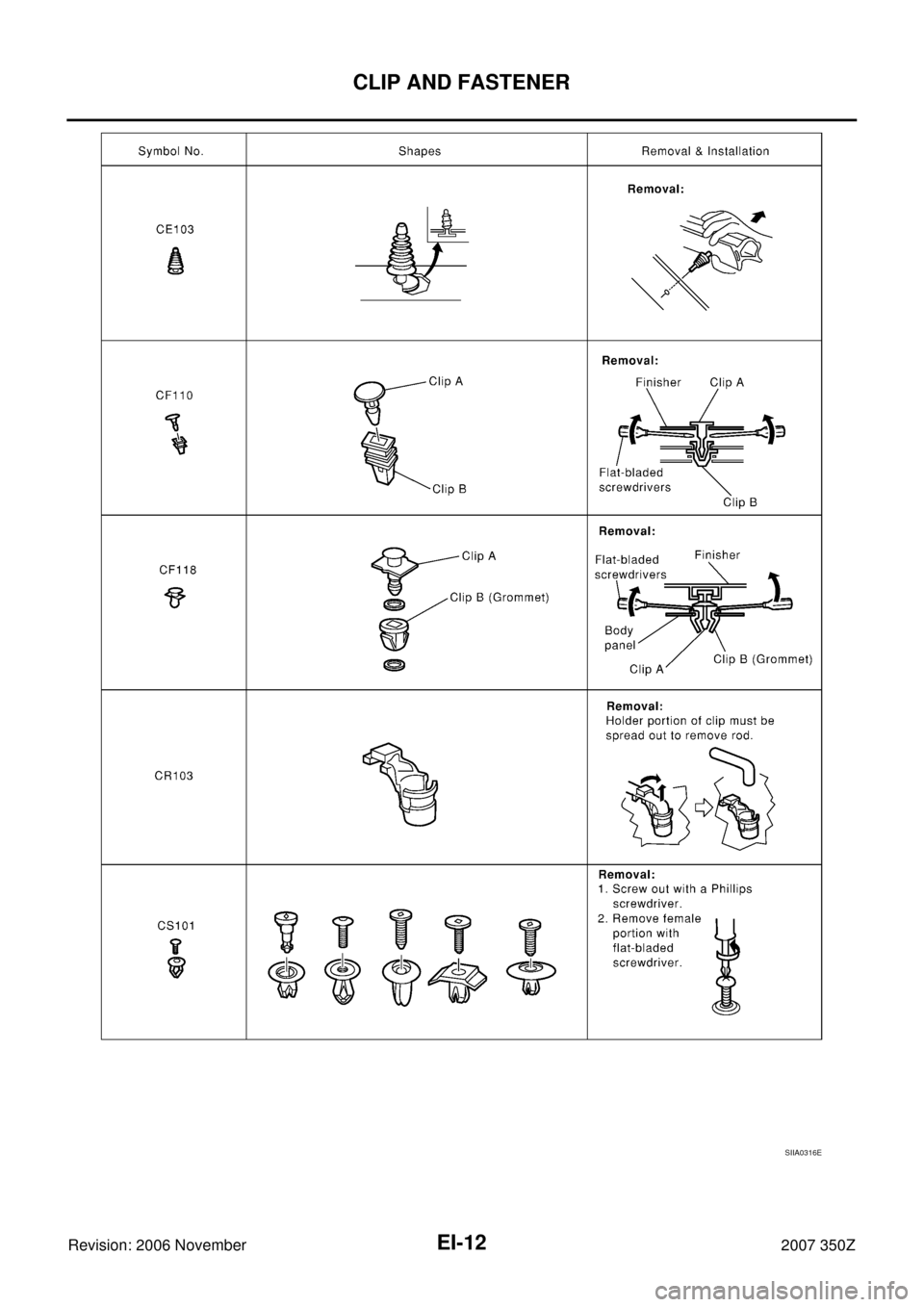

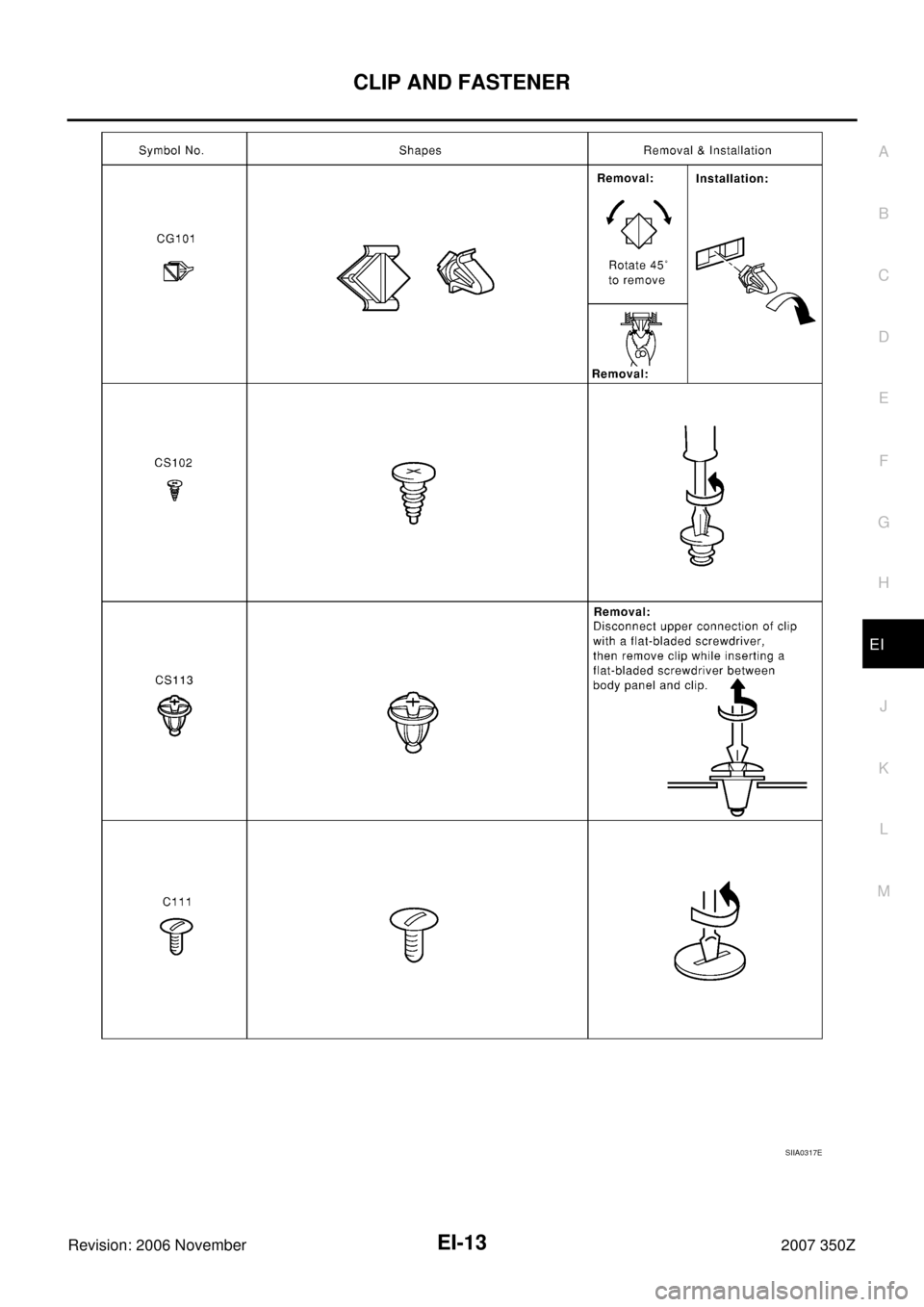

Clip and FastenerNIS0008E
SIIA0315E
Page 12 of 50
EI-12
CLIP AND FASTENER
Revision: 2006 November2007 350Z
SIIA0316E
Page 13 of 50
CLIP AND FASTENER
EI-13
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
SIIA0317E
Page 14 of 50
EI-14
FRONT BUMPER
Revision: 2006 November2007 350Z
FRONT BUMPERPFP:F2022
Removal and InstallationNIS0008F
CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
PIIB7143J
Page 15 of 50
FRONT BUMPER
EI-15
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
REMOVAL
1. Remove clips of bumper fascia upper portion.
2. Remove screw of bumper fascia lower portion.
3. Remove screws of bumper fascia both side.
4. Remove screws and bolts of both right/left fender protectors on front side. Refer to EI-21, "
FENDER PRO-
TECTOR" .
5. Pull out both right/left sides of bumper fascia and remove bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
6. Remove energy absorber.
7. Remove bolts and nuts of bumper reinforcement and remove bumper fascia.
8. Remove clips of bumper shield-sight and remove bumper shield-sight.
9. Remove bolts of bumper stay and remove bumper stay.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.
Removal and Installation of Bumper Side Reflector (Left Side) NIS001H6
REMOVAL
1. Remove the front part of fender protector by removing screws and clips.
2. Remove screw of bumper side reflector (left side).
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Bumper Side Reflector (Right Side) NIS001H7
REMOVAL
1. Remove bumper assembly.
2. Remove screw of bumper side reflector (right side).
INSTALLATION
Install in the reverse order of removal.
1. Bumper stay 2. License plate bracket 3. Bumper reinforcement
4. Energy absorber 5. Bumper fascia assembly 6. Front emblem
7. Bumper upper side molding (RH) 8. Front bumper center 9. Bumper upper side molding (LH)
10. Bumper lower molding 11. Bumper side reflector 12. Bumper side bracket
13. Grommet 14. Air spoiler 15. Retainer
Pawl
Portion Clearance
Front bumper - Front fender A - A 0 - 0.5 mm (0 - 0.020 in)
Front bumper - Head lamp B - B 5.9 - 8.9 mm (0.232 - 0.350 in)
Hood - Head lamp C - C 1.7 - 5.3 mm (0.067 - 0.209 in)
Page 16 of 50
EI-16
FRONT BUMPER
Revision: 2006 November2007 350Z
Removal and Installation of Bumper Molding (Upper side, Lower)NIS001H8
REMOVAL
1. Remove front bumper fascia. Refer to EI-14, "Removal and Installation" .
2. Remove screw of bumper molding (upper side, lower).
3. Disengage the plastic pawls to remove the bumper molding (upper side, lower).
INSTALLATION
Install in the reverse order of removal.
