TRUNK ROOM TRIM & TRUNK LID FINISHER
EI-49
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
TRUNK ROOM TRIM & TRUNK LID FINISHERPFP:84920
Removal and Installation (for Roadstar Models)NIS0008Z
TRUNK ROOM TRIM
Removal
1. Remove trunk lid weatherstrip. Refer to BL-113, "Removal and Installation of Trunk Lid Weatherstrip" .
2. Remove trunk floor carpet.
3. Remove spare tire cover.
4. Remove trunk lid release lever from trunk rear finisher.
5. Remove clips and remove trunk rear finisher.
6. Remove clips of trunk front finisher and remove trunk front finisher.
7. Remove trunk side box.
8. Remove clips and remove tool box.
Installation
Install in the reverse order of removal.

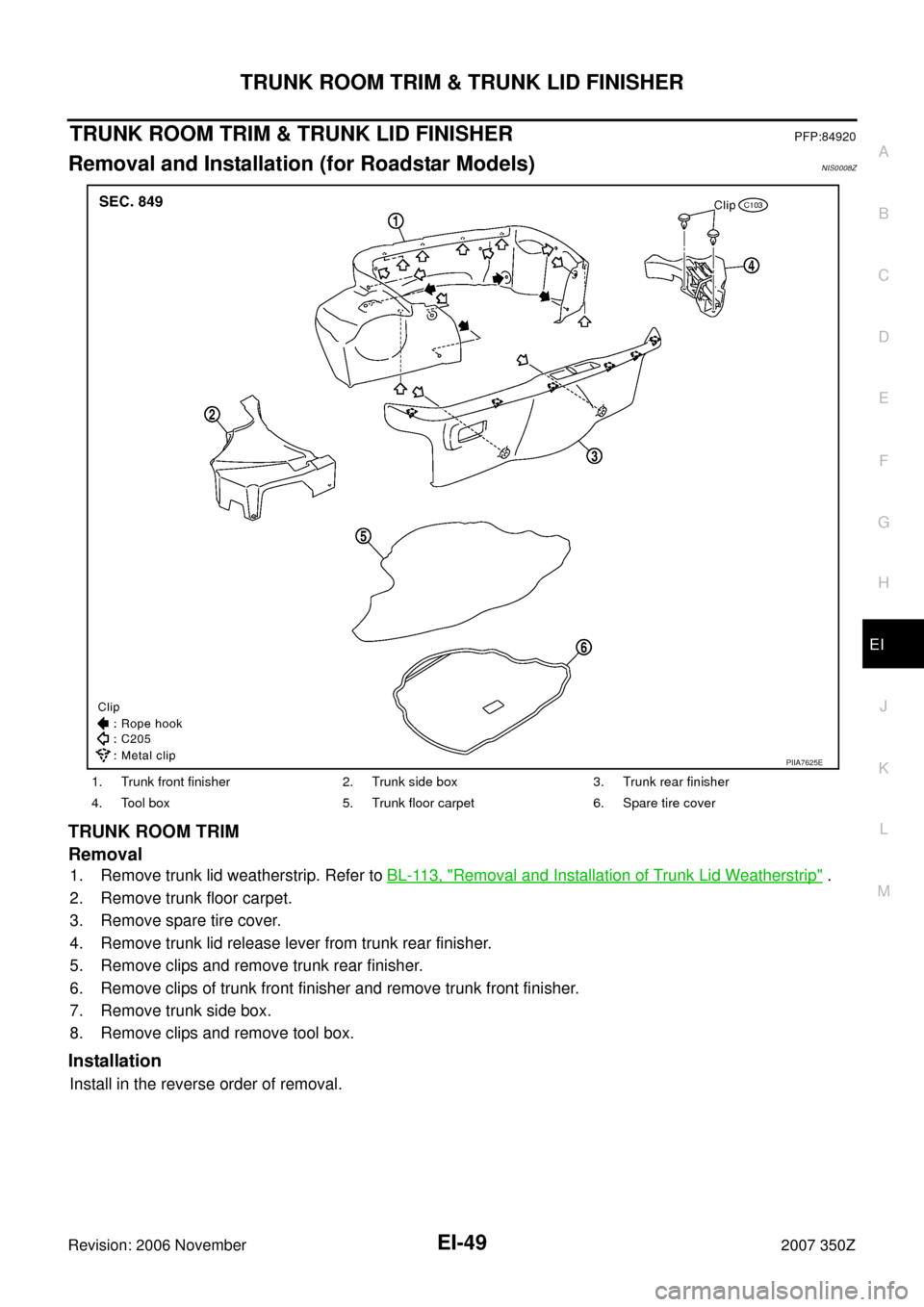

1. Trunk front finisher 2. Trunk side box 3. Trunk rear finisher
4. Tool box 5. Trunk floor carpet 6. Spare tire cover
PIIA7625E
EI-50
TRUNK ROOM TRIM & TRUNK LID FINISHER
Revision: 2006 November2007 350Z
TRUNK LID FINISHER
Removal
Remove clips of trunk lid finisher and remove trunk lid finisher.
Installation
Install in the reverse order of removal.
TRUNK LID MOLDING
Removal
1. Remove clips and double-faced adhesive tape of trunk lid molding.
2. Remove trunk lid molding (LH/RH).
Installation
Install in the reverse order of removal.

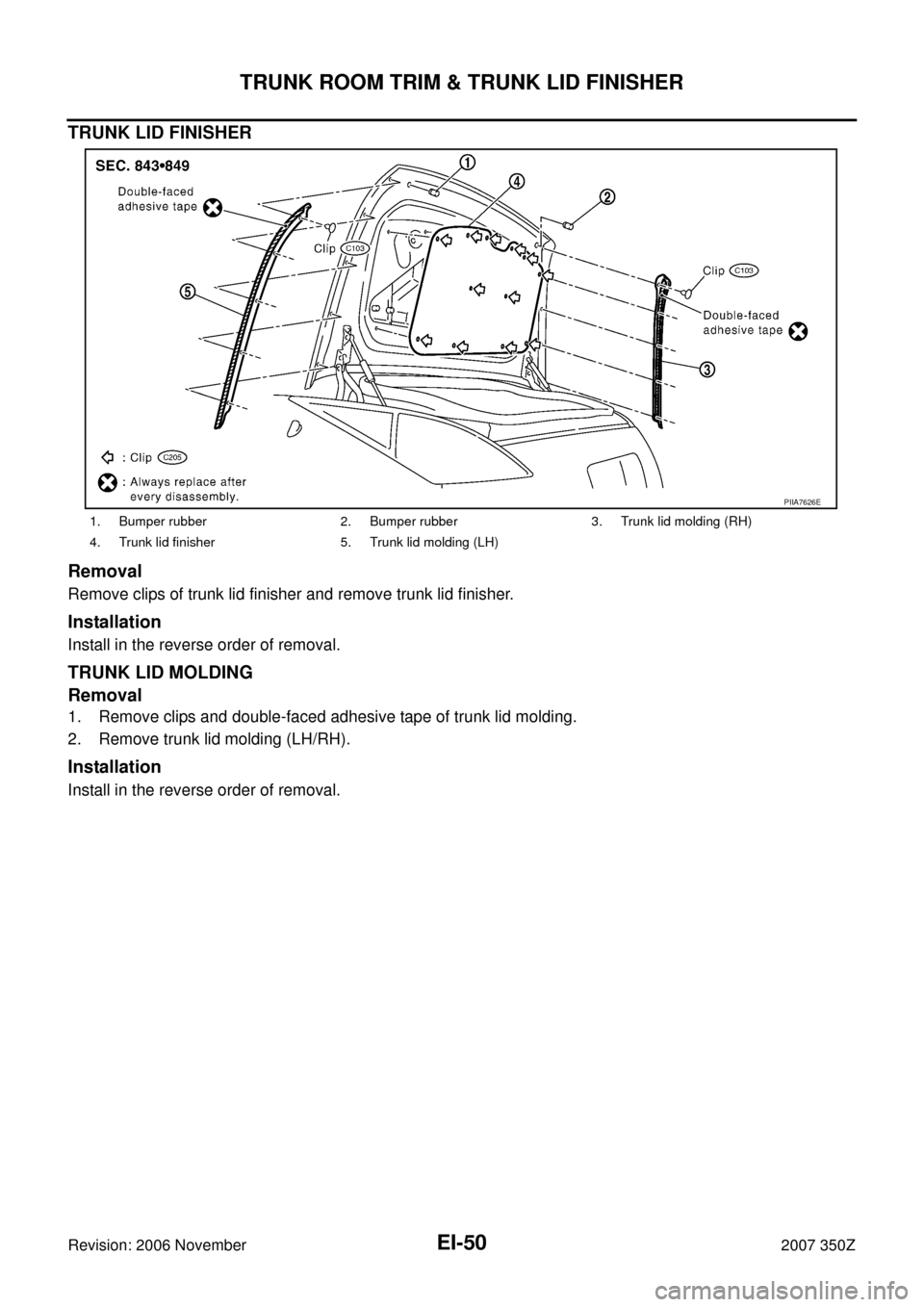

1. Bumper rubber 2. Bumper rubber 3. Trunk lid molding (RH)
4. Trunk lid finisher 5. Trunk lid molding (LH)
PIIA7626E
