SIDE SILL FINISHER
EI-25
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
REAR DIFFUSER
Removal
Remove bolts and clips of rear diffuser and remove rear diffuser.
Installation
Install in the revers order of removal.
PIIA6906E

EI-26
WINDSHIELD MOLDING
Revision: 2006 November2007 350Z
WINDSHIELD MOLDINGPFP:72700
Removal and InstallationNIS0008L
REMOVAL
Remove windshield molding. Refer to GW-11, "WINDSHIELD GLASS" .
NOTE:

Apply protective tape around circumference of windshield.

Guiding a cutter knife along glass, cut surface of molding.

Using pliers, draw out all remaining molding left in flanged area of body, and remove it completely from
adhering surface on glass.
INSTALLATION
Install windshield molding. Refer to GW-11, "WINDSHIELD GLASS" .
NOTE:

Align matching marks on body and glass. Install glass to body.
PIIA8724E
1. Dam rubber 2. Fastener 3. Molding (upper)
4. Windshield glass 5. Insulator 6. Spacer
7. Mirror base

WINDSHIELD MOLDING
EI-27
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z

Press entire surface of glass lightly to fit it completely.
Using a spatula, repair any adhesive overflow or shortage to make surface smooth. Position windshield mold-
ings and allow their adhesion.
CAUTION:

Be sure to install windshield molding before adhesive hardens.

After installing glass, keep door windows open and avoid driving vehicle until adhesive has com-
pletely cured.

EI-28
REAR WINDOW MOLDING
Revision: 2006 November2007 350Z
REAR WINDOW MOLDINGPFP:79762
Removal and InstallationNIS0008M
REMOVAL OF BACK DOOR WINDOW MOLDING
Remove back door window molding. Refer to GW-14, "BACK DOOR WINDOW GLASS" .
NOTE:
Apply a strip of protective tape along the contour of back door window glass (molding) to prevent paint surface
from being damaged.
INSTALLATION OF BACK DOOR WINDOW MOLDING
Install back door window molding. Refer to GW-14, "BACK DOOR WINDOW GLASS" .
NOTE:

Clean adhesive portion of back door window glass and around circumference with white gasoline.

Apply dam rubber to all surfaces of glass.

Attach back door window molding to side face of glass.
PIIB0822E

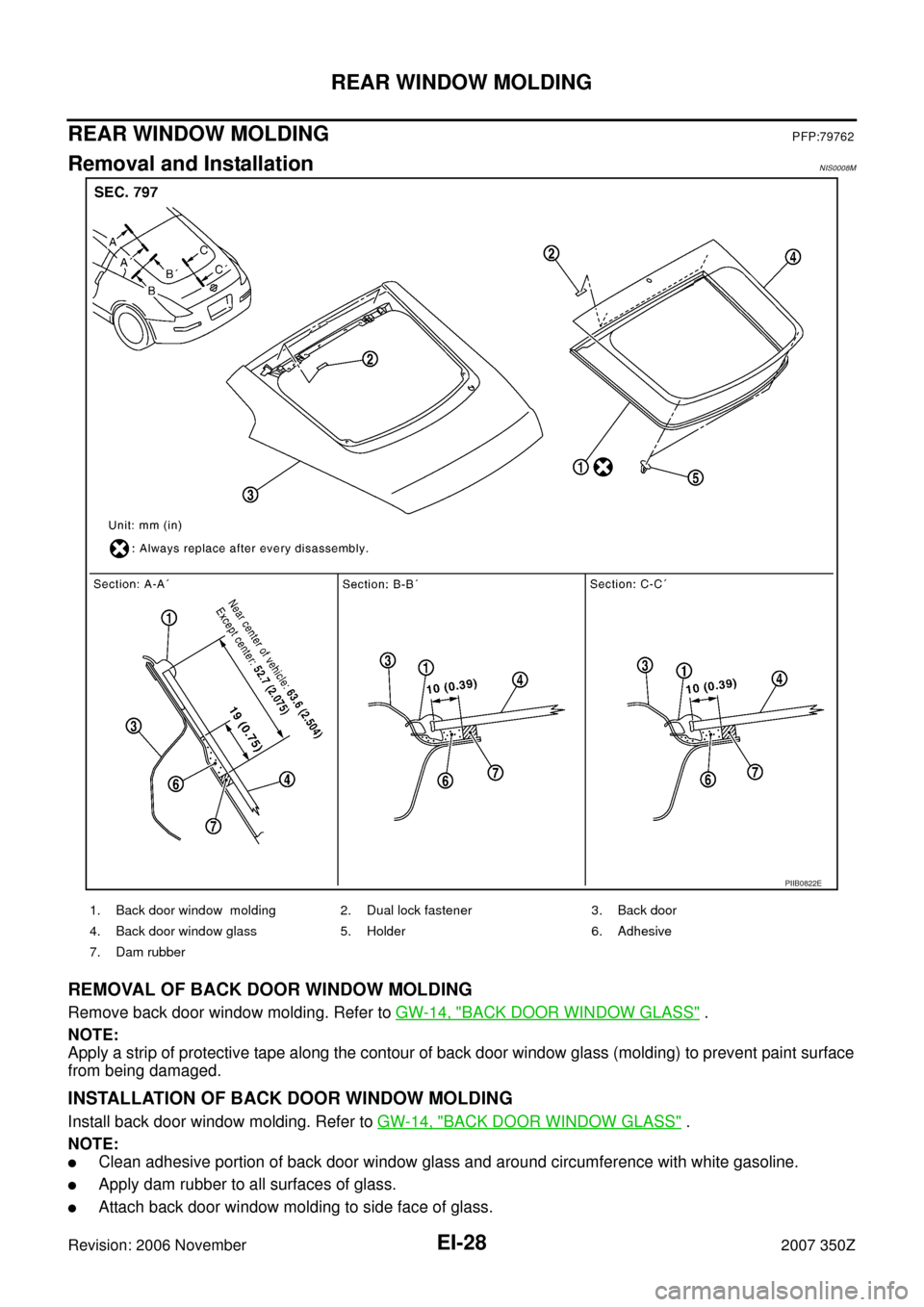

1. Back door window molding 2. Dual lock fastener 3. Back door
4. Back door window glass 5. Holder 6. Adhesive
7. Dam rubber

REAR WINDOW MOLDING
EI-29
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z

Back door window molding should not overlap on the surface of back door window glass.

EI-30
REAR SPOILER
Revision: 2006 November2007 350Z
REAR SPOILERPFP:96030
Removal and InstallationNIS0008N
REMOVAL
1. Remove back door finisher lower. Refer to EI-47, "Removal and Installation (for Coupe Models)" .
2. Remove nuts of rear spoiler.
3. Remove clip of rear spoiler.
4. Remove double-faced adhesive tapes with wide plastic spatula between back door and rear spoiler.
INSTALLATION
Install in the reverse order of removal.
CAUTION:

Do not let air between contact surfaces when installing.

To secure contact, do not wash vehicle within 24 hours after installation.

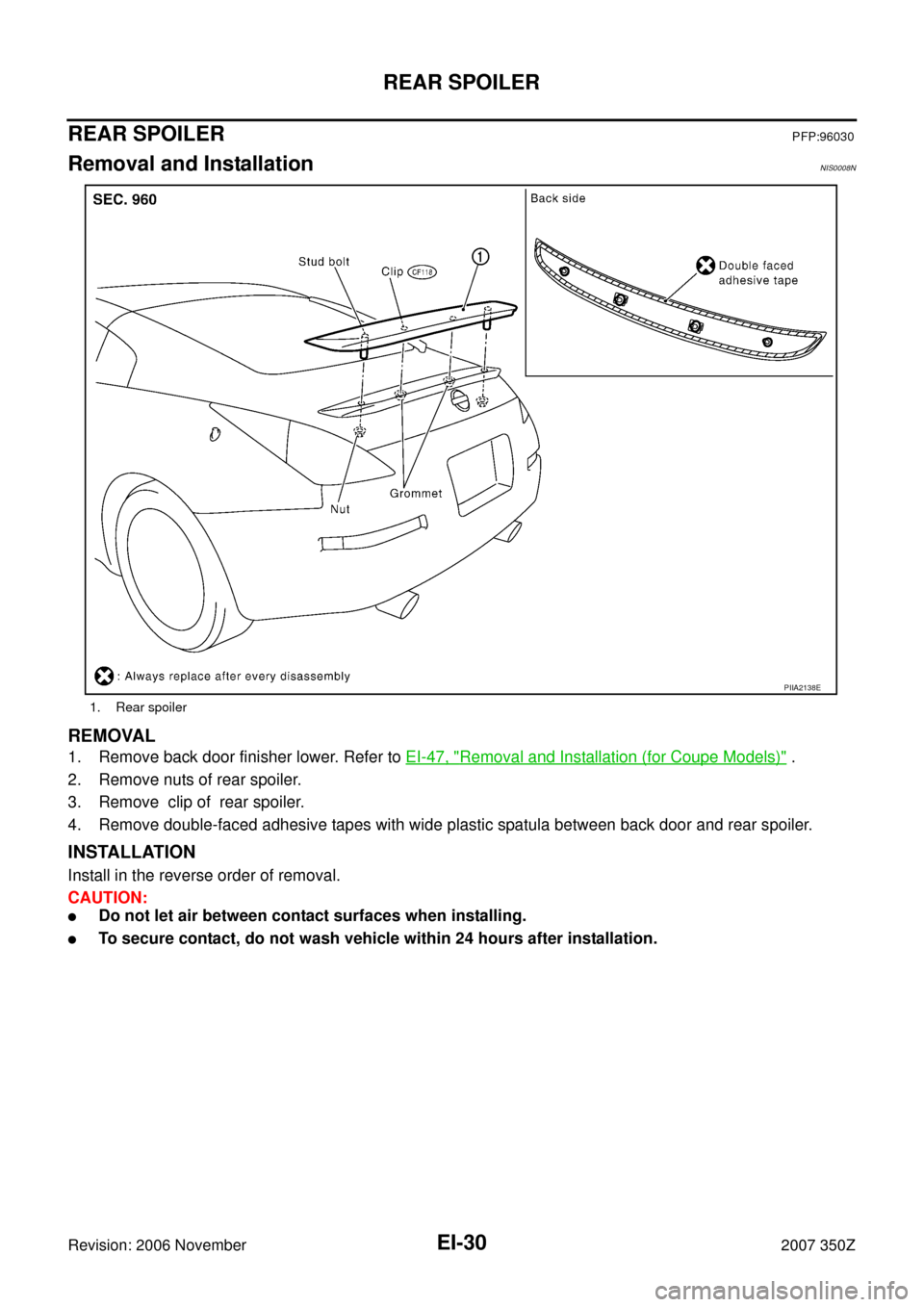

1. Rear spoiler
PIIA2138E

ROOF SIDE MOLDING
EI-31
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
ROOF SIDE MOLDINGPFP:73854
Removal and Installation (for Coupe Models)NIS0008O
FRONT PILLAR FINISHER
Removal
1. Remove lock pillar finisher.
2. Remove clip and double-faced adhesive tapes of body side weatherstrip.
3. Remove body side weatherstrip.
4. Remove screw of retainer body side weatherstrip.
5. Remove screw and clip of front pillar finisher.
6. Remove front pillar finisher.
Installation
Install in the reverse order of removal.
LOCK PILLER FINISHER
Removal
Lift and twist lock pillar finisher up from lock pillar disconnect clips.
Installation
Install in the reverse order of removal.

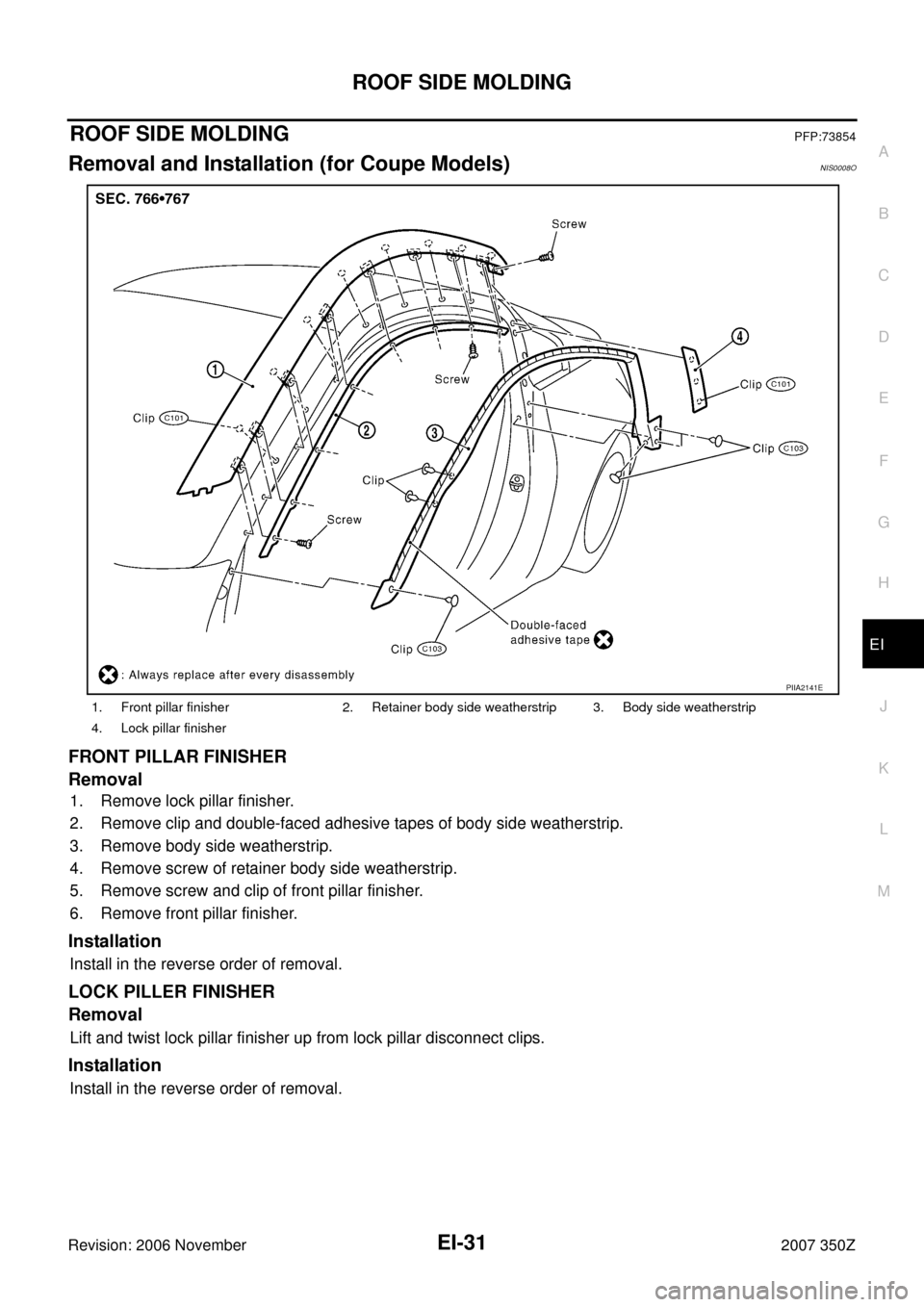

1. Front pillar finisher 2. Retainer body side weatherstrip 3. Body side weatherstrip
4. Lock pillar finisher
PIIA2141E

EI-32
ROOF SIDE MOLDING
Revision: 2006 November2007 350Z
Removal and Installation (for Roadster Models)NIS0008P
FRONT PILLAR FINISHER
Removal
1. Open soft top.
2. Remove clip and double-faced adhesive tapes of body side glass-run rubber.
NOTE:
Slide body side glass run slightly upward to remove clip on middle portion of glass run rubber side from
retainer.
3. Remove body side glass-run rubber.
4. Remove screw of retainer.
5. Remove screw and clips of front pillar finisher.
6. Remove front pillar finisher.
Installation
Install in the reverse order of removal.
BODY SIDE WEATHERSTRIP
Removal
1. Open soft top.
2. Disconnect clips and remove body side weatherstrip.
Installation
Install in the reverse order of removal.

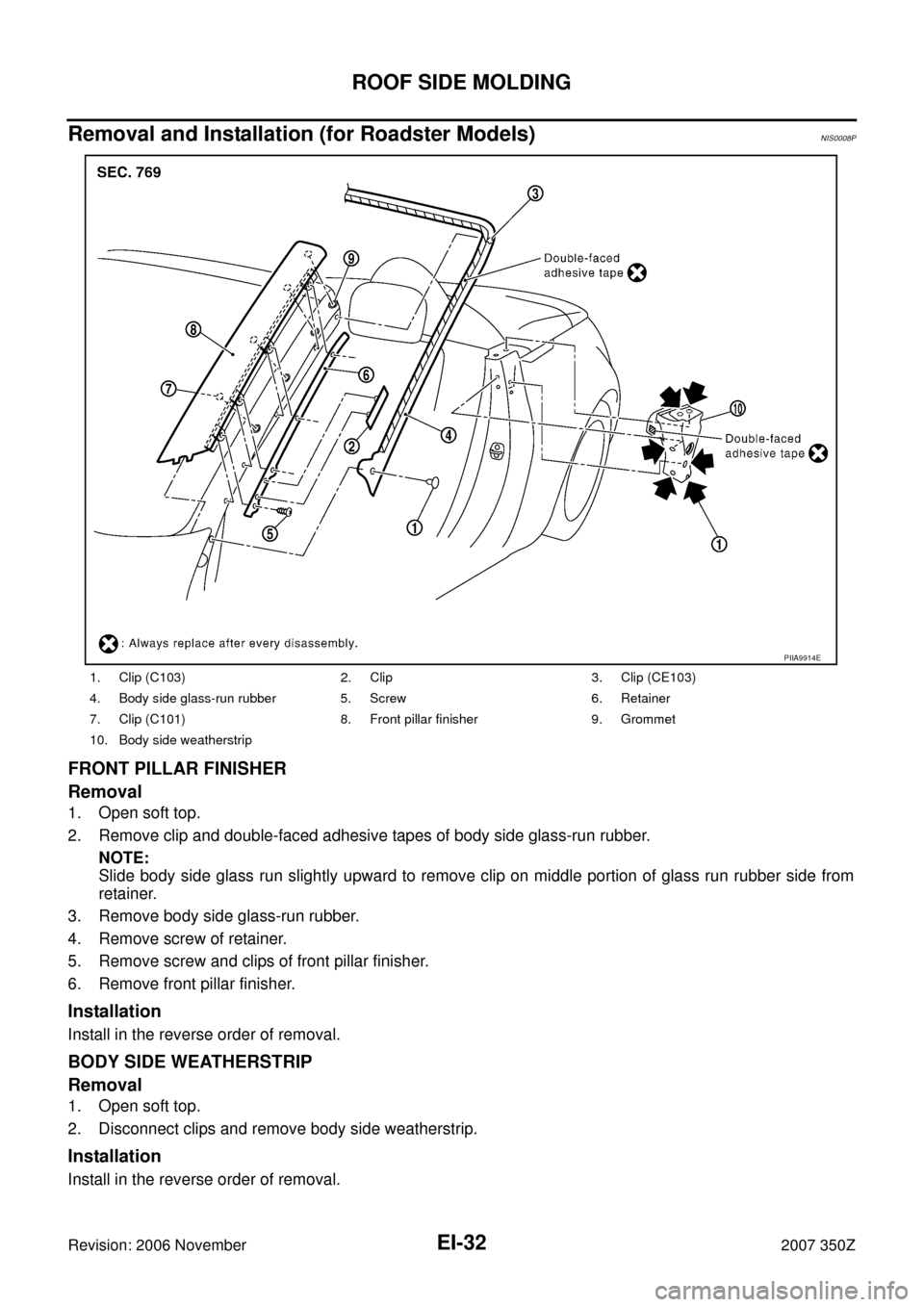

1. Clip (C103) 2. Clip 3. Clip (CE103)
4. Body side glass-run rubber 5. Screw 6. Retainer
7. Clip (C101) 8. Front pillar finisher 9. Grommet
10. Body side weatherstrip
PIIA9914E
