EI-18
REAR BUMPER
Revision: 2006 November2007 350Z
REMOVAL
1. Remove rear combination lamp assembly. Refer to LT- 1 2 7 , "Removal and Installation" .
2. Remove screw rear combination portion.
3. Remove clips of closing rear bumper.
4. Remove bolt and screw of both edges bumper fascia.

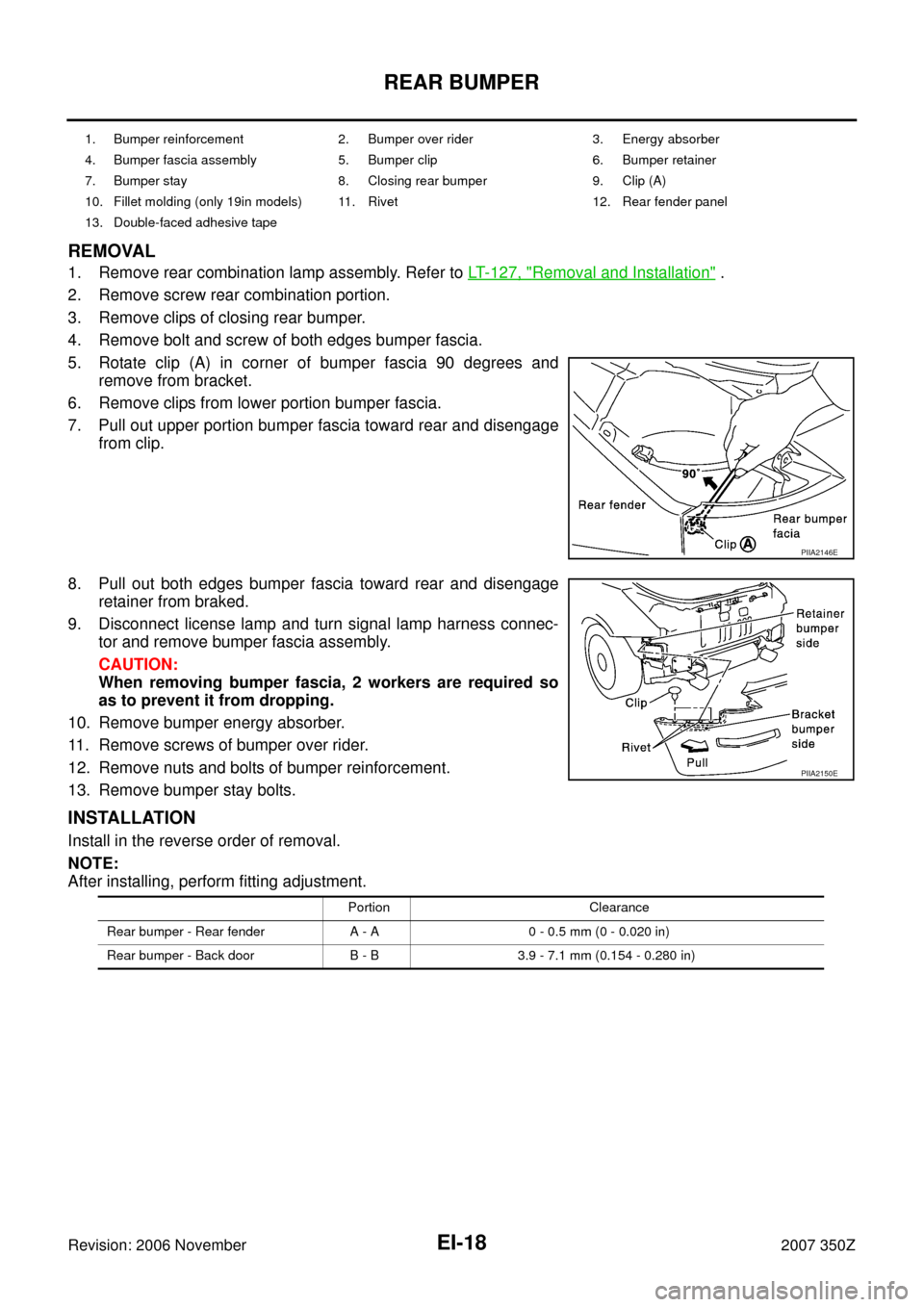

5. Rotate clip (A) in corner of bumper fascia 90 degrees and
remove from bracket.
6. Remove clips from lower portion bumper fascia.
7. Pull out upper portion bumper fascia toward rear and disengage
from clip.
8. Pull out both edges bumper fascia toward rear and disengage
retainer from braked.
9. Disconnect license lamp and turn signal lamp harness connec-
tor and remove bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so
as to prevent it from dropping.
10. Remove bumper energy absorber.
11. Remove screws of bumper over rider.
12. Remove nuts and bolts of bumper reinforcement.
13. Remove bumper stay bolts.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.
1. Bumper reinforcement 2. Bumper over rider 3. Energy absorber
4. Bumper fascia assembly 5. Bumper clip 6. Bumper retainer
7. Bumper stay 8. Closing rear bumper 9. Clip (A)
10. Fillet molding (only 19in models) 11. Rivet 12. Rear fender panel
13. Double-faced adhesive tape
PIIA2146E
PIIA2150E
Portion Clearance
Rear bumper - Rear fender A - A 0 - 0.5 mm (0 - 0.020 in)
Rear bumper - Back door B - B 3.9 - 7.1 mm (0.154 - 0.280 in)
