EI-26
WINDSHIELD MOLDING
Revision: 2006 November2007 350Z
WINDSHIELD MOLDINGPFP:72700
Removal and InstallationNIS0008L
REMOVAL
Remove windshield molding. Refer to GW-11, "WINDSHIELD GLASS" .
NOTE:
Apply protective tape around circumference of windshield.
Guiding a cutter knife along glass, cut surface of molding.
Using pliers, draw out all remaining molding left in flanged area of body, and remove it completely from
adhering surface on glass.
INSTALLATION
Install windshield molding. Refer to GW-11, "WINDSHIELD GLASS" .
NOTE:
Align matching marks on body and glass. Install glass to body.

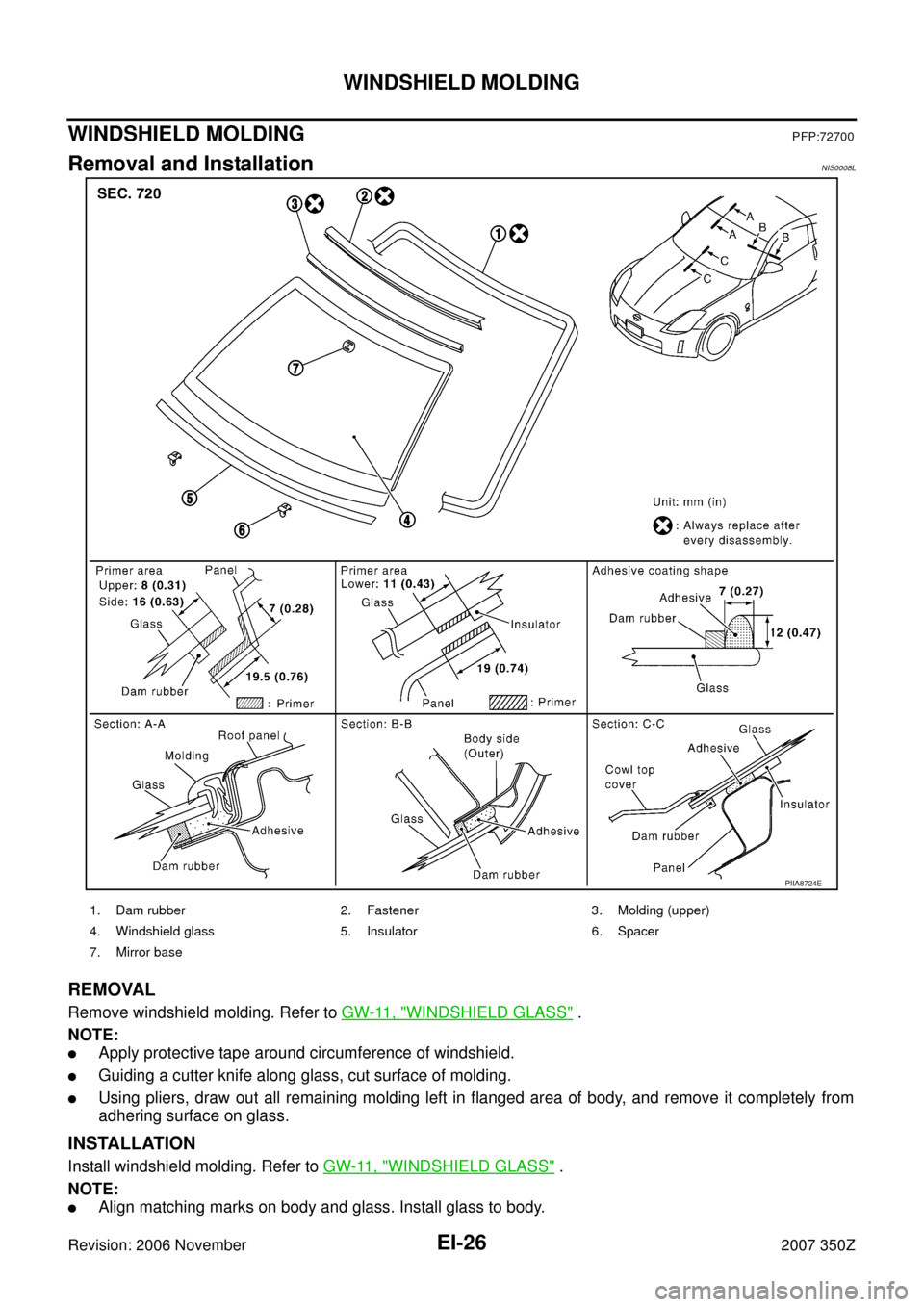

PIIA8724E
1. Dam rubber 2. Fastener 3. Molding (upper)
4. Windshield glass 5. Insulator 6. Spacer
7. Mirror base
