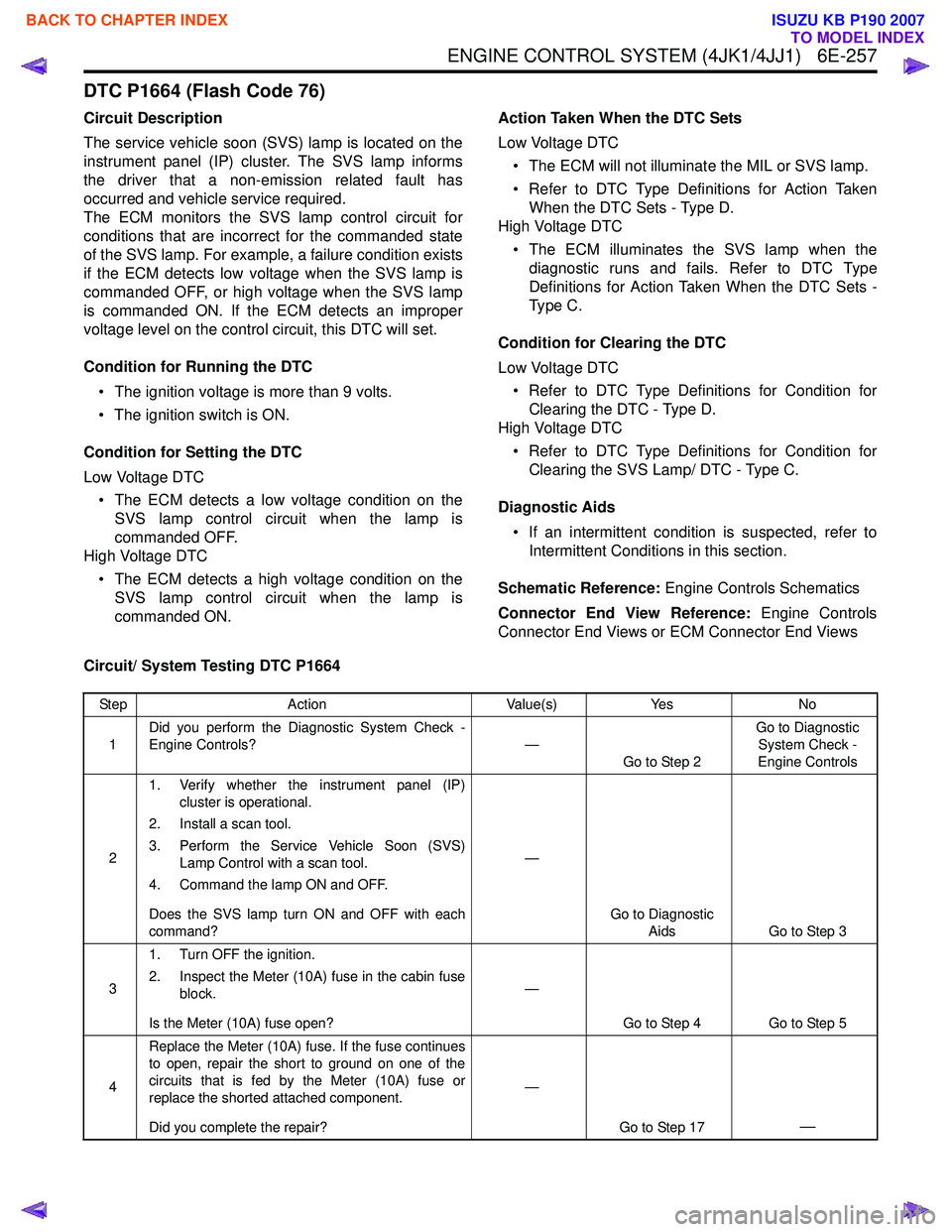

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-257
DTC P1664 (Flash Code 76)
Circuit Description
The service vehicle soon (SVS) lamp is located on the
instrument panel (IP) cluster. The SVS lamp informs
the driver that a non-emission related fault has
occurred and vehicle service required.
The ECM monitors the SVS lamp control circuit for
conditions that are incorrect for the commanded state
of the SVS lamp. For example, a failure condition exists
if the ECM detects low voltage when the SVS lamp is
commanded OFF, or high voltage when the SVS lamp
is commanded ON. If the ECM detects an improper
voltage level on the control circuit, this DTC will set.
Condition for Running the DTC • The ignition voltage is more than 9 volts.
• The ignition switch is ON.
Condition for Setting the DTC
Low Voltage DTC • The ECM detects a low voltage condition on the SVS lamp control circuit when the lamp is
commanded OFF.
High Voltage DTC
• The ECM detects a high voltage condition on the SVS lamp control circuit when the lamp is
commanded ON. Action Taken When the DTC Sets
Low Voltage DTC • The ECM will not illuminate the MIL or SVS lamp.
• Refer to DTC Type Definitions for Action Taken When the DTC Sets - Type D.
High Voltage DTC
• The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C.
Condition for Clearing the DTC
Low Voltage DTC • Refer to DTC Type Definitions for Condition for Clearing the DTC - Type D.
High Voltage DTC
• Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P1664
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Verify whether the instrument panel (IP)
cluster is operational.
2. Install a scan tool.
3. Perform the Service Vehicle Soon (SVS) Lamp Control with a scan tool.
4. Command the lamp ON and OFF.
Does the SVS lamp turn ON and OFF with each
command? —
Go to Diagnostic Aids Go to Step 3
3 1. Turn OFF the ignition.
2. Inspect the Meter (10A) fuse in the cabin fuse block.
Is the Meter (10A) fuse open? —
Go to Step 4 Go to Step 5
4 Replace the Meter (10A) fuse. If the fuse continues
to open, repair the short to ground on one of the
circuits that is fed by the Meter (10A) fuse or
replace the shorted attached component.
Did you complete the repair? —
Go to Step 17
—

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-260 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P2100, P2101 or P2103 (Flash Code 446)
Circuit Description
The ECM controls the intake throttle valve opening
based on the engine running condition and by
controlling the intake throttle solenoid. The intake
throttle valve position is detected by the position
sensor, and relayed to the ECM. If the ECM detects an
open circuit or short circuit on the solenoid circuits,
DTC P2100, P2101 or P2103 will set.
Condition for Running the DTC • The battery voltage is more than 9 volts.
• The ignition switch is ON.
Condition for Setting the DTC • The ECM detects an open circuit on the intake throttle solenoid circuits. (DTC P2100)
• The ECM detects a short to ground on the intake throttle solenoid circuits. (DTC P2101)
• The ECM detects a short to voltage circuit on the intake throttle solenoid circuits. (DTC P2103)
Action Taken When the DTC Sets • The ECM illuminates the MIL on the second consecutive driving cycle when the diagnostic runs
and fails. Refer to DTC Type Definitions for Action
Taken When the DTC Sets - Type B. (Euro 4
Specification) • The ECM illuminates the MIL when the diagnostic
runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification)
• The ECM inhibits EGR control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type B (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2100, P2101 or P2103
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 3 Go to Diagnostic
Aids
3 1. Turn OFF the ignition.
2. Disconnect the intake throttle valve harness connector.
3. Turn ON the ignition, with the engine OFF.
4. Connect a DMM between the drive voltage circuit (pin 2 of E-38) and a known good
ground.
5. Connect a DMM between the low side circuit (pin 1 of E-38) and a known good ground.
Are both voltage readings within the specified
value? 1.4 to 1.8 volts
Go to Step 5 Go to Step 4
4 Is the DMM voltage more than the specified value
at Step 3? —
Go to Step 7 Go to Step 6

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-263
DTC P2122 or P2123 (Flash Code 121)
Circuit Description
The accelerator pedal position (APP) sensor is
mounted on the accelerator pedal control assembly.
The sensor is made up of three individual sensors
within one housing. The ECM uses the APP sensors to
determine the amount of acceleration or deceleration
that is desired. The APP sensor 1 has the following
circuits.
• 5 volts reference circuit
• Low reference circuit
• APP sensor 1 signal circuit
The APP sensor 1 provides a signal to the ECM on the
signal circuit, which is relative to the position changes
of the accelerator pedal angle. If the ECM detects an
excessively low or high signal voltage, DTC P2122 or
P2123 will set.
Condition for Running the DTC • DTCs P0642 and P0643 are not set.
• The battery voltage is more than 9 volts.
• The ignition switch is ON.
Condition for Setting the DTC • The ECM detects that the APP sensor 1 signal voltage is less than 0.15 volts. (DTC P2122)
• The ECM detects that the APP sensor 1 signal voltage is more than 4.85 volts. (DTC P2123) Action Taken When the DTC Sets
• The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C. (Euro 4 Specification)
• The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification)
• The ECM limits fuel injection quantity
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C. (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• APP sensor 1 may have an intermittent open somewhere in the pedal range.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2122
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC Information with a scan tool.
Is DTC P0642 also set? —
Go to DTC P0642 Go to Step 3
3 Fully depress and release the accelerator pedal
while observing the Accelerator Pedal Position
(APP) Sensor 1 parameter with a scan tool.
Does the scan tool indicate less than the specified
value during depressing or releasing the pedal? 0.2 volts
Go to Step 4 Go to Diagnostic
Aids

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-267
DTC P2127 or P2128 (Flash Code 122)
Circuit Description
The accelerator pedal position (APP) sensor is
mounted on the accelerator pedal control assembly.
The sensor is made up of three individual sensors
within one housing. The ECM uses the APP sensors to
determine the amount of acceleration or deceleration
that is desired. The APP sensor 2 has the following
circuits.
• 5 volts reference circuit
• Low reference circuit
• APP sensor 2 signal circuit
The APP sensor 2 provides a signal to the ECM on the
signal circuit, which is relative to the position changes
of the accelerator pedal angle. If the ECM detects an
excessively low or high signal voltage, DTC P2127 or
P2128 will set.
Condition for Running the DTC • DTCs P0652 and P0653 are not set.
• The battery voltage is more than 9 volts.
• The ignition switch is ON.
Condition for Setting the DTC • The ECM detects that the APP sensor 2 signal voltage is less than 0.15 volts. (DTC P2127)
• The ECM detects that the APP sensor 2 signal voltage is more than 4.85 volts. (DTC P2128) Action Taken When the DTC Sets
• The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C. (Euro 4 Specification)
• The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification)
• The ECM limits fuel injection quantity.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C. (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• APP sensor 2 may have an intermittent open somewhere in the pedal range.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2127
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC Information with a scan tool.
Is DTC P0652 also set? —
Go to DTC P0652 Go to Step 3
3 Fully depress and release the accelerator pedal
while observing the Accelerator Pedal Position
(APP) Sensor 2 parameter with a scan tool.
Does the scan tool indicate less than the specified
value during depressing or releasing the pedal? 0.2 volts
Go to Step 4 Go to Diagnostic
Aids
4 1. Turn OFF the ignition.
2. Disconnect the APP sensor harness connector.
3. Turn ON the ignition, with the engine OFF.
Is the APP Sensor 2 parameter more than the
specified value? 4.7 volts
Go to Step 5 Go to Step 6

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-271
DTC P2132 or P2133 (Flash Code 123)
Circuit Description
The accelerator pedal position (APP) sensor is
mounted on the accelerator pedal control assembly.
The sensor is made up of three individual sensors
within one housing. The ECM uses the APP sensors to
determine the amount of acceleration or deceleration
that is desired. The APP sensor 3 has the following
circuits.
• 5 volts reference circuit
• Low reference circuit
• APP sensor 3 signal circuit
The APP sensor 3 provides a signal to the ECM on the
signal circuit, which is relative to the position changes
of the accelerator pedal angle. If the ECM detects an
excessively low or high signal voltage, DTC P2132 or
P2133 will set.
Condition for Running the DTC • DTCs P0698 and P0699 are not set.
• The battery voltage is more than 9 volts.
• The ignition switch is ON.
Condition for Setting the DTC • The ECM detects that the APP sensor 3 signal voltage is less than 1.2 volts. (DTC P2132)
• The ECM detects that the APP sensor 3 signal voltage is more than 4.85 volts. (DTC P2133)
Action Taken When the DTC Sets
DTC P2132 • The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C. (Euro 4 Specification) • The ECM illuminates the MIL when the diagnostic
runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification)
• The ECM limits fuel injection quantity.
• The ECM inhibits cruise control.
DTC P2133
• The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
• The ECM limits fuel injection quantity.
• The ECM inhibits cruise control.
Condition for Clearing the DTC
DTC P2132 • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C. (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
DTC P2133
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• APP sensor 3 may have an intermittent open somewhere in the pedal range.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2132
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC Information with a scan tool.
Is DTC P0698 also set? —
Go to DTC P0698 Go to Step 3
3 Fully depress and release the accelerator pedal
while observing the Accelerator Pedal Position
(APP) Sensor 3 parameter with a scan tool.
Does the scan tool indicate less than the specified
value during depressing or releasing the pedal? 1.2 volts
Go to Step 4 Go to Diagnostic
Aids

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-276 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P2138, P2139 or P2140 (Flash Code 124, 125 or 126)
Circuit Description
The accelerator pedal position (APP) sensor is
mounted on the accelerator pedal control assembly.
The sensor is made up of three individual sensors
within one housing. The APP sensor 1, APP sensor 2
and APP sensor 3 are potentiometer type sensors,
each with the following circuits.
• 5 volts reference circuit
• Low reference circuit
• Signal circuit
The APP sensor provides a signal to the ECM on the
signal circuits, which is relative to the position changes
of the accelerator pedal angle. The APP sensor 1
signal voltage is low at rest and increases as the pedal
is depressed. The APP sensor 2 and APP sensor 3
signal voltage is high at rest and decreases as the
pedal is depressed. If the ECM detects that each APP
sensor signal voltage is out of the correlation, DTC
P2138, P2139 or P2140 will set.
Condition for Running the DTC • The battery voltage is more than 9 volts.
• The ignition switch is ON.
• The APP sensor 1 signal voltage is between 0.15 to 4.85 volt. (DTC P2138 or P2139)
• The APP sensor 2 signal voltage is between 0.15 to 4.85 volt. (DTC P2138 or P2140)
• The APP sensor 3 signal voltage is between 1.20 to 4.85 volt. (DTC P2139 or P2140)
Condition for Setting the DTC • The ECM detects that the APP sensor 1 and 2 are more than 40% out of range of each other. (DTC
P2138) • The ECM detects that the APP sensor 1 and 3 are
more than 40% out of range of each other. (DTC
P2139)
• The ECM detects that the APP sensor 2 and 3 are more than 40% out of range of each other. (DTC
P2140)
Action Taken When the DTC Sets • The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C. (Euro 4 Specification)
• The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification)
• The ECM limits fuel injection quantity.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C. (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2138
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC Information with a scan tool.
Is DTC P0642, P0643, P0652, P0653, P0698,
P0699, P2132 or P2133 also set? —
Go to Applicable DTC Go to Step 3
3 Fully depress and release the accelerator pedal
while observing the DTC Information with a scan
tool.
Does the DTC fail this ignition? —
Go to Step 4 Go to Diagnostic
Aids
4 Is DTC P2140 also set? —Go to Step 6 Go to Step 5
5 Is DTC P2139 also set? —Go to Step 7 Go to Step 8

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-282 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P2146, P2147 or P2148 (Flash Code 158)
Circuit Description
The ECM calculates the optimum fuel injection ON time
using data sent from various engine sensors. The
common 1 fuel injector charge voltage circuit is a high-
voltage supply which drives fuel injectors for cylinder #1
and #4 in conjunction with the ECM grounding the fuel
injector solenoid control circuit. If the common 1 fuel
injector charge voltage circuit is shorted to cylinder #1
or #4 fuel injector solenoid control circuit, shorted to
ground or shorted voltage circuit DTC P2146, P2147 or
P2148 will set. If the cylinder #1 and #4 fuel injector
solenoid control circuit is shorted each other, shorted to
ground or shorted voltage circuit DTC P2146, P2147 or
P2148 will also set.
Condition for Running the DTC • DTCs P0201, P0204, P2147 and P2148 are not set. (DTC P2146)
• The battery voltage is more than 9 volts.
• The ignition switch is ON.
• The engine is running.
Condition for Setting the DTC • The ECM detects that the common 1 fuel injector charge voltage circuit is shored to cylinder #1 or #4
fuel injector solenoid control circuit, or cylinder #1
and #4 fuel injector solenoid control circuit is
shorted each other. (DTC P2146) • The ECM detects that the common 1 fuel injector
charge voltage circuit, cylinder #1 or #4 fuel
injector solenoid control circuit is shorted to
ground. (DTC P2147)
• The ECM detects that the common 1 fuel injector charge voltage circuit, cylinder #1 or #4 fuel
injector solenoid control circuit is shorted to
voltage circuit. (DTC P2148)
Action Taken When the DTC Sets • The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
• The ECM limits fuel injection quantity.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2146
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Accelerate the engine and keep the accelerator pedal at any position.
5. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 3 Go to Diagnostic
Aids

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-286 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P2149, P2150 or P2151 (Flash Code 159)
Circuit Description
The ECM calculates the optimum fuel injection ON time
using data sent from various engine sensors. The
common 2 fuel injector charge voltage circuit is a high-
voltage supply which drives fuel injectors for cylinder #2
and #3 in conjunction with the ECM grounding the fuel
injector solenoid control circuit. If the common 2 fuel
injector charge voltage circuit is shorted to cylinder #2
or #3 fuel injector solenoid control circuit, shorted to
ground or shorted voltage circuit DTC P2149, P2150 or
P2151 will set. If the cylinder #2 and #3 fuel injector
solenoid control circuit is shorted each other, shorted to
ground or shorted voltage circuit DTC P2149, P2150 or
P2151 will also set.
Condition for Running the DTC • DTCs P0202, P0203, P2150 and P2151 are not set. (DTC P2149)
• The battery voltage is more than 9 volts.
• The ignition switch is ON.
• The engine is running.
Condition for Setting the DTC • The ECM detects that the common 2 fuel injector charge voltage circuit is shored to cylinder #2 or #3
fuel injector solenoid control circuit, or cylinder #2
and #3 fuel injector solenoid control circuit is
shorted each other. (DTC P2149). • The ECM detects that the common 2 fuel injector
charge voltage circuit, or cylinder #2 or #3 fuel
injector solenoid control circuit is shorted to
ground. (DTC P2150)
• The ECM detects that the common 2 fuel injector charge voltage circuit, or cylinder #2 or #3 fuel
injector solenoid control circuit is shorted to
voltage circuit. (DTC P2151)
Action Taken When the DTC Sets • The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
• The ECM limits fuel injection quantity.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2149
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Accelerate the engine and keep the accelerator pedal at any position.
5. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 3 Go to Diagnostic
Aids

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
