TRUNK LID FINISHERPFP:84810
Removal and InstallationNIS0024T
REMOVAL
1. Fully open trunk lid.
2. Remove trunk lid finisher inner. Refer to EI-57, "
REMOVAL AND INSTALLATION OF TRUNK LID FIN-
ISHER INNER" .
3. Remove trunk lid finisher upper mounting nuts.
4. Disconnect back lamp, license lamp and trunk opener switch harness connector.
5. Remove double-faced adhesive tapes with (wide) plastic spatula.Disconnect clips and remove trunk lid
finisher outer.
INSTALLATION
Install in the reverse order of removal.
CAUTION:

Replace double-faced adhesive tape on back of finisher with a new tape if trunk lid finisher outer is
reused.

Remove double-faced adhesive tape remaining on body and back of finisher using double-faced
adhesive tape remover when removing finisher outer.

Install after cleaning adhesive parts of body side and back of finisher outer.

Do not wash the vehicle with in 24 hours after installing so as to keep adhesive.

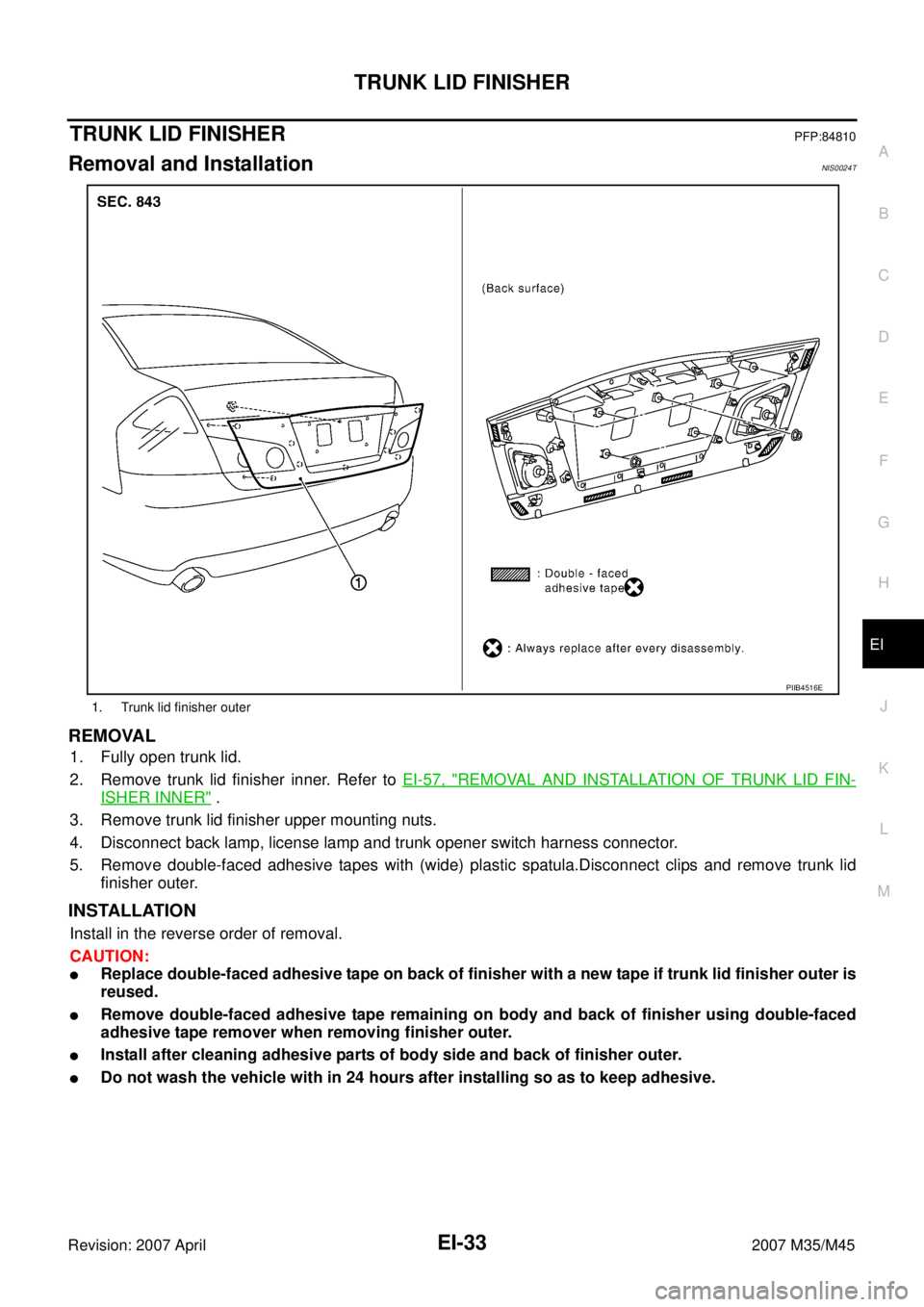

1. Trunk lid finisher outer
PIIB4516E

DOOR FINISHER
EI-35
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2007 April2007 M35/M45
5. Insert a thin screwdriver from the armrest finisher opening and
lift the lock of the power window switch harness connector.
6. Insert a clip clamp remover into clips on back door finisher, and
disengage clips.
CAUTION:
Insert a clip clamp remover into the part shown by the
arrow (between the clips and the body side panel). Remove
door finisher.
7. Disconnect harness connector for step lamp.
8. Pull up door finisher and pull out toward vehicle inside, and then
disconnect inside handle cable and lock knob cable from back
door finisher.
9. Disconnect harness connector for power window switch, seat memory switch.
10. Remove door finisher.
11. Remove the following parts after removing door finisher.

Inside handle assembly

Armrest

Seat memory switch

Power window switch

Ste p l am p
Installation
Install in the reverse order of removal.
CAUTION:
When installing door finisher, make sure that clips are securely fitted in panel holes on body, and then
press them in.
PIIB4936E
PIIB4932E
PIIB4933E

EI-36
DOOR FINISHER
Revision: 2007 April2007 M35/M45
FRONT DOOR SASH COVER INNER
Removal
1. Remove front door finisher.
2. Disconnect harness connector for door mirror and tweeter.
3. Remove clips of front door sash cover inner.
4. Remove front door sash cover inner.
Installation
Install in the reverse order of removal.
REAR DOOR SASH COVER INNER
Removal
1. Remove rear door finisher.
2. Remove clip of rear door sash cover inner.
3. Remove rear door sash cover inner.
Installation
Install in the reverse order of removal.
PIIB4934E
PIIB4935E

BODY SIDE TRIM
EI-37
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2007 April2007 M35/M45
BODY SIDE TRIMPFP:76913
Removal and InstallationNIS0024V
CAUTION:
Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

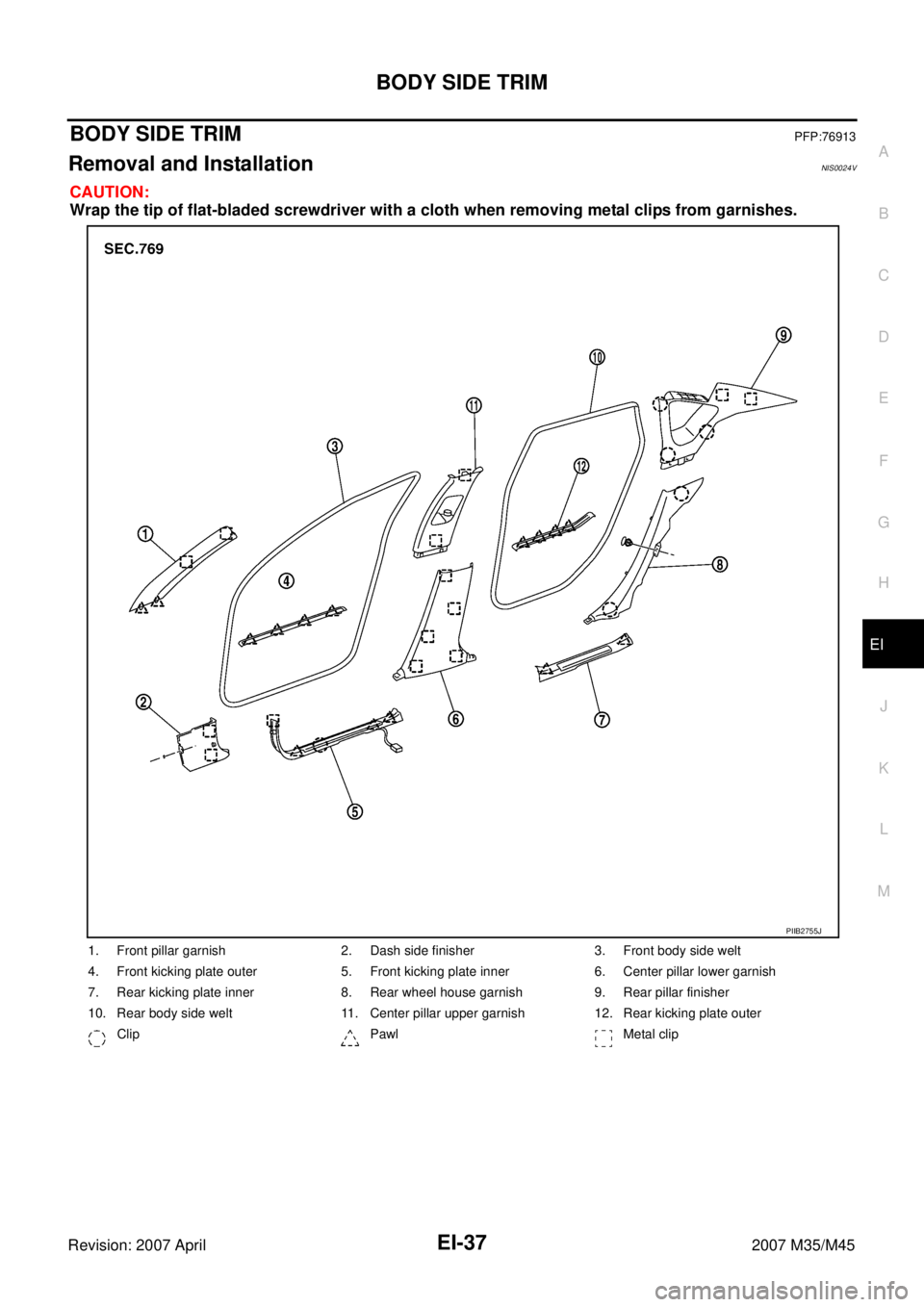

1. Front pillar garnish 2. Dash side finisher 3. Front body side welt
4. Front kicking plate outer 5. Front kicking plate inner 6. Center pillar lower garnish
7. Rear kicking plate inner 8. Rear wheel house garnish 9. Rear pillar finisher
10. Rear body side welt 11. Center pillar upper garnish 12. Rear kicking plate outer
Clip Pawl Metal clip
PIIB2755J

EI-38
BODY SIDE TRIM
Revision: 2007 April2007 M35/M45
FRONT PILLAR GARNISH
Removal
Remove pillar garnish mounting clips using a clip clamp remover,
and then remove pillar garnish.
Installation
Install in the reverse order of removal.
FRONT KICKING PLATE OUTER
Removal
Remove front kicking plate outer mounting clips using a clip clamp
remover, and then remove kicking plate outer.
Installation
Install in the reverse order of removal.
FRONT KICKING PLATE INNER
Removal
1. Remove front kicking plate inner mounting clips using a clip
clamp remover.
2. Disconnect kicking plate illumination harness connector.
3. Remove front kicking plate inner.
Installation
Install in the reverse order of removal.
PIIB2760J
PIIB2761J
PIIB2762J

BODY SIDE TRIM
EI-39
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2007 April2007 M35/M45
FRONT BODY SIDE WELT
Removal
1. Remove center pillar lower garnish.
2. Remove center kicking plate inner.
3. Remove front body side welt.
Installation
Install in the reverse order of removal.
CENTER PILLAR LOWER GARNISH
Removal
Remove center pillar lower garnish mounting clips using a screw-
driver, and then remove center pillar lower garnish.
CAUTION:
Be careful not to damage the body.
Installation
Install in the reverse order of removal.
CENTER PILLAR UPPER GARNISH
Removal
1. Remove center pillar lower garnish.
2. Remove front seat belt floor anchor bolt and front seat belt shoulder anchor bolt. Refer to SB-29,
"Removal and Installation of Front Seat Belt" .
3. Remove front body side welt and rear body side welt.
4. Remove center pillar upper garnish mounting clips using a
screwdriver, and then remove center pillar upper garnish.
Installation
Install in the reverse order of removal.
PIIB2763J
PIIB2764J

EI-40
BODY SIDE TRIM
Revision: 2007 April2007 M35/M45
REAR KICKING PLATE OUTER
Removal
Remove rear kicking plate outer mounting clips using a clip clamp
remover, and then remove kicking plate outer.
Installation
Install in the reverse order of removal.
REAR KICKING PLATE INNER
Removal
1. Remove rear seat cushion. Refer to SE-177, "Removal and Installation" .
2. Remove kicking plate inner mounting clips using a clip clamp
remover, and then remove kicking plate inner.
Installation
Install in the reverse order of removal.
REAR BODY SIDE WELT
Removal
1. Remove center pillar lower garnish.
2. Remove rear seat cushion. Refer to SE-177, "
Removal and Installation" .
3. Remove rear kicking plate inner.
4. Remove rear body side welt.
Installation
Install in the reverse order of removal.
PIIB2765J
PIIB2766J

BODY SIDE TRIM
EI-41
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2007 April2007 M35/M45
REAR WHEEL HOUSE GARNISH
Removal
1. Remove rear seat cushion and rear seatback. Refer to SE-177, "Removal and Installation" .
2. Remove rear body side welt.
3. Remove clip of rear wheel house garnish.
4. Remove rear wheel house garnish.
Installation
Install in the reverse order of removal.
NOTE:
To install, check if all clips are matched over holes of panel on vehicle, then push on.
REAR PILLAR FINISHER
Removal
1. Remove rear seat cushion and rear seatback. Refer to SE-177, "Removal and Installation" .
2. Remove rear seat belt floor anchor bolt. Refer to SB-31, "
Removal and Installation of Rear Seat Belt" .
3. Remove rear kicking plate inner.
4. Remove rear wheel house garnish.
5. Remove pillar finisher mounting clips using a screwdriver, and
then remove pillar finisher.
CAUTION:
Insert a clip clamp remover wrapped with a shop cloth or
clip clamp remover into the part shown by the arrow
(between the clips and the body side panel). Remove clips.
Installation
Install in the reverse order of removal.
CAUTION:
Make sure that clips are securely fitted in panel holes on body when installing, and then press them in.
PIIB2769J
PIIB2768J
