TROUBLE DIAGNOSIS
EC-109
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

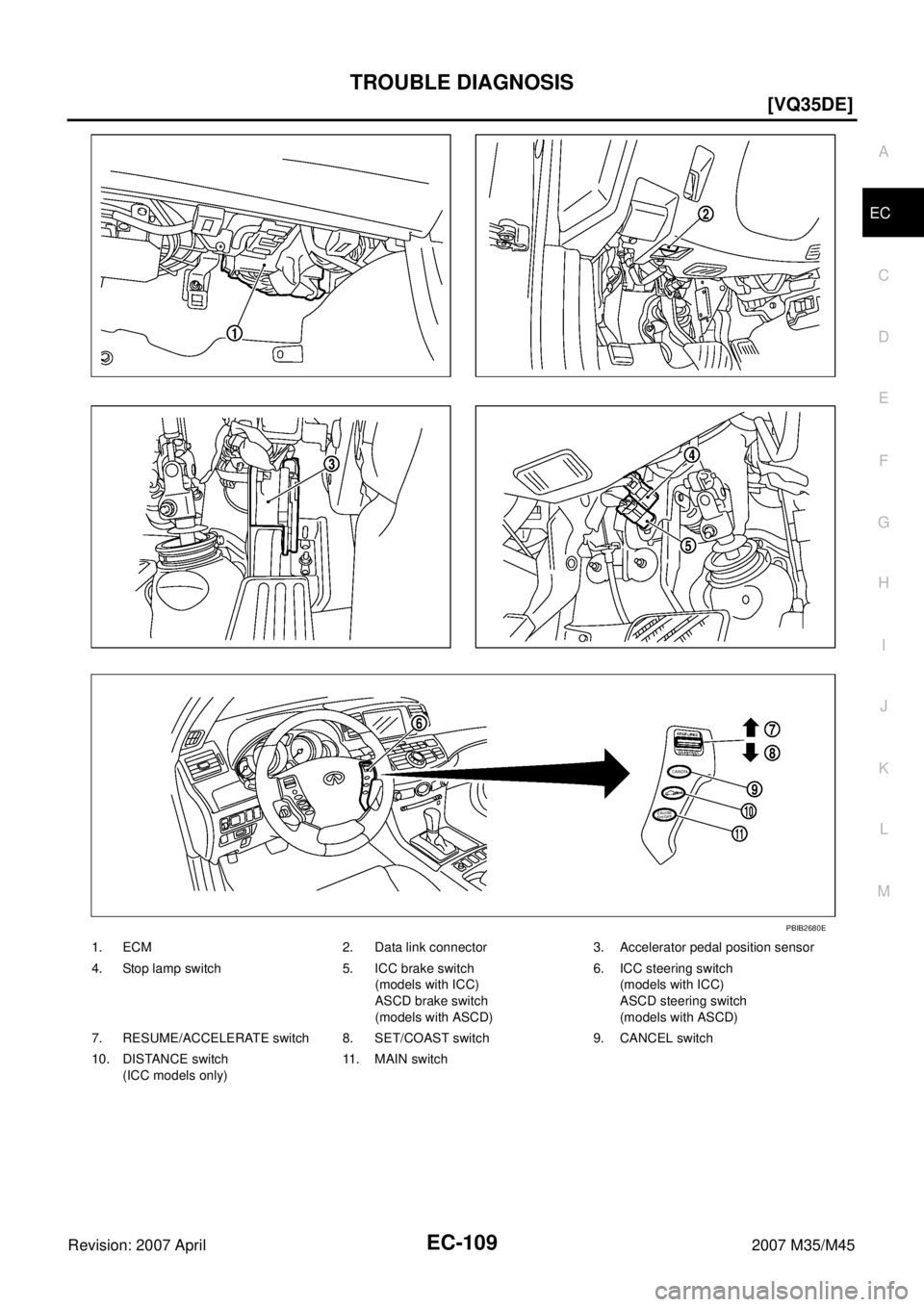

1. ECM 2. Data link connector 3. Accelerator pedal position sensor
4. Stop lamp switch 5. ICC brake switch
(models with ICC)
ASCD brake switch
(models with ASCD)6. ICC steering switch
(models with ICC)
ASCD steering switch
(models with ASCD)
7. RESUME/ACCELERATE switch 8. SET/COAST switch 9. CANCEL switch
10. DISTANCE switch
(ICC models only)11. MAIN switch
PBIB2680E

TROUBLE DIAGNOSIS
EC-121
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
98 RAccelerator pedal position
sensor 2[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released0.20 - 0.55V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed1.85 - 2.40V
99 YICC steering switch
(models with ICC system)[Ignition switch: ON]

ICC steering switch: OFFApproximately 4.3V
[Ignition switch: ON]

MAIN switch: PressedApproximately 0V
[Ignition switch: ON]

CANCEL switch: PressedApproximately 1.3V
[Ignition switch: ON]

RESUME/ACCELERATE switch: PressedApproximately 3.7V
[Ignition switch: ON]

SET/COAST switch: PressedApproximately 3V
[Ignition switch: ON]

DISTANCE switch: PressedApproximately 2.2V
99 YASCD steering switch
(models with ASCD system)[Ignition switch: ON]

ASCD steering switch: OFFApproximately 4V
[Ignition switch: ON]

MAIN switch: PressedApproximately 0V
[Ignition switch: ON]

CANCEL switch: PressedApproximately 1V
[Ignition switch: ON]

RESUME/ACCELERATE switch: PressedApproximately 3V
[Ignition switch: ON]

SET/COAST switch: PressedApproximately 2V
101 V/R Stop lamp switch[Ignition switch: OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
102 G PNP switch[Ignition switch: ON]

Selector lever: P or NApproximately 0V
[Ignition switch: ON]

Selector lever: Except aboveBATTERY VOLTAGE
(11 - 14V)
104 O Throttle control motor relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
106 LGAccelerator pedal position
sensor 1[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released0.4 - 1.1V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed3.7 - 4.8V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

EC-124
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
ItemDIAGNOSTIC TEST MODE
WORK
SUP-
PORTSELF-DIAGNOS-
TIC RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*1FREEZE
FRAME
DATA*2SRT
STATUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor
(PHASE)××××
Mass air flow sensor×××
Engine coolant temperature sen-
sor×××××
Air fuel ratio (A/F) sensor 1×××××
Heated oxygen sensor 2×××××
Wheel sensor××××
Accelerator pedal position sensor×××
Throttle position sensor××××
Fuel tank temperature sensor××××
EVAP control system pressure
sensor×××
Intake air temperature sensor××××
Knock sensor×
Refrigerant pressure sensor××
Closed throttle position switch
(accelerator pedal position sensor
signal)××
Air conditioner switch××
Park/neutral position (PNP) switch×××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Load signal××
Fuel level sensor×××
Battery current sensor×××
ICC steering switch×××
ASCD steering switch×××
ICC brake switch×××
ASCD brake switch×××

EC-128
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
THRTL SEN 1 [V]××
The throttle position sensor signal voltage
is displayed.
THRTL SEN 2 signal is converted by
ECM internally. Thus, they differs from
ECM terminal voltage signal. THRTL SEN 2 [V]×
FUEL T/TMP SE
[°C] or [°F]×

The fuel temperature (determined by the
signal voltage of the fuel tank tempera-
ture sensor) is displayed.
INT/A TEMP SE
[°C] or [°F]××

The intake air temperature (determined
by the signal voltage of the intake air tem-
perature sensor) is indicated.
EVAP SYS PRES
[V]×

The signal voltage of EVAP control sys-
tem pressure sensor is displayed.
FPCM DR VOLT
[V]

The voltage between fuel pump and
FPCM is displayed.
FUEL LEVEL SE
[V]×

The signal voltage of the fuel level sensor
is displayed.
START SIGNAL
[ON/OFF]××

Indicates start signal status [ON/OFF]
computed by the ECM according to the
signals of engine speed and battery volt-
age.

After starting the engine, [OFF] is dis-
played regardless of the starter signal.
CLSD THL POS
[ON/OFF]××

Indicates idle position [ON/OFF] com-
puted by ECM according to the accelera-
tor pedal position sensor signal.
AIR COND SIG
[ON/OFF]××

Indicates [ON/OFF] condition of the air
conditioner switch as determined by the
air conditioner signal.
P/N POSI SW
[ON/OFF]××

Indicates [ON/OFF] condition from the
park/neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF]××

[ON/OFF] condition of the power steering
system (determined by the signal voltage
of the power steering pressure sensor
signal) is indicated.
LOAD SIGNAL
[ON/OFF]××

Indicates [ON/OFF] condition from the
electrical load signal.
ON: Rear window defogger switch is ON
and/or lighting switch is in 2nd position.
OFF: Both rear window defogger switch
and lighting switch are OFF.
IGNITION SW
[ON/OFF]×

Indicates [ON/OFF] condition from igni-
tion switch signal.
HEATER FAN SW
[ON/OFF]×

Indicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF]×

Indicates [ON/OFF] condition from the
stop lamp switch signal.
INJ PULSE-B1
[msec]×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
When the engine is stopped, a certain
computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING
[BTDC]×

Indicates the ignition timing computed by
ECM according to the input signals.
When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE [%]

“Calculated load value” indicates the
value of the current air flow divided by
peak air flow. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks

EC-130
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
TRVL AFTER MIL
[km] or [mile]
Distance traveled while MIL is activated.
A/F S1 HTR (B1)
[%]

Air fuel ratio (A/F) sensor 1 heater control
value computed by ECM according to the
input signals.

The current flow to the heater becomes
larger as the value increases. A/F S1 HTR (B2)
[%]
AC PRESS SEN
[V]

The signal voltage from the refrigerant
pressure sensor is displayed.
VHCL SPEED SE
[km/h] or [mph]

The vehicle speed computed from the
vehicle speed signal sent from combina-
tion meter is displayed.
SET VHCL SPD
[km/h] or [mph]

The preset vehicle speed is displayed.
MAIN SW
[ON/OFF]

Indicates [ON/OFF] condition from MAIN
switch signal.
CANCEL SW
[ON/OFF]

Indicates [ON/OFF] condition from CAN-
CEL switch signal.
RESUME/ACC SW
[ON/OFF]

Indicates [ON/OFF] condition from
RESUME/ACCELERATE switch signal.
SET SW
[ON/OFF]

Indicates [ON/OFF] condition from SET/
COAST switch signal.
BRAKE SW1
[ON/OFF]

Indicates [ON/OFF] condition from ASCD
brake switch signal.
BRAKE SW2
[ON/OFF]

Indicates [ON/OFF] condition of stop
lamp switch signal.
DIST SW
[ON/OFF]

Indicates [ON/OFF] condition from DIS-
TANCE switch signal.
CRUISE LAMP
[ON/OFF]

Indicates [ON/OFF] condition of CRUISE
lamp determined by the ECM according
to the input signals.
SET LAMP
[ON/OFF]

Indicates [ON/OFF] condition of SET
lamp determined by the ECM according
to the input signals.
FAN DUTY [%]

Indicates a command value for cooling
fan. The value is calculated by ECM
based on input signals.
AC EVA TEMP [°C]

Indicates A/C evaporator temperature
sent from “unified meter and A/C amp.”.
AC EVA TARGET
[°C]

Indicates target A/C evaporator tempera-
ture sent from “unified meter and A/C
amp.”.
ALT DUTY [%]

Indicates the duty ratio of the power gen-
eration command value. The ratio is cal-
culated by ECM based on the battery
current sensor signal.
BAT CUR SEN
[mV]

The signal voltage of battery current sen-
sor is displayed. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks

EC-138
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
CONSULT-II Reference Value in Data MonitorNBS004T9
Remarks:

Specification data are reference values.

Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED

Run engine and compare CONSULT-II value with the tachometer indication.Almost the same speed as
the tachometer indication.
MAS A/F SE-B1 See EC-143, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-143, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2See EC-143, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S

Engine: After warming up More than 70°C (158°F)
A/F SEN1 (B1)
A/F SEN1 (B2)

Engine: After warming up Maintaining engine speed at 2,000 rpm Fluctuates around 1.5 V
HO2S2 (B1)
HO2S2 (B2)

Revving engine from idle to 3,000 rpm quickly after the following conditions
are met
–Engine: After warming up
–Keeping engine speed between 3,500 and 4,000 rpm for 1 minute and at idle
for 1 minute under no load0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S2 MNTR (B1)
HO2S2 MNTR (B2)LEAN ←→ RICH
VHCL SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedometer
indication.Almost the same speed as
speedometer indication
BATTERY VOLT

Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1
ACCEL SEN 2*
1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.4 - 1.1V
Accelerator pedal: Fully depressed 3.7 - 4.8V
THRTL SEN 1
THRTL SEN 2*
1

Ignition switch: ON
(Engine stopped)

Selector lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES

Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL

Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG

Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW

Ignition switch: ONSelector lever: P or N ON
Selector lever: Except above OFF
PW/ST SIGNAL

Engine: After warming up, idle
the engineSteering wheel: Not being turned OFF
Steering wheel: Being turned ON
LOAD SIGNAL

Ignition switch: ONRear window defogger switch: ON
and/or
Lighting switch: 2nd positionON
Rear window defogger switch and light-
ing switch: OFFOFF
IGNITION SW

Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW

Engine: After warming up, idle
the engineHeater fan switch: ON ON
Heater fan switch: OFF OFF
BRAKE SW

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON

EC-140
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
*1: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ
from ECM terminals voltage signal.
*2: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SC-5, "
SPECIFIC GRAVITY CHECK" . TRVL AFTER MIL

Ignition switch: ONVehicle has traveled after MIL has turned
ON.0 - 65,535 km
(0 - 40,723 miles)
A/F S1 HTR (B1)
A/F S1 HTR (B2)

Engine: After warming up, idle the engine 0 - 100%
AC PRESS SEN

Engine: Idle

Both A/C switch and blower fan switch: ON (Compressor operates)1.0 - 4.0V
VHCL SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedometer
indication.Almost the same speed as
the speedometer indication
SET VHCL SPD

Engine: Running ASCD: OperatingThe preset vehicle speed is
displayed
MAIN SW

Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW

Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW

Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch:
ReleasedOFF
SET SW

Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1
(ICC/ASCD brake
switch)

Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DIST SW

Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
CRUISE LAMP

Ignition switch: ONMAIN switch: Pressed at the 1st time →
at the 2nd timeON → OFF
SET LAMP

MAIN switch: ON

When vehicle speed: Between 40
km/h (25 MPH) and 144 km/h (89
MPH)ASCD: Operating ON
ASCD: Not operating OFF
FA N DU T Y

Engine: Running 0 - 100%
AC EVA TEMP

Engine: Idle

Both A/C switch and blower fan switch: ON (Compressor operates)
AC EVA TARGET

Engine: Idle

Both A/C switch and blower fan switch: ON (Compressor operates)
ALT DUTY

Engine: Idle 0 - 80%
BAT CUR SEN

Engine speed: Idle

Battery: Fully charged*2

Selector lever: P or N

Air conditioner switch: OFF

No loadApprox. 2,600 - 3,500mV
ALT DUTY SIG

Power generation voltage variable control: Operating ON

Power generation voltage variable control: Not operating OFF MONITOR ITEM CONDITION SPECIFICATION

DTC P0130, P0150 A/F SENSOR 1
EC-235
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Let engine idle for 2 minutes.
4. If 1st trip DTC is detected, go to EC-240, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
CAUTION:
Always drive vehicle at a safe speed.
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” or “A/F SEN1 (B2)” in “DATA MONITOR” mode with CONSULT-II.
3. Check “A/F SEN1 (B1)” or “A/F SEN1 (B2)” indication.
If the indication is constantly approx. 1.5V and does not fluctuates, go to EC-240, "
Diagnostic Procedure" .
If the indication fluctuates around 1.5V, go to next step.
4. Select “A/F SEN1 (B1) P1276” (for DTC P0130) or “A/F SEN1 (B2) P1286” (for DTC P0150) of “A/F
SEN1” in “DTC WORK SUPPORT” mode with CONSULT-II.
5. Touch “START”.
6. When the following conditions are met, “TESTING” will be dis-
played on the CONSULT-II screen.
If “TESTING” is not displayed after 20 seconds, retry from
step 2.
7. Release accelerator pedal fully.
NOTE:
Never apply brake during releasing the accelerator pedal.
SEF174Y
ENG SPEED 1,100 - 3,200 rpm
VHCL SPEED SE More than 64 km/h (40 MPH)
B/FUEL SCHDL 1.0 - 8.0 msec
Shift lever D position
SEF576Z
SEF577Z
