2007 Hyundai Getz Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 23
B200A01S-GAT Adjusting Your Seat Belt
B200A01L-D
You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high onyour body, you could slide under it in case of accident or a sudden stop. This could result of death, seriousinjury or property damage. Both arms should not be under or over the belt. Rather, one should be over and theother under, as shown in the illustration. Never wear the seat belt under the arm nearest the door.
*1) When the ignition key is turned from
"OFF" position to "ON" within 1 minute.
*2) If the vehicle speed exceeds 9km/ h, the seat belt chime also soundsfor approimately 1~2 minutes. If the vehicle speed is below 9km/h,1 minute later the seat belt chime also sounds for approimately 1~2 minutes.
NOTE: If the driver's seat belt is operated in this order "unbuckled

buckled



unbuckled

buckled


unbuck-
led" within 9 seconds after the seatbelt is buckled, the seat belt warninglight and chime will not activate.
The seat belt warning light and chime will activate to the following table.
B265E01TB-EAT
Seat Belt Warning Light and Chime
User (Driver) Condition
Seat Belt WarningLight
Seat Belt Ignition Switch
Unbuckled ON Stay on until buckled up
Buckled ON Come on for 6 seconds
Unbuckled ON * 1
Blink until buckled up
ON Blink until buckled up* 2
Buckled



Unbuckled
B210A01A-AAT To Release the Seat Belt The seat belt is released by pressing the release button in the locking buckle. When it is released, the belt shouldautomatically draw back into the re- tractor. If this does not happen, check the beltto be sure it is not twisted, then try again. B210A01L-D

1- 24 FEATURES OF YOUR HYUNDAI
!WARNING:
o When using the rear seat centre belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in-crease the chance of injury in the event of collision.
o Never unlock the metal tab (a) and
the buckle (b) with the followingexceptions.(1)In case of folding rear seatbacks down.
(2)If transporting an object on the
rear seat may cause damage to the rear seat centre belt.
o Lock the metal tab (a) and the
buckle (b) immediately after fold-ing rear seatbacks up.
B220D02Y-EAT SEAT BELTS - Rear Seat Centre 3-Point System With EmergencyLocking Retractor
1. Before fastening the rear seat centre belt, confirm the metal tab (a) and buckle (b) are latched together.
2. After confirming that (a) and (b) are latched, pull the seat belt out of theretractor and insert the metal tab (c) into the buckle (d). B220D01TB
There will be an audible "click" when thetab locks in the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manu-ally so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let youmove around. If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forwardtoo quickly.
(a)
(b) (c)
(d) B220A02Y

FEATURES OF YOUR HYUNDAI 1- 25
B220D02TB
!
B220C01Y-DAT To Release the Seat Belt
When you want to release the seat belt, press the button in the locking buckle. HTB191
WARNING:
The centre belt latching mechanismis different from those for the rear seat shoulder belts. When fastening the rear seat shoulder belts or therear seat centre belt, make sure they are inserted into the correct buckles to obtain maximum protection fromthe seat belt system and assure proper operation. B230A04A-EAT CHILD RESTRAINT SYSTEM Children riding in the car should sit in the rear seat and must always be prop-erly restrained to minimize the risk of injury in an accident, sudden stop or sudden manoeuvre. According to acci-dent statistics, children are safer when properly restrained in the rear seats than in the front seat. Larger childrenshould use one of the seat belts pro- vided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies,a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits your car andseat belts, and fits your child. Follow all the instructions provided by the manu- facturer when installing the child re-straint system.
o To disconnect the metal tab (a)
from the buckle (b), insert a nar-row-ended tool into the groovelocated on the buckle (b).

1- 26 FEATURES OF YOUR HYUNDAI
o Children who are too large to be in
a child restraint should sit in the rear seat and be restrained with the available lap/shoulder belts.Never allow children to ride in the front passenger seat.
o Always make sure that the shoul-
der belt portion of the outboardlap/shoulder belt is positioned midway over the shoulder, neveracross the neck or behind the back. Moving the child closer to the centre of the vehicle may helpprovide a good shoulder belt fit. The lap belt portion of the lap/ shoulder belt or the centre seat lapbelt must always be positioned as low as possible on the child's hips and as snug as possible.
o If the seat belt will not properly fit the child, Hyundai recommendsthe use of an approved boosterseat in the rear seat in order to raise the child's seating height so that the seat belt will properly fitthe child.
o Never allow a child to stand up or
kneel on the seat. o Never use an infant carrier or child
safety seat that "hooks" over a seatback; it may not provide ad- equate security in an accident.
o Never allow a child to be held in a person's arms while they are in amoving vehicle, as this could re-sult in serious injury to the child in the event of an accident or a sudden stop. Holding a child in amoving vehicle does not provide the child with any means of pro- tection during an accident, even ifthe person holding the child is wearing a seat belt.
o If the child restraint seat is not anchored properly, the risk of achild being seriously injured or killed in a collision greatly in-creases.
WARNING:
o This vehicle is equipped with air bags and you should never place a child or infant in the vehicle without the use of a Hyundai ap-proved child restraint system. Whenever possible always posi- tion the child restraint system inthe rear seat position. A Hyundai approved rear facing child seat may be positioned inthe front passenger seat when the air bag is deactivated. (Please read the appropriate section of thisOwners Handbook for a full expla- nation of its use).
o Since a safety belt or child re- straint system can become veryhot if it is left in a closed vehicle, be sure to check the seat coverand buckles before placing a child there.
o When the child restraint system is not in use, store it in the boot orfasten it with a safety belt so that it will not be thrown forward in thecase of a sudden stop or an acci- dent.!

FEATURES OF YOUR HYUNDAI 1- 27
If you need to tighten the belt, pull more webbing toward the retractor. When you unbuckle the seat belt and allow it toretract, the retractor will automatically revert back to its normal seated pas- senger emergency locking usage con-dition. NOTE:
o Before installing the child restraint
system, read the instructions sup- plied by the child restraint system manufacturer.
o If the seat belt does not operate as described, have the systemchecked immediately by yourHyundai authorised repairer.
To install a child restraint system in the outboard rear seats, extend the shoul- der/lap belt from its retractor. Install thechild restraint system, buckle the seat belt and allow the seat belt to take up any slack. Make sure that the lap por-tion of the belt is tight around the child restraint system and the shoulder por- tion of the belt is positioned so that itcannot interfere with the child's head or neck. After installation of the child re- straint system, try to move it in alldirections to be sure the child restraint system is securely installed.B230G01A-GAT Installation on Outboard Rear Seats
B230G01TB

1- 28 FEATURES OF YOUR HYUNDAI
U : Suitable for "universal" category restraints approved for use in this mass group UF :Suitable for forward-facing "universal" category restraints approved for the use in this mass group
L1 :Suitable for Bebe comfort ELIOS (E2 037014) approved for the use in this mass group
L2 :Suitable for PegPerego primo Viaggio (E13 030010) approved for the use in this mass group
L3 :Suitable for Bebe comfort iSEOS (E2 039014) approved for the use in this mass group
L4 :Suitable for GRACO Autobaby (E11 03.44.160) approved for the use in this mass group
L5 :Suitable for Romer Lord Plus (E1 03301136) approved for the use in this mass group
L6 :Suitable for Euro Kids Star (E1 03301127/E1 03301129) approved for the use in this mass group
L7 :Suitable for BeSafe iZi COMFORT (E4 03443206) approved for the use in this mass group
L8 :Suitable for MAXI-COSI Priori XP (E1 03301153) approved for the use in this mass group
L9 :Suitable for Bebe comfort HiPSOS(E2 031011) approved for the use in this mass group
L10 : Suitable for ROMER ISOFIX GR1 (E1 R44-03301133) approved for use in this mass group
X : Seat position not suitable for children in this mass group
B230H03TB-GAT Child Seat Restraint Suitability For Seat Position Using the Seat Belt Use child safety seats that have been officially approved and are appropriate for your children. When using the child safety se
ats,
refer to the following table.
Rear Center
Age GroupSeating Position
UX
L1, L2, L3, L4 UX
Rear Outboard
Front Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~ 4 years)II & III : 15kg to 36kg(4 ~ 12 years) L1, L2, L3, L4
L3, L5, L6, L7, L8
U, L10X
L6, L9 U F X

FEATURES OF YOUR HYUNDAI 1- 29
B230E01TB
Back panel
Front of Vehicle
Attaching clip
Covering shelf
2. Remove the load space cover.
3. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat.
B230E02FC-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System Three child restraint hook holders are located on the vertical back panel. (behind rear bumper bar)
1. Route the child restraint seat strap
over the seatback. For vehicles with adjustable head- rests, route the tether strap under the headrest and between the head-rest posts, otherwise route the tether strap over the top of the seatback.
B230B01TB
B230B02A-GAT Using a Child Restraint System with "Tether Anchorage" Sys-tem For small children and babies, the use of a child seat or infant seat is stronglyrecommended. This child seat or infant seat should be of appropriate size for the child and should be installed inaccordance with the manufacturer's in- structions. It is further recommended that the seat be placed in the vehicle'srear seat since this can make an impor- tant contribution to safety. Your vehicle is provided with three child restrainthook holders for installing the child seat or infant seat. Spacer (10mm), Child Restraint Hook Holder
Holder Bolt (5/16"-30 mm) Washer, Conical Spring Holder, Child Restraint Hook
Retainer Washer

1- 30 FEATURES OF YOUR HYUNDAI
On each side of the rear seat, between the cushion and backrest, are located a pair of ISOFIX anchorage points to-gether with a top tether mounting on the luggage compartment. During the in- stalling, the seat has to be engaged atthe anchorage-points in a way you can hear it clicking (check by pulling!) and has to be fixed with the Top Tether-belton the belonging point in the luggage- compartment. The installing and the use of a child-seat has to be doneaccording to the installing-manual, which is added to the ISOFIX-seat. NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle- specific approval according to ECE-R44. Before using the ISOFIX-child- seat, which was bought for another car, ask your Hyundai-dealer whetherthis seat-type is approved and rec- ommended for your Hyundai.
An ISOFIX-seat can only be installed if it has vehicle-specific approval in ac-cordance with the requirements of ECE- R44. For your Hyundai, the Hyundai ISOFIX GR1 / Hyundai Duo / RömerISOFIX GR1 and the Römer Duo ISOFIX / Britax Duo ISOFIX is approved ac- cording to the requirement ECE-R44.This seat has been tested extensively by Hyundai and is recommended for your Hyundai.
B230C01TB

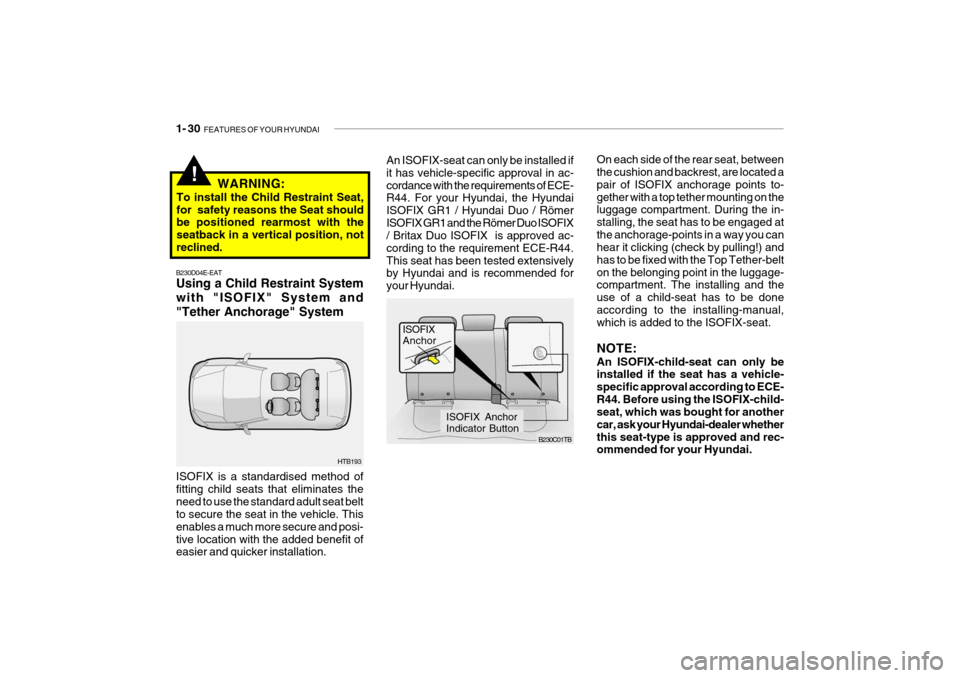

ISOFIX Anchor
ISOFIX Anchor Indicator Button
B230D04E-EAT Using a Child Restraint System with "ISOFIX" System and"Tether Anchorage" System ISOFIX is a standardised method of fitting child seats that eliminates theneed to use the standard adult seat belt to secure the seat in the vehicle. This enables a much more secure and posi-tive location with the added benefit of easier and quicker installation.
HTB193
!WARNING:
To install the Child Restraint Seat, for safety reasons the Seat should be positioned rearmost with the seatback in a vertical position, notreclined.
