2007 Hyundai Getz Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 31

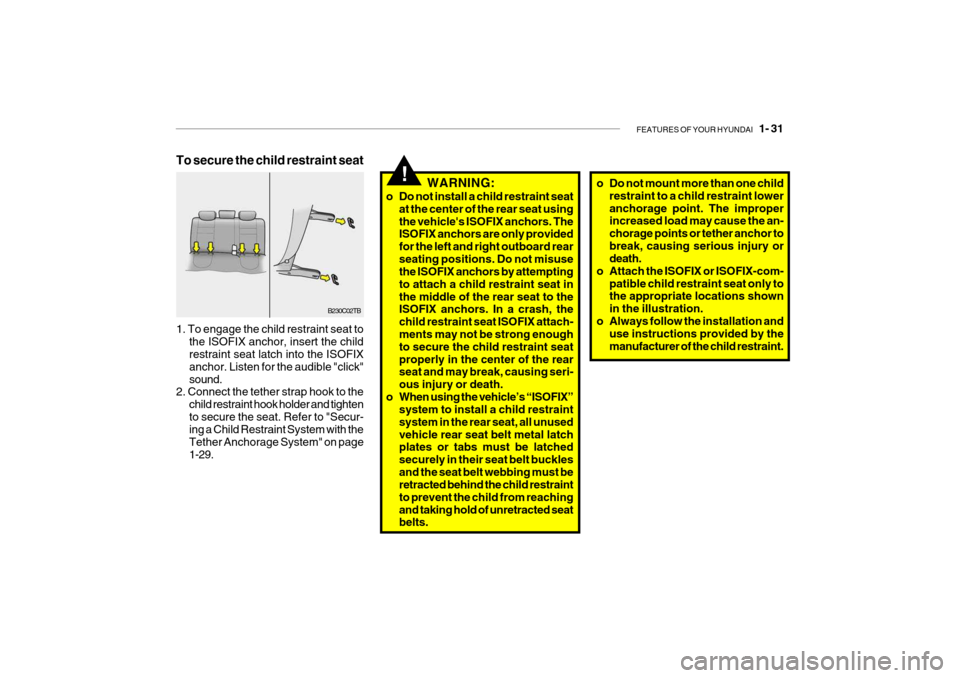

!WARNING:
o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only provided for the left and right outboard rearseating positions. Do not misuse the ISOFIX anchors by attempting to attach a child restraint seat inthe middle of the rear seat to the ISOFIX anchors. In a crash, the child restraint seat ISOFIX attach-ments may not be strong enough to secure the child restraint seat properly in the center of the rear seat and may break, causing seri- ous injury or death.
o When using the vehicle’s “ISOFIX” system to install a child restraintsystem in the rear seat, all unusedvehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt bucklesand the seat belt webbing must be retracted behind the child restraint to prevent the child from reachingand taking hold of unretracted seat belts.
B230C02TB
1. To engage the child restraint seat to the ISOFIX anchor, insert the child restraint seat latch into the ISOFIX anchor. Listen for the audible "click"sound.
2. Connect the tether strap hook to the
child restraint hook holder and tightento secure the seat. Refer to "Secur- ing a Child Restraint System with the Tether Anchorage System" on page1-29.
To secure the child restraint seat
o Do not mount more than one child
restraint to a child restraint lower anchorage point. The improper increased load may cause the an- chorage points or tether anchor tobreak, causing serious injury or death.
o Attach the ISOFIX or ISOFIX-com-
patible child restraint seat only tothe appropriate locations shown in the illustration.
o Always follow the installation and use instructions provided by themanufacturer of the child restraint.

1- 32 FEATURES OF YOUR HYUNDAI
!WARNING:
To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to the correct position.
NOTE:
o Both the driver's and front passenger's pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated with the airbags. The pre-tensioners will be activated under these conditions even if the seat belts are not being worn at thetime of the collision.
o When the pre-tensioner seat belts
are activated, a loud noise may beheard and fine dust, which may appear to be smoke, may be vis- ible in the passenger compart-ment. These are normal operating conditions and are not hazard- ous.
B180B01A-EAT Pre-Tensioner Seat Belt
HXG229-R
Your Hyundai vehicle is equipped with driver's and front passenger's pre- tensioner seat belts. The purpose of thepre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal colli-sions. The pre-tensioner seat belts can be activated with the airbags.The pre-tensioner seat belt operates in the same way as an Emergency Lock- ing Retractor (ELR) type of seat belt.When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lockinto position. However, in certain frontal collisions, the pre-tensioner will acti- vate and pull the seat belt into tightercontact against the occupant's body. The seat belt pre-tensioner system consists mainly of the following compo- nents. Their locations are shown in the illustration.
1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module HTB198-D
Driver's airbag1
2
3Passenger's airbag

FEATURES OF YOUR HYUNDAI 1- 33
o Do not strike the pre-tensioner seat
belt assemblies.
o Do not attempt to service or re- pairer the pre-tensioner seat belt system in any manner.
o Improper handling of the pre- tensioner seat belt assemblies, andfailure to heed the warnings to notstrike, modify, inspect, replace, service or repairer the pre- tensioner seat belt assemblies maylead to improper operation or in- advertent activation and serious injury.
o Always wear the seat belts when driving or travelling in a motorvehicle.
!
o Although it is harmless, the finedust may cause skin irritation and should not be breathed for pro-longed periods. Wash your hands and face thoroughly after an acci- dent in which the pre-tensionerseat belts were activated. or if it illuminates whilst the ve- hicle is being driven, please have a Hyundai authorised repairer in-spect the pre-tensioner seat belt or SRS airbag system as soon as possible.
CAUTION:
o Because the sensor that activates the SRS airbag is connected with the pre-tensioner seat belt, the SRS airbag warning light on theinstrument panel will blink for approximately 6 seconds after the ignition key has been turned to the "ON" position and then it should turn off.
o If the pre-tensioner seat belt is not working properly, this warninglight will illuminate even if theSRS system is not functioning. If the SRS airbag warning light does not illuminate when the igni-tion key is turned to "ON", or if it remains illuminated after blinking for approximately 6 seconds, WARNING:
o Pre-tensioners are designed to op- erate only one time. After activa- tion, pre-tensioner seat belts must be replaced. All seat belts, of any type, should always be replaced after they have been worn during acollision.
o The pre-tensioner seat belt assem-
bly mechanisms become hot dur-ing activation. Do not touch the pre-tensioner seat belt assemblies for several minutes after they havebeen activated.
o Do not attempt to inspect or re-
place the pre-tensioner seat beltsyourself. This must be done by a Hyundai authorised repairer.
!

1- 34 FEATURES OF YOUR HYUNDAI
HTB203
Rear impact
Side Impact Rollover

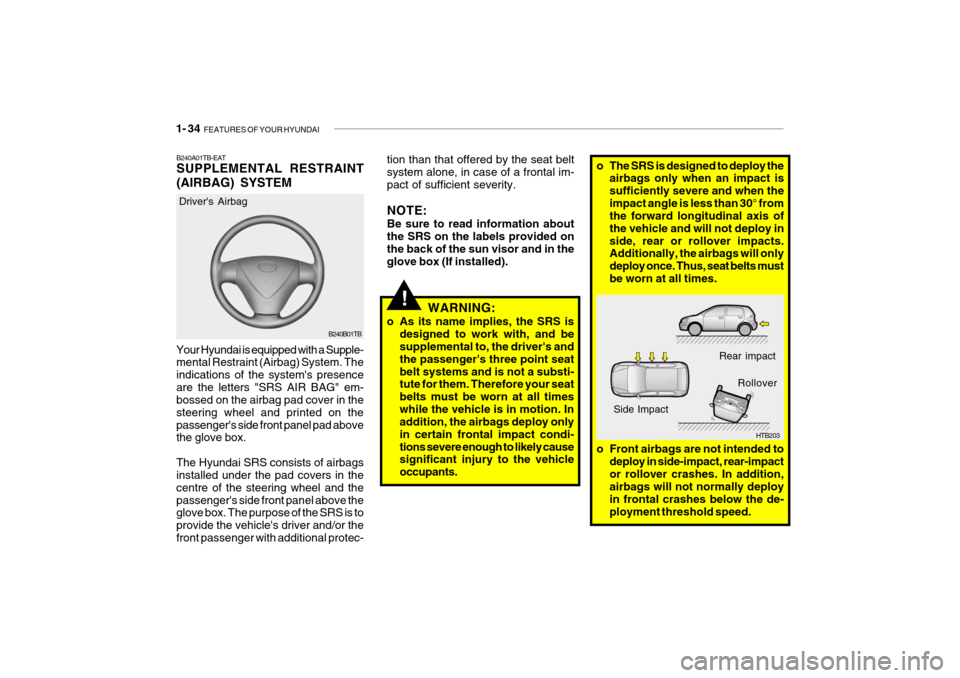

o The SRS is designed to deploy the
airbags only when an impact is sufficiently severe and when theimpact angle is less than 30° from the forward longitudinal axis of the vehicle and will not deploy inside, rear or rollover impacts. Additionally, the airbags will only deploy once. Thus, seat belts mustbe worn at all times.
o Front airbags are not intended to deploy in side-impact, rear-impactor rollover crashes. In addition, airbags will not normally deploy in frontal crashes below the de-ployment threshold speed.
!
B240B01TB
Driver's Airbag
Your Hyundai is equipped with a Supple- mental Restraint (Airbag) System. The indications of the system's presenceare the letters "SRS AIR BAG" em- bossed on the airbag pad cover in the steering wheel and printed on thepassenger's side front panel pad above the glove box. The Hyundai SRS consists of airbags installed under the pad covers in the centre of the steering wheel and thepassenger's side front panel above the glove box. The purpose of the SRS is to provide the vehicle's driver and/or thefront passenger with additional protec- B240A01TB-EAT SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM
tion than that offered by the seat belt system alone, in case of a frontal im- pact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided onthe back of the sun visor and in the glove box (If installed).
WARNING:
o As its name implies, the SRS is designed to work with, and besupplemental to, the driver's and the passenger's three point seatbelt systems and is not a substi- tute for them. Therefore your seat belts must be worn at all timeswhile the vehicle is in motion. In addition, the airbags deploy only in certain frontal impact condi-tions severe enough to likely cause significant injury to the vehicle occupants.

FEATURES OF YOUR HYUNDAI 1- 35
The SRS service reminder indicator (SRI) on the instrument panel will blinkfor approimately 6 seconds after the ignition key is turned to the "ON" posi- tion or after the engine is started, afterwhich the SRI should go out.
B240B02L-D
o For maximum safety protection in
all types of crashes, all occupants including the driver should always wear their seat belts whether ornot an airbag is also provided at their seating position to minimize the risk of severe injury or death inthe event of a crash. Do not sit or lean unnecessarily close to the airbag while the vehicle is in mo-tion.
o The SRS airbag system must de-
ploy very rapidly to provide pro-tection in a crash. If an occupant is out of position because of not wearing a seat belt, the airbag mayforcefully contact the occupant causing serious or fatal injuries.
The SRS consists of the following com- ponents:
- Driver's Airbag Module
- Passenger's Airbag Module
- SRS Service Reminder Indicator(SRI)
- SRS Control Module (SRSCM) The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontalimpact is severe enough to require airbag deployment.
B240B03A-DAT SRS Components and Functions
B240B01L-D

1- 36 FEATURES OF YOUR HYUNDAI
B240B05L-D
Passenger's Airbag
!
CAUTION:
Do not install or place any accesso- ries (drink holder, cassette holder, sticker, etc) on the front passenger's panel above the glove box in a ve-hicle with passenger's side air bag. Such objects may become danger- ous projectiles and cause injury ifthe passenger's side air bag inflates. After complete inflation, the airbag im- mediately starts deflating, enabling the driver to maintain forward visibility.
B240B03L-D
The airbag modules are located both in the centre of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects aconsiderable impact to the front of the vehicle, it will automatically deploy the airbags.
Passenger's Airbag
HTB204-D
Upon deployment, tear seams molded directly into the pad covers will sepa- rate under pressure from the expansion of the airbags. Further opening of thecovers then allows full inflation of the airbags. A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forward mo-tion, thus reducing the risk of head or chest injury.

FEATURES OF YOUR HYUNDAI 1- 37
B990A01TB-EAT Passenger's Front Airbag Deac- tivation/Reactivation System
B990A01TB-D
WARNING:
When the Passenger Front Air Bag system is not deactivated – Do not install a child restraint system in the front passenger seat position. Theinfant or child could be severely injured or killed by the air bag de- ploying in case of an accident.
!!
! CAUTION:
When installing a container of liquid air freshener inside a vehicle, do notplace it near the instrument cluster not on the instrument panel pad surface. If there is any leakage fromthe air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damagethese parts. If the liquid from the air freshener does leak onto these ar- eas, wash them with water immedi-ately.
WARNING:
o When the SRS is activated, there may be a loud noise and fine dustwill be released throughout thevehicle. These conditions are nor- mal and are not hazardous. How- ever, the fine dust generated dur-ing airbag deployment may cause skin irritation. Be sure to wash your hands and face thoroughlywith lukewarm water and a mild soap after an accident in which the airbags were deployed. o The SRS can function only when
the ignition key is in the "ON"position. If the SRS SRI does not come on, or continuously remains on, after flashing for approimately6 seconds when the ignition key is turned to the "ON" position, or after the engine is started, or comeson while driving, the SRS is not working properly. If this occurs, have your vehicle immediatelyinspected by your Hyundai dealer.
o Before you replace a fuse or dis-
connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignitionkey. Never remove or replace the air bag related fuse(s) when the ignition key is in the "ON" posi-tion. Failure to heed this warning will cause the SRS SRI to illumi- nate.

1- 38 FEATURES OF YOUR HYUNDAI
!WARNING:
o Should at any time a fault develop in the passenger air bag system whilst the front passenger air bag is deactivated, the passenger front air bag OFF indicator warning lightwill immediately go out and the SRS service reminder warning light will be displayed.
o Should this condition happen the rear facing child seat must be re-moved as soon as possible fromthe front passenger seat and the vehicle should taken to the near- est Hyundai Authorised Repairerto have the SRS air bag system checked out.
The passenger front air bag deactiva-tion system is intended to reduce un- necessary repair costs for the replace-ment of the passenger air bag system as a result of collision damage when the passengers seat is unoccupied andalso to facilitate for the fitting of a rear facing child seat in the front passenger seat position.
To Deactivate Or Reactvate the Passengers Front Air Bag. To deactivate the passengers front air bag, insert the ignition key into the ON/ OFF switch located on the left side ofthe crash pad and turn it to the "OFF" position. The passengers front air bag OFF indicator light located within theinstrument cluster will illuminate and stay on until the passenger front air bag is reactivated. To reactivate the passengers front airbag, insert the ignition key into the ON/OFF switch located on the left sideof the crash pad and turn it to the "ON" position. The passenger’s front air bag OFF indicator light located within theinstrument cluster will not now be illumi- nated.
!
CAUTION:
When a rear facing seat is fitted to the passenger front seat position the following must be adhered – the
passenger's front air bag must be deactivated, the passenger seat mustbe located in its rear most position and only a Hyundai approved rear facing child seat must be fitted.
