2007 Hyundai Getz Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 39
!
B990B01TG-EAT Side Impact Airbag Your Hyundai is equipped with a side impact airbag in each front seat. The purpose of the airbag is to provide the vehicle's driver and/or the front passen-ger with additional protection than that offered by the seat belt alone. The side impact airbags are designed to deployonly during certain side impact colli- sions, depending on the crash severity, angle, speed and point of impact. Theair bags are not designed to deploy in all side impact situations.
B990B02Y-D
WARNING:
o When a fault develops in the Passenger's Front Air bag Deacti- vation/ Reactivation system the SRS Control Module puts the sys- tem into its 'safe' mode which willautomatically reactivate the pas- sengers front air bag system which is why the passenger's front airbag OFF indicator goes out, the fault in the system is then indi- cated by the SRS service reminderlight being displayed.
o SHOULD A COLLISION OCCUR
THE PASSENGER’S FRONT AIRBAG COULD THEN INFLATE, EVEN IF THE DEACTIVATION SWITCH IS SET TO THE 'OFF' POSITION.
! CAUTION:
If the SRS service reminder warning light does not illuminate when theignition key is turned on, or if it illuminates whist the vehicle is be- ing driven, then the vehicle shouldbe inspected immediately by a Hyundai Authorised Repairer to have the SRS air bag system checked out.
!WARNING:
It is the driver's responsibility for the correct usage of the passengers front
air bag switch. Deactivate the passenger's front air bag only whenthe ignition is switched off, or a malfunction may occur in the SRS Control Module. As soon as deacti-vation is no longer needed, reacti- vate the passenger's front airbag.

1- 40 FEATURES OF YOUR HYUNDAI
B240C03Y-EAT SRS Care The SRS is virtually maintenance-free and there are no parts you can safely service by yourself. The entire SRSsystem must be inspected by an au- thorized Hyundai dealer in 10 years after the date that the vehicle wasmanufactured. Any work on the SRS system, such as removing, installing, repairering, or anywork on the steering wheel must be performed by a qualified Hyundai tech- nician. Improper handling of the SRSsystem may result in serious personal injury.
The airbags deploy only in certain side impact conditions severeenough to cause significant injury to the vehicle occupants.
o For best protection from the side
airbag system and to avoid beinginjured is by the deploying side impact airbag, both front seat oc-cupants should sit in an upright position with the seat belt prop- erly fastened. The driver's handsshould be placed on the steering wheel at the 9:00 and 3:00 o'clock positions. The passenger's armsand hands should be placed in their laps.
o Do not use any accessory seat covers.
o Use of seat covers could reduce or
prevent the effectiveness of the system.
o Do not install any accessories on
the side or near the side impactairbag.
o Do not use excessive force on the
side of the seat.
o Do not place any objects over the airbag or between the airbag andyourself.
!WARNING:
o The side impact airbag is supple- mental to the driver's and the passenger's three point seat belt systems and is not a substitute for them. Therefore your seat beltsmust be worn at all times whilst the vehicle is in motion.
Side airbag sensor
Important Safety Notes on the Side Impact Airbag system Following is a number of safety points concerning this system which should always be observed to ensure risk of injury is reduced in an accident. HTB072-D
o Do not place any objects (an um-
brella, bag, etc.) between the front door and the front seat. Such ob- jects may become dangerous pro-jectiles and cause injury if the supplemental side impact air bag inflates.
o To prevent unexpected deploy- ment of the side air impact bagthat may result in personal injury,avoid impact to the side airbag sensor when the ignition key is on.

FEATURES OF YOUR HYUNDAI 1- 41
The infant or child could be se- verely injured by an airbag de- ployment in case of an accident.
o Modification to SRS components or wiring, including the additionof any kind of badges to the padcovers or modifications to the body structure, can adversely affect SRS performance and lead to possibleinjury.
o For cleaning the airbag pad cov-
ers, use only a soft, dry cloth orone which has been moistened with plain water. Solvents or clean- ers could adversely affect theairbag covers and proper deploy- ment of the system.
o No objects should be placed over
or near the airbag modules on thesteering wheel, instrument panel, and the front passenger's panelabove the glove box, because any such object could cause harm if the vehicle is in a crash severeenough to cause the airbags to inflate.
o If the airbags inflate, they must be
replaced by a Hyundai authorisedrepairer. o Do not tamper with or disconnect
SRS wiring, or other components of the SRS system. Doing so couldresult in injury, due to accidental firing of the airbags or by render- ing the SRS inoperative.
o If components of the airbag sys- tem must be discarded, or if thevehicle must be scrapped, certainsafety precautions must be ob- served. Your Hyundai authorised repairer knows these precautionsand can give you the necessary information. Failure to follow these precautions and procedures couldincrease the risk of personal in- jury.
o If you sell your vehicle, make cer- tain that this manual is transferredto the new owner together with the vehicle.
o If your car was flooded and has soaked carpeting or water onflooring, you shouldn't try to startengine; have the car towed to Hyundai authorised repairer.
!WARNING:
o Extreme Hazard! Do not use a rear- ward facing restraint on a seat protected by an airbag in front of it! If you must use a rear facing childseat on the front seat, first deacti- vate the air bag system and ensure that the passenger's front air bag'off' indicator light in the instru- ment cluster is displayed.
o Do not install a child restraint sys- tem in the front passenger seatposition. A child restraint system must
never be placed in the front seat.
B240C01HP

1- 42 FEATURES OF YOUR HYUNDAI

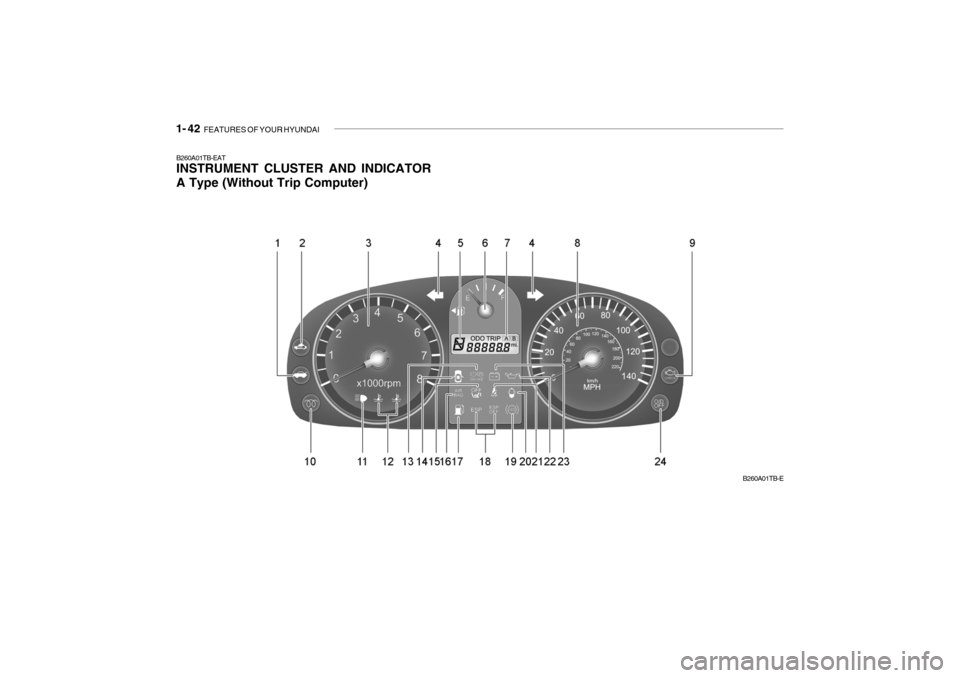

B260A01TB-EAT INSTRUMENT CLUSTER AND INDICATOR A Type (Without Trip Computer)
B260A01TB-E

FEATURES OF YOUR HYUNDAI 1- 43
1. Tail Gate Open Warning Light
2. Immobiliser Warning Indicator Light
3. Tachometer
4. Turn Signal Indicator Light
5. Automatic Transaxle Position Indicator Light
(Not all models)
6. Fuel Gauge
7. Odometer/Trip Odometer
8. Speedometer
9. Malfunction Indicator Light (MIL)
10. Diesel Pre-heat Indicator Light (Diesel only)
11. High Beam Indicator Light
12. Engine Coolant Temperature Indicator Light
13. Parking Brake/Brake Fluid Level Warning Light 14. Door Open (Ajar) Warning Light
15. Passenger' s Front Airbag OFF Indicator Light
(Not all models)
16. SRS (Airbag) Warning Light (Not all models)
17. Low Fuel Warning Light
18. Electronic Stability Program (ESP) Indicator Light (Not all models)
19. ABS Warning Light
20. Fuel Filter Warning Light (Diesel only)
21. Seat Belt Warning Light
22. Oil Pressure Warning Light
23. Charging System Warning Light
24. Overdrive off Indicator Light (Auto T/A only)

1- 44 FEATURES OF YOUR HYUNDAI

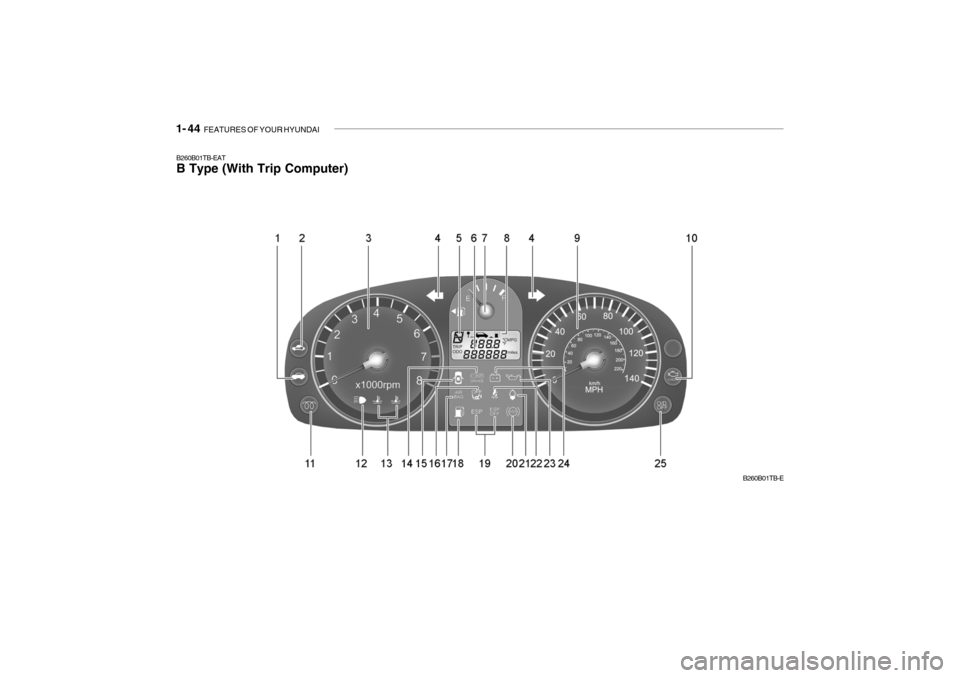

B260B01TB-EAT B Type (With Trip Computer)
B260B01TB-E

FEATURES OF YOUR HYUNDAI 1- 45
1. Hatch back door Open Warning Light
2. Immobiliser Warning Indicator Light
3. Tachometer
4. Turn Signal Indicator Light
5. Automatic Transaxle Position Indicator Light
(Not all models)
6. Odometer/Trip Odometer
7. Fuel Gauge
8. Trip Computer (Not all models)
9. Speedometer
10. Malfunction Indicator Light (MIL)
11. Diesel Pre-heat Indicator Light (Diesel only)
12. High Beam Indicator Light
13. Engine Coolant Temperature Indicator Light 14. Parking Brake/Brake Fluid Level Warning Light
15. Door Open (Ajar) Warning Light
16. Passenger' s Front Airbag OFF Indicator Light
(Not all models)
17. SRS (Airbag) Warning Light (Not all models)
18. Low Fuel Warning Light
19. Electronic Stability Program (ESP) Indicator Light (Not all models)
20. ABS Warning Light
21. Fuel Filter Warning Light (Diesel only)
22. Seat Belt Warning Light
23. Oil Pressure Warning Light
24. Charging System Warning Light
25. Overdrive Off Indcator Light (Auto T/A only)

1- 46 FEATURES OF YOUR HYUNDAI
SB210C1-E
SRS (Airbag) SERVICE REMINDER INDICATOR
The SRS service reminder indicator (SRI) comes on and flashes for approimately 6 seconds after the igni-tion key is turned to the "ON" position or after the engine is started, after which it will go out. This light also comes on when the SRS is not working properly.If the SRI does not come on, or continu- ously remains on after flashing for about 6 seconds when you turned the ignitionkey to the "ON" position or started the engine, or if it comes on while driving, have the SRS inspected by a Hyundaiauthorised repairer.B230T02NF-EAT PASSENGER'S FRONT AIRBAG OFF INDICA-TOR LIGHT
The passenger's front airbag OFF indi- cator illuminates for about 4 seconds after the ignition key is turned to the"ON" position or after the engine is started, and then it will go off in 3 seconds.The passenger's front airbag OFF indi- cator also comes on when the passenger's front airbag ON/OFF switchis set to "OFF" position and turns off when the passenger's front airbag ON/ OFF switch is set to "ON" position.
CAUTION:
If there is a malfunction of the passenger's front airbag ON/OFF switch, the passenger's front airbag OFF indicator will not illuminateand the passenger's front airbag will inflate in frontal impact crashes even if the passenger's front airbagON/OFF switch is set to "OFF" po- sition. If the passenger's front airbag OFFindicator will not illuminate when the passenger's front airbag ON/ OFF switch is set to "OFF" posi- tion, have a Hyundai authorised repairer inspect the passenger'sfront airbag ON/OFF switch and the SRS airbag system as soon as pos- sible.!
