2007 HONDA RIDGELINE Owners Manual

Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the back window.
Press the button, Air f lows
f rom the def roster vents at the base
of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C. Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
The system automatically
turns on the A/C and switches to
recirculation mode. Air f lows f rom
the center, side, and rear vents in the
dashboard. Pressing the or
A/C button cancels MAX A/C.
When you select , the system
automatically switches to f resh air
mode and turns on the A/C. When you select , the system
automatically switches to f resh air
mode. 1.
2.
3.
4.
On RTS, RTL, and Canadian EXL
models
On RT, RTX, and Canadian LX models
On RT, RTX, and Canadian LX models
Vents, Heating, and A/C
MAX A/C Button
Ventilation
Features
125

The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system. Air
conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page ). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The display shows A/C
ON on when a f an speed is
selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed. you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
To cool the interior with MAX A/C:
Select .
When you select , the system
automatically switches to the fresh
air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Set the f an to the desired speed.
Select MAX A/C mode.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool.
1.
2.
3.
1.
2.
3.
1.
2.
3.
4.
5. 72
If the interior is very warm,
On RT, RTX, and Canadian LX modelsUsing the Heater Using the A /C
Vents, Heating, and A/C
126

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).To remove f og f rom the inside of the
windows:
Turn the fan on.
Press the A/C button.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
When you switch to another mode
f rom , the A/C stays on.
Press the A/C button to turn it of f .Set the f an to the desired speed or
high f or f aster def rosting.
Select . When you select
, the system automatically
switches to f resh air mode and
turns on the A/C. The A/C
indicator will not be displayed if it
was off to start with.
Adjust the temperature so the
airflow feels warm.
To increase airf low to the
windshield, close the side vents. Your vehicle has heating wires at the
bottom of the windshield to help
heat the wiper blades and the
windshield. If the outside
temperature is near f reezing, the
heater turns on automatically when
you turn the ignition switch to the
ON (II) position. The heater turns
of f automatically when the outside
temperature is above f reezing.
This f unction helps to increase wiper
perf ormance when the wiper arms
sit in the parked position in snowy or
icy conditions.
1.
2.
3.
4.
1.
2.
3.
4.
Dehumidif y the Interior
T o Def og and Def rost A utomatic Heated Wiper Zone
Vents, Heating, and A/C
Features
127

µ
Select
. The system
au tomatically switches to fresh air
mode and turns on the A/C. The
A/C indicator does not come on if
it was off to start with.
Select .
Set the fan and temperature
controls to maximum level.
To clear the windows faster, you can
close the dashboard corner vents by
rotating the wheel next to
(passenger’s side) or below it
(driver’s side). This will send more
warm air to the windshield defroster
vents. Once the windshield is clear,
select fresh air mode to avoid
fogging the windows. The
system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your preference.
When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at full
cooling or heating only. It does not
regulate the interior temperature.
In cold weather, the fan will not
come on automatically until the
heater starts to develop warm air.
When
the indicator in the DUAL button is
on, the driver’s side and passenger’s
side temperature can be controlled
independently (see page ).
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. Set the desired temperature by
turning the temperature control
dial. You will see AUTO in the
system’s display. Press the AUTO button.
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
1.
2.
3.
130Dual Temperature Control
On RTS, RTL, and Canadian EXL
models
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows Using A utomatic Climate Control
128

µ
µ Turning the f an speed control dial all
the way to the left shuts the system
off.You can adjust the direction of the
air coming from the rear vents in the
back of the center console by
moving the tab in the center of each
vent up-and-down and side-to-side.
You can also adjust the amount of
airf low by turning the dial between
the vents.
Making any manual selection causes
thewordAUTOinthedisplaytogo
out. You can manually select various
f unctions of the climate control
system when it is in f ull automatic
mode. All other f eatures remain
automatically controlled.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times. Keep the system of f f or short
periods only.
If youpressOFF,theclimatecontrol
system shuts of f .
On RTS, RTL, and Canadian EXL
models
On RTS, RTL, and Canadian EXLmodels
On RT, RTX, and Canadian LX models
Vents, Heating, and A/C
Semi-automatic Operation
T o T urn Everything Of f Rear Ventilation
Features
129
DIAL
TAB

The driver’s side and passenger’s
side can be controlled independently
by adjusting these dials when the
green indicator in the DUAL button
is on. Your vehicle has two temperature
control dials, one f or the driver, and
one f or the f ront passenger.
Push AUTO or to turn on the
system. The selected temperatures
appear in the display. When the
indicator in the DUAL button is of f ,
you can adjust both sides to the
same temperature by adjusting the
driver’s side temperature control dial.
On RTS, RTL, and Canadian EXLmodels
Dual Temperature Control
T emperat ure Cont rol Dials

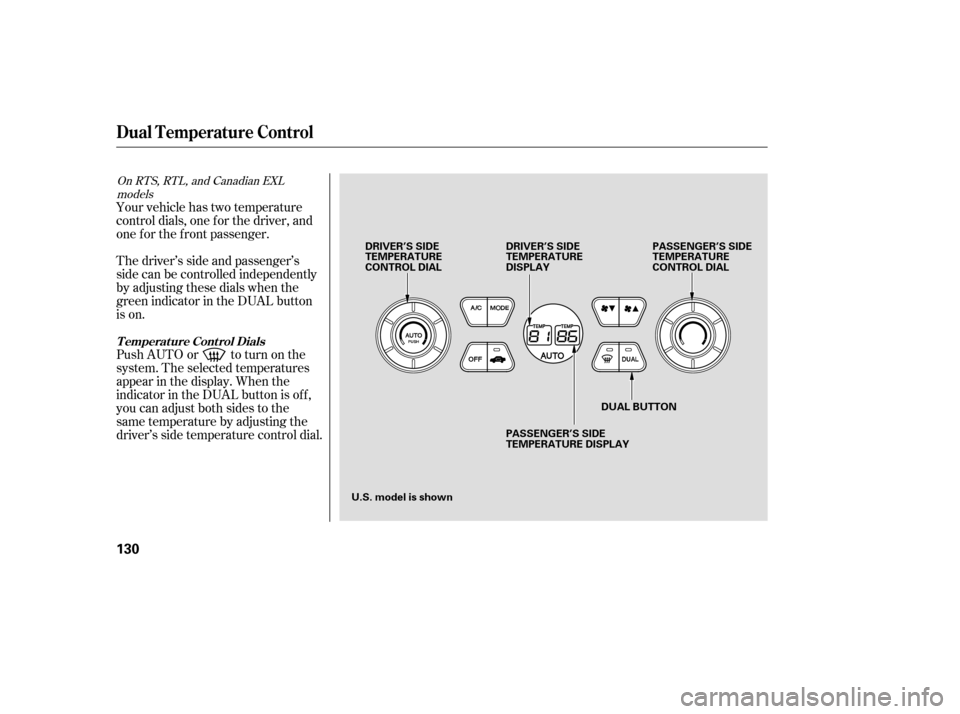

130
DUAL BUTTON PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL DRIVER’S SIDE
TEMPERATURE
DISPLAY
PASSENGER’S SIDE
TEMPERATURE DISPLAY
U.S. model is shown

To set the driver’s side temperature
dif f erently than the passenger’s,
press the DUAL button, then turn
the driver’s control dial. To set the
passenger’s side dif f erently than the
driver’s, turn the passenger’s control
dial. You can adjust the passenger’s
side without pressing the DUAL
button first.
When you set the temperature to its
lower or upper limit, it is displayed asor .

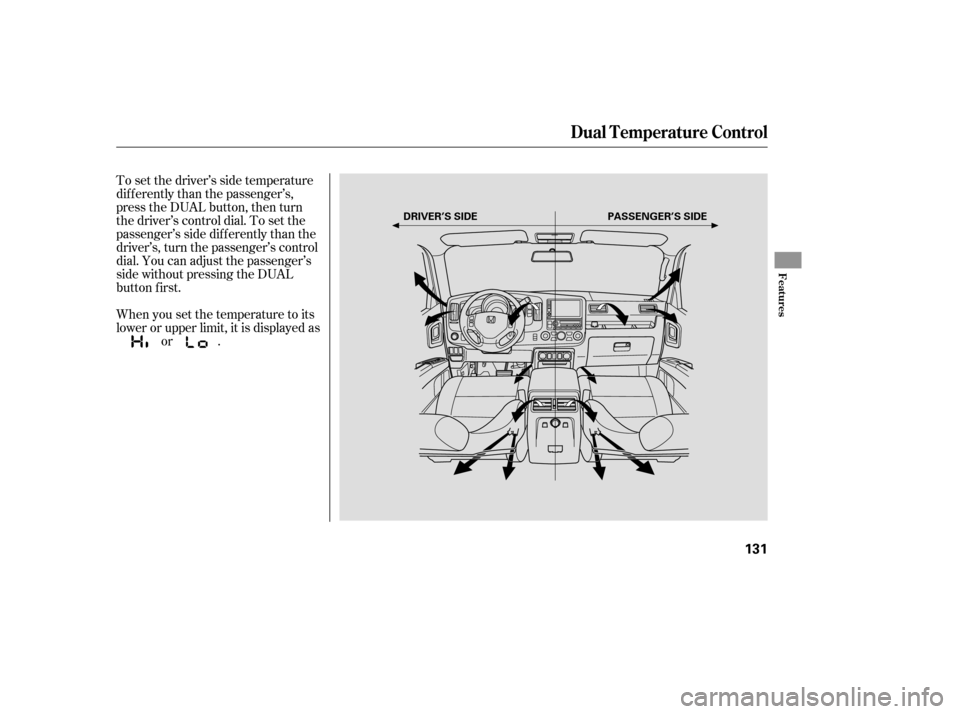

Dual Temperature Control
Features
131
PASSENGER’S SIDE
DRIVER’S SIDE

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is under the
steering column. Do not cover the
sensors or spill any liquid on them.
On RTS, RTL, and Canadian EXLmodels
Climat e Cont rol Sensors
Sunlight and T emperature
Sensors
132
SUNLIGHT SENSOR TEMPERATURE SENSOR
