2007 HONDA RIDGELINE Owners Manual

Make sure your passenger’s hands
orfingersareawayfromthearmrest

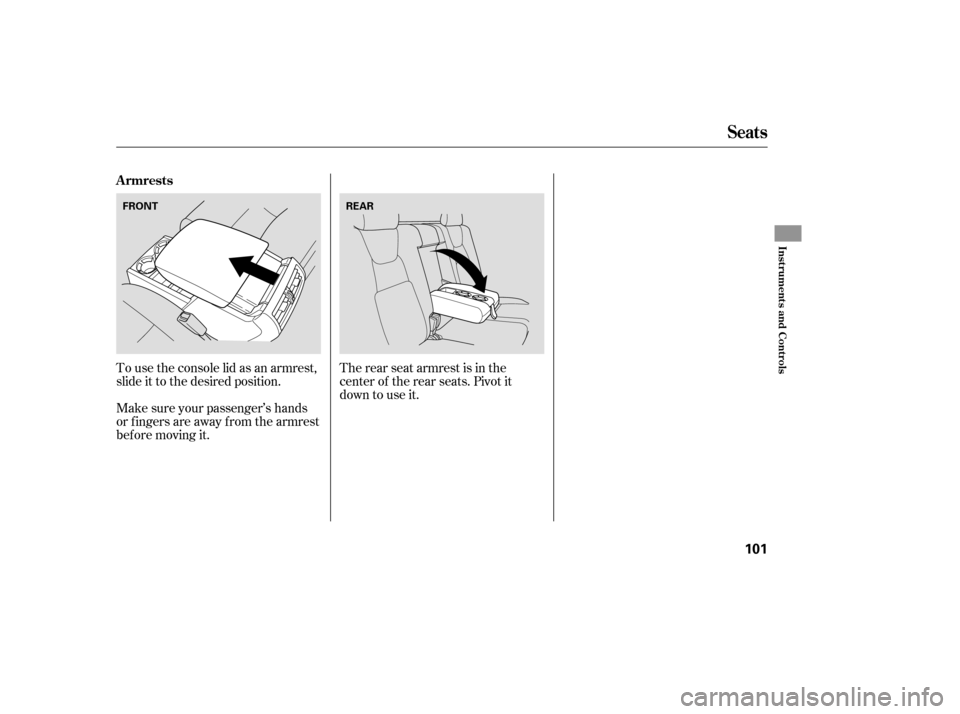

bef ore moving it. To use the console lid as an armrest,
slide it to the desired position.The rear seat armrest is in the
center of the rear seats. Pivot it
down to use it.
Armrests
Seats
Inst rument s and Cont rols
101
FRONT
REAR

See page for important safety
inf ormation and a warning about how to properly position the head restraints. 13

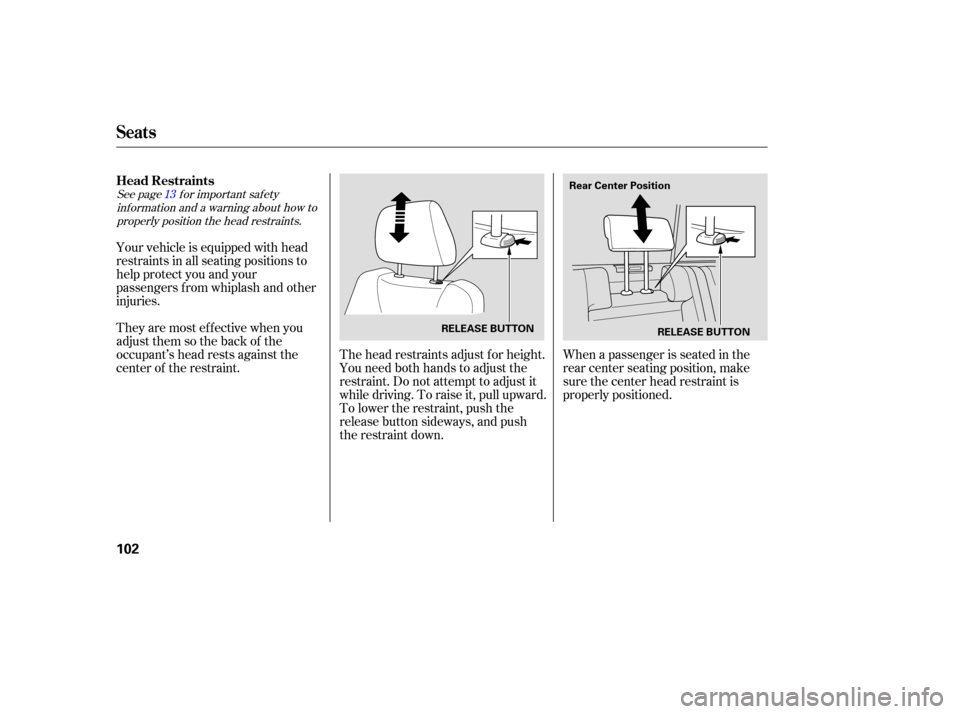

The head restraints adjust f or height.
You need both hands to adjust the
restraint. Do not attempt to adjust it
while driving. To raise it, pull upward.
To lower the restraint, push the
release button sideways, and push
the restraint down.
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers f rom whiplash and other
injuries.
Theyaremosteffectivewhenyou
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
When a passenger is seated in the
rear center seating position, make
sure the center head restraint is
properly positioned.
Head Restraints
Seats
102
RELEASE BUTTON
Rear Center Position
RELEASE BUTTON

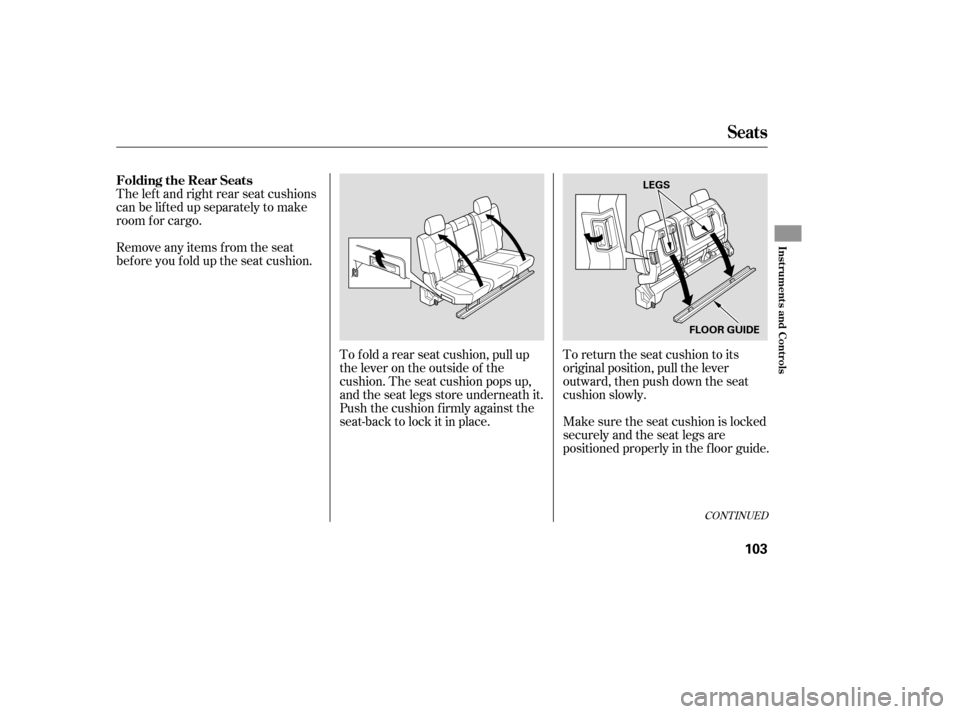

The lef t and right rear seat cushions
can be lifted up separately to make
room f or cargo.
Remove any items from the seat
beforeyoufolduptheseatcushion.To f old a rear seat cushion, pull up
the lever on the outside of the
cushion. The seat cushion pops up,
and the seat legs store underneath it.
Push the cushion firmly against the
seat-back to lock it in place.To return the seat cushion to its
original position, pull the lever
outward, then push down the seat
cushion slowly.
Make sure the seat cushion is locked
securely and the seat legs are
positioned properly in the f loor guide.
CONT INUED
Folding the Rear Seats
Seats
Inst rument s and Cont rols
103
LEGS
FLOOR GUIDE

In HI, the heater turns off when the
seat gets warm, and turns back on
after the seat’s temperature drops.
In LO, the heater runs continuously.
It does not cycle with temperature
ch anges.
Follow these precautions when using
the seat heaters:
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current from the
battery.
If the engine is left idling for an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.
Ma
ke sure all items in the cargo area
are secured. Loose items can f ly
f orward and cause injury if you have
to brake hard (See
on page ).
You can also store small items under
the rear seats. Make sure to secure
the items so they will not shift while
you are driving.
Both front seats have seat heaters.
The passenger seat is only heated in
the seat bottom because of the side
airbag cutoff system. The ignition
switch must be in the ON (II)
position to use seat heaters. Push the
top of the switch, HI, to rapidly heat
up the seat. After the seat reaches a
comf ortable temperature, select LO
by pushing the bottom of the switch.
This will keep the seat warm.
186
If equipped
Seat Heaters
Carrying Cargo
Seats, Seat Heaters
104
SEAT HEATER SWITCHES

µ
Turn the ignition switch to the ON
(II) position to raise or lower any
side window, or open and close the
back window. To open the window,
push the switch down and hold it.
Release the switch when you want
the window to stop. Pull back on the
switchandholdittoclosethe
window. Thewindowsoperateforupto10
minutes after you turn off the
ignition switch. Opening either f ront
door cancels this f unction.
To open or close the
driver’s window, push or pull the
window switch firmly down or up to
the second detent, and release it.
The window will automatically go up
or down all the way. To stop the
window, pull or push the window
switch brief ly.

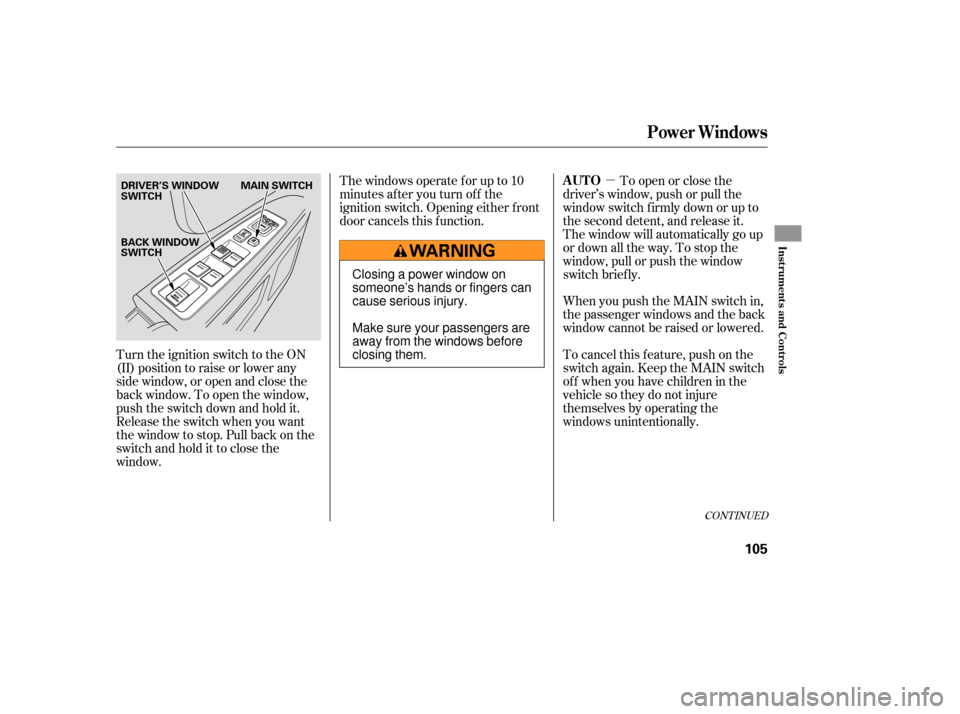

When you push the MAIN switch in,
the passenger windows and the back
window cannot be raised or lowered.
To cancel this f eature, push on the
switch again. Keep the MAIN switch
off whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally.
CONT INUED
AUTO
Power Windows
Inst rument s and Cont rols
105
DRIVER’S WINDOW
SWITCH MAIN SWITCH
BACK WINDOW
SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.

µIf the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it. Your vehicle has a power back
window.
This indicator comes on when you
turn the ignition switch from the ON
(II) to the ACCESSORY (I) or LOCK
(0) position without closing the back
window. With the ignition switch in
the ACCESSORY (I) position, the
indicator goes of f af ter about 30
seconds. With the ignition switch in
the LOCK (0) position, the indicator
goes of f af ter about 3 minutes.
If the driver’s window f use is
removed, the AUTO f unction may be
disabled. The power window system
needs to be reset af ter reinstalling
the fuse.
Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or about 2 seconds.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by your dealer. 1.
2.
AUTO REVERSE
Back Window
Back Window Open
Indicator
Power Windows
106

To open:
Insert the key in the driver’s door
lock.
Turn the key clockwise, then
release it.
You
can open all of the side windows
from the outside with the remote
transmitter.
Press the UNLOCK button once
to unlock the driver’s door.
Press the UNLOCK button a
second time, and hold it. The
passenger’s doors unlock, and all
four side windows start to open.
To stop the windows, release the
button. You can open and close the side
windows with the key in the driver’s
door lock.
The
back window is not designed to
carry long items through it. Do not
use the opened back window as a
cargo area pass-through.
If
you remove the ignition key and
open the driver’s door without
closing the back window, you hear
five beeps and see the indicator blink.
If you do not close the back window
bef ore the beeper stops, the
indicator stops blinking but remains
on. It will go of f af ter about 3
minutes (see page ).
To open the windows further,
press the button again, within
about 3 seconds.
You cannot close the windows with
the remote transmitter. 1.
2.
3.
1.
2.
69
CONT INUED
Opening the Side Windows with
the Remote Transmitter
Opening/Closing the Side
Windows with the Key
Power Windows
Inst rument s and Cont rols
107
Open
Close
UNLOCK BUTTON

Turnthekeyclockwiseagain,and
hold it. All f our side windows start
to open. To stop the windows,
release the key.
To open the windows f urther, turn
andholdthekeyagain(within
10 seconds).The moonroof has two positions: it
can be tilted up in the back f or
ventilation, or it can slide back into
the roof. Use the switch near the left
dashboard vent to operate the
moonroof . The ignition switch must
be in the ON (II) position.
NOTE: If the windows stop bef ore
the desired position, repeat steps 2
and 3.
To close the windows further, turn
andholdthekeyagain(within
10 seconds).
To close: NOTE: If the windows stop bef ore
the desired position, repeat steps 2
and 3. Insert the key in the driver’s door
lock.
Turn the key counterclockwise,
then release it.
Turn the key counterclockwise
again, and hold it. All four side
windowsstarttoclose.Tostopthe
windows, release the key.
1.
2.
3. 4.
3.
4.
If equipped
Moonroof
Power Windows, Moonroof
108
MOONROOF SWITCH
