2007 CHEVROLET SILVERADO Owners Manual

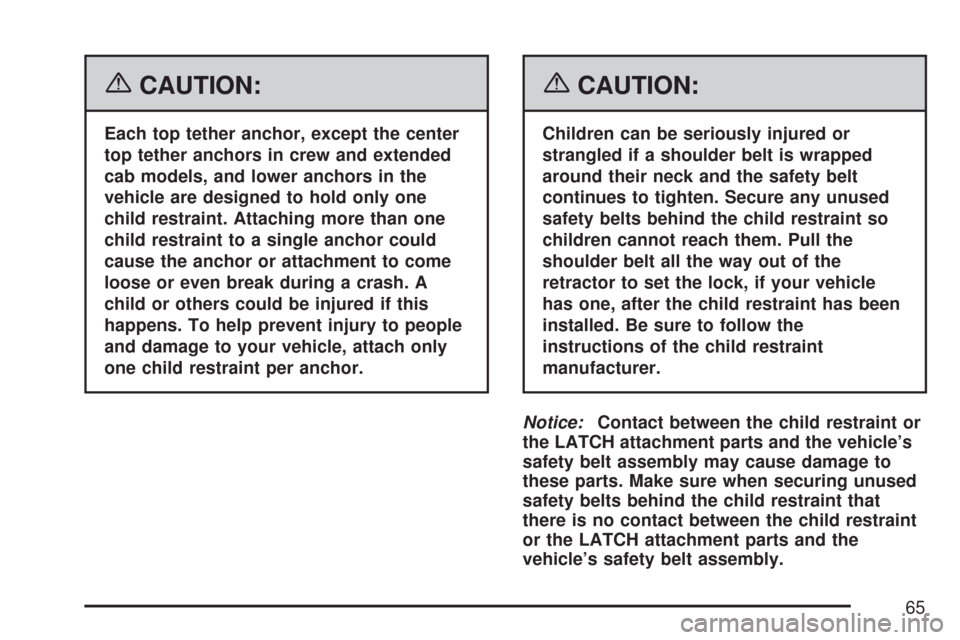

{CAUTION:
Each top tether anchor, except the center
top tether anchors in crew and extended
cab models, and lower anchors in the
vehicle are designed to hold only one
child restraint. Attaching more than one
child restraint to a single anchor could
cause the anchor or attachment to come
loose or even break during a crash. A
child or others could be injured if this
happens. To help prevent injury to people
and damage to your vehicle, attach only
one child restraint per anchor.
{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Secure any unused
safety belts behind the child restraint so
children cannot reach them. Pull the
shoulder belt all the way out of the
retractor to set the lock, if your vehicle
has one, after the child restraint has been
installed. Be sure to follow the
instructions of the child restraint
manufacturer.
Notice:Contact between the child restraint or
the LATCH attachment parts and the vehicle’s
safety belt assembly may cause damage to
these parts. Make sure when securing unused
safety belts behind the child restraint that
there is no contact between the child restraint
or the LATCH attachment parts and the
vehicle’s safety belt assembly.
65

Folding an empty rear seat with the safety
belts secured may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
Regular Cab Models
1. If the child restraint manufacturer recommends
that the top tether be attached, attach and
tighten the top tether to the top tether anchor,
if your vehicle has one. Refer to the child
restraint instructions and the following steps:
1.1. Pull the passenger seatback forward
by pulling the recliner handle upward to
access the top tether anchor. See
Reclining Seatbacks on page 15for
additional information.
1.2. Find the top tether anchor.
1.3. Remove the trim cover to expose the
anchor.1.4. Route, attach, and tighten the top tether
according to your child restraint
instructions and the following
instructions:
If the position you are
using has an adjustable
head restraint and
you are using a dual
tether, route the
tether around the head
restraint.
If the position you are
using has an adjustable
head restraint and
you are using a single
tether, raise the
head restraint and route
the tether under the
head restraint and
in between the head
restraint posts.
66

2. SeeSecuring a Child Restraint in the Right
Front Seat Position (With Airbag Off Switch)
on page 72orSecuring a Child Restraint
in the Right Front Seat Position (With
Passenger Sensing System) on page 78for
instructions on installing the child restraint
using the safety belts.
3. Push and pull the child restraint in different
directions to be sure it is secure.
Crew and Extended Cab Models
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired
seating position does not have lower anchors,
secure the child restraint with the top tether
and the safety belts. Refer to your child
restraint manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower
attachments on the child restraint to the
lower anchors.2. If the child restraint manufacturer recommends
that the top tether be attached, attach and
tighten the top tether to the top tether anchor
(loop), if your vehicle has one. Refer to
the child restraint instructions and the
following steps:
67

2.1. When using a child restraint with a top
tether in the rear driver side position:
A. Raise the head rest.
B. Route the top tether (B) between
the head rest posts, through the
loop (A), behind the inboard
head rest post, and under the
center shoulder belt (C).
C. Attach the top tether (B) to the top
tether anchor (loop) (A) at the
center rear seating position.2.2. When using a child restraint with a top
tether in the rear center position:
A. Route the top tether (B) through the
center loop (A), and behind the
inboard passenger side head rest
post.
B. Attach the top tether (B) to the top
tether anchor (loop) (A) at the
passenger side rear seating
position.
2.3. When using a child restraint with a top
tether in the rear passenger position:
A. Raise the head rest.
B. Route the top tether (B) between
the head rest posts, through the
loop (A) and behind the inboard
head rest post.
C. Attach the top tether (B) to the top
tether anchor (loop) (A) at the
center rear seating position.
Example — Rear Driver’s Side Position
68

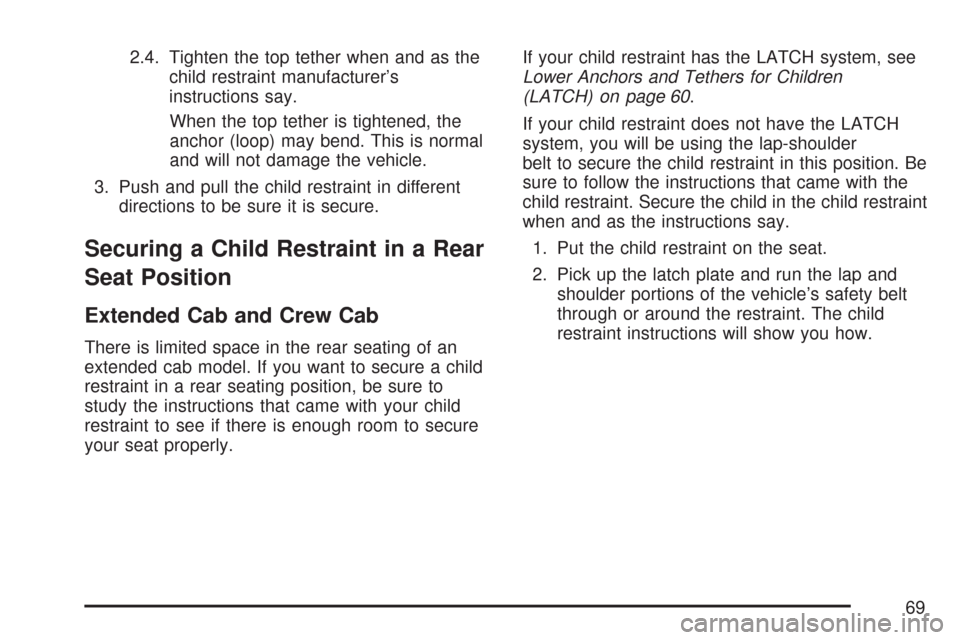

2.4. Tighten the top tether when and as the
child restraint manufacturer’s
instructions say.
When the top tether is tightened, the
anchor (loop) may bend. This is normal
and will not damage the vehicle.
3. Push and pull the child restraint in different
directions to be sure it is secure.
Securing a Child Restraint in a Rear
Seat Position
Extended Cab and Crew Cab
There is limited space in the rear seating of an
extended cab model. If you want to secure a child
restraint in a rear seating position, be sure to
study the instructions that came with your child
restraint to see if there is enough room to secure
your seat properly.If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 60.
If your child restraint does not have the LATCH
system, you will be using the lap-shoulder
belt to secure the child restraint in this position. Be
sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
69

3. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
70

5. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.6. If your child restraint manufacturer
recommends using a top tether, attach and
tighten the top tether to the top tether anchor.
Refer to the instructions that came with the
child restraint and toLower Anchors and
Tethers for Children (LATCH) on page 60.
7. Push and pull the restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to a top tether anchor, disconnect it.
Unbuckle the vehicle’s safety belt and let it
go back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.
71

Securing a Child Restraint in the
Center Front Seat Position
{CAUTION:
A child in a child restraint in the center
front seat can be badly injured or killed by
the right front passenger’s airbag if it
inates. Never secure a child restraint in
the center front seat. It is always better to
secure a child restraint in the rear seat.
Do not use child restraints in this position.
Securing a Child Restraint in the
Right Front Seat Position (With
Airbag Off Switch)
Your vehicle has a right front passenger airbag.
If one of the switches pictured in the following
illustrations is located in your glove box, your
vehicle has an airbag on-off switch that you can use
to manually turn on or off the right front passenger’s
airbag.
United StatesCanada
