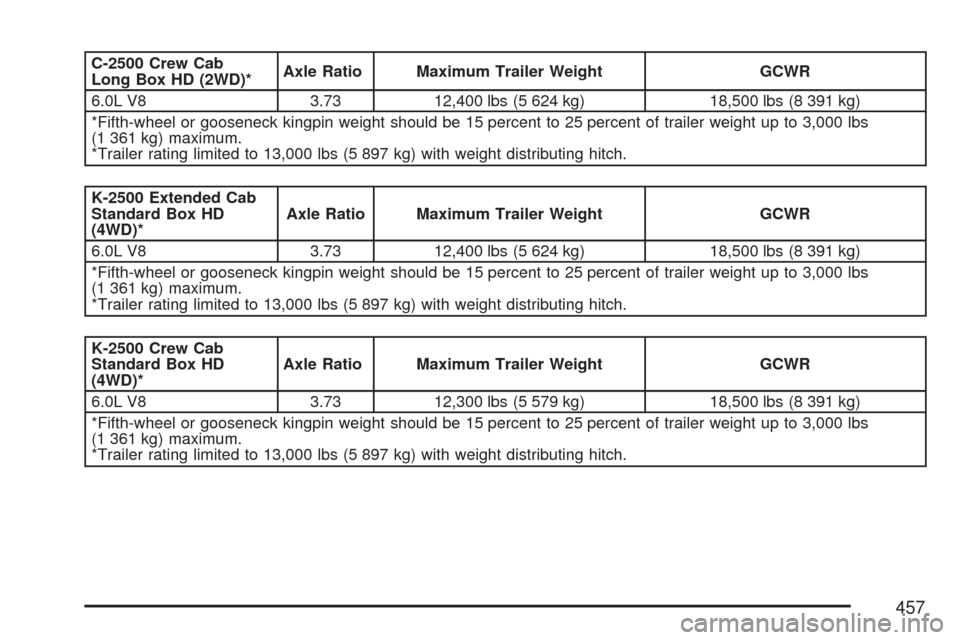

2007 CHEVROLET SILVERADO Owners Manual

C-2500 Crew Cab
Long Box HD (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,400 lbs (5 624 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-2500 Extended Cab
Standard Box HD
(4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,400 lbs (5 624 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-2500 Crew Cab
Standard Box HD
(4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,300 lbs (5 579 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
457

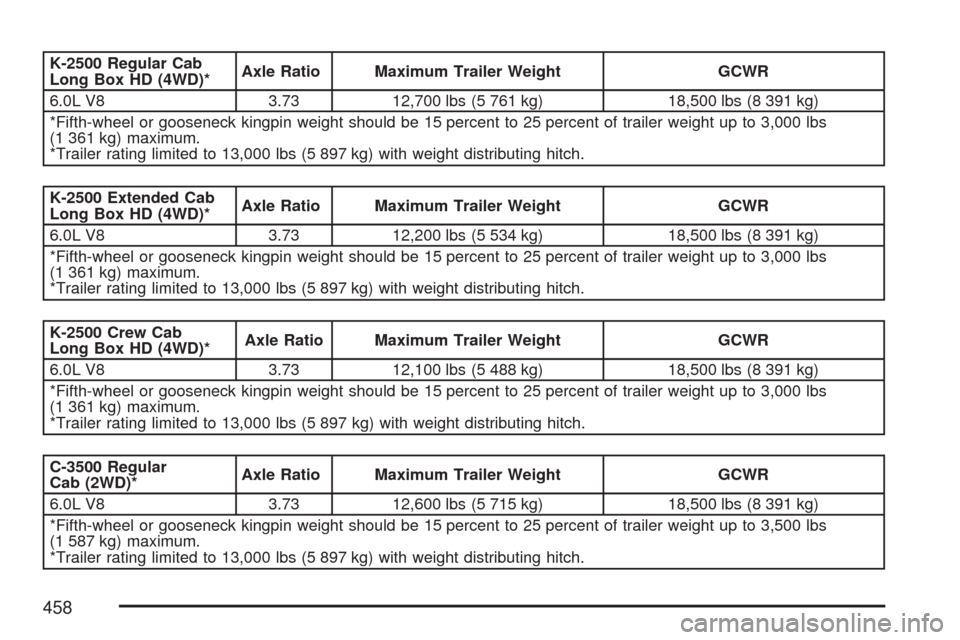

K-2500 Regular Cab
Long Box HD (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,700 lbs (5 761 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-2500 Extended Cab
Long Box HD (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,200 lbs (5 534 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-2500 Crew Cab
Long Box HD (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,100 lbs (5 488 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
C-3500 Regular
Cab (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,600 lbs (5 715 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
458

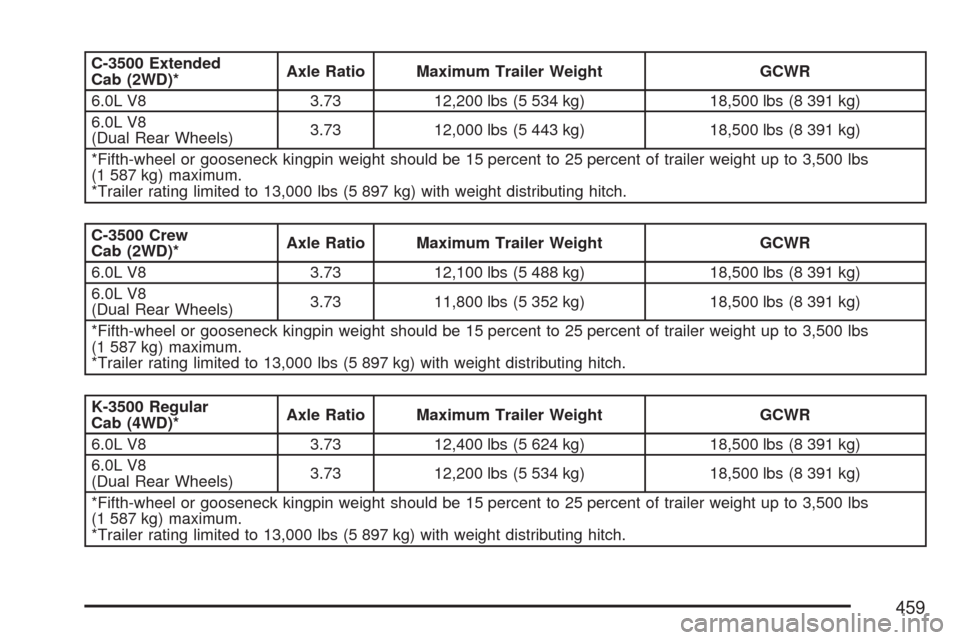

C-3500 Extended
Cab (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,200 lbs (5 534 kg) 18,500 lbs (8 391 kg)
6.0L V8
(Dual Rear Wheels)3.73 12,000 lbs (5 443 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
C-3500 Crew
Cab (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,100 lbs (5 488 kg) 18,500 lbs (8 391 kg)
6.0L V8
(Dual Rear Wheels)3.73 11,800 lbs (5 352 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-3500 Regular
Cab (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,400 lbs (5 624 kg) 18,500 lbs (8 391 kg)
6.0L V8
(Dual Rear Wheels)3.73 12,200 lbs (5 534 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
459

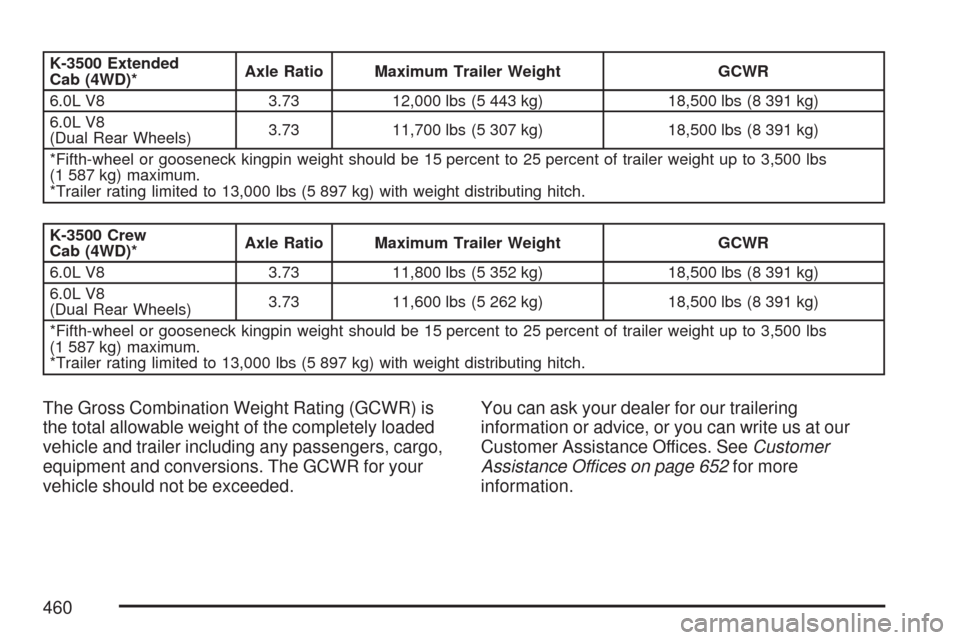

K-3500 Extended
Cab (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,000 lbs (5 443 kg) 18,500 lbs (8 391 kg)
6.0L V8
(Dual Rear Wheels)3.73 11,700 lbs (5 307 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-3500 Crew
Cab (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 11,800 lbs (5 352 kg) 18,500 lbs (8 391 kg)
6.0L V8
(Dual Rear Wheels)3.73 11,600 lbs (5 262 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
The Gross Combination Weight Rating (GCWR) is
the total allowable weight of the completely loaded
vehicle and trailer including any passengers, cargo,
equipment and conversions. The GCWR for your
vehicle should not be exceeded.You can ask your dealer for our trailering
information or advice, or you can write us at our
Customer Assistance Offices. SeeCustomer
Assistance Offices on page 652for more
information.
460

Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total
or gross weight of your vehicle. The Gross Vehicle
Weight (GVW) includes the curb weight of the
vehicle, any cargo you may carry in it, and
the people who will be riding in the vehicle. If you
have a lot of options, equipment, passengers
or cargo in your vehicle, it will reduce the tongue
weight your vehicle can carry, which will also
reduce the trailer weight your vehicle can tow.
And if you will tow a trailer, you must add
the tongue load to the GVW because your vehicle
will be carrying that weight, too. SeeLoading
Your Vehicle on page 427for more information
about your vehicle’s maximum load capacity.The trailer tongue weight (A) should be 10 percent
to 15 percent of the total loaded trailer weight,
up to a maximum of 600 lbs (272 kg) for the
1500 or 2500 series, and up to a maximum of
750 lbs (340 kg) for the 2500 HD or 3500 series
with a weight carrying hitch. The trailer tongue
weight (A) should be 10 percent to 15 percent of
the total loaded trailer weight, up to a maximum
of 1,000 lbs (453 kg) for the 1500 series and up to
a maximum of 1,500 lbs (680 kg) for the 2500,
2500 HD or 3500 series with a weight distributing
hitch.
461

Fifth wheel or gooseneck kingpin weight should be
15 to 25 percent of the trailer weight up to the
maximum amount specied in the trailering chart
for your vehicle. See “Weight of the Trailer”,
and “Fifth-Wheel and Gooseneck Trailering”
in this section.
Do not exceed the maximum allowable tongue
weight for your vehicle. Choose the shortest hitch
extension that will position the hitch ball closest
to the vehicle. This will help reduce the effect
of trailer tongue weight on the rear axle.
After you have loaded the trailer, weigh the trailer
and then the tongue separately, to see if the
weights are proper. If they are not, you may be
able to get them right by moving some items
around in the trailer.
Trailering may be limited by the vehicle’s ability to
carry tongue weight. Tongue weight cannot cause
the vehicle to exceed the GVWR (Gross Vehicle
Weight Rating) or the RGAWR (Rear Gross Axle
Weight Rating). The effect of additional weight
may reduce your trailering capacity more than the
total of the additional weight.Consider the following example:
A vehicle model base weight is 5,500 lbs
(2 495 kg); 2,800 lbs (1 270 kg) at the front axle
and 2,700 lbs (1 225 kg) at the rear axle. It has a
GVWR of 7,200 lbs (3 266 kg), a RGAWR of
4,000 lbs (1 814 kg) and a GCWR (Gross
Combination Weight Rating) of 14,000 lbs
(6 350 kg). The trailer rating should be:
You can expect tongue weight to be at least
10 percent of trailer weight (850 lbs (386 kg)) and
because the weight is applied well behind the
rear axle, the effect on the rear axle will be greater
than just the weight itself, as much as 1.5 times
as much. The weight at the rear axle could
be 850 lbs (386 kg) X 1.5 = 1,275 lbs (578 kg).
462

Since the rear axle already weighs 2,700 lbs
(1 225 kg), adding 1,275 lbs (578 kg) brings the
total to 3,975 lbs (1 803 kg). This is very close to,
but within the limit for RGAWR as well. The vehicle
is set to trailer up to 8,500 lbs (3 856 kg).
But let’s say your specic vehicle is equipped with
some of the latest options and you have a front
seat passenger and two rear seat passengers with
some luggage and gear in the vehicle as well.
You may add 300 lbs (136 kg) to the front axle
weight and 400 lbs (181 kg) to the rear axle
weight. Your vehicle now weighs:
Weight is still below 7,200 lbs (3 266 kg) and you
may think that you should subtract 700 additional
pounds (318 kg) from your trailering capacity
to stay within GCWR limits. Your maximum
trailer would only be 7,800 lbs (3 538 kg).You may go further and think you must limit
tongue weight to less than 1,000 lbs (454 kg) to
avoid exceeding GVWR. But, you must still
consider the effect on the rear axle. Because your
rear axle now weighs 3,100 lbs (1 406 kg), you
can only put 900 lbs (408 kg) on the rear axle
without exceeding RGAWR. The effect of tongue
weight is about 1.5 times the actual weight.
Dividing the 900 lbs (408 kg) by 1.5 leaves you
with being able to handle only 600 lbs (272 kg) of
tongue weight. Since tongue weight is usually
at least 10 percent of total loaded trailer weight,
you can expect that the largest trailer your vehicle
can properly handle is 6,000 lbs (2 721 kg).
It is important that you make sure your vehicle
does not exceed any of its ratings — GCWR,
GVWR, RGAWR, Maximum Trailer Rating
or Tongue Weight. The only way to be sure you
are not exceeding any of these ratings is to weigh
your vehicle and trailer.
463

Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inated to the
upper limit for cold tires. You’ll nd these numbers
on the Certication label at the rear edge of the
driver’s door or see Loading Your Vehicle for more
information. Then be sure you don’t go over the
GVW limit for your vehicle, or the GAWR, including
the weight of the trailer tongue. If you use a
weight distributing hitch, make sure you don’t go
over the rear axle limit before you apply the weight
distribution spring bars.
Hitches
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough
roads are a few reasons why you’ll need the
right hitch.
Weight-Distributing Hitches and Weight
Carrying Hitches
A:Body to Ground Distance
B:Front of Vehicle
When using a weight-distributing hitch, the hitch
must be adjusted so the distance (A) remains
the same both before and after coupling the trailer
to the tow vehicle.
