2007 CHEVROLET SILVERADO Owners Manual

{CAUTION:
If the right front passenger’s airbag is
turned off for a person who is not in a risk
group identied by the national
government, that person will not have the
extra protection of an airbag. In a crash,
the airbag will not be able to inate and
help protect the person sitting there. Do
not turn off the passenger’s airbag unless
the person sitting there is in a risk group.
To turn off the right front passenger’s airbag,
insert your ignition key into the switch, push in, and
move the switch to the off position.
The word OFF or the off symbol will come on in
the passenger airbag status indicator located in the
overhead console to let you know that the right
front passenger’s airbag is off, after the system
check is completed. The airbag off light will come
on and stay on to let you know that the right
front passenger’s airbag is off. SeeAirbag Off Light
on page 252.
United StatesCanada
97

{CAUTION:
If the airbag readiness light ever comes
on when you have turned off the airbag, it
means that something may be wrong with
the airbag system. The right front
passenger’s airbag could inate even
though the switch is off. If this ever
happens, do not let anyone whom the
national government has identied as a
member of a passenger airbag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing
child restraint in the right front
passenger’s seat) until you have your
vehicle serviced. SeeAirbag Readiness
Light on page 252for additional
information.To turn the right front passenger’s airbag on
again, insert your ignition key into the switch, push
in, and move the switch to the on position.
The right front passenger’s frontal airbag is now
enabled (may inate). SeeAirbag Off Light
on page 252for more information.
United StatesCanada
98

Passenger Sensing System
If your vehicle has one of the indicators pictured in
the following illustrations, then your vehicle has
a passenger sensing system for the right front
passenger’s position, unless there is an airbag off
switch located in the glovebox. If there is an
airbag off switch, your vehicle does not have a
passenger sensing system. SeeAirbag Off Switch
on page 95for more information.
The passenger airbag status indicator will be
visible when you start your vehicle on the
overhead console.
The words ON and OFF, or the symbol for on and
off, will be visible during the system check.
When the system check is complete, either theword ON or the word OFF, or the symbol for on or
the symbol for off, will be visible. SeePassenger
Airbag Status Indicator on page 254.
The passenger sensing system will turn off the
right front passenger’s frontal airbag under certain
conditions. The driver’s airbags are not part of
the passenger sensing system.
The passenger sensing system works with
sensors that are part of the right front passenger’s
seat and safety belt. The sensors are designed
to detect the presence of a properly-seated
occupant and determine if the passenger’s frontal
airbag should be enabled (may inate) or not.
Accident statistics show that children are safer if
they are restrained in the rear rather than the
front seat.
We recommend that children be secured in a rear
seat, including: an infant or a child riding in a
rear-facing child restraint; a child riding in a
forward-facing child seat; an older child riding in a
booster seat; and children, who are large
enough, using safety belts.
United StatesCanada
99

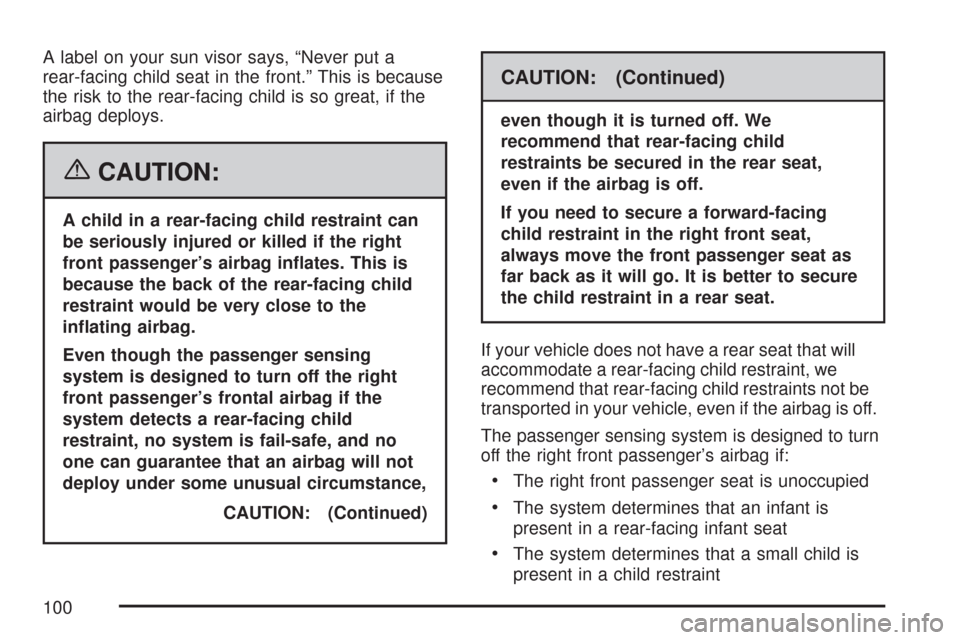

A label on your sun visor says, “Never put a
rear-facing child seat in the front.” This is because
the risk to the rear-facing child is so great, if the
airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal airbag if the
system detects a rear-facing child
restraint, no system is fail-safe, and no
one can guarantee that an airbag will not
deploy under some unusual circumstance,
CAUTION: (Continued)
CAUTION: (Continued)
even though it is turned off. We
recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
If your vehicle does not have a rear seat that will
accommodate a rear-facing child restraint, we
recommend that rear-facing child restraints not be
transported in your vehicle, even if the airbag is off.
The passenger sensing system is designed to turn
off the right front passenger’s airbag if:
The right front passenger seat is unoccupied
The system determines that an infant is
present in a rear-facing infant seat
The system determines that a small child is
present in a child restraint
100

The system determines that a small child is
present in a booster seat
A right front passenger takes his/her weight off
of the seat for a period of time
The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints
Or, if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned
off the right front passenger’s frontal airbag, the off
indicator will light and stay lit to remind you that
the airbag is off.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint following the child restraint
manufacturer’s directions and refer toSecuring a
Child Restraint in the Right Front Seat Position
(With Airbag Off Switch) on page 72orSecuring a
Child Restraint in the Right Front Seat Position
(With Passenger Sensing System) on page 78.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is notpressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
Remove any additional material from the seat
cushion before reinstalling or securing the
child restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle, and check with your dealer/retailer.
If no rear seat is available, do not install a child
restraint in this vehicle, and check with your
dealer/retailer.
The passenger sensing system is designed to
enable (may inate) the right front passenger’s
airbag anytime the system senses that a person of
adult size is sitting properly in the right front
passenger’s seat. When the passenger sensing
system has allowed the airbag to be enabled, the
on indicator will light and stay lit to remind you
that the airbag is active.
101

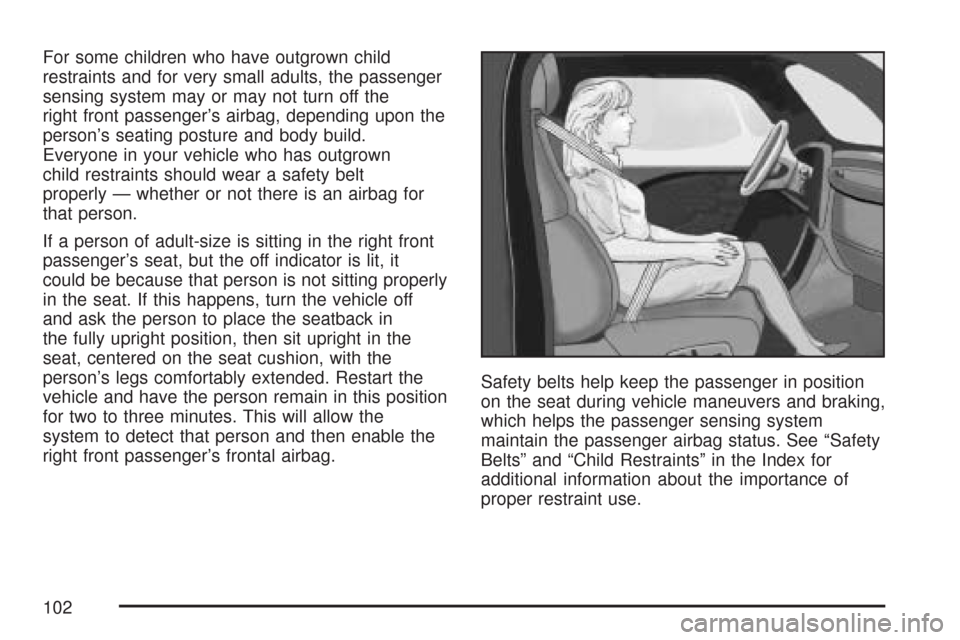

For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the
right front passenger’s airbag, depending upon the
person’s seating posture and body build.
Everyone in your vehicle who has outgrown
child restraints should wear a safety belt
properly — whether or not there is an airbag for
that person.
If a person of adult-size is sitting in the right front
passenger’s seat, but the off indicator is lit, it
could be because that person is not sitting properly
in the seat. If this happens, turn the vehicle off
and ask the person to place the seatback in
the fully upright position, then sit upright in the
seat, centered on the seat cushion, with the
person’s legs comfortably extended. Restart the
vehicle and have the person remain in this position
for two to three minutes. This will allow the
system to detect that person and then enable the
right front passenger’s frontal airbag.Safety belts help keep the passenger in position
on the seat during vehicle maneuvers and braking,
which helps the passenger sensing system
maintain the passenger airbag status. See “Safety
Belts” and “Child Restraints” in the Index for
additional information about the importance of
proper restraint use.
102

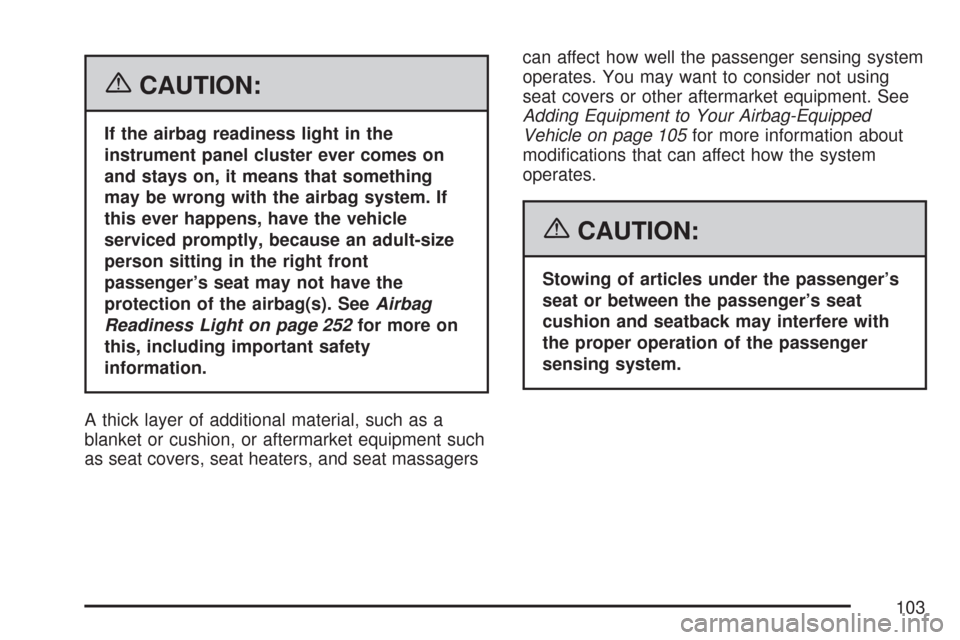

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system. If
this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of the airbag(s). SeeAirbag
Readiness Light on page 252for more on
this, including important safety
information.
A thick layer of additional material, such as a
blanket or cushion, or aftermarket equipment such
as seat covers, seat heaters, and seat massagerscan affect how well the passenger sensing system
operates. You may want to consider not using
seat covers or other aftermarket equipment. See
Adding Equipment to Your Airbag-Equipped
Vehicle on page 105for more information about
modications that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
103

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your dealer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 666.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
qualied to do so.
The airbag system does not need regular
maintenance.
104
