2007 CHEVROLET SILVERADO Owners Manual

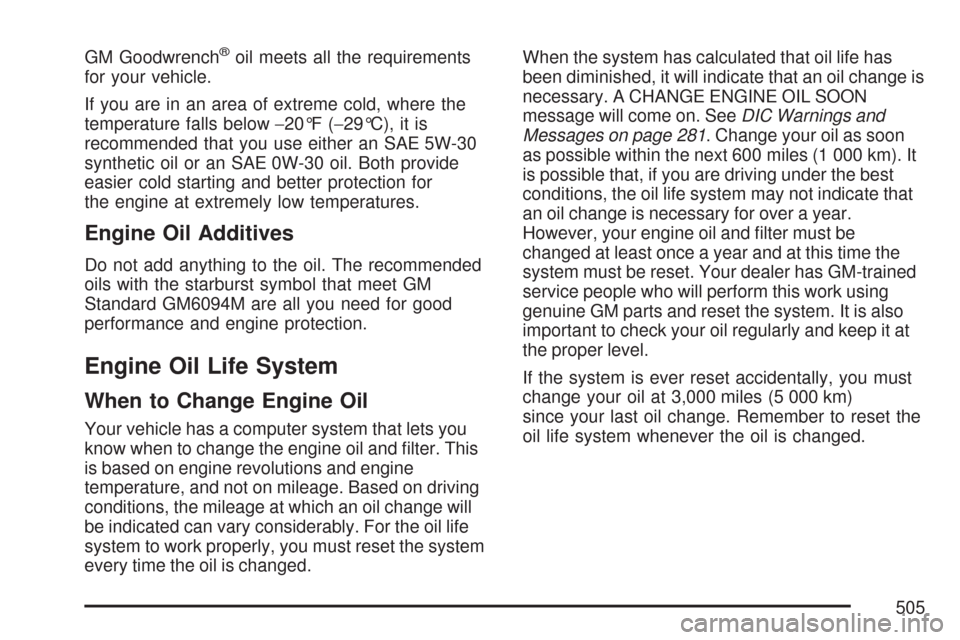

GM Goodwrench®oil meets all the requirements
for your vehicle.
If you are in an area of extreme cold, where the
temperature falls below−20°F (−29°C), it is
recommended that you use either an SAE 5W-30
synthetic oil or an SAE 0W-30 oil. Both provide
easier cold starting and better protection for
the engine at extremely low temperatures.
Engine Oil Additives
Do not add anything to the oil. The recommended
oils with the starburst symbol that meet GM
Standard GM6094M are all you need for good
performance and engine protection.
Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer system that lets you
know when to change the engine oil and lter. This
is based on engine revolutions and engine
temperature, and not on mileage. Based on driving
conditions, the mileage at which an oil change will
be indicated can vary considerably. For the oil life
system to work properly, you must reset the system
every time the oil is changed.When the system has calculated that oil life has
been diminished, it will indicate that an oil change is
necessary. A CHANGE ENGINE OIL SOON
message will come on. SeeDIC Warnings and
Messages on page 281. Change your oil as soon
as possible within the next 600 miles (1 000 km). It
is possible that, if you are driving under the best
conditions, the oil life system may not indicate that
an oil change is necessary for over a year.
However, your engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your dealer has GM-trained
service people who will perform this work using
genuine GM parts and reset the system. It is also
important to check your oil regularly and keep it at
the proper level.
If the system is ever reset accidentally, you must
change your oil at 3,000 miles (5 000 km)
since your last oil change. Remember to reset the
oil life system whenever the oil is changed.
505

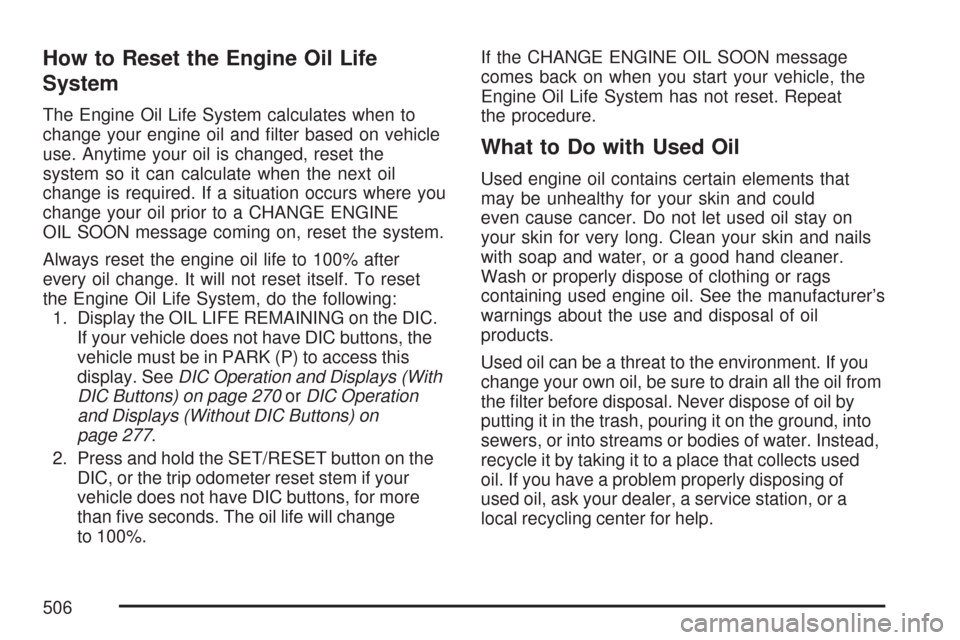

How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change your engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the
system so it can calculate when the next oil
change is required. If a situation occurs where you
change your oil prior to a CHANGE ENGINE
OIL SOON message coming on, reset the system.
Always reset the engine oil life to 100% after
every oil change. It will not reset itself. To reset
the Engine Oil Life System, do the following:
1. Display the OIL LIFE REMAINING on the DIC.
If your vehicle does not have DIC buttons, the
vehicle must be in PARK (P) to access this
display. SeeDIC Operation and Displays (With
DIC Buttons) on page 270orDIC Operation
and Displays (Without DIC Buttons) on
page 277.
2. Press and hold the SET/RESET button on the
DIC, or the trip odometer reset stem if your
vehicle does not have DIC buttons, for more
than ve seconds. The oil life will change
to 100%.If the CHANGE ENGINE OIL SOON message
comes back on when you start your vehicle, the
Engine Oil Life System has not reset. Repeat
the procedure.
What to Do with Used Oil
Used engine oil contains certain elements that
may be unhealthy for your skin and could
even cause cancer. Do not let used oil stay on
your skin for very long. Clean your skin and nails
with soap and water, or a good hand cleaner.
Wash or properly dispose of clothing or rags
containing used engine oil. See the manufacturer’s
warnings about the use and disposal of oil
products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from
the lter before disposal. Never dispose of oil by
putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle it by taking it to a place that collects used
oil. If you have a problem properly disposing of
used oil, ask your dealer, a service station, or a
local recycling center for help.
506

Engine Air Cleaner/Filter (Gasoline
Engines)
If your vehicle has a diesel engine, see “Pickup
Models” under “Engine Air Cleaner/Filter” in
the DURAMAX
®Diesel Supplement for the correct
inspection and replacement procedures.
SeeEngine
Compartment Overview
on page 500for the
location of the engine air
cleaner/lter and the
air lter restriction
indicator, if the vehicle
has one.
When to Inspect the Engine Air
Cleaner/Filter
If your vehicle has an air lter restriction indicator,
it lets you know when the engine air cleaner/lter
needs to be replaced. On vehicles with a restriction
indicator, you should inspect the air lter
restriction indicator at every oil change and
replace the engine air cleaner/lter when the
indicator tells you to.
On vehicles without an air lter restriction indicator,
inspect the air cleaner/lter at the MaintenanceII
intervals and replace it at the rst oil change
after each 50,000 mile (83 000 km) interval. See
Scheduled Maintenance (Gasoline Engine) on
page 627for more information. If you are driving
in dusty/dirty conditions, inspect the lter at
each engine oil change.
507

How to Inspect the Engine Air
Cleaner/Filter
Vehicles With an Air Filter Restriction
Indicator
Locate the air lter restriction indicator on the
engine air cleaner/lter cover. When the indicator
turns black or is in the red/orange “change”
zone, replace the lter and reset the indicator. See
Steps 1 through 7 to replace the engine air
cleaner/lter and to reset the air lter restriction
indicator.
Vehicles Without an Air Filter Restriction
Indicator
To inspect the air cleaner/lter, remove the engine
air cleaner/lter from the vehicle by following
Steps 1 through 7. When you have the engine air
cleaner/lter removed, lightly shake it to release
loose dust and dirt. If the engine air cleaner/lter
remains caked with dirt, a new lter is required.
Replacing the Engine Air Cleaner/Filter
and Resetting the Air Filter Restriction
Indicator
1. Locate the air cleaner/lter assembly. See
Engine Compartment Overview on page 500.
2. Loosen the four screws on the cover of the
housing and lift up the cover.
508

3. Remove the engine air cleaner/lter from the
housing. Care should be taken to dislodge as
little dirt as possible.
4. Clean the engine air cleaner/lter sealing
surfaces and the housing.
5. Inspect or replace the engine air cleaner/lter.
6. Reinstall the cover and tighten the screws.
7. Reset the air lter restriction indicator, if
the vehicle has one, by pressing the top button
on the indicator.
{CAUTION:
Operating the engine with the air
cleaner/lter off can cause you or others
to be burned. The air cleaner not only
cleans the air; it helps to stop ames if
the engine backres. If it is not there and
the engine backres, you could be
burned. Do not drive with it off, and be
careful working on the engine with the air
cleaner/lter off.
509

Automatic Transmission Fluid
When to Check and Change Automatic
Transmission Fluid
It is usually not necessary to check the
transmission uid level. The only reason for uid
loss is a transmission leak or overheating the
transmission. If you suspect a small leak, then use
the following checking procedures to check the
uid level. However, if there is a large leak, then it
may be necessary to have the vehicle towed to
a dealership service department and have it
repaired before driving the vehicle further.
Notice:Use of the incorrect automatic
transmission uid may damage your vehicle,
and the damages may not be covered by
your warranty. Always use the automatic
transmission uid listed inRecommended
Fluids and Lubricants on page 639.
Change the uid and lter at the intervals listed in
the Maintenance Schedule. SeeScheduled
Maintenance (Gasoline Engine) on page 627.Be
sure to use the transmission uid listed in
Recommended Fluids and Lubricants on page 639.
How to Check Automatic Transmission
Fluid
Notice:Too much or too little uid can
damage your transmission. Too much can
mean that some of the uid could come out
and fall on hot engine parts or exhaust system
parts, starting a re. Too little uid could
cause the transmission to overheat. Be sure to
get an accurate reading if you check your
transmission uid.
Before checking the uid level, prepare your
vehicle as follows:
1. Start the engine and park your vehicle on a
level surface. Keep the engine running.
2. Apply the parking brake and place the shift
lever in PARK (P).
510

3. With your foot on the brake pedal, move the
shift lever through each gear range, pausing
for about three seconds in each range.
Then, move the shift lever back to PARK (P).
4. Allow the engine to idle (500 – 800 rpm) for at
least one minute. Slowly release the brake
pedal.
5. Keep the engine running and press the
Trip/Fuel button or trip odometer reset
stem until TRANS TEMP (Transmission
Temperature) displays on the Driver
Information Center (DIC).
6. Using the TRANS TEMP reading, determine
and perform the appropriate check procedure.
If the TRANS TEMP reading is not within
the required temperature ranges, allow
the vehicle to cool, or operate the vehicle until
the appropriate transmission uid temperature
is reached.Cold Check Procedure
Use this procedure only as a reference to
determine if the transmission has enough uid to
be operated safely until a hot check procedure
can be made. The hot check procedure is the most
accurate method to check the uid level. Perform
the hot check procedure at the rst opportunity.
Use this cold check procedure to check uid level
when the transmission temperature is between
80°F and 90°F (27°C and 32°C).
1. Locate the transmission dipstick at the rear of
the engine compartment, on the passenger’s
side of the vehicle.
The dipstick handle has
this graphic. SeeEngine
Compartment Overview
on page 500for
more information.
2. Flip the handle up, and then pull out the
dipstick and wipe it with a clean rag or
paper towel.
511

3. Install the dipstick by pushing it back in all the
way, wait three seconds, and then pull it back
out again.
4. Check both sides of the dipstick, and read the
lower level. Repeat the check procedure to
verify the reading.
5. If the uid level is below the COLD check
band, add only enough uid as necessary
to bring the level into the COLD band. It does
not take much uid, generally less than
one pint (0.5L). Do not overll.6. Perform a hot check at the rst opportunity
after the transmission reaches a normal
operating temperature between 160°F to
200°F (71°C to 93°C).
7. If the uid level is in the acceptable range,
push the dipstick back in all the way, then
ip the handle down to lock the dipstick
in place.
Hot Check Procedure
Use this procedure to check the transmission uid
level when the transmission uid temperature is
between 160°F and 200°F (71°C and 93°C).
The hot check is the most accurate method to
check the uid level. The hot check should be
performed at the rst opportunity in order to verify
the cold check. The uid level rises as uid
temperature increases, so it is important to ensure
the transmission temperature is within range.
1. Locate the transmission dipstick at the rear of
the engine compartment, on the passenger’s
side of the vehicle.
512
