2007 CHEVROLET EQUINOX Owners Manual

Power Door Locks
The power door lock
switches are located on
the driver’s and front
passenger’s doors.
K(Unlock):To unlock the doors, press the
unlock symbol.
Q(Lock):Remove the ignition key and press
the lock symbol to lock all of the doors.
Delayed Locking
A chime will sound three times to indicate a door
or liftgate is open when you try to lock the
doors with the remote keyless entry (RKE)
transmitter or the power door lock switch. The
doors will not lock, and the theft-deterrent system
will not arm until all the doors are closed and
ten seconds have passed.
The delayed locking feature can be programmed
through the Driver Information Center (DIC).
SeeDIC Vehicle Personalization on page 207.
Programmable Automatic
Door Locks
Your vehicle has an automatic lock/unlock feature
which enables you to program the power door
locks through the Driver Information Center (DIC).
SeeDIC Vehicle Personalization on page 207
for more information on DIC programming.
105

Rear Door Security Locks
Your vehicle has rear door security locks that
prevent passengers from opening the rear doors
from the inside.
The rear door security
locks are located on
the inside edge of
each rear door. You
must open the rear
doors to access them.
To set the security locks, do the following:
1. Insert the key into the lock above the rear
door security lock label and turn it to the
horizontal position.
2. Close the door.
3. Repeat the steps for the other rear door.To open a rear door while the security lock is on,
do the following:
1. Unlock the door using the remote keyless
entry transmitter, the front door power lock
switch, or by lifting the rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the
following:
1. Unlock the door and open it from the outside.
2. Insert the key into the slot next to the rear
door security lock label and turn it to the
vertical position.
3. Repeat the steps for the other lock.
Lockout Protection
If you press the power door lock switch when the
key is in the ignition and any door is open, all
the doors will lock and only the driver’s door will
unlock. Be sure to remove the key from the ignition
when locking your vehicle.
If the keyless entry transmitter is used to lock the
doors and the key is in the ignition, a chime
will sound three times. All passenger doors will
lock, but the driver’s door will remain unlocked.
106

Liftgate
{CAUTION:
It can be dangerous to drive with the
liftgate or liftglass open because carbon
monoxide (CO) gas can come into your
vehicle. You cannot see or smell CO. It can
cause unconsciousness and even death.
If you must drive with the liftgate open or if
electrical wiring or other cable connections
must pass through the seal between the
body and the liftgate or liftglass:
Make sure all other windows are shut.
Turn the fan on your climate control
system to its highest speed and select
the control setting that will force
outside air into your vehicle. See
“Climate Control System” in the Index.
CAUTION: (Continued)
CAUTION: (Continued)

If you have air outlets on or under the
instrument panel, open them all the
way. SeeEngine Exhaust on page 127.
To unlock the liftgate, press the unlock button on
the Remote Keyless Entry (RKE) transmitter
twice or use the power door lock switch.
To lock the liftgate, press the lock button on the
RKE transmitter or use the power door lock switch.
The liftgate does not have a key lock cylinder.
To open the liftgate, pull up on the handle located
in the center of the liftgate.
When closing the liftgate, use the molded handles
to pull the liftgate down. Push the liftgate closed
until it latches.
107

Liftgate Operation with Loss of Power
The liftgate is equipped with an electric latch.
If the battery is disconnected or has low voltage,
the liftgate will not open.
To open the liftgate
if this happens,
remove the interior
trim plug located
at the base of
the liftgate from
inside the vehicle.Use a tool to push
the service release
lever located on
the latch until you
hear or feel the
gate release.
The liftgate can now be opened and closed
manually. You will need to use this procedure to
open the liftgate until the power is restored.
108

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by
the extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
109

Power Windows
The window switches for all doors are located on
the center console. A window switch for each
rear window is located on each rear door.
To open a window, press the bottom of the switch.
To close a window, press the top of the switch.
The power windows operate when the ignition
is RUN or ACC (Accessory), or while in Retained
Accessory Power (RAP). SeeRetained
Accessory Power (RAP) on page 116.
Express-Down Window
The driver’s window switch has an express-down
feature that allows the window to be lowered
without holding the switch. Press the bottom ofthe switch part way, and the driver’s window will
open a small amount. Press the switch down
all the way down and release it and the window
will go down automatically.
To stop the window while it is lowering, press and
release the top of the switch.
Window Lockout
o
(Window Lockout):Your vehicle has a lockout
feature to prevent rear seat passengers from
operating the windows. Press the lockout button,
located with the power window switches, to turn the
feature on and off. The window switch has a light
that will come on when the switch is active.
Sun Visors
To block out glare, swing the sun visor down.
You can also detach the driver’s sun visor from
the center mount and slide it along the rod
from side-to-side for greater coverage.
Visor Vanity Mirrors
Your vehicle has covered visor vanity mirrors on
both the driver’s and passenger’s side.
110

Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
To activate the theft-deterrent system:
1. Open the door.
2. Lock the door with the power door lock switch
or the remote keyless entry transmitter. If you
are using the remote keyless entry transmitter,
the door does not need to be open.
3. Close all doors.
Once armed, the alarm will go off if someone
tries to enter the vehicle without using the remote
keyless entry transmitter or a key or turns the
ignition on with an incorrect key. The horn
will sound and the turn signal lamps will ash
for approximately two minutes.When the alarm is armed, the trunk may be
opened with the remote keyless entry transmitter.
The power door lock switches are disabled
and the doors remain locked. You must use your
remote keyless entry transmitter or your key to
unlock the doors when the system is armed.
Arming with the Power Lock Switch
The alarm system will arm when you use either
power lock switch to lock the doors while any door
or the trunk is open and the key is removed
from the ignition.
Arming with the Remote Keyless
Entry Transmitter
The alarm system will arm when you use your
remote keyless entry transmitter to lock the doors,
if the key is not in the ignition.
111

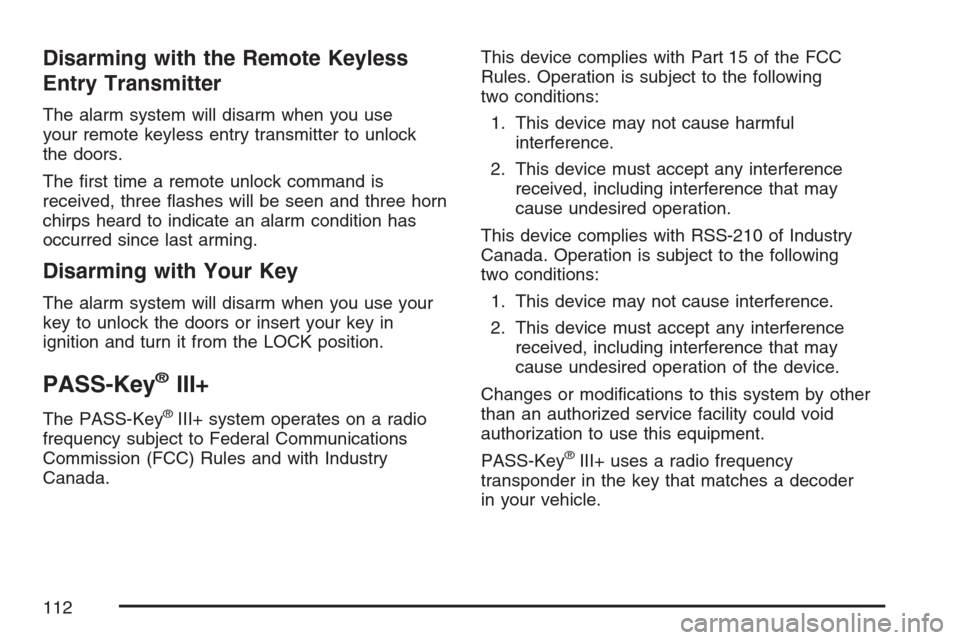

Disarming with the Remote Keyless
Entry Transmitter
The alarm system will disarm when you use
your remote keyless entry transmitter to unlock
the doors.
The rst time a remote unlock command is
received, three ashes will be seen and three horn
chirps heard to indicate an alarm condition has
occurred since last arming.
Disarming with Your Key
The alarm system will disarm when you use your
key to unlock the doors or insert your key in
ignition and turn it from the LOCK position.
PASS-Key®III+
The PASS-Key®III+ system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry
Canada.This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
PASS-Key
®III+ uses a radio frequency
transponder in the key that matches a decoder
in your vehicle.
112
