2007.5 PEUGEOT 607 Owners Manual

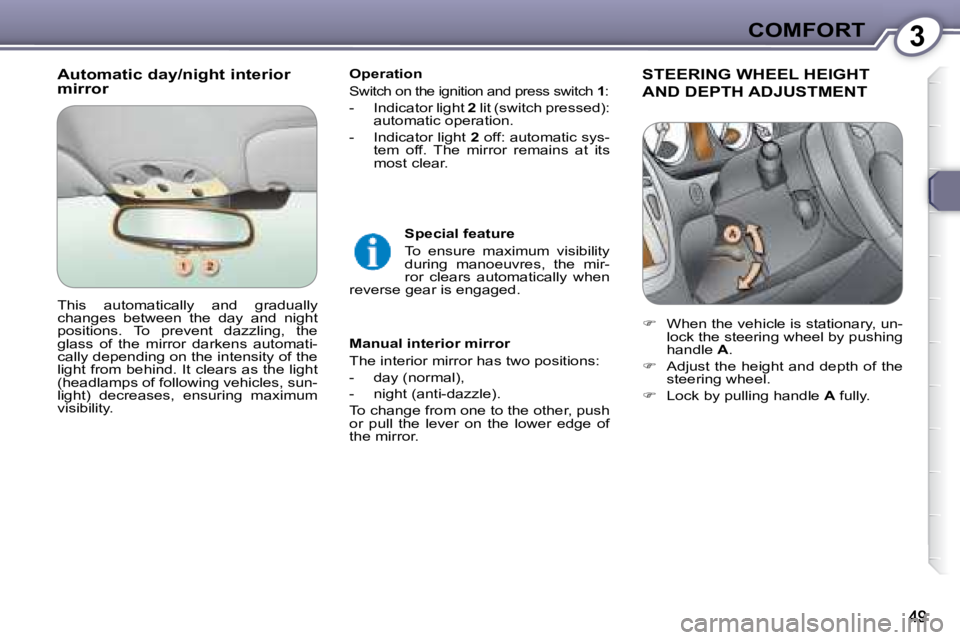

3COMFORT
Automatic day/night interior
mirror Operation

Switch on the ignition and press switch
1 :
- Indicator light 2 lit (switch pressed):
automatic operation.
- Indicator light 2 off: automatic sys-
tem off. The mirror remains at its
most clear.
Special feature
To ensure maximum visibility
during manoeuvres, the mir-
ror clears automatically when
reverse gear is engaged.
Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
This automatically and gradually
changes between the day and night
positions. To prevent dazzling, the
glass of the mirror darkens automati-
cally depending on the intensity of the
light from behind. It clears as the light
(headlamps of following vehicles, sun-
light) decreases, ensuring maximum
visibility.
 When the vehicle is stationary, un-
lock the steering wheel by pushing
handle A .

 Adjust the height and depth of the
steering wheel.

 Lock by pulling handle A fully.

3COMFORT
Automatic day/night interior
mirror Operation

Switch on the ignition and press switch
1 :
- Indicator light 2 lit (switch pressed):
automatic operation.
- Indicator light 2 off: automatic sys-
tem off. The mirror remains at its
most clear.
Special feature
To ensure maximum visibility
during manoeuvres, the mir-
ror clears automatically when
reverse gear is engaged.
Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
This automatically and gradually
changes between the day and night
positions. To prevent dazzling, the
glass of the mirror darkens automati-
cally depending on the intensity of the
light from behind. It clears as the light
(headlamps of following vehicles, sun-
light) decreases, ensuring maximum
visibility.
 When the vehicle is stationary, un-
lock the steering wheel by pushing
handle A .

 Adjust the height and depth of the
steering wheel.

 Lock by pulling handle A fully.

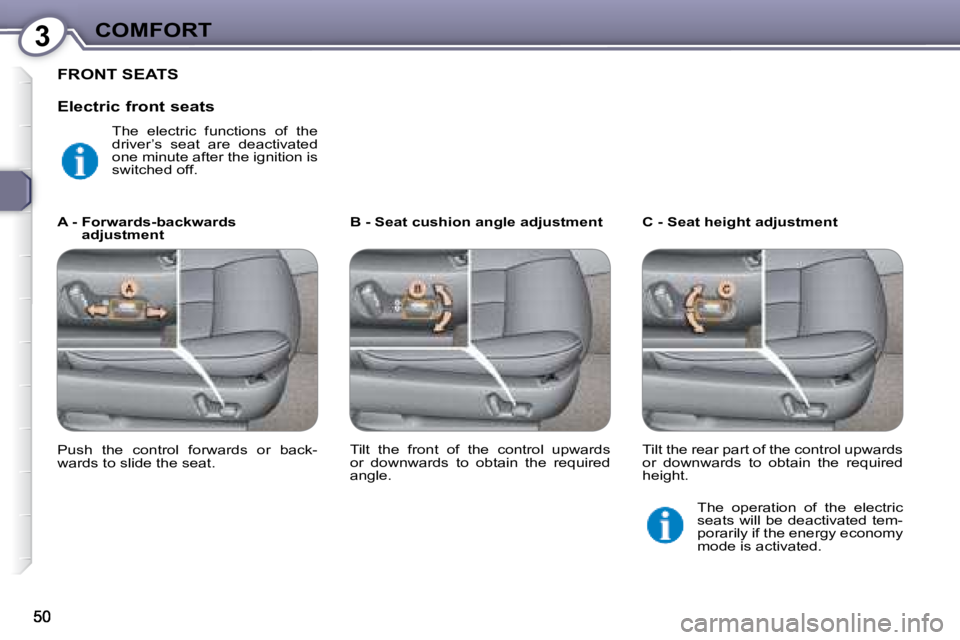

3COMFORT
FRONT SEATS
B - Seat cushion angle adjustment C - Seat height adjustment
A - Forwards-backwards
adjustment
Push the control forwards or back-
wards to slide the seat. Tilt the front of the control upwards
or downwards to obtain the required
angle. Tilt the rear part of the control upwards
or downwards to obtain the required
height.
Electric front seats
The electric functions of the
driver’s seat are deactivated
one minute after the ignition is
switched off.
The operation of the electric
seats will be deactivated tem-
porarily if the energy economy
mode is activated.

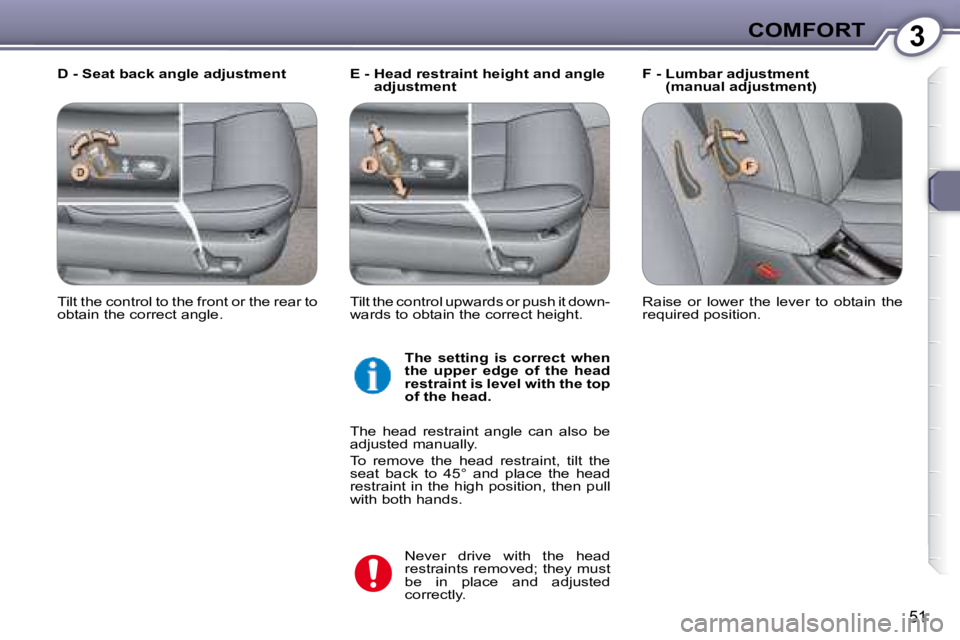

3COMFORT
51
E - Head restraint height and angle adjustment F - Lumbar adjustment
(manual adjustment)
D - Seat back angle adjustment
Never drive with the head
restraints removed; they must
be in place and adjusted
correctly.
Tilt the control to the front or the rear to
obtain the correct angle.

Tilt the control upwards or push it down-
wards to obtain the correct height.
Raise or lower the lever to obtain the
required position.

The setting is correct when
the upper edge of the head
restraint is level with the top
of the head.
The head restraint angle can also be
adjusted manually.
To remove the head restraint, tilt the
seat back to 45° and place the head
restraint in the high position, then pull
with both hands.

3COMFORT
52
Memorising driving and mirror
positions
Memorising using the controls on
the driver’s door
To memorise:

 Place the key in the ignition on po-
sition,

 Adjust your seat and mirrors,

 Press button M , then button 1 "i rst
driving position" or button 2 "sec-
ond driving position" within four
seconds.
An audible signal coni rms that a posi-
tion has been memorised.
Memorising a new position cancels
the previous one. Recalling a memorised driving
position
Ignition on, vehicle stationary

 Briel y press button 1 or 2 to recall
the corresponding memorised
position. The end of the setting is
indicated by a bleep.
After recalling a memorised position
a few times in succession, the func-
tion will be cancelled until the engine
is started.
G - Heated seats adjustment
With the engine running, use the cor-
responding adjustment dial to select
the required degree of heating:
0:
Off.
1: Low.

2: Medium.
3: High. The electrical adjustments of the seat
and exterior mirrors are memorised.
Two driving positions can be memo-
rised using buttons
M/1 and M/2 . Vehicle moving

 Keep button 1 or 2 pressed down
until the bleep indicates that setting
of the corresponding memorised
position is complete.

3COMFORT
52
Memorising driving and mirror
positions
Memorising using the controls on
the driver’s door
To memorise:

 Place the key in the ignition on po-
sition,

 Adjust your seat and mirrors,

 Press button M , then button 1 "i rst
driving position" or button 2 "sec-
ond driving position" within four
seconds.
An audible signal coni rms that a posi-
tion has been memorised.
Memorising a new position cancels
the previous one. Recalling a memorised driving
position
Ignition on, vehicle stationary

 Briel y press button 1 or 2 to recall
the corresponding memorised
position. The end of the setting is
indicated by a bleep.
After recalling a memorised position
a few times in succession, the func-
tion will be cancelled until the engine
is started.
G - Heated seats adjustment
With the engine running, use the cor-
responding adjustment dial to select
the required degree of heating:
0:
Off.
1: Low.

2: Medium.
3: High. The electrical adjustments of the seat
and exterior mirrors are memorised.
Two driving positions can be memo-
rised using buttons
M/1 and M/2 . Vehicle moving

 Keep button 1 or 2 pressed down
until the bleep indicates that setting
of the corresponding memorised
position is complete.

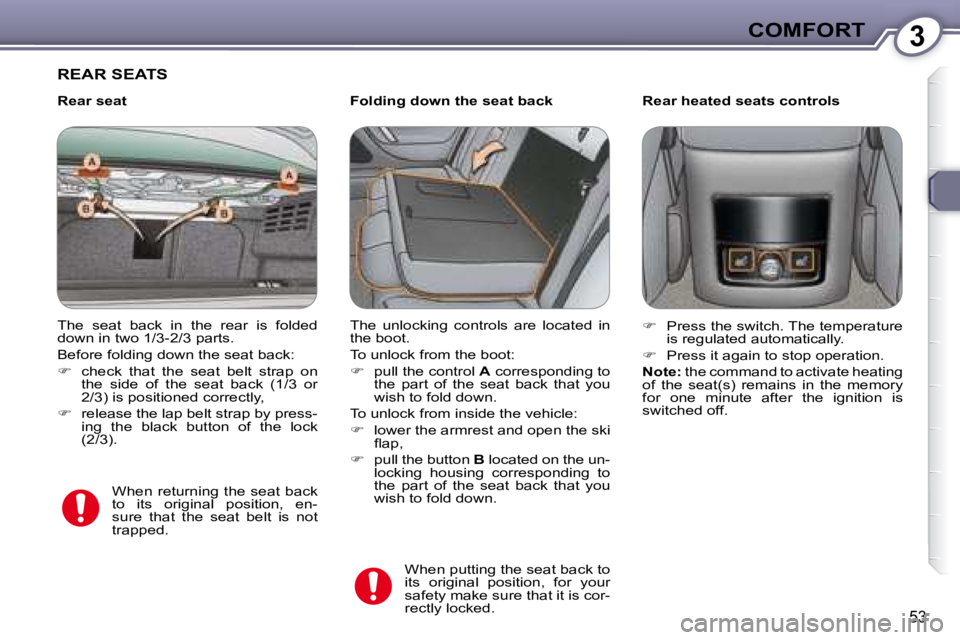

3COMFORT
53
REAR SEATS
Folding down the seat back Rear heated seats controls
The seat back in the rear is folded
down in two 1/3-2/3 parts.
Before folding down the seat back:

 check that the seat belt strap on
the side of the seat back (1/3 or
2/3) is positioned correctly,

 release the lap belt strap by press-
ing the black button of the lock
(2/3).
 Press the switch. The temperature
is regulated automatically.

 Press it again to stop operation.

Note: the command to activate heating
of the seat(s) remains in the memory
for one minute after the ignition is
switched off.
The unlocking controls are located in
the boot.
To unlock from the boot:

 pull the control A corresponding to
the part of the seat back that you
wish to fold down.
To unlock from inside the vehicle:

 lower the armrest and open the ski
l ap,

 pull the button B located on the un-
locking housing corresponding to
the part of the seat back that you
wish to fold down.
Rear seat
When returning the seat back
to its original position, en-
sure that the seat belt is not
trapped. When putting the seat back to
its original position, for your
safety make sure that it is cor-
rectly locked.

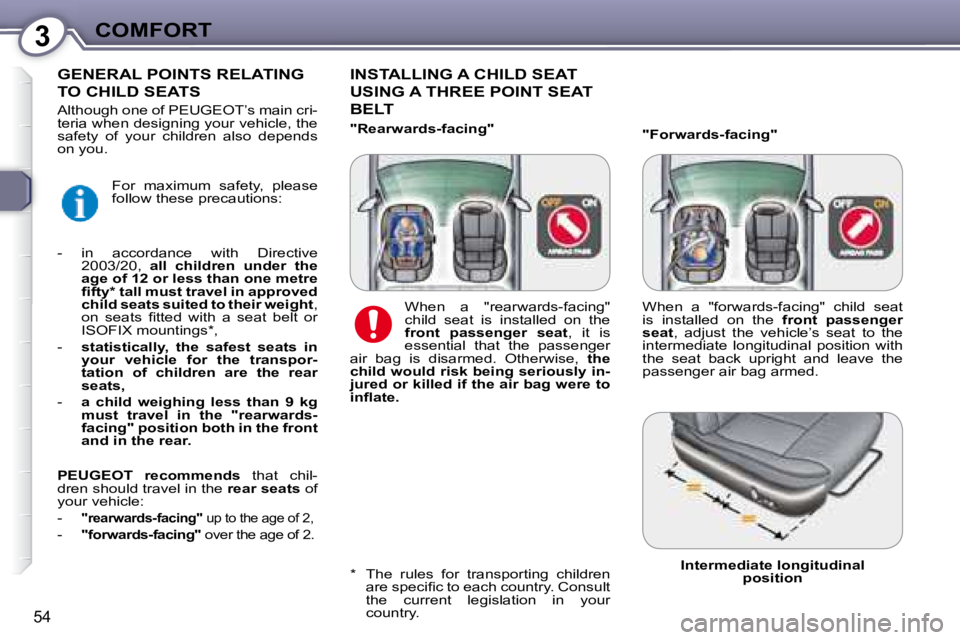

3COMFORT
54
"Forwards-facing"
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
GENERAL POINTS RELATING
TO CHILD SEATS
* The rules for transporting children are specii c to each country. Consult the current legislation in your country.
Intermediate longitudinalposition
When a "rearwards-facing"
child seat is installed on the

front passenger seat , it is
essential that the passenger
air bag is disarmed. Otherwise, the
child would risk being seriously in-
jured or killed if the air bag were to
inl ate. When a "forwards-facing" child seat
is installed on the
front passenger
seat , adjust the vehicle’s seat to the
intermediate longitudinal position with
the seat back upright and leave the
passenger air bag armed.
For maximum safety, please
follow these precautions:
- in accordance with Directive 2003/20, all children under the
age of 12 or less than one metre
i fty * tall must travel in approved
child seats suited to their weight ,
on seats i tted with a seat belt or
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transpor-
tation of children are the rear
seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.

PEUGEOT recommends that chil-
dren should travel in the rear seats of
your vehicle:
-

"rearwards-facing" up to the age of 2,
-
"forwards-facing" over the age of 2.
Although one of PEUGEOT’s main cri-
teria when designing your vehicle, the
safety of your children also depends
on you.
"Rearwards-facing"
