2007.5 PEUGEOT 607 Owners Manual

02
125

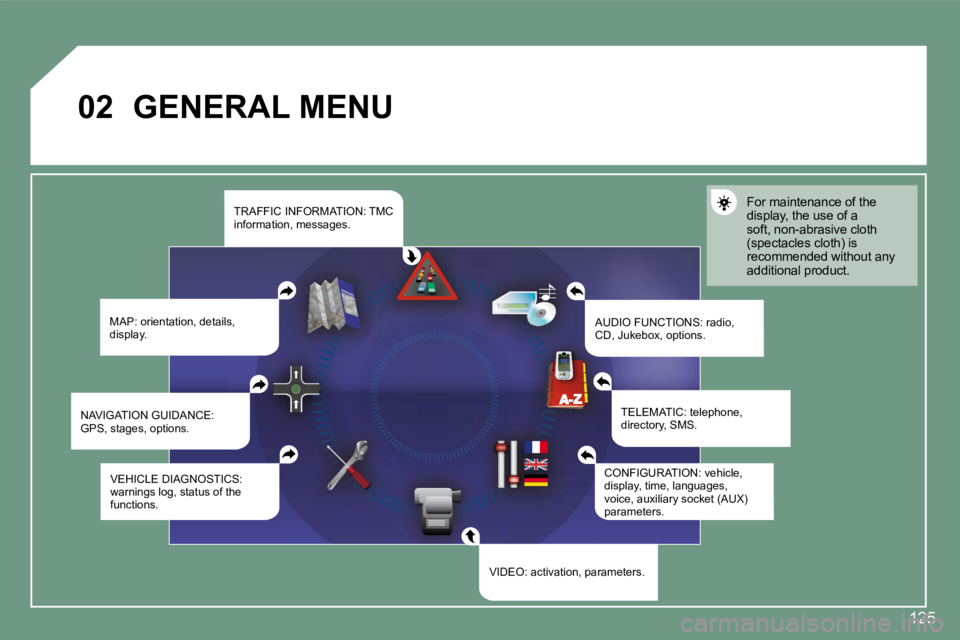

GENERAL MENU
MAP: orientation, details,
display. AUDIO FUNCTIONS: radio,
CD, Jukebox, options.For maintenance of the
display, the use of a
soft, non-abrasive cloth
(spectacles cloth) is
recommended without any
additional product.
TELEMATIC: telephone,
directory, SMS.
CONFIGURATION: vehicle,
display, time, languages,
voice, auxiliary socket (AUX)
parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS:
warnings log, status of the
functions.
NAVIGATION GUIDANCE:
GPS, stages, options. TRAFFIC INFORMATION: TMC
information, messages.

1
2
35
7
4 6
8
03
126

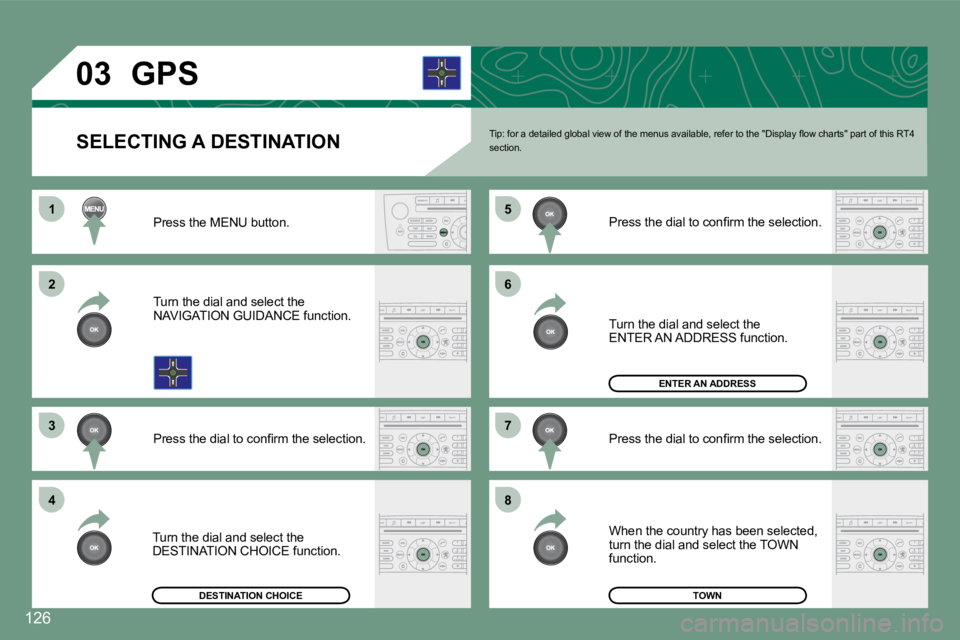

SELECTING A DESTINATION
Tip: for a detailed global view of the menus availa
ble, refer to the "Display low charts" part of this RT4
section.
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to conirm the selection.
Turn the dial and select the
DESTINATION CHOICE function. Press the dial to conirm the selection.
Press the dial to conirm the selection.
Turn the dial and select the
ENTER AN ADDRESS function.
When the country has been selected,
turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE
GPS

9
11 12
13
15
10
14
127

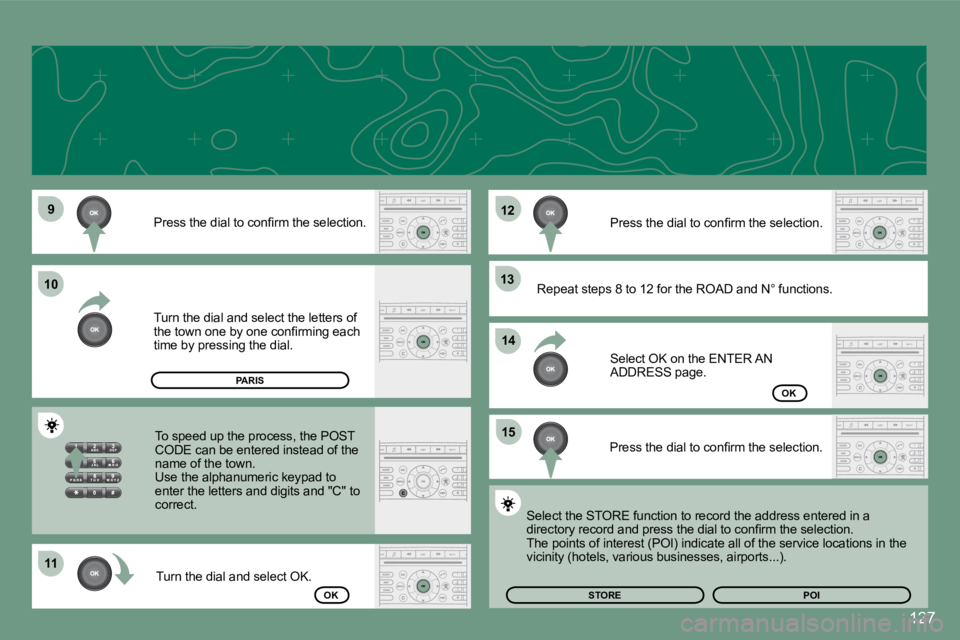

Press the dial to conirm the selection.
Turn the dial and select the letters of
the town one by one conirming each
time by pressing the dial.
Turn the dial and select OK. Press the dial to conirm the selection.
To speed up the process, the POST
CODE can be entered instead of the
name of the town.
Use the alphanumeric keypad to
enter the letters and digits and "C" to
correct. Press the dial to conirm the selection.Select OK on the ENTER AN
ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions.
OK
OK
Select the STORE function to record the address ent
ered in a
directory record and press the dial to conirm the s election.
The points of interest (POI) indicate all of the se rvice locations in the
vicinity (hotels, various businesses, airports...).STORE
PARIS
POI

1
2
3
4 5
6
7
8
03
128

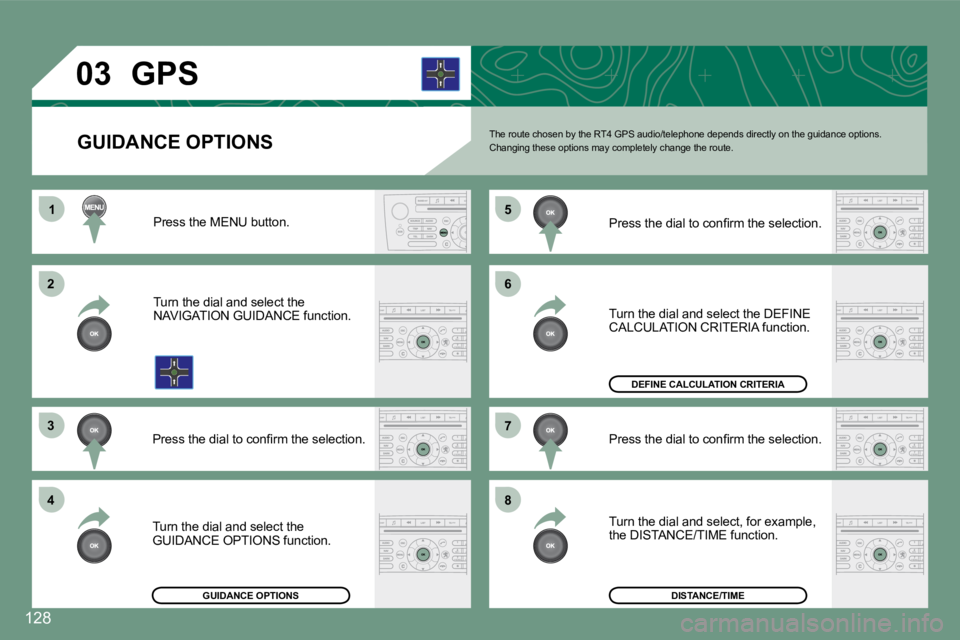

GUIDANCE OPTIONS
GPS
The route chosen by the RT4 GPS audio/telephone depends directly on the guidance options.
Changing these options may completely change the ro ute.
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to conirm the selection.
Turn the dial and select the
GUIDANCE OPTIONS function. Turn the dial and select the DEFINE
CALCULATION CRITERIA function.
Press the dial to conirm the selection.
Press the dial to conirm the selection.
GUIDANCE OPTIONSDISTANCE/TIME
DEFINE CALCULATION CRITERIA
Turn the dial and select, for example,
the DISTANCE/TIME function.

9
10
11
12 1
2
3
4
5
129

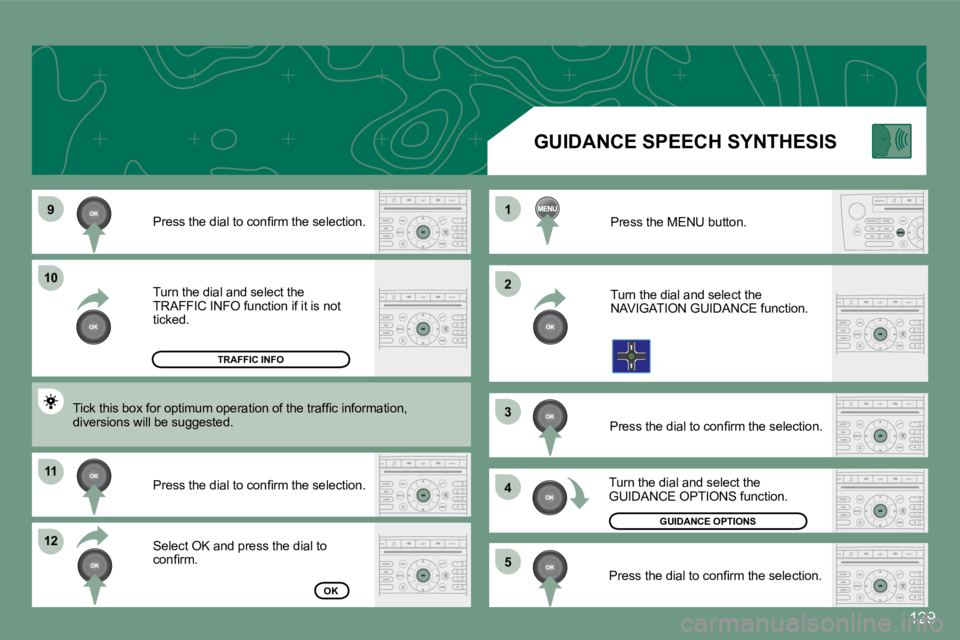

Turn the dial and select the
TRAFFIC INFO function if it is not
ticked.
Press the dial to conirm the selection.
Select OK and press the dial to
conirm.
TRAFFIC INFO
Press the dial to conirm the selection.
Tick this box for optimum operation of the trafic i
nformation,
diversions will be suggested.
OK GUIDANCE SPEECH SYNTHESIS
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to conirm the selection.
GUIDANCE OPTIONS
Turn the dial and select the
GUIDANCE OPTIONS function.
Press the dial to conirm the selection.

6
81
2
3
4
7
03
130

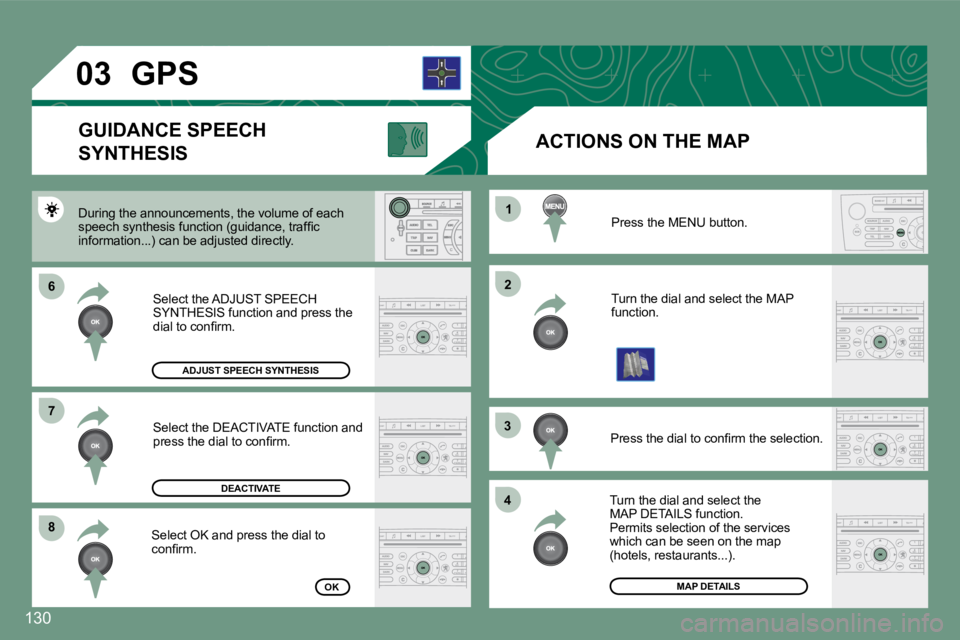

Press the MENU button.
Turn the dial and select the MAP
function.
Press the dial to conirm the selection.
Turn the dial and select the
MAP DETAILS function.
Permits selection of the services
which can be seen on the map
(hotels, restaurants...).
ACTIONS ON THE MAP
MAP DETAILS
During the announcements, the volume of each
speech synthesis function (guidance, trafic
information...) can be adjusted directly.
GUIDANCE SPEECH
SYNTHESIS
Select the ADJUST SPEECH
SYNTHESIS function and press the
dial to conirm.
GPS
ADJUST SPEECH SYNTHESIS
DEACTIVATE
Select the DEACTIVATE function and
press the dial to conirm.
OK
Select OK and press the dial to
conirm.

1
2
3
45
6
7
03
131

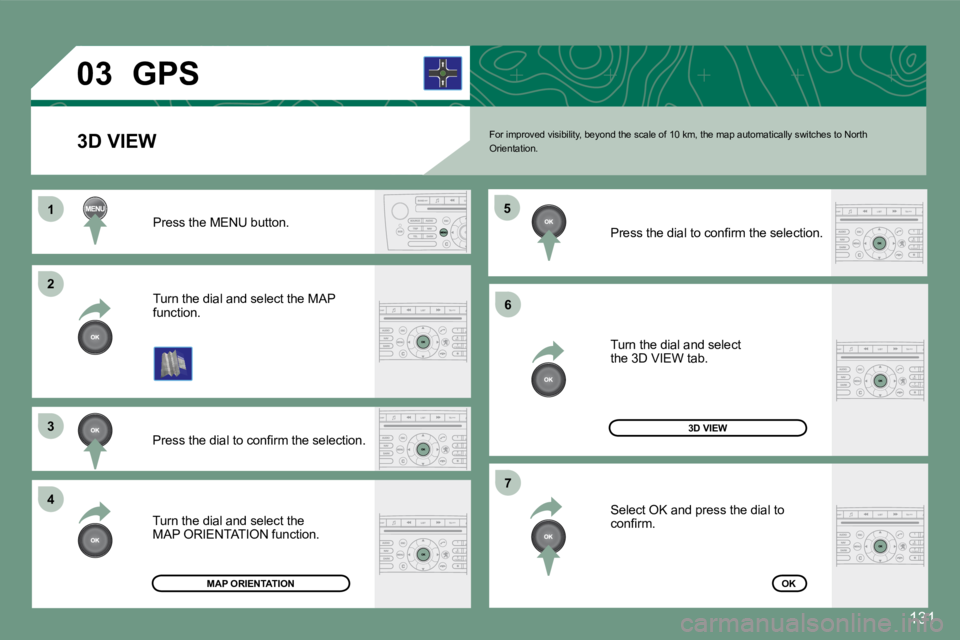

For improved visibility, beyond the scale of 10 km,
the map automatically switches to North
Orientation.
Turn the dial and select the MAP
function.
Press the MENU button.
Press the dial to conirm the selection.
Turn the dial and select
the 3D VIEW tab.
Turn the dial and select the
MAP ORIENTATION function.
Press the dial to conirm the selection.
3D VIEW
GPS
MAP ORIENTATION
3D VIEW
OK
Select OK and press the dial to
conirm.

2
3
4
15
6
7
03
132

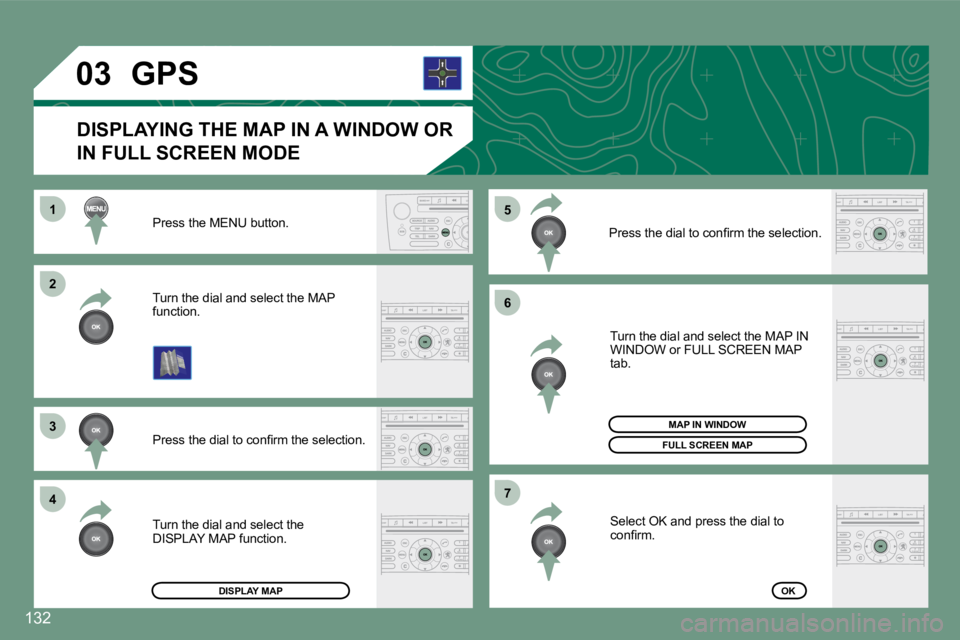

Press the MENU button.
Press the dial to conirm the selection.
Turn the dial and select the MAP
function.
Turn the dial and select the MAP IN
WINDOW or FULL SCREEN MAP
tab.
Select OK and press the dial to
conirm.
Press the dial to conirm the selection.
Turn the dial and select the
DISPLAY MAP function.
DISPLAYING THE MAP IN A WINDOW OR
IN FULL SCREEN MODE
GPS
DISPLAY MAP
FULL SCREEN MAP
OK
MAP IN WINDOW
