2007.5 PEUGEOT 607 Owners Manual

FAMILIARISATION

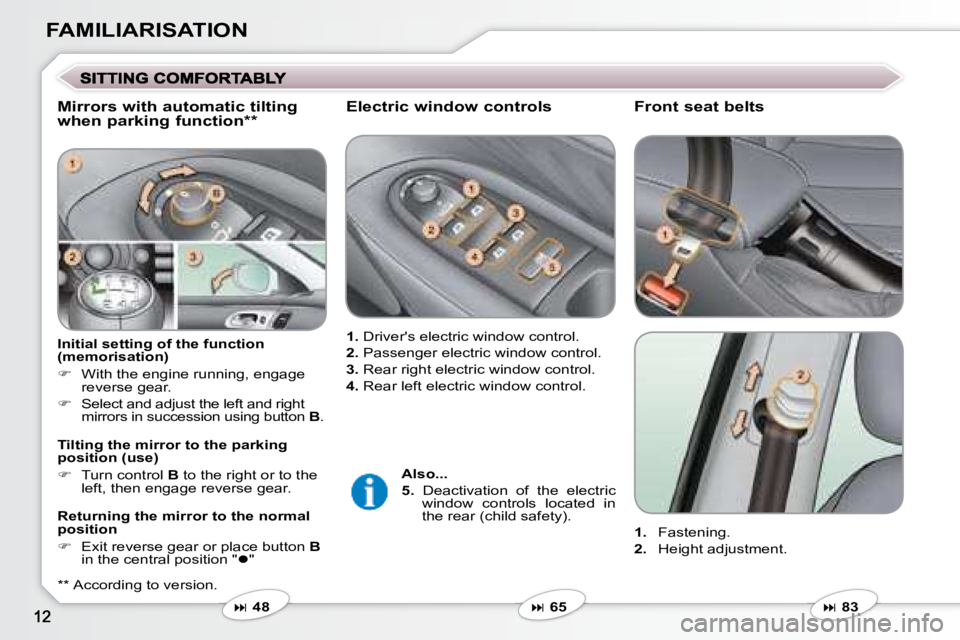

Front seat belts

 65
Electric window controls

1. Driver's electric window control.

2. Passenger electric window control.

3. Rear right electric window control.

4. Rear left electric window control.

Also...

5. Deactivation of the electric
window controls located in
the rear (child safety).

 83

1. Fastening.

2. Height adjustment.
Mirrors with automatic tilting
when parking function **
Initial setting of the function
(memorisation)

 With the engine running, engage
reverse gear.

 Select and adjust the left and right
mirrors in succession using button B .

 48
** According to version.
Tilting the mirror to the parking
position (use)

 Turn control B to the right or to the
left, then engage reverse gear.
Returning the mirror to the normal
position

 Exit reverse gear or place button B
in the central position "  "

FAMILIARISATION

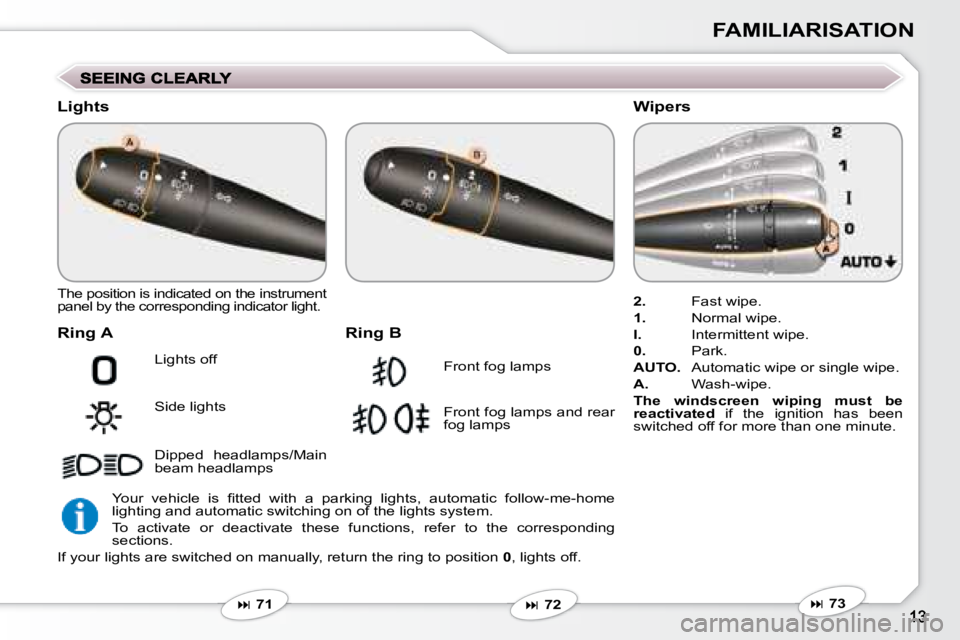

The position is indicated on the instrument
panel by the corresponding indicator light.
Ring A Lights off
Side lights
Dipped headlamps/Main
beam headlamps Ring B
Front fog lamps
Front fog lamps and rear
fog lamps
2. Fast wipe.

1. Normal wipe.

I. Intermittent wipe.

0. Park.

AUTO. Automatic wipe or single wipe.

A. Wash-wipe.

The windscreen wiping must be
reactivated if the ignition has been
switched off for more than one minute.
Lights
Wipers

 72
 73
Your vehicle is i tted with a parking lights, automatic fol
low-me-home
lighting and automatic switching on of the lights system.
To activate or deactivate these functions, refer to the correspo nding
sections.
If your lights are switched on manually, return the ring to position 0 , lights off.

 71

FAMILIARISATION

1. Driver's automatic comfort
programme.

2. Passenger automatic
comfort programme.

3. Driver's temperature
adjustment.

4. Passenger temperature
adjustment.

5. Air l ow adjustment.

6. System off.

7. Passenger air distribution
adjustment.
8. Driver's air distribution
adjustment.

9. Automatic visibility
programme (demisting).

10. Air intake/air recirculation.
11. Rear screen and exterior
mirrors demisting.

12. Air conditioning on/off (A/C).

 44
Dual zone automatic air
conditioning
Use of the automatic regulation of the
air conditioning is recommended.

FAMILIARISATION

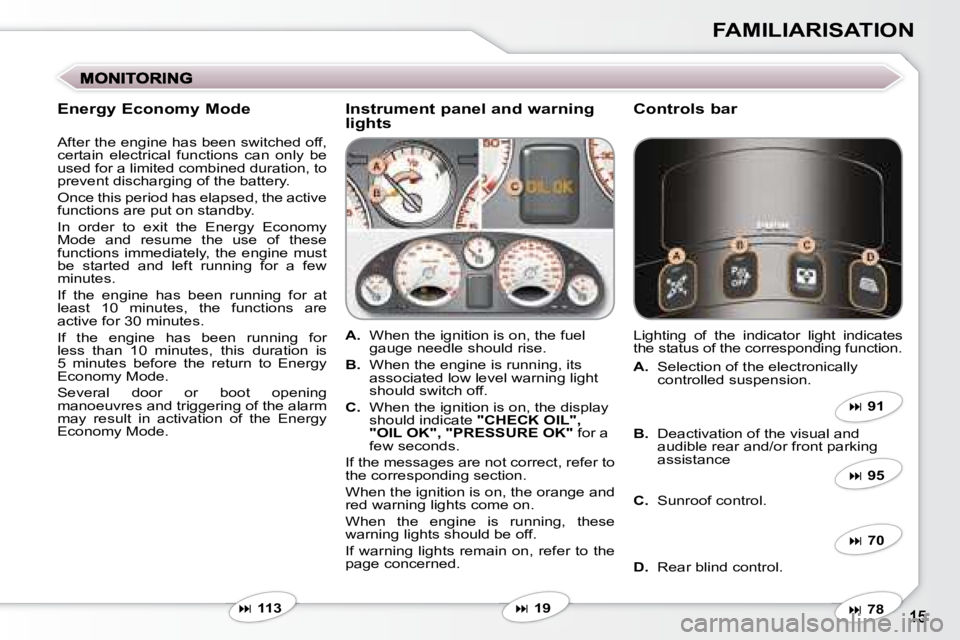

Instrument panel and warning
lights Controls bar

A. When the ignition is on, the fuel
gauge needle should rise.

B. When the engine is running, its
associated low level warning light
should switch off.

C. When the ignition is on, the display
should indicate "CHECK OIL",
"OIL OK", "PRESSURE OK" for a
few seconds.
If the messages are not correct, refer to
the corresponding section.
When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should be off.
If warning lights remain on, refer to the
page concerned. Lighting of the indicator light indicates
the status of the corresponding function.

 19
 91

A. Selection of the electronically
controlled suspension.

B. Deactivation of the visual and
audible rear and/or front parking
assistance

C. Sunroof control.

D. Rear blind control.
 95

 70

 78
Energy Economy Mode

 113
After the engine has been switched off,
certain electrical functions can only be
used for a limited combined duration, to
prevent discharging of the battery.
Once this period has elapsed, the active
functions are put on standby.
In order to exit the Energy Economy
Mode and resume the use of these
functions immediately, the engine must
be started and left running for a few
minutes.
If the engine has been running for at
least 10 minutes, the functions are
active for 30 minutes.
If the engine has been running for
less than 10 minutes, this duration is
5 minutes before the return to Energy
Economy Mode.
Several door or boot opening
manoeuvres and triggering of the alarm
may result in activation of the Energy
Economy Mode.

FAMILIARISATION

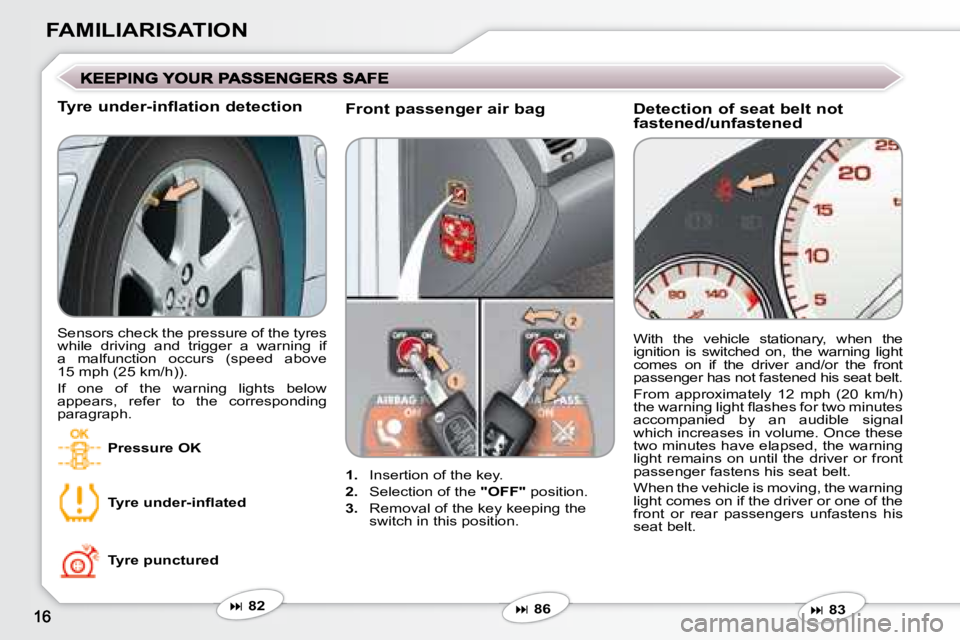

Front passenger air bag

1. Insertion of the key.

2. Selection of the "OFF" position.

3. Removal of the key keeping the
switch in this position. With the vehicle stationary, when the
ignition is switched on, the warning light
comes on if the driver and/or the front
passenger has not fastened his seat belt.
From approximately 12 mph (20 km/h)
the warning light l ashes for two minutes
accompanied by an audible signal
which increases in volume. Once these
two minutes have elapsed, the warning
light remains on until the driver or front
passenger fastens his seat belt.
When the vehicle is moving, the warning
light comes on if the driver or one of the
front or rear passengers unfastens his
seat belt.
Detection of seat belt not
fastened/unfastened

 86

 83
Tyre under-inflation detection
Sensors check the pressure of the tyres
while driving and trigger a warning if
a malfunction occurs (speed above
15 mph (25 km/h)).
If one of the warning lights below
appears, refer to the corresponding
paragraph.

 82
Pressure OK
Tyre under-inl ated
Tyre punctured

FAMILIARISATION

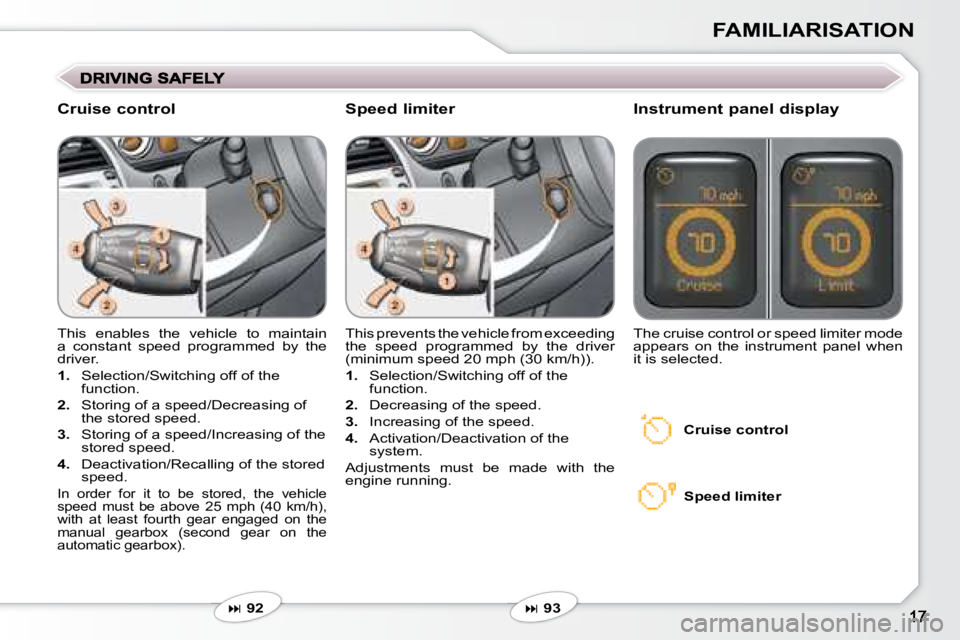

This enables the vehicle to maintain
a constant speed programmed by the
driver.

1. Selection/Switching off of the
function.

2. Storing of a speed/Decreasing of
the stored speed.

3. Storing of a speed/Increasing of the
stored speed.

4. Deactivation/Recalling of the stored
speed.

In order for it to be stored, the vehicle
speed must be above 25 mph (40 km/h),
with at least fourth gear engaged on the
manual gearbox (second gear on the
automatic gearbox).
This prevents the vehicle from exceeding
the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).

1. Selection/Switching off of the
function.

2. Decreasing of the speed.

3. Increasing of the speed.

4. Activation/Deactivation of the
system.
Adjustments must be made with the
engine running.

 92
 93
Cruise control
Instrument panel display
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
Speed limiter
Cruise control Speed limiter

FAMILIARISATION

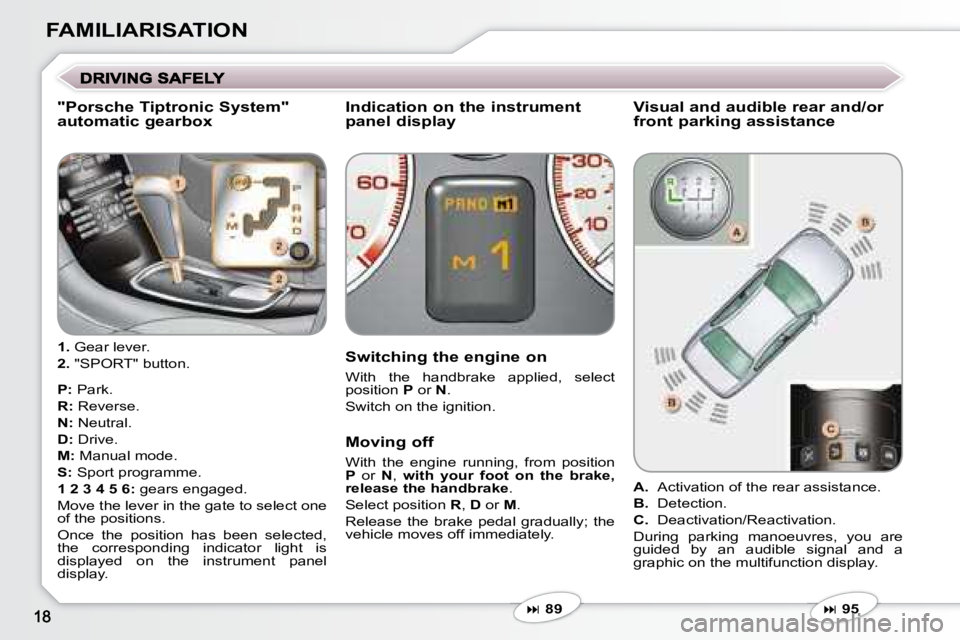

"Porsche Tiptronic System"
automatic gearbox Indication on the instrument
panel display

 95
Visual and audible rear and/or
front parking assistance
Switching the engine on
With the handbrake applied, select
position P or N .
Switch on the ignition.
Moving off
With the engine running, from position

P or N , with your foot on the brake,
release the handbrake .
Select position R , D or M .
Release the brake pedal gradually; the
vehicle moves off immediately.

 89
A. Activation of the rear assistance.

B. Detection.

C. Deactivation/Reactivation.
During parking manoeuvres, you are
guided by an audible signal and a
graphic on the multifunction display.

1. Gear lever.

2. "SPORT" button.

P: Park.

R: Reverse.

N: Neutral.

D: Drive.

M: Manual mode.

S: Sport programme.

1 2 3 4 5 6: gears engaged.
Move the lever in the gate to select one
of the positions.
Once the position has been selected,
the corresponding indicator light is
displayed on the instrument panel
display.

1
PETROL MANUAL AND AUTOMATIC GEARBOXES INSTRUMENT
PANEL

1. Engine oil temperature indicator.

2. Handbrake, low brake l uid
level and electronic brake force
distribution warning light.

3. Seat belt not fastened/ unfastened
warning light.

4. Dipped headlamps indicator light.

5. Main beam headlamps indicator
light.

6. Lighting rheostat buttons.

7. Rev counter.

8. Anti-lock braking system (ABS)
warning light.

9. Emission control system warning
light.
10. Left direction indicator.

11. Low fuel level warning light.

12. Fuel gauge.

13. Functions display screen:
- Check.
- Engine oil level gauge.
- Warning and status indicator lights.
- Cruise control/speed limiter.
- Automatic gearbox.
- Trip computer.
- Satellite navigation system.
14. Right direction indicator.

15. Speedometer.

16. Service indicator, total and trip
distance recorders.

17. Trip distance recorder zero reset
button.

18. Manual check button.

19. Rear fog lamps indicator light.

20. Front fog lamps indicator light.

21. Passenger air bag disarmed
warning light * .

22. Coolant temperature indicator.
* According to country. 19
