2007.5 PEUGEOT 607 Owners Manual

154

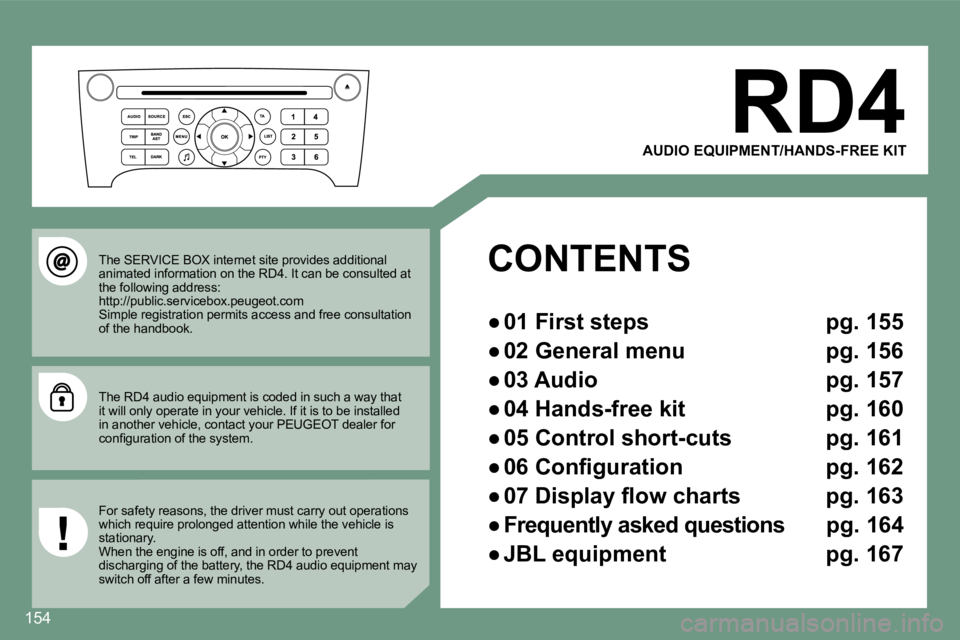

RD4
AUDIO EQUIPMENT/HANDS-FREE KIT
CONTENTS

1
5
10
8
23
15
46
16
13
7911
1412
01
155

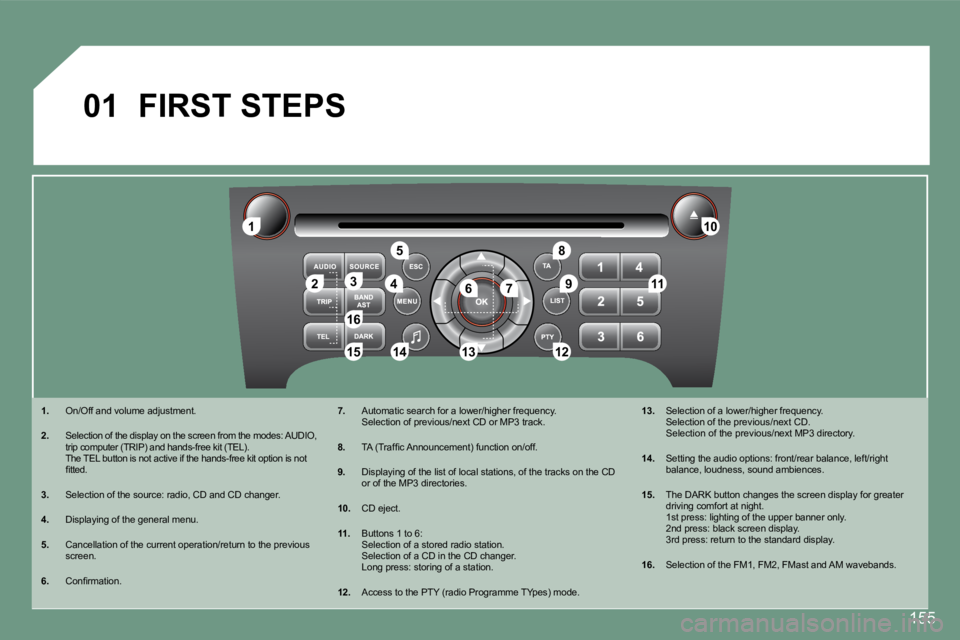

FIRST STEPS
1. On/Off and volume adjustment.
2. Selection of the display on the screen from the mo des: AUDIO,
trip computer (TRIP) and hands-free kit (TEL).
The TEL button is not active if the hands-free kit option is not
itted.
3. Selection of the source: radio, CD and CD changer.
4. Displaying of the general menu.
5. Cancellation of the current operation/return to th e previous
screen.
6. Conirmation. 7.
Automatic search for a lower/higher frequency.
Selection of previous/next CD or MP3 track.
8. TA (Trafic Announcement) function on/off.
9. Displaying of the list of local stations, of the t racks on the CD
or of the MP3 directories.
10. CD eject.
11. Buttons 1 to 6:
Selection of a stored radio station.
Selection of a CD in the CD changer.
Long press: storing of a station.
12. Access to the PTY (radio Programme TYpes) mode. 13.
Selection of a lower/higher frequency.
Selection of the previous/next CD.
Selection of the previous/next MP3 directory.
14. Setting the audio options: front/rear balance, lef t/right
balance, loudness, sound ambiences.
15. The DARK button changes the screen display for gre ater
driving comfort at night.
1st press: lighting of the upper banner only.
2nd press: black screen display.
3rd press: return to the standard display.
16. Selection of the FM1, FM2, FMast and AM wavebands.

02
156

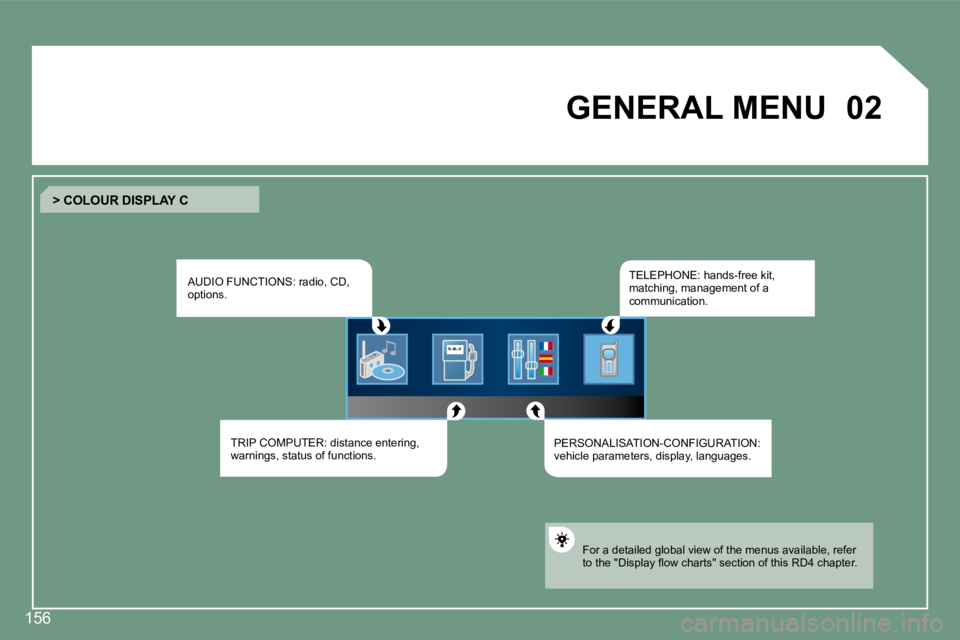

GENERAL MENU
AUDIO FUNCTIONS: radio, CD,
options. TRIP COMPUTER: distance entering,
warnings, status of functions. TELEPHONE: hands-free kit,
matching, management of a
communication.
PERSONALISATION-CONFIGURATION:
vehicle parameters, display, languages.
> COLOUR DISPLAY C
For a detailed global view of the menus available, refer
to the "Display low charts" section of this RD4 chapter.

1
2
3
4
2
4
3
1
03
157

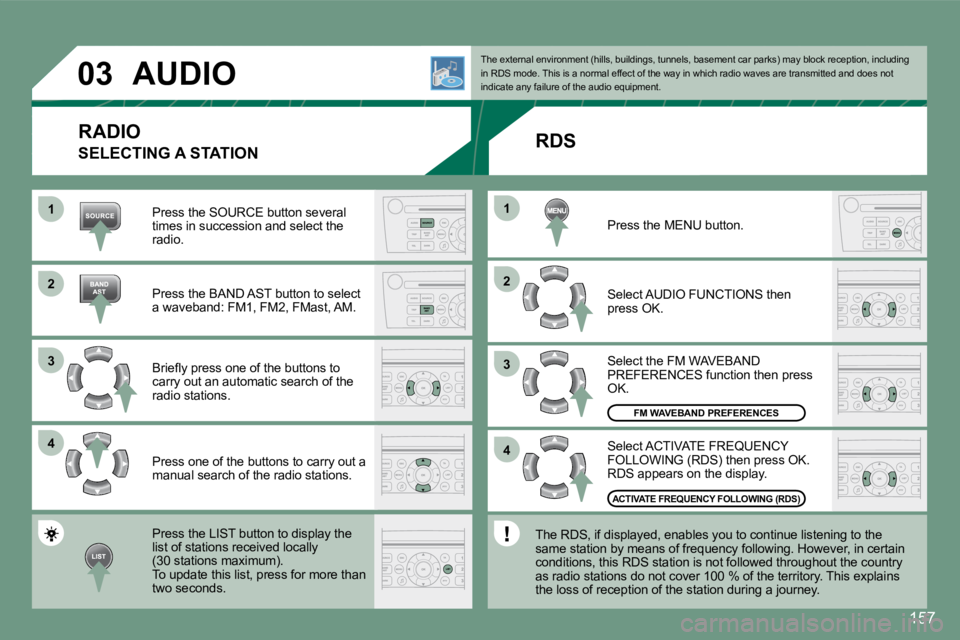

AUDIO
RADIO
Press the SOURCE button several
times in succession and select the
radio.
Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.
Briely press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out a
manual search of the radio stations.
Press the LIST button to display the
list of stations received locally
(30 stations maximum).
To update this list, press for more than
two seconds. The external environment (hills, buildings, tunnels
, basement car parks) may block reception, includin g
in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not
indicate any failure of the audio equipment.
RDS
Press the MENU button.
The RDS, if displayed, enables you to continue list ening to the
same station by means of frequency following. Howev er, in certain
conditions, this RDS station is not followed throug hout the country
as radio stations do not cover 100 % of the territo ry. This explains
the loss of reception of the station during a journ ey.
Select ACTIVATE FREQUENCY
FOLLOWING (RDS) then press OK.
RDS appears on the display.
Select the FM WAVEBAND
PREFERENCES function then press
OK.
Select AUDIO FUNCTIONS then
press OK.
FM WAVEBAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)
SELECTING A STATION

1
2
3
12
158

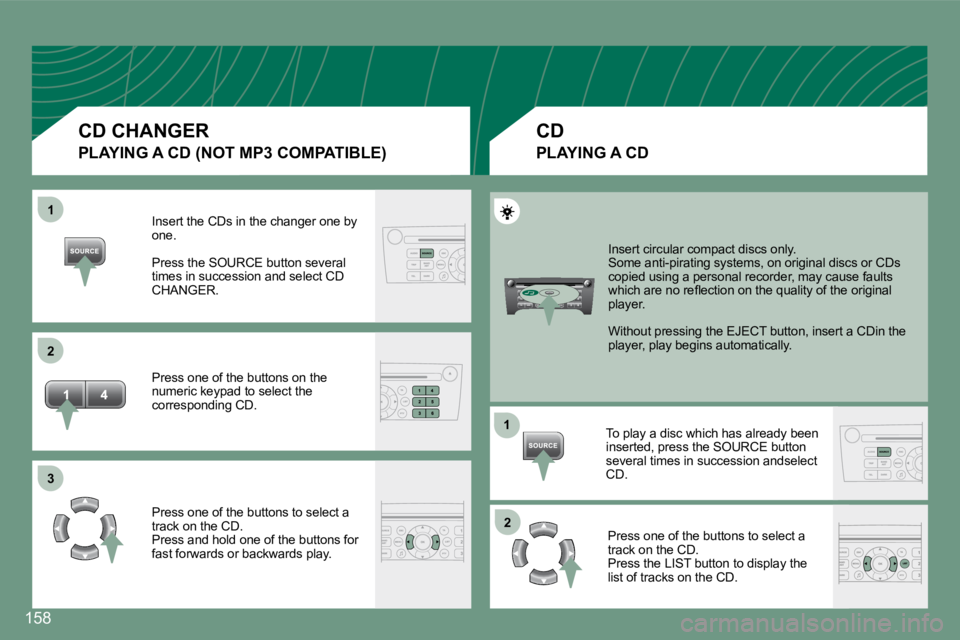

Insert the CDs in the changer one by
one.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
numeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forwards or backwards play. Insert circular compact discs only.
Some anti-pirating systems, on original discs or CD
s
copied using a personal recorder, may cause faults
which are no relection on the quality of the origin al
player.
Without pressing the EJECT button, insert a CDin th e
player, play begins automatically.
To play a disc which has already been
inserted, press the SOURCE button
several times in succession andselect
CD. Press one of the buttons to select a
track on the CD.
Press the LIST button to display the
list of tracks on the CD.
PLAYING A CD (NOT MP3 COMPATIBLE)
CD CHANGER
PLAYING A CD
CD

12
159

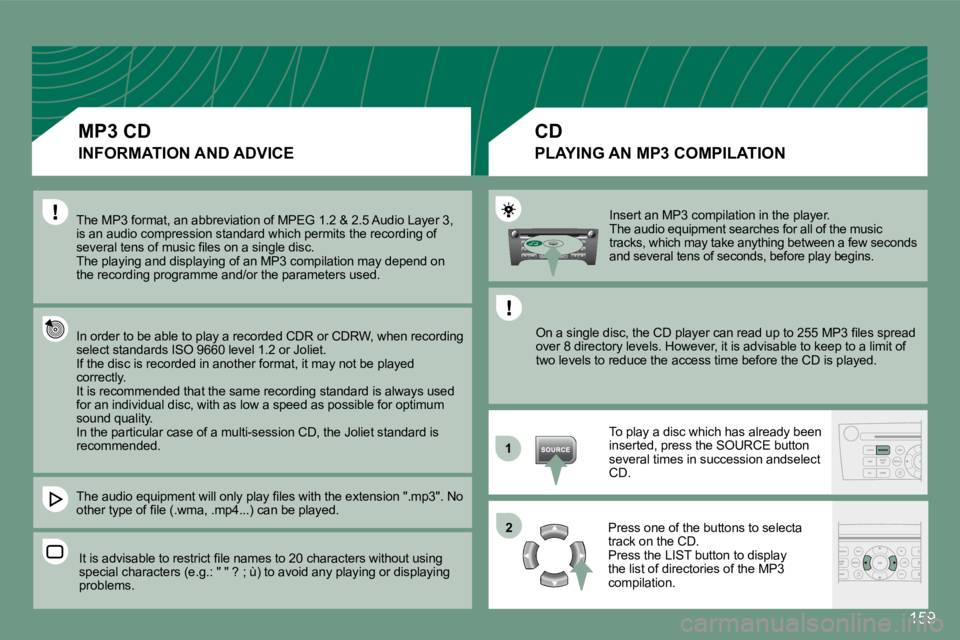

Insert an MP3 compilation in the player.
The audio equipment searches for all of the music
tracks, which may take anything between a few secon ds
and several tens of seconds, before play begins.
On a single disc, the CD player can read up to 255 MP3 iles spread
over 8 directory levels. However, it is advisable t o keep to a limit of
two levels to reduce the access time before the CD is played.
To play a disc which has already been
inserted, press the SOURCE button
several times in succession andselect
CD.
Press one of the buttons to selecta
track on the CD.
Press the LIST button to display
the list of directories of the MP3
compilation.
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 A
udio Layer 3,
is an audio compression standard which permits the recording of
several tens of music iles on a single disc.
The playing and displaying of an MP3 compilation ma y depend on
the recording programme and/or the parameters used.
In order to be able to play a recorded CDR or CDRW, when recording
select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may n ot be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as poss ible for optimum
sound quality.
In the particular case of a multi-session CD, the J oliet standard is
recommended.
The audio equipment will only play iles with the ex tension ".mp3". No
other type of ile (.wma, .mp4...) can be played.
It is advisable to restrict ile names to 20 charact ers without using
special characters (e.g.: " " ? ; ù) to avoid any p laying or displaying
problems.
INFORMATION AND ADVICE
MP3 CD
PLAYING AN MP3 COMPILATION
CD

1
2
31
2
5
1
04
160

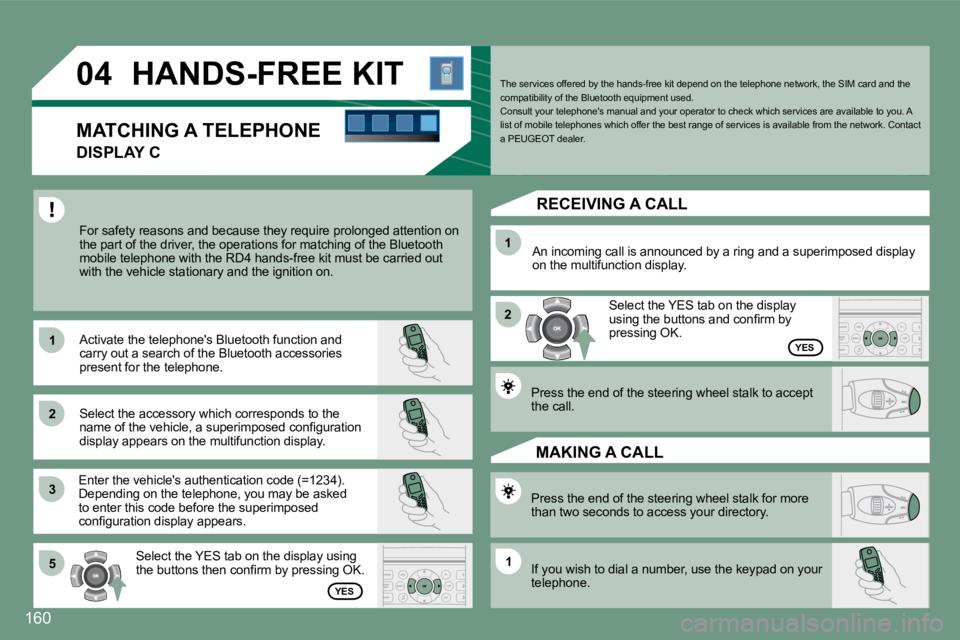

HANDS-FREE KIT
For safety reasons and because they require prolong ed attention on
the part of the driver, the operations for matching of the Bluetooth
mobile telephone with the RD4 hands-free kit must b e carried out
with the vehicle stationary and the ignition on.
Enter the vehicle's authentication code (=1234).
Depending on the telephone, you may be asked
to enter this code before the superimposed
coniguration display appears. Activate the telephone's Bluetooth function and
carry out a search of the Bluetooth accessories
present for the telephone.
Select the accessory which corresponds to the
name of the vehicle, a superimposed coniguration
display appears on the multifunction display. The services offered by the hands-free kit depend o
n the telephone network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator t o check which services are available to you. A
list of mobile telephones which offer the best rang e of services is available from the network. Contac t
a PEUGEOT dealer.
RECEIVING A CALL
Select the YES tab on the display using
the buttons then conirm by pressing OK. An incoming call is announced by a ring and a super
imposed display
on the multifunction display.
YES
YES
Select the YES tab on the display
using the buttons and conirm by
pressing OK.
Press the end of the steering wheel stalk to accept
the call.
Press the end of the steering wheel stalk for more
than two seconds to access your directory.
If you wish to dial a number, use the keypad on you r
telephone. MAKING A CALL
DISPLAY C
MATCHING A TELEPHONE

05
161

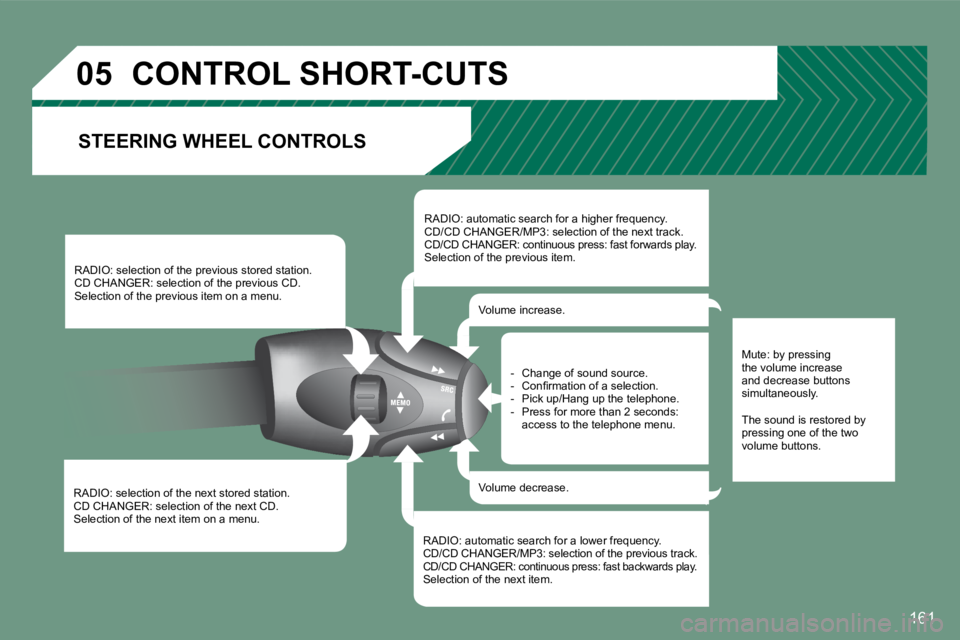

RADIO: selection of the next stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
CD/CD CHANGER: continuous press: fast forwards play
.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous track.
CD/CD CHANGER: continuous press: fast backwards pla y.Selection of the next item.Volume increase.
Volume decrease.
CONTROL SHORT-CUTS
Mute: by pressing
the volume increase
and decrease buttons
simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
- Change of sound source.
- Conirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
STEERING WHEEL CONTROLS
