2007.5 Peugeot 207 CC Dag Owner's Manual

i
COMFORT
43
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.

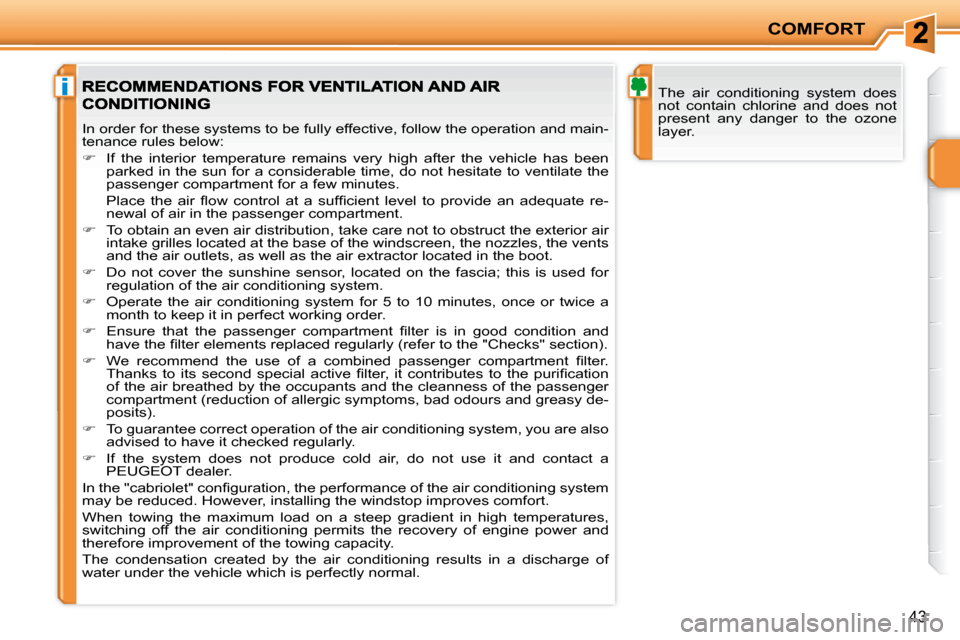

In order for these systems to be fully effective, follow the operation and main-
tenance rules below:

 If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
Place the air l ow control at a sufi cient level to provide an adequate re-
newal of air in the passenger compartment.

 To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

 Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.

 Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.

 Ensure that the passenger compartment i lter is in good condit ion and
have the i lter elements replaced regularly (refer to the "Checks" section).

 We recommend the use of a combined passenger compartment i lter .
Thanks to its second special active i lter, it contributes to t he purii cation
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).

 To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.

 If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
In the "cabriolet" coni guration, the performance of the air conditioning system
may be reduced. However, installing the windstop improves comfo rt.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.

COMFORT
44
HEATING/VENTILATION
Control panel with manual control
Control panel with electric control
MANUAL AIR CONDITIONING
Control panel with manual control
Control panel with electric control

i
COMFORT
45

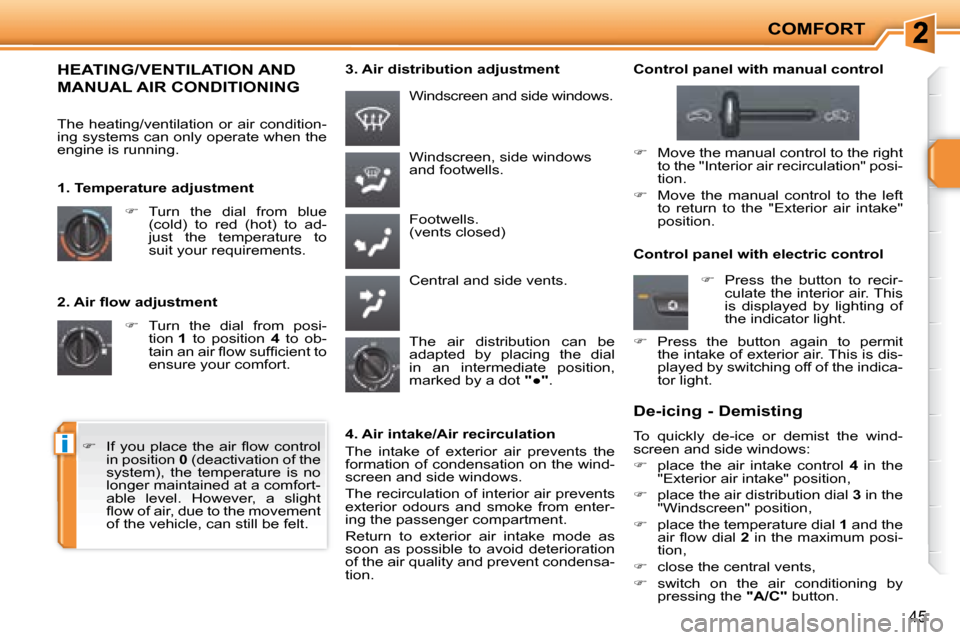

2. Air l ow adjustment
 Turn the dial from posi-
tion 1 to position 4 to ob-
tain an air l ow sufi cient to
ensure your comfort. Windscreen, side windows
and footwells.
Footwells.
(vents closed)
Central and side vents.

 Turn the dial from blue
(cold) to red (hot) to ad-
just the temperature to
suit your requirements. Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial
in an intermediate position,
marked by a dot "

COMFORT
44
HEATING/VENTILATION
Control panel with manual control
Control panel with electric control
MANUAL AIR CONDITIONING
Control panel with manual control
Control panel with electric control

i
COMFORT
45
2. Air l ow adjustment
 Turn the dial from posi-
tion 1 to position 4 to ob-
tain an air l ow sufi cient to
ensure your comfort. Windscreen, side windows
and footwells.
Footwells.
(vents closed)
Central and side vents.

 Turn the dial from blue
(cold) to red (hot) to ad-
just the temperature to
suit your requirements. Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial
in an intermediate position,
marked by a dot "

i
COMFORT
46

5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DE-ICING

 Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
The de-icing is deactivated when
the retractable roof is stored in the
boot.
Switching on
The rear screen de-icing can only oper-
ate when the engine is running.

 Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
Switching off
The de-icing switches off automatically
to prevent an excessive consumption of
current.

 It is possible to stop the de-icing op-
eration before it is switched off auto-
matically by pressing the button
again. The indicator light associated
with the button switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de-
misting, in winter above 0 °C.
Switching on

 Press the "A/C" button, the associ-
ated indicator light comes on.

The air conditioning does not oper-
ate when the air l ow adjustment dial
2 is in position "0".
Switching off

 Press the "A/C" button again, the as-
sociated indicator light switches off.

i
COMFORT
46

5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DE-ICING

 Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
The de-icing is deactivated when
the retractable roof is stored in the
boot.
Switching on
The rear screen de-icing can only oper-
ate when the engine is running.

 Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
Switching off
The de-icing switches off automatically
to prevent an excessive consumption of
current.

 It is possible to stop the de-icing op-
eration before it is switched off auto-
matically by pressing the button
again. The indicator light associated
with the button switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de-
misting, in winter above 0 °C.
Switching on

 Press the "A/C" button, the associ-
ated indicator light comes on.

The air conditioning does not oper-
ate when the air l ow adjustment dial
2 is in position "0".
Switching off

 Press the "A/C" button again, the as-
sociated indicator light switches off.

i
i
COMFORT
47
When the engine is cold, to prevent
too great a distribution of cold air,
the air l ow will only reach its opti-
mum level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, the side windows and the
footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to alter the value
displayed in order to obtain the re-
quired level of comfort. The system
eliminates the temperature differ-
ence automatically and as quickly
as possible.

The air conditioning can only operate
with the engine running.
The driver and his front passen-
ger can each set the tempera-
ture to suit their requirements.
 Turn dial 2 or 3 to the left to reduce
the value or to the right to increase it.
A setting around 21 enables you to ob-
tain an optimum level of comfort. De-
pending on your requirements, a setting
between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left/right setting difference of
more than 3.

4. Automatic visibility programme
The automatic comfort pro-
gramme may not be sufi cient
to quickly demist or de-ice the
windscreen and side windows
(humidity, several passen-
gers, ice...).

 In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air l ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation

 Press the "AUTO" button.
The "AUTO" symbol is
displayed. 2. Driver’s side adjustment

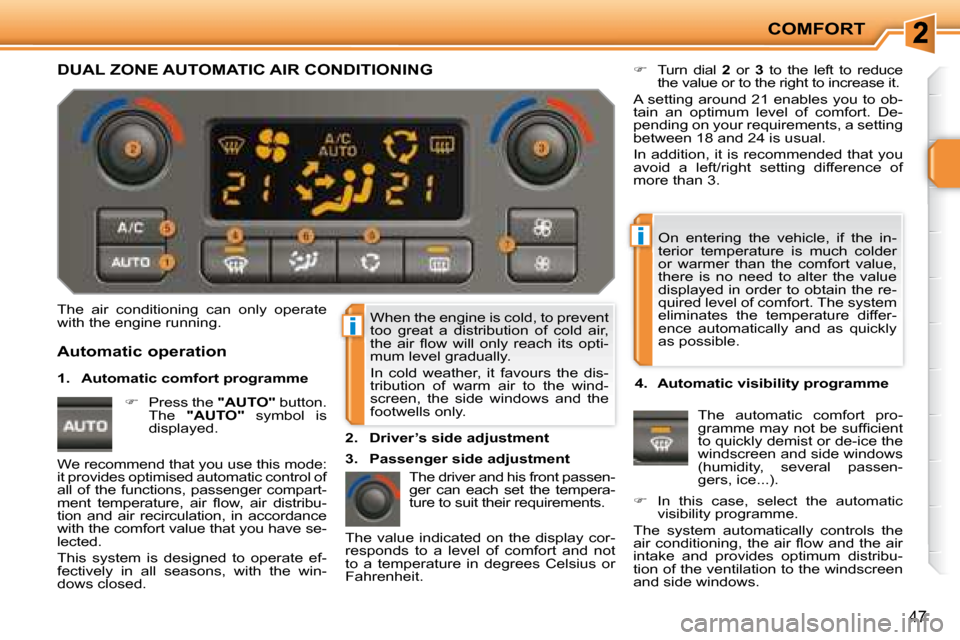

DUAL ZONE AUTOMATIC AIR CONDITIONING
We recommend that you use this mode:
it provides optimised automatic control of
all of the functions, passenger compart-
ment temperature, air l ow, air distribu-
tion and air recirculation, in accordance
with the comfort value that you have se-
lected.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.

1. Automatic comfort programme

3. Passenger side adjustment
