2007.5 Peugeot 207 CC Dag Owner's Manual

157
ESCLIST
MENU
ESC
MENU LIST
ESC
MENU LIST
MENU
6
8 1
2
3
4
ESC
MENU LIST
ESC
MENU LIST
S
O S SOURCE
MODE BAND TPT
A Y
DARK
ESC
MENU LIST
7ESC
MENU LIST
03

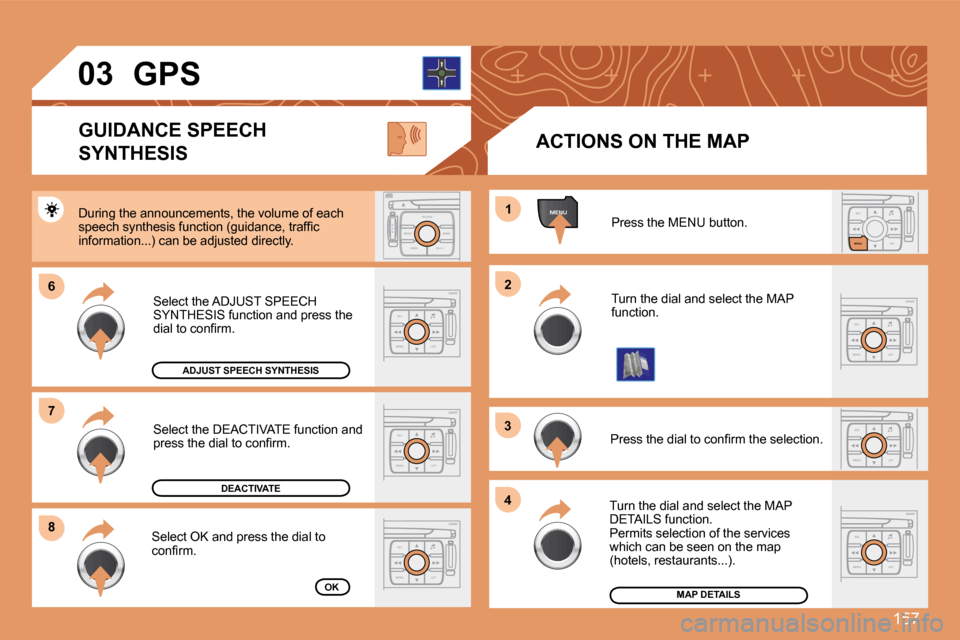

Press the MENU button.
Turn the dial and select the MAP
function.
Press the dial to conirm the selection.
Turn the dial and select the MAP
DETAILS function.
Permits selection of the services
which can be seen on the map
(hotels, restaurants...).
ACTIONS ON THE MAP
MAP DETAILS
During the announcements, the volume of each
speech synthesis function (guidance, trafic
information...) can be adjusted directly.
GUIDANCE SPEECH
SYNTHESIS
Select the ADJUST SPEECH
SYNTHESIS function and press the
dial to conirm.
GPS
ADJUST SPEECH SYNTHESIS
DEACTIVATE
Select the DEACTIVATE function and
press the dial to conirm.
OK
Select OK and press the dial to
conirm.

158
ESC
MENU LIST
MENU
ESC
MENU LIST
ESC
LIST
MENU
ESC
MENU LIST
ESC
MENU LIST
1
2
3
4 5
6
7
ESC
MENU LIST
ESC
MENU LIST
03

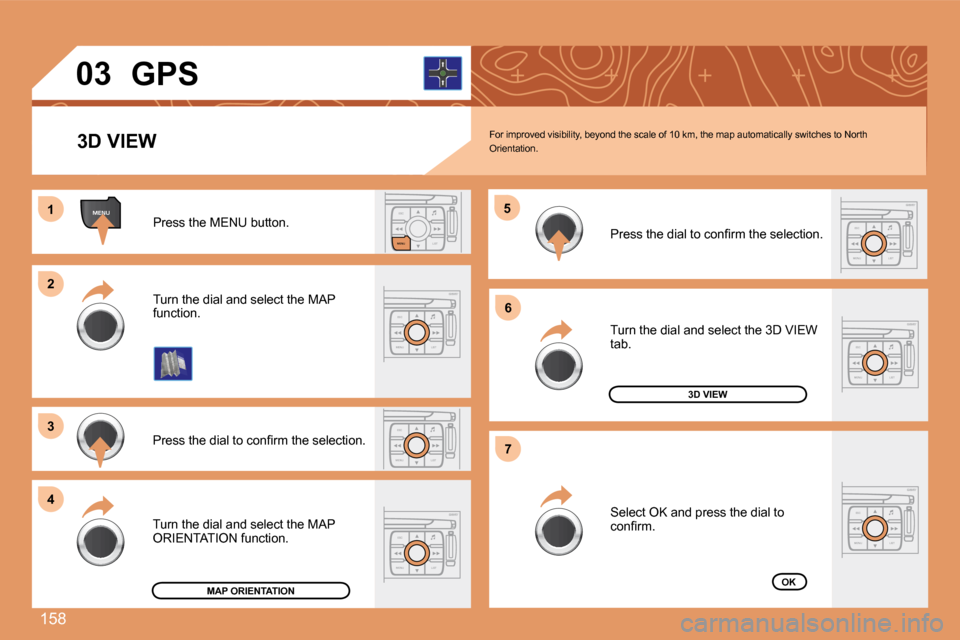

For improved visibility, beyond the scale of 10 km, the map automatically switches to North
Orientation.
Turn the dial and select the MAP
function.
Press the MENU button.
Press the dial to conirm the selection.
Turn the dial and select the 3D VIEW
tab.
Select OK and press the dial to
conirm.
Turn the dial and select the MAP
ORIENTATION function.
Press the dial to conirm the selection.
3D VIEW
GPS
MAP ORIENTATION
3D VIEW
OK

159
ESC
MENU LIST
MENU
ESC
MENU LIST
ESC
LIST
MENU
1
2
3
4 5
6
7
ESC
MENU LIST
03
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
Press the MENU button.
Press the dial to conirm the selection.
Turn the dial and select the MAP
function.
Turn the dial and select the MAP IN
WINDOW or FULL SCREEN MAP
tab.
Select OK and press the dial to
conirm.
Press the dial to conirm the selection.
Turn the dial and select the DISPLAY
MAP function.
DISPLAYING THE MAP IN A WINDOW OR
IN FULL SCREEN MODE
GPS
DISPLAY MAP
FULL SCREEN MAP
OK
MAP IN WINDOW

160
ESCLIST
MENU
MENU1
ESC
MENU LIST
2
3
4
5
ESC
MENU LIST9ESC
MENU LIST
8ESC
MENU LIST
7ESC
MENU LIST
6
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03

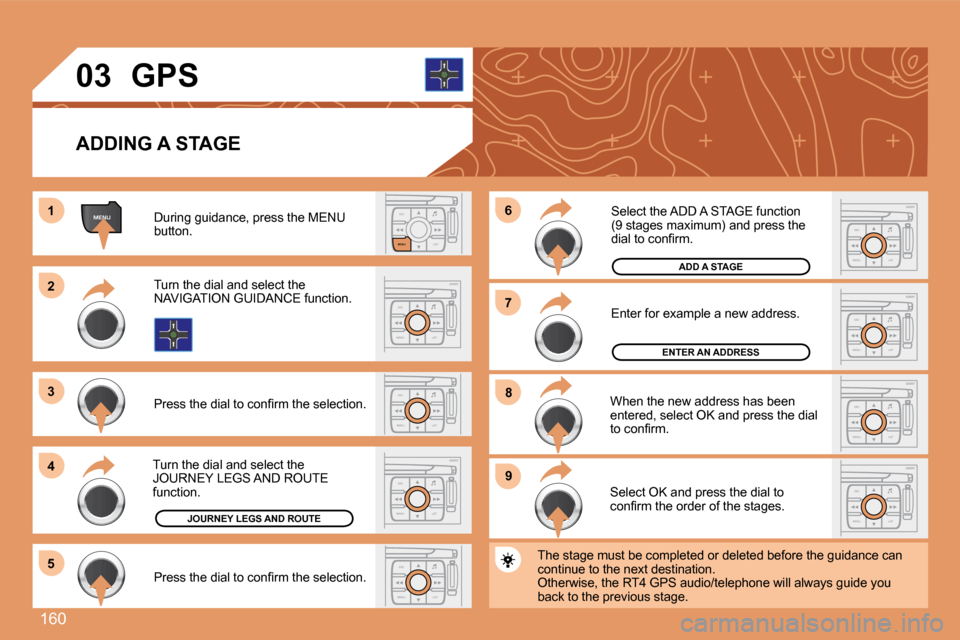

ADDING A STAGE
During guidance, press the MENU
button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to conirm the selection.
Turn the dial and select the
JOURNEY LEGS AND ROUTE
function.
JOURNEY LEGS AND ROUTE Select OK and press the dial to
conirm the order of the stages.
When the new address has been
entered, select OK and press the dial
to conirm. Enter for example a new address.
Select the ADD A STAGE function
(9 stages maximum) and press the
dial to conirm.
Press the dial to conirm the selection. The stage must be completed or deleted before the g
uidance can
continue to the next destination.
Otherwise, the RT4 GPS audio/telephone will always guide you
back to the previous stage.
ENTER AN ADDRESS
ADD A STAGE
GPS

161
ESCLIST
MENU
MENU1
ESC
MENU LIST
2
3
ESC
MENU LIST
4
5
ESC
MENU LIST
6
7
ESC
MENU LIST
8
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
04

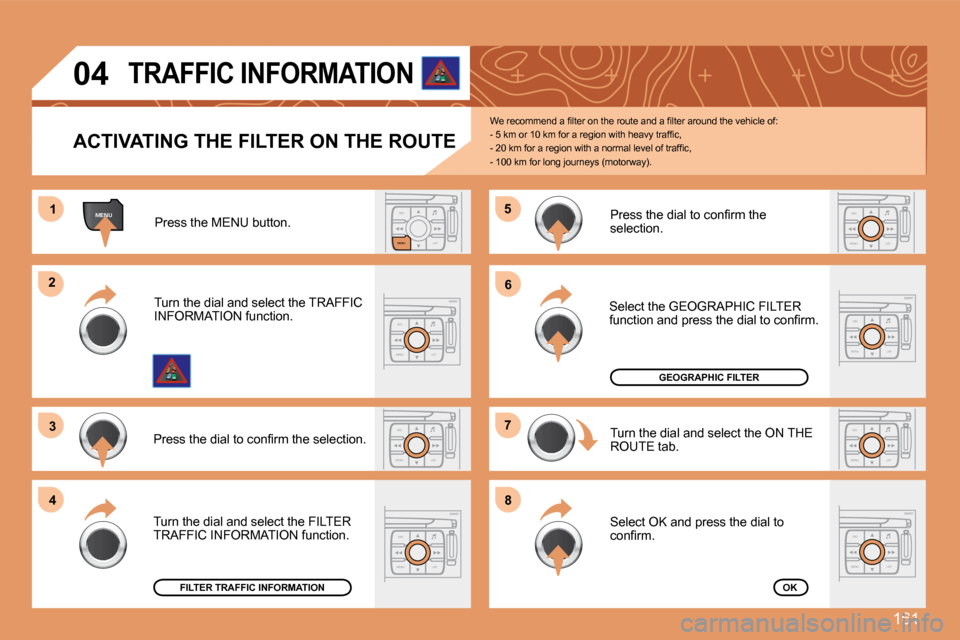

ACTIVATING THE FILTER ON THE ROUTE We recommend a ilter on the route and a ilter aroun
d the vehicle of:
- 5 km or 10 km for a region with heavy trafic,
- 20 km for a region with a normal level of trafic,
- 100 km for long journeys (motorway).
Press the MENU button.
Turn the dial and select the TRAFFIC
INFORMATION function.
Press the dial to conirm the selection.
FILTER TRAFFIC INFORMATION
Turn the dial and select the FILTER
TRAFFIC INFORMATION function. Press the dial to conirm the
selection.
GEOGRAPHIC FILTER
Select the GEOGRAPHIC FILTER
function and press the dial to conirm.
Turn the dial and select the ON THE
ROUTE tab.
OK
TRAFFIC INFORMATION
Select OK and press the dial to
conirm.

162
ESCLIST
MENU
MENU1
ESC
MENU LIST
2
3
4 6
5
ESC
MENU LIST
ESC
MENU LIST
7
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
04
Press the MENU button.
READ MESSAGES
NEW MESSAGE DISPLAY
OK
CONFIGURING THE TMC MESSAGE
ANNOUNCEMENTS
We recommend that you do not tick the NEW MESSAGE D
ISPLAY tab for regions with heavy trafic.
Turn the dial and select the TRAFFIC
INFORMATION function.
Press the dial to conirm the selection.
Press the dial to conirm the selection.
Turn the dial and select the
CONFIGURE MESSAGE
ANNOUNCEMENT function. Select the READ MESSAGES tab.
The Trafic Information Messages will
be read by the voice synthesiser.
Select the NEW MESSAGE DISPLAY tab.The trafic information messages
are extended to the ilters selected
(geographic...) and can also be
displayed when guidance is not active.
TRAFFIC INFORMATION
Select OK and press the dial to
conirm.CONFIGURE MESSAGE ANNOUNCEMENT

163
1
2
3
4S
O S SOURCE
MODE BAND TPT
A Y
DARKSOURCE
S
O S SOURCE
MODE BAND TPT
A Y
DARKBAND
SOURCE
BAND
ESC
MENU LIST
LIST
ESC LIST
MENU
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
1
2
3
4
LIST
ESC
MENU LIST
ESC
MENU LIST
05 AUDIO/VIDEO
RADIO
SELECTING A STATION
Press the SOURCE button several
times in succession and select the
RADIO.
Press the BAND button to select a
waveband: FM1, FM2, FMast, AM.
Briely press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out a
manual search of the radio stations.
Press the LIST button to display the
list of stations received locally
(60 maximum).
To update this list, press for more than
two seconds. The external environment (hills, buildings, tunnels
, basement car parks, ...) may block reception,
including in RDS mode. This is a normal effect of t he way in which radio waves are transmitted and doe s
not indicate any failure of the audio equipment.
RDS
Select ACTIVATE FREQUENCY
FOLLOWING (RDS) then press OK.
RDS appears on the display.
Select the RADIO PREFERENCES
function then press OK.
Select AUDIO FUNCTIONS then
press OK.
Press the MENU button.
The RDS, if displayed, enables you to continue list ening to the
same station by means of frequency following. Howev er, in certain
conditions, this RDS station is not followed throug hout the country
as radio stations do not cover 100 % of the territo ry. This explains
the loss of reception of the station during a journ ey.
RADIO PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)

164
S
O S SOURCE
MODE BAND TPT
A Y
DARKSOURCE
ESC
MENU LIST
LIST
SOURCE
LIST
S
O SSOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs0 # MENU LIST
TA
PTY
DARK
1
2
05 AUDIO/VIDEO
MP3 CD
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 A udio Layer 3,
is an audio compression standard which permits the recording of
several tens of music iles on a single disc.
In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may n ot be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as poss ible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the J oliet standard is
recommended.
The audio equipment will only play audio iles with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z. No other type
of ile (.wma, .mp4, m3u...) can be played.
It is advisable to restrict ile names to 20 charact ers without using
special characters (e.g.: " " ? ; ù) to avoid any p laying or displaying
problems. CD
Insert circular compact discs only. Some anti-pirat
ing
systems, on original discs or CDs copied using
a personal recorder, may generate malfunctions
regardless of the quality of the original player.
Insert an audio CD or an MP3 compilation in the pla yer,
play begins automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD to
listen to it.
Press one of the buttons to select a
track on the CD.
Press the LIST button to display
the list of tracks on the CD or of the
directories of the MP3 compilation.
The playing and displaying of an MP3 compilation ma y depend on
the recording programme and/or the parameter settin gs used. We
recommend use of the ISO 9660 recording standard.
INFORMATION AND ADVICE PLAYING A CD OR AN MP3 COMPILATION
