2007.5 Peugeot 207 CC Dag Owner's Manual

i
FAMILIARISATION

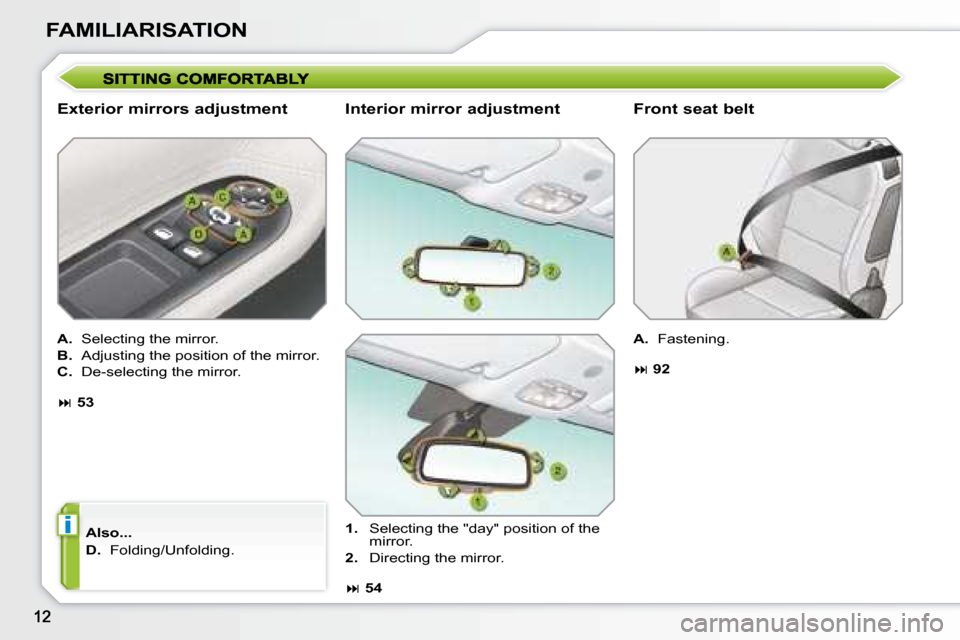

Exterior mirrors adjustment

A. Selecting the mirror.

B. Adjusting the position of the mirror.

C. De-selecting the mirror.

 53
Also...

D. Folding/Unfolding. Interior mirror adjustment

1. Selecting the "day" position of the
mirror.

2. Directing the mirror.

 54 Front seat belt

A. Fastening.

 92

i
FAMILIARISATION

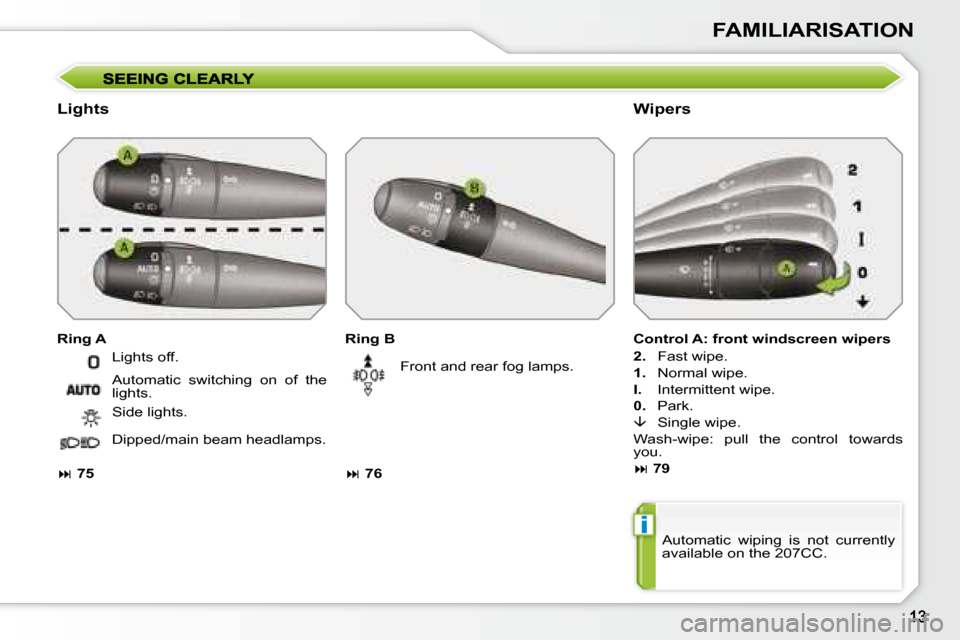

Lights Wipers
Ring B

 76 Front and rear fog lamps.
Ring A
Control A: front windscreen wipers

2. Fast wipe.

1. Normal wipe.

I. Intermittent wipe.

0. Park.

 Single wipe.
Wash-wipe: pull the control towards
you.

 79
Lights off.
Automatic switching on of the
lights.
Side lights.
Dipped/main beam headlamps.

 75
Automatic wiping is not currently
available on the 207CC.

–
FAMILIARISATION
Advice on interior settings
I require...
Heating or Manual air conditioning

Air distribution Air l ow
Air recirculation/
Exterior air intake
Temperature Manual A/C

HEAT

COOL

DEMISTING

DE-ICING

Automatic air conditioning: use of the fully automatic mode by pressing the "AUTO" button is preferable.

FAMILIARISATION
Instrument panel Controls bar

A. With the ignition on, the fuel gauge
needle should rise.

B. With the engine running, the
associated low level warning light
should switch off.

C. With the ignition on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low.

 18 Lighting of the indicator light indicates
the status of the corresponding
function.

A. Deactivation of the ESP/ASR
system.

 91

B. Deactivation of the visual and
audible rear parking assistance.

 107

C. Central locking.

 71
D. Deactivation of the interior protection alarm.

 66

1. With the ignition on, the orange and
red warning lights come on.

2. With the engine running, these
warning lights should switch off.
If a warning light remains on, refer to
the page concerned.

 19
Warning lights

FAMILIARISATION
Front passenger air bag Ignition switch

1. Open the glove box.

2. Insert the key.

3. Select position:
"ON" (activation), with front
passenger or "forwards facing"
child seat,
"OFF" (deactivation), with "rear
facing" child seat.

4. Remove the key keeping the switch
in this position.

 95
1. Stop position.

2. Ignition position.

3. Starting position.

 64

A. Front left seat belt not fastened or
unfastened warning light lit in red.

B. Front right seat belt not fastened or
unfastened warning light lit in red.

C. Rear left seat belt unfastened
warning light lit in red.
D. Rear right seat belt unfastened warning light lit in red.

 92
Front and rear seat belts

FAMILIARISATION
Speed limiter Instrument panel display

1. Selecting/Switching off speed
limiter mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter on/off.
The values must be set with the engine
running.

 103 The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

1. Selecting/Switching off cruise
control mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Off/return to cruise control .
In order to be programmed or activated,
the vehicle speed must be higher
than 25 mph (40 km/h), with at least
fourth gear engaged on the manual
gearbox (second gear on the automatic
gearbox).

 105
Cruise control
Cruise control Speed limiter

INSTRUMENTS and CONTROLS
18
PETROL - DIESEL MANUAL GEARBOX OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel which groups together the vehi-
cle operation dials and indicator lights.
5. Oil temperature.
Indicates the temperature of the oil in the engine (°Celsius).

6. Display.

7. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service in-
dicator).

8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.

9. Automatic gearbox.
Indicates the programme selected and the gear engaged.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1000 rpm).

2. Fuel gauge.
Indicates the quantity of fuel remain- ing in the tank.

3. Cooling temperature.
Indicates the temperature of the en- gine coolant (°Celsius).

4. Speedometer.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter
or
Cruise control.
(km/h or mph)

B. Trip distance recorder.
(km or miles)

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
Distance recorder.
(km or miles)
These three functions are displayed in succession when the ignition is
switched on.
For further information, refer to the sec-
tion which corresponds to the function
and to the display associated with it.
Display

!
INSTRUMENTS and CONTROLS
19
The indicator/warning light comes
on continuously or l ashes.
Some indicator/warning lights may
light in two different ways. Only by
relating the type of lighting to the
vehicle operating status can it be
ascertained whether the situation
is normal or whether a fault has oc-
curred.
Indicator and warning lights
Visual indicators which inform the driv-
er when a system comes into opera-
tion (operation or deactivation indicator
lights) or of the occurrence of a fault
(warning light).
Associated warnings
The lighting of certain indicator/warning
lights may be accompanied by an audi-
ble signal and a message on the multi-
function display. Operation indicator lights
The lighting of one of the following indica-
tor lights coni rms that the corresponding
system has come into operation.
Left-hand direction indicator.
Handbrake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating.
Wait until this switches off be-
fore operating the starter.
Front fog lamps.
Rear fog lamps.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle ignition is
switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the text relating to the warning
light concerned.
