TECHNICAL DATA
149
IDENTIFICATION FEATURES
Various visible marking elements for the
identii cation and tracking of your vehicle. Wheels which are i tted with 205/45
R17 tyres cannot be i tted with
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
If the inl ation pressure is too low,
this increases fuel consumption.
The inl ation pressure must be
checked when the tyres are cold,
at least once a month.

A. Chassis number under the
bonnet.
This number is etched on the bodywork
near the passenger compartment i lter.
B. Chassis number on the fascia.
This number is indicated on a gummed
label which is visible through the wind-
screen.
C. Chassis number on the chassis.
This number is indicated on a self-
destroying label afi xed to the centre pillar,
near the driver’s door striker.

D. Manufacturer’s label.
This label is afi xed to the edge of the
door on the driver’s side.
It bears the following information:
- the wheel rim and tyre sizes,
- the brands of tyre recommended by
the manufacturer,
- the associated inl ation pressures,
- the paint colour reference.

150
S
O S SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK
The SERVICE BOX internet site provides additional
animated information on the RT4. It can be consulte d at the
following address: http://public.servicebox.peugeot .com
Simple registration permits access and free consult ation
of the handbook.
The RT4 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If i t is to be
installed in another vehicle, contact your PEUGEOT
dealer for coniguration of the system.
For safety reasons, it is imperative that the drive r carries
out operations which require prolonged attention wh ile
the vehicle is stationary.
When the engine is off and in order to prevent
discharging of the battery, the RT4 GPS audio/telep hone
may switch off after a few minutes. RT4
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
CONTENTS

151
S
O S
SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK
2
1
5
3 4
89 10 15
11 17 18
12 16
14
7
6
13 01
1. Ejection of the CD.
2. Selection of the source: radio, Jukebox, CD, CD ch anger
and auxiliary (AUX, if activated on the Coniguratio n menu).
Long press: CD copy to hard disc.
3. Long press on the SOS button: emergency call.
4. Selection of the display on the screen from the mo des:
TRIP, TEL, NAV and AUDIO.
5. Modiication of the screen display.
Long press: reinitialisation of the RT4 GPS audio/ telephone.
6. On/Off and Volume adjustment.
7. Selection of the wavebands FM1, FM2, FMast, AM. 8.
TA (Trafic Announcement) function on/off.
Long press: access to the PTY (radio Programme TYp es)
mode.
9. Access to the "PEUGEOT" services menu.
10. Cancellation of the current operation.
Long press: return to the current application.
11. Automatic search for a lower/higher frequency.
Selection of the previous/next CD, MP3 or Jukebox track.
12. Displaying of the general menu.
13. Keypad for entering descriptions by successive pre sses.14.
Selection of the previous/next CD.
Selection of the previous/next MP3/Jukebox directo ry.
15. Audio option adjustments: front/rear, left/right b alance,
loudness, sound ambiences.
16. Selection and conirmation.
17. SIM card slot.
18. Displaying of the list of local radio stations, of the tracks on
the CD or of the MP3/Jukebox directories.
Long press: updating of the local radio stations.
FIRST STEPS

152
02 GENERAL MENUMAP: orientation, details,
display. AUDIO FUNCTIONS: radio,
CD, Jukebox, options.For maintenance of the
display, the use of a
soft, non-abrasive cloth
(spectacles cloth) is
recommended without any
additional product.
TELEMATIC: telephone,
directory, SMS.
CONFIGURATION: vehicle,
display, time, languages,
voice, auxiliary socket (AUX)
parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS:
warnings log, status of the
functions.
NAVIGATION GUIDANCE:
GPS, stages, options. TRAFFIC INFORMATION: TMC
information, messages.

153
MENUESCLIST
MENU
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
1
2
3 5
7
4 6
8
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03 GPS
SELECTING A DESTINATION
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to conirm the selection.
Turn the dial and select the
DESTINATION CHOICE function. Press the dial to conirm the selection.
Press the dial to conirm the selection.
Turn the dial and select the ENTER
AN ADDRESS function.
When the country has been selected,
turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE Tip: for a detailed global view of the menus availa
ble, refer to the "Display low charts" section of this
RT4 chapter.

154
9
11
12
14
10
13
ESC
MENU LIST
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
r
7
pq s
0
#
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
Press the dial to conirm the selection.
Turn the dial and select the letters of
the town one by one conirming each
time by pressing the dial.
Select OK and press the dial to
conirm.
To speed up the process, the POST CODE can be
entered instead of the name of the town.
Use the alphanumeric keypad to enter the letters an
d
digits and "*" to correct. Press the dial to conirm the selection.Select OK on the ENTER AN
ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions.
OK
OK
Select the STORE function to record the address ent
ered in a
directory record and press the dial to conirm the s election.
The points of interest (POI) indicate all of the se rvice locations in the
vicinity (hotels, various businesses, airports...).STORE
PARIS
POI

155
ESCLIST
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
MENU1
2
3
4 5
6
7
8
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03
GUIDANCE OPTIONS GPS
The route chosen by the RT4 GPS audio/telephone depends directly on the guidance options.
Changing these options may completely change the ro ute.
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to conirm the selection.
Turn the dial and select the
GUIDANCE OPTIONS function. Turn the dial and select the DEFINE
CALCULATION CRITERIA function.
Press the dial to conirm the selection.
Press the dial to conirm the selection.
GUIDANCE OPTIONSDISTANCE/TIME
DEFINE CALCULATION CRITERIA
Turn the dial and select, for example,
the DISTANCE/TIME function.

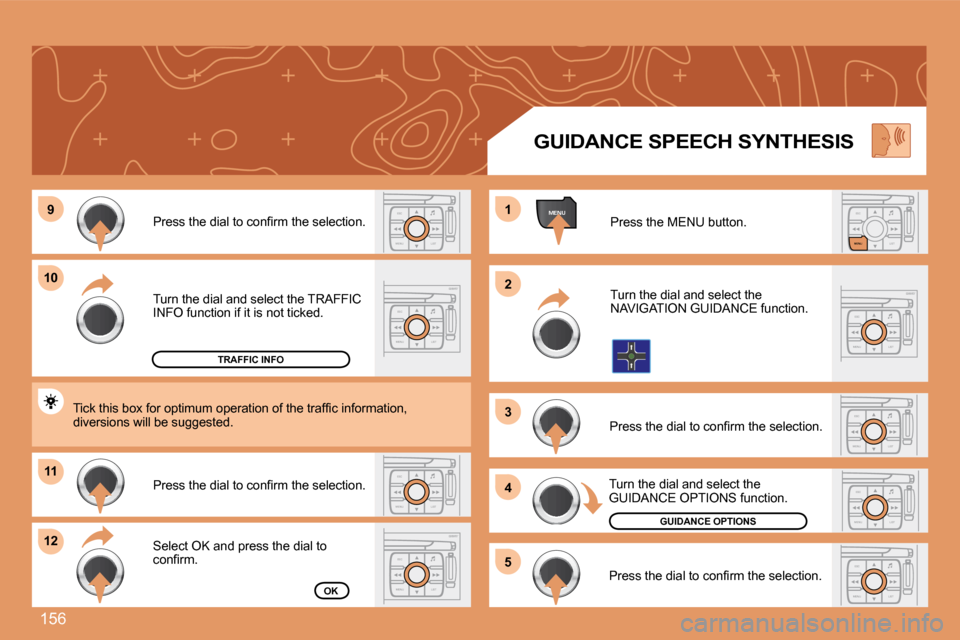

156
ESC
MENU LISTESC
MENU LIST
MENU9
10
11
12 1
2
3
4
5ESC LIST
MENU
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
Turn the dial and select the TRAFFIC
INFO function if it is not ticked.
Press the dial to conirm the selection.
Select OK and press the dial to
conirm.
TRAFFIC INFO
Press the dial to conirm the selection.
Tick this box for optimum operation of the trafic i
nformation,
diversions will be suggested.
OK
GUIDANCE SPEECH SYNTHESIS
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to conirm the selection.
GUIDANCE OPTIONS
Turn the dial and select the
GUIDANCE OPTIONS function.
Press the dial to conirm the selection.
