2007.5 Citroen C5 DAG Owner's Manual

101
III
A U T O M A T I C A I R C O N D I T I O N I N G
M O N O Z O N E
7. Rear demisting - deicing
Press button 7, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode automatically stops depending on the out-side temperature. It can be interrupted by a further press on button 7 or by stopping the engine.
In the latter case, demisting will resume when the engine is switched on again.Note: The heated rear screen operates independently of the automatic air conditioning.
This button activates the recirculation of air in the pas-senger compartment.
Press button 8 to switch off the entry of air from outside. The warning lamp comes on.
Whilst retaining the other settings, this position allows the driver at any moment to exclude unpleasant smells or smoke/emissions coming from outside.
This mode should be cancelled as soon as possible to allow the redistribution of air in the passenger compartment.
8. Air recirculation – Entry of air from outside
Remarks:When starting from cold, in order to prevent unwanted cold air, the air fl ow will increase only gradually to its optimum level.
If you enter the vehicle after a fairly prolonged stop and the temperature inside the vehicle is far from comfortable, it serves no purpose to modify the tem-perature that is displayed as an attempt to go imme-diately to the desired comfort level. The system automatically uses all of its power to compensate the temperature gap as quickly as possible.Water arising from the condensation in the air con-ditioning drains out through a hole provided for this purpose ; a pool of water may thus form underneath the vehicle when stationary.
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and misting. Avoid driving for too long with air condition-ing deactivated.

102
III81a2a3a848581b1b3b3b2b2b
867
A
A
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
This is the normal operating mode for the system. Depending on the level of comfort chosen, a press on this button, confi rmed by light A coming on, allows all of the following functions to be automatically and simulta-neously controlled:Air fl ow.
Cabin temperature.Air distribution.
Air conditioning.
Automatic air recirculation.
It is recommended to keep all the air vents open. Just by pressing any of the buttons, except for tempera-ture 1a and 1b, you can change to manual mode. The light A goes out.

103
III
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
3a-3b. Adjusting the air dis-tributionPress button 3a to change the driver's side air fl ow distribution.Press button 3b to change the passenger's side air fl ow distribu-tion.
The symbol (arrows) corresponding to the chosen dis-tribution lights up:Windscreen and front windows.
Front air vents (central, side and soft diffusion grille if open) and rear air vents.Front and rear footwells.Note: You cannot select distribution to the windscreen/front windows and to the front/rear air vents at the same time.
-
-

104
III
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
Switching off the entry of air
Press button 6 to switch off the entry of air from outside.
Whilst retaining the other settings, this posi-tion allows the driver at any moment to exclude unpleasant smells or smoke/emissions coming from outside.
This mode should be cancelled as soon as possible to allow the redistribution of air in the passenger compartment.
Entry of air from outside
Press once on button 6 to return to the origi-nal status (Entry of air from outside).
7. Rear demisting - deicing
Press button 7, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode automatically stops depending on the out-side temperature. It can be interrupted by a further press on button 7 or by stopping the engine.
In the latter case, demisting will resume when the engine is switched on again.Note: The heated rear screen operates independently of the automatic air conditioning.
8. Front demisting - deicing
In some cases, “AUTO” mode may not be suffi cient to demist or defrost the windows (e.g. humidity, several passengers, frost).
Press button 8 for rapid clear windows. The warning lamp comes on. This system controls air conditioning, temperature and air fl ow/entry. It distributes ventilation towards the windscreen and the front windows.
You can manually exit “Demisting” mode. This mode should be cancelled as soon as possible to allow the redistribution of air in the passenger compartment.
A press on either of the buttons 1a or 1b allows you to return to “AUTO” mode.
Remarks:When starting from cold, in order to prevent unwanted cold air, the air fl ow will increase only gradually to its optimum level.If you enter the vehicle after a fairly prolonged stop and the temperature inside the vehicle is far from comf ort-able, it serves no purpose to modify the temperatur e that is displayed as an attempt to go immediately t o the desired comfort level. The system automatically uses all of its power to compensate the temperature gap as quickly as possible.
Water arising from the condensation in the air con-ditioning drains out through a hole provided for this purpose ; a pool of water may thus form underneath the vehicle when stationary.
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and misting. Avoid driving for too long with air condition-ing deactivated.

105
III
A
R E A R S E A T S
Rear head restraints
The rear head restraints have two positions:A stowed position for when the seat is not occupied.A deployed position for safety of passengers, locking into place includ-ing for a forward-facing child seat.
To lower them, press on the unlocking control A.
To remove them, pull upwards as far as possible and press on the unlocking control A.

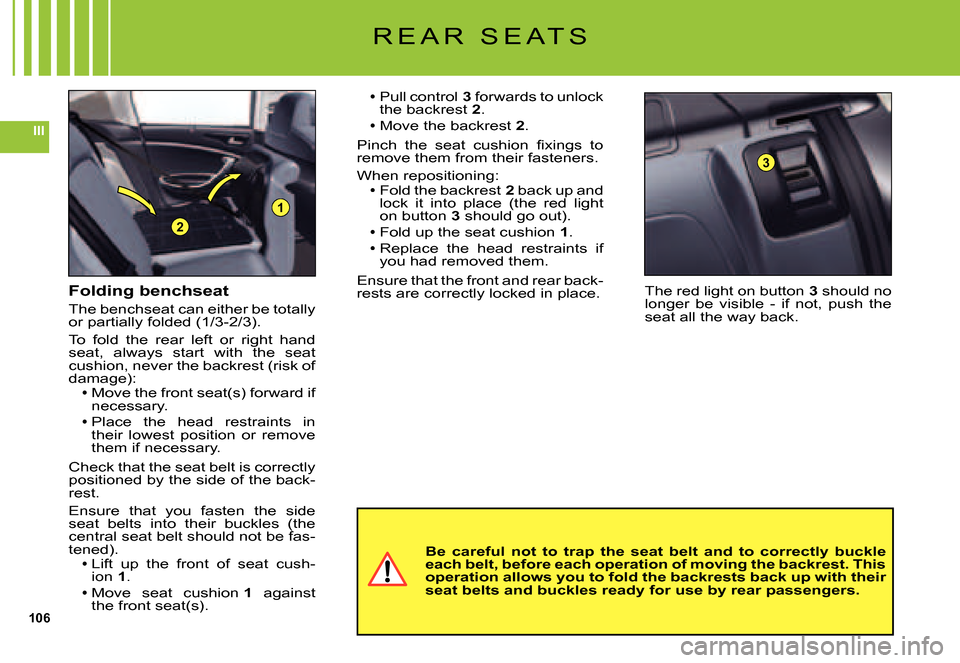

106
III
1
2
3
R E A R S E A T S
The red light on button 3 should no longer be visible - if not, push the seat all the way back.
Pull control 3 forwards to unlock the backrest 2.Move the backrest 2.
Pinch the seat cushion fi xings to remove them from their fasteners.
When repositioning:Fold the backrest 2 back up and lock it into place (the red light on button 3 should go out).Fold up the seat cushion 1.
Replace the head restraints if you had removed them.
Ensure that the front and rear back-rests are correctly locked in place.

107
III
A
A I R B A G S
Front passenger's airbag deactivation
In order to be able to use a rear-facing child seat in the front pas-senger's seat position, it is impera-tive to deactivate the passenger's airbag.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the “OFF” posi-tion, the passenger's airbag is deactivated.With the ignition on, the front passenger's airbag deactiva-tion warning lamp lights up on the roof console display.

108
III
A
C H I L D S A F E T Y
Note:The activation of this function is confi rmed by a message on the instru-ment panel screen and the light on button A coming on.
If the light on button A fl ashes, the doors have not been closed prop-erly.
The status of this function is memorised when the ignition is switched off.
The electric child safety is automatically deactivated in the e vent of a seri-ous accident (e.g. triggering of an airbag).
